Splash screen with Progress Bar

A zip file for download is attached for this project.

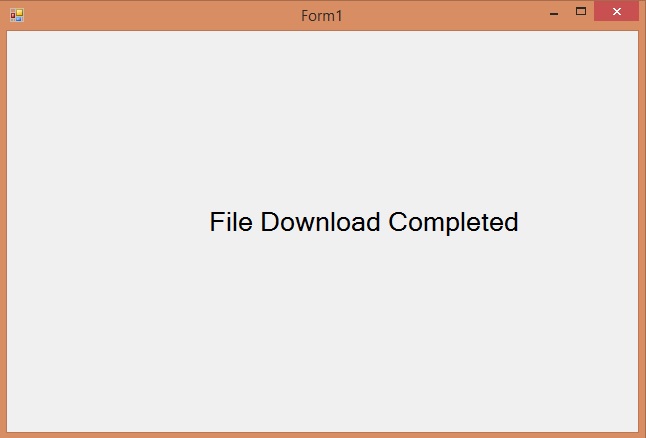

Preview screenshots:









 This is the form1 code:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.IO;
using System.Net;
using System.Threading;

namespace Splash_Screen_With_Progress_Bar
{

    public partial class Form1 : Form
    {
        private FileDownload fd;
        public static Splash_Screen splash_s;
        private string Link = "http://www.ims.gov.il/Ims/Pages/RadarImage.aspx?Row=9&TotalImages=10&LangID=1&Location=";
        private string FileName;

        public Form1()
        {
            InitializeComponent();

            splash_s = new Splash_Screen();
            fd = new FileDownload(this);
            FileName = @"c:\temp\test.jpg";

            fd.File_Download(Link, FileName);
            splash_s.Show();

            for (int i = 1; i < 100; i++)
            {
                Thread.Sleep(30);
                Application.DoEvents();
            }
            splash_s.SyncedClose();
            splash_s = null;
            FileDownloadCompleted();
        }

        public void FileDownloadCompleted()
        {
            label1.Text = "File Download Completed";
        }

        private void Form1_Load(object sender, EventArgs e)
        {

        }
    }
}

 This is the code of the Splash screen form:



The Splash screen form i called it Splash_Screen_With_Progress_Bar

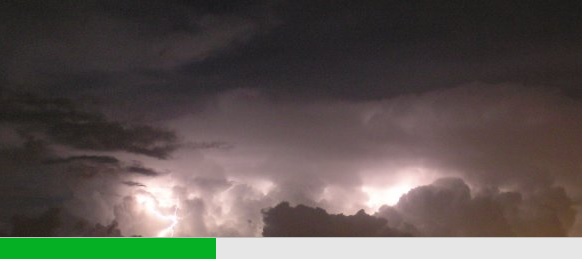

I added to the Splash form in the designer a background image then set the form size to 589,260 and the properties Start Position = center screen , Show in taskbar = false , Form Border Style = none ,  AutoScale Mod = font



Then I added a progressBar control to the form and set it's property Dock to Bottom.

The progressBar size is: 589,23

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.Threading;
using System.IO;

namespace Splash_Screen_With_Progress_Bar
{
    public partial class Splash_Screen : Form
    {
        public Splash_Screen()
        {
            InitializeComponent();
        }

        private Mutex mutex = new Mutex();
        public void SyncedClose()
        {
            mutex.WaitOne();
            this.Close();
            mutex.ReleaseMutex();
        }
        public void UpdateProgressBar(int percentage)
        {

            if (this.InvokeRequired)
            {
                mutex.WaitOne();
                if (!IsDisposed)
                    this.BeginInvoke(new Action<int>(UpdateProgresPRV), percentage);
                mutex.ReleaseMutex();
            }
            else
            {
                UpdateProgresPRV(percentage);
            }
        }

        private void UpdateProgresPRV(int per)
        {
            if (progressBar1.IsDisposed) return;
            progressBar1.Value = per;
        }

        private void Splash_Screen_Load(object sender, EventArgs e)
        {

        }
    }
}

 This is the FileDownload class:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Net;
using System.IO;

namespace Splash_Screen_With_Progress_Bar
{
    class FileDownload
    {

        Form1 f1;

        public FileDownload(Form1 form1)
        {
            f1 = form1;
        }

        HttpWebRequest request;
        int currentIndex = 0;
        public void File_Download(string uri, string fileName)
        {
            if (Form1.splash_s != null)
            {
                if (!Form1.splash_s.IsDisposed)
                    Form1.splash_s.UpdateProgressBar(0);
            }
            request = (System.Net.HttpWebRequest)System.Net.WebRequest.Create(uri);
            request.CookieContainer = new CookieContainer();
            request.AllowAutoRedirect = true;

            HttpWebResponse response = (HttpWebResponse)request.GetResponse();
            long contentLength = response.ContentLength;
            if ((response.StatusCode == HttpStatusCode.OK ||
                response.StatusCode == HttpStatusCode.Moved ||
                response.StatusCode == HttpStatusCode.Redirect) &&
                response.ContentType.StartsWith("image", StringComparison.OrdinalIgnoreCase))
            {
                using (Stream inputStream = response.GetResponseStream())
                using (Stream outputStream = File.OpenWrite(fileName))
                {
                    byte[] buffer = new byte[4096];
                    int bytesRead;
                    do
                    {
                        bytesRead = inputStream.Read(buffer, 0, buffer.Length);
                        currentIndex += bytesRead;
                        double percentage = (double)currentIndex / contentLength;
                        if (Form1.splash_s != null)
                        {
                            if (!Form1.splash_s.IsDisposed)
                                Form1.splash_s.UpdateProgressBar((int)(percentage * 100));
                        }
                        outputStream.Write(buffer, 0, bytesRead);
                    } while (bytesRead != 0);
                    if (Form1.splash_s != null)
                    {
                        if (!Form1.splash_s.IsDisposed)
                        {
                            Form1.splash_s.UpdateProgressBar(100);
                        }
                    }
                }

            }
            else
            {

            }
            if (Form1.splash_s == null)
                f1.FileDownloadCompleted();
        }
    }
}
