Take SQL Sever Database Backup from Winform

Step 1: Create new windows application.

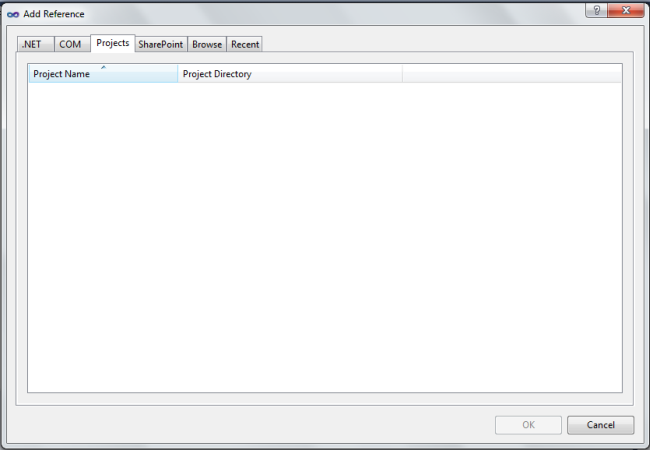

Step 2:  In Solution Explorer right click on References  and select Add References. Then Add Reference form will open as below.

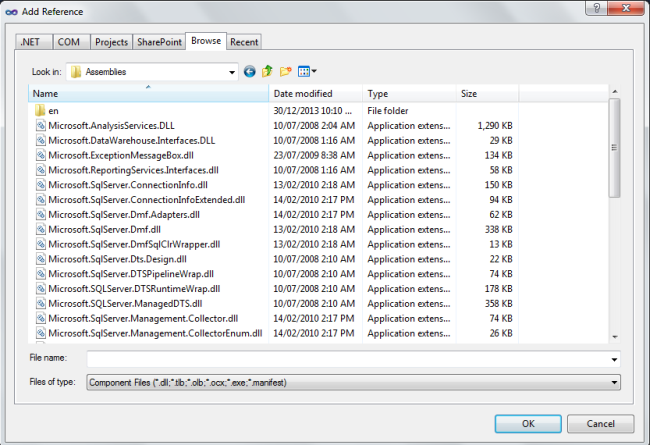

Step 3: Then select Browse tab and locate folder "C:\Program Files\Microsoft SQL Server\100\SDK\Assemblies” as follows.


Step 4: Then select following references and add it to project.

Microsoft.SqlServer.ConnectionInfo
Microsoft.SqlServer.Management.Sdk.Sfc

Microsoft.SqlServer.Smo

Microsoft.SqlServer.SmoExtended

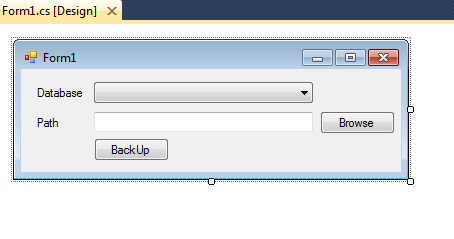

 Step 5: Design windows form as follows.


Step 6: Drag drop folderBrowserDialog on form.

Step 7: Write following code.

using System;

using System.Collections.Generic;
using
System.ComponentModel;
using
System.Data;
using
System.Drawing;
using
System.Linq;
using
System.Text;
using
System.Windows.Forms;
using
Microsoft.SqlServer.Management.Smo;
using
Microsoft.SqlServer.Management.Common;

namespace DBBackup

{

public partial class Form1 : Form
    {

        DataTable dtServers = SmoApplication.EnumAvailableSqlServers(true);

        private static Server srvr;
        ServerConnection conn;


public Form1()
        {

            InitializeComponent();

        }


        private void Form1_Load(object sender, EventArgs e)

        {
            ServerConnection srvConn =
new ServerConnection("localhost");
            srvConn.LoginSecure =
true;
            srvr =
new Server(srvConn);

foreach (Database dbServer in srvr.Databases)
            {


cmbDataBase.Items.Add(dbServer.Name);

            }

        }

        private void btnBrowse_Click(object sender, EventArgs e)

       {
            FolderBrowserDialog folderBrowserDlg =
new FolderBrowserDialog();

folderBrowserDlg.ShowNewFolderButton =
false;
            DialogResult dlgResult = folderBrowserDlg.ShowDialog();


if (dlgResult.Equals(DialogResult.OK))
            {

                txtPath.Text = folderBrowserDlg.SelectedPath;


Environment.SpecialFolder rootFolder = folderBrowserDlg.RootFolder;
            }

        }


        private void txtBackup_Click(object sender, EventArgs e)

        {
            Backup bkp =
new Backup();
            conn =
new ServerConnection();
            srvr =
new Server(conn);

try
            {


string databaseName = cmbDataBase.Text;
                bkp.Action = BackupActionType.Database;

                bkp.Database = databaseName;


string path;

if (!(txtPath.Text.EndsWith("\\")))
                {

                    path = txtPath.Text +
"\\";
                }


else
                {

                    path = txtPath.Text;

               }

                BackupDeviceItem bkpDevice = new BackupDeviceItem(path + databaseName + ".bak", DeviceType.File);

                bkp.Devices.Add(bkpDevice);
                bkp.Incremental =
false;
                bkp.SqlBackup(srvr);

                MessageBox.Show(
"Database Backup created successfully");
            }


catch (Exception ex)
            {

                MessageBox.Show(ex.ToString());

            }

        }

    }

}

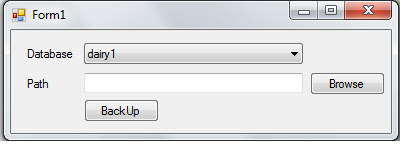

 Step 8: Run application.

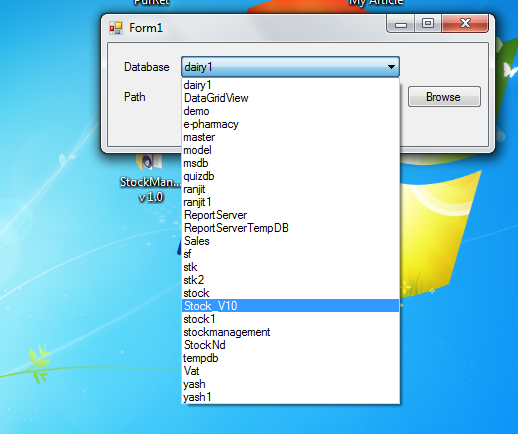

Step 9: Select Database to backup.

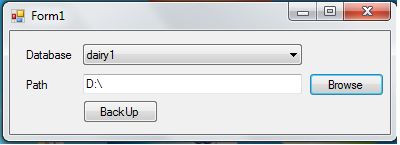

Step 10: Select location to store backup file through browse option.

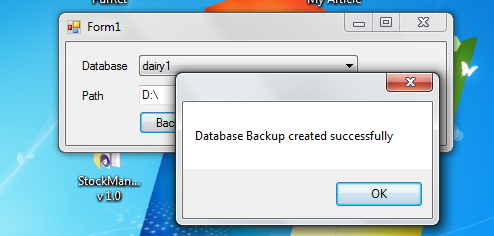

Step 11: Click on Backup.

Step 12: Backup file will be stored in specified path.
