Using Image Map Control in ASP.NET

The ImageMap control in ASP.NET 2.0 and onward versions can be used to create an image that contains defined hot spot regions. When a user clicks a hot spot region, the control can either generate a post back to the server or navigate to a specified URL.

There are three kinds of hot spot regions defined in ImageMap control.

  • RectangleHotSpot
  • CircleHotSpot
  • PolygonHotSpot

The RectangleHotSpot defines rectangular hot spot regions. The CircleHotSpotdefines circle-shaped ones and the PolygonHotSpot is used for irregularly shaped hot spot area.

Let's have a look at one example:

Map.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="map.aspx.cs" Inherits="map" %>
  2.     <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3.     <html xmlns="http://www.w3.org/1999/xhtml">
  4.
  5.     <head runat="server">
  6.         <title>Untitled Page</title>
  7.     </head>
  8.
  9.     <body>
  10.         <form id="form1" runat="server">
  11.             <div>
  12.                 <table>
  13.                     <tr>
  14.                         <td colspan="4">
  15.                             <asp:ImageMap ID="india" runat="server" ImageUrl="~/Map.jpg" Height="500px" Width="887px" HotSpotMode="PostBack" OnClick="india_Click" BackColor="#C0C000" BorderColor="DarkSlateGray" ForeColor="Red">
  16.                                 <asp:CircleHotSpot Radius="7" X="215" Y="125" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="bhuj" AlternateText="Bhuj" />
  17.                                 <asp:CircleHotSpot Radius="7" X="525" Y="95" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="patan" />
  18.                                 <asp:CircleHotSpot Radius="7" X="565" Y="45" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="ambaji" />
  19.                                 <asp:CircleHotSpot Radius="7" X="525" Y="150" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="me" />
  20.                                 <asp:CircleHotSpot Radius="7" X="625" Y="120" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="him" />
  21.                                 <asp:CircleHotSpot Radius="7" X="495" Y="195" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="sure" />
  22.                                 <asp:CircleHotSpot Radius="7" X="565" Y="195" HotSpotMode="PostBack" NavigateUrl="~/map.aspx" PostBackValue="ahd" /> </asp:ImageMap>
  23.                         </td>
  24.                         <td colspan="2" style="width: 364px">
  25.                             <asp:Panel ID="p1" runat="server" Height="20px" Visible="false">
  26.                                 <asp:Label ID="lbl1" Text="CITY:Bhuj STATE:Gujarat" runat="server" Width="162px" Height="57px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  27.                             </asp:Panel>
  28.                             <asp:Panel ID="p2" runat="server" Height="18px" Visible="false">
  29.                                 <asp:Label ID="lbl2" Text="CITY:Patan STATE:Gujarat" runat="server" Width="162px" Height="45px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  30.                             </asp:Panel>
  31.                             <asp:Panel ID="p3" runat="server" Height="16px" Visible="false">
  32.                                 <asp:Label ID="lbl3" Text="CITY:Ambaji STATE:Gujarat" runat="server" Width="160px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  33.                             </asp:Panel>
  34.                             <asp:Panel ID="p4" runat="server" Height="14px" Visible="false">
  35.                                 <asp:Label ID="lbl4" Text="CITY:Mehsana STATE:Gujarat" runat="server" Width="161px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  36.                             </asp:Panel>
  37.                             <asp:Panel ID="p5" runat="server" Height="14px" Visible="false">
  38.                                 <asp:Label ID="lbl5" Text="CITY:Himatnagar STATE:Gujarat" runat="server" Width="161px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  39.                             </asp:Panel>
  40.                             <asp:Panel ID="p6" runat="server" Height="14px" Visible="false">
  41.                                 <asp:Label ID="lbl6" Text="CITY:Surendranagar STATE:Gujarat" runat="server" Width="90px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  42.                             </asp:Panel>
  43.                             <asp:Panel ID="p7" runat="server" Height="14px" Visible="false">
  44.                                 <asp:Label ID="lbl7" Text="CITY:Ahemdabad STATE:Gujarat" runat="server" Width="162px" BackColor="MediumVioletRed" Font-Bold="True" Font-Size="Larger" ForeColor="Blue"></asp:Label>
  45.                             </asp:Panel>
  46.                         </td>
  47.                     </tr>
  48.                 </table>
  49.             </div>
  50.         </form>
  51.     </body>
  52.
  53. </html>
Map.aspx.cs
  1. using System;
  2. using System.Data;
  3. using System.Configuration;
  4. using System.Collections;
  5. using System.Web;
  6. using System.Web.Security;
  7. using System.Web.UI;
  8. using System.Web.UI.WebControls;
  9. using System.Web.UI.WebControls.WebParts;
  10. using System.Web.UI.HtmlControls;
  11.
  12. public partial class map : System.Web.UI.Page
  13. {
  14.
  15.     protected void india_Click(object sender, ImageMapEventArgs e)
  16.     {
  17.         string aa = e.PostBackValue;
  18.         if(aa=="bhuj")
  19.         {
  20.             p1.Visible =true ;
  21.             p2.Visible = false;
  22.             p3.Visible = false;
  23.             p4.Visible = false;
  24.             p5.Visible = false;
  25.             p6.Visible = false;
  26.             p7.Visible = false;
  27.         }
  28.         else if(aa=="patan")
  29.         {
  30.             p1.Visible =false ;
  31.             p2.Visible =true ;
  32.             p3.Visible = false;
  33.             p4.Visible = false;
  34.             p5.Visible = false;
  35.             p6.Visible = false;
  36.             p7.Visible = false;
  37.         }
  38.
  39.         else if (aa == "ambaji")
  40.         {
  41.             p1.Visible = false;
  42.             p2.Visible = false;
  43.             p3.Visible = true;
  44.             p4.Visible = false;
  45.             p5.Visible = false;
  46.             p6.Visible = false;
  47.             p7.Visible = false;
  48.
  49.         }
  50.         else if (aa == "him")
  51.         {
  52.             p1.Visible = false;
  53.             p2.Visible = false;
  54.             p3.Visible = false ;
  55.             p5.Visible = true;
  56.             p4.Visible = false;
  57.             p6.Visible = false;
  58.             p7.Visible = false;
  59.
  60.
  61.         }
  62.
  63.         else if (aa == "me")
  64.         {
  65.             p1.Visible = false;
  66.             p2.Visible = false;
  67.             p3.Visible = false ;
  68.             p4.Visible = true;
  69.             p5.Visible = false;
  70.             p6.Visible = false;
  71.             p7.Visible = false;
  72.         }
  73.
  74.
  75.         else if (aa == "sure")
  76.         {
  77.             p1.Visible = false;
  78.             p2.Visible = false;
  79.             p3.Visible = false;
  80.             p5.Visible = false ;
  81.             p4.Visible = false;
  82.             p6.Visible = true;
  83.             p7.Visible = false;
  84.         }
  85.
  86.         else if (aa == "ahd")
  87.         {
  88.             p1.Visible = false;
  89.             p2.Visible = false;
  90.             p3.Visible = false;
  91.             p5.Visible = false ;
  92.             p4.Visible = false;
  93.             p7.Visible = true;
  94.             p6.Visible = false;
  95.
  96.         }
  97.
  98.     }
  99. }

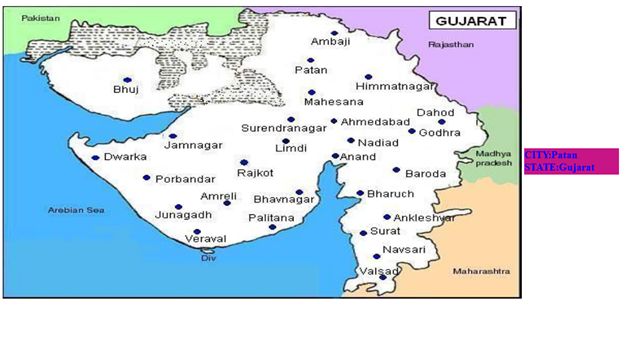

Output:

Output
