Using TreeView to Display Records from MDB File in C# 2010

alexander feuer

This is a trial to read records from MDB database file using TreeView control. My project is a phone index to display some fields from Customers table in Northwind database file:

CompanyName, ContactName, Address, City, Country and Phone.

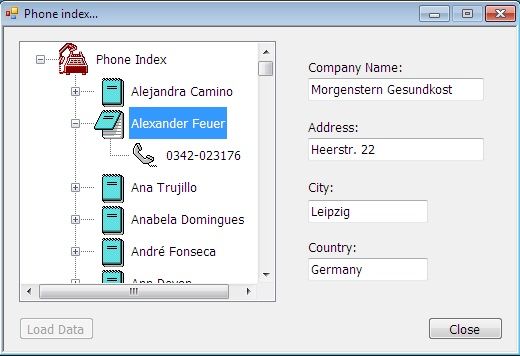

My project has one form (frmPhone), this form has following controls:

  • TreeView: tvData
  • Four TextBoxes:

txtCompany for Company Name, txtAddress for Address, txtCity for City and , txtCountry for Country.

Two Buttons: for load data and exit application.

The Code

There is five procedures:

  1.         private void LoadCustomerData()   // for open the database file
  2.         {
  3.             MyDataFile = Application.StartupPath + @"\DataFile\Northwind.mdb";
  4.             string MyCon = @"provider=microsoft.jet.oledb.4.0;Password="""";data source=" + MyDataFile;
  5.             datCon = new OleDbConnection();
  6.             datCon.ConnectionString = MyCon;
  7.             OleDbCommand cmdSelect = new OleDbCommand();
  8.             OleDbDataAdapter datAdp = new OleDbDataAdapter();
  9.             datSet = new DataSet();
  10.             try
  11.             {
  12.                 MyTable = "Customers";
  13.                 // Select all fields
  14.                 string strSql = "SELECT * FROM " + MyTable + " ORDER BY ContactName";
  15.                 cmdSelect.CommandText = strSql;
  16.                 cmdSelect.CommandType = CommandType.Text;
  17.                 datCon.Open();  // open connection
  18.                 cmdSelect.Connection = datCon;
  19.                 datAdp.SelectCommand = cmdSelect;
  20.                 datAdp.Fill(datSet, MyTable);  // fill dataset
  21.                 datCon.Close();
  22.                 // if no records then exit:
  23.                 int RecCount = this.BindingContext[datSet, MyTable].Count;
  24.                 if (RecCount == 0)
  25.                 {
  26.                     MessageBox.Show("No records in Customer table file!");
  27.                     return;
  28.                 }
  29.             }
  30.             catch (Exception ex)
  31.             {
  32.                 MessageBox.Show(ex.ToString());
  33.             }
  34.             SetRootNode();
  35.         }
  36.
  37. private void SetRootNode()
  38.         {
  39.             // set root node of TreeView:
  40.             tvData.Nodes.Add("Phone Index");
  41.             tvData.Nodes[0].Tag = "RootDB";
  42.             tvData.Nodes[0].ImageIndex = 0;
  43.             tvData.Nodes[0].SelectedImageIndex = 0;
  44.             //Set Contact Name
  45.             SetContactName();
  46.             //Set Customer Phone
  47.             SetCustPhone();
  48.         }
  49.
  50. private void SetContactName()
  51.         {
  52. // set ContactName field as node
  53.             itmNumber = datSet.Tables[MyTable].Rows.Count;
  54.             for (int i = 0; i < itmNumber; i++)
  55.             {
  56. tvData.Nodes[0].Nodes.Add(datSet.Tables[MyTable].Rows[i].ItemArray[2].ToString());
  57.                 tvData.Nodes[0].Nodes[i].Tag = "Name";
  58.                 tvData.Nodes[0].Nodes[i].ImageIndex = 2;
  59.                 tvData.Nodes[0].Nodes[i].SelectedImageIndex = 2;
  60.             }
  61.         }
  62.
  63. private void SetCustPhone()
  64. // set Phone field as node
  65.         {
  66.             for (int i = 0; i < itmNumber; i++)
  67.             {
  68. tvData.Nodes[0].Nodes[i].Nodes.Add(datSet.Tables[MyTable].Rows[i].ItemArray[9].ToString());
  69.                 tvData.Nodes[0].Nodes[i].Nodes[0].Tag = "Phone";
  70.                 tvData.Nodes[0].Nodes[i].Nodes[0].ImageIndex = 4;
  71.                 tvData.Nodes[0].Nodes[i].Nodes[0].SelectedImageIndex = 4;
  72.             }
  73.         }
  74.
  75. private void DisplayRecord(string EmployeeName)
  76. // Show some data about customer:
  77.         {
  78.             try
  79.             {
  80.                 // using DataView to find record:
  81.                 DataView dv = new DataView(datSet.Tables[MyTable]);
  82.                 dv.Sort = "ContactName";
  83.                 int i = dv.Find(EmployeeName);
  84.                 this.BindingContext[datSet, MyTable].Position = i;
  85.                 txtCompany.Text = datSet.Tables[MyTable].Rows[i].ItemArray[1].ToString();
  86.                 txtAddress.Text = datSet.Tables[MyTable].Rows[i].ItemArray[4].ToString();
  87.                 txtCity.Text = datSet.Tables[MyTable].Rows[i].ItemArray[5].ToString();
  88.                 txtCountry.Text = datSet.Tables[MyTable].Rows[i].ItemArray[8].ToString();
  89.             }
  90.             catch (Exception ex)
  91.             {
  92.                 MessageBox.Show(ex.ToString());
  93.             }
  94.         }
Summary

I hope that this article be useful in case of use TreeView control, so I invite you to go to source file to read the code about TreeView events. If you have any idea about this code, please tell me. Thanks for C# Corner team and thanks for all.
