Xamarin.Forms Floating Action Button


Xamarin.Forms Floating Action Button

This time we are talking about the FloatingActionButton or “FAB”!

NuGet package:https://www.nuget.org/packages/FAB.Forms/2.2.0-pre1

FAB is now available on NuGet. So, you can download and install it using the following command.

Install-Package FAB.Forms -Version 2.2.0-pre1

Then, you can include it in your XAML or call it from C# (See the example projects for a demo).

  1. <RelativeLayout>
  2.             <ContentView RelativeLayout.WidthConstraint="{ConstraintExpression Type=RelativeToParent, Property=Width, Factor=1}"
  3.              RelativeLayout.HeightConstraint="{ConstraintExpression Type=RelativeToParent, Property=Height, Factor=1}">
  4.                 <ListView x:Name="MainList"
  5.               BackgroundColor="White">
  6.                     <ListView.ItemTemplate>
  7.                         <DataTemplate>
  8.                             <TextCell Text="{Binding .}" />
  9.                         </DataTemplate>
  10.                     </ListView.ItemTemplate>
  11.                 </ListView>
  12.             </ContentView>
  13.             <fab:FloatingActionButton
  14.                 x:Name="fabBtn"
  15.                 Source="icon.png"
  16.                 Size="Normal"
  17.                 Clicked="Handle_FabClicked"
  18.                 NormalColor="Green"
  19.                 RippleColor="Red"
  20.                 HasShadow="True"
  21.                 RelativeLayout.XConstraint="{ConstraintExpression Type=RelativeToParent, Property=Width, Factor=1, Constant=-75}"
  22.                 RelativeLayout.YConstraint="{ConstraintExpression Type=RelativeToParent, Property=Height, Factor=1, Constant=-75}" />
  23.         </RelativeLayout>

And then, we can use some code behind the C# code.

  1. public partial class MainPage : ContentPage
  2.     {
  3.         public MainPage()
  4.         {
  5.             InitializeComponent();
  6.             PreList();
  7.         }
  8.         private void PreList()
  9.         {
  10.             var items = new List<string>();
  11.             for (int i = 0; i < 50; i++)
  12.             {
  13.                 items.Add(string.Format("Item {0}", i));
  14.             }
  15.
  16.             MainList.ItemsSource = items;
  17.         }
  18.         void Handle_FabClicked(object sender, System.EventArgs e)
  19.         {
  20.             this.DisplayAlert("Floating Action Button""You clicked the FAB!""Awesome!");
  21.         }
  22.     }

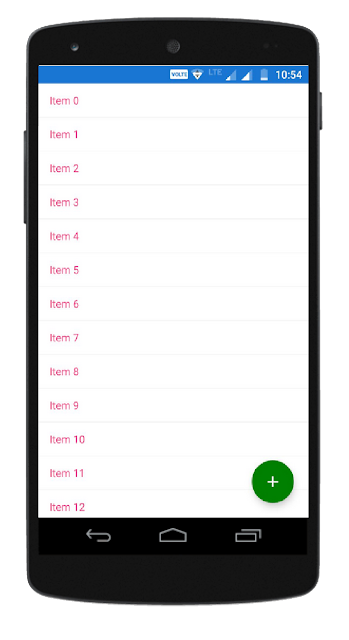

Android Example


iOS Example

Make it more flexible

Add different colors by using - NormalColor="Green",

Adjust the height and width of the button by using -  HeightRequest="100" WidthRequest="100"

Add shadow by using - HasShadow="True" and etc.
