GridView with Fixed Header in ASP.NET


Introduction

I have seen many articles on the GridView control with scrolling headers. I tried several forums and websites, but didn't come up with a good solution that work well enough. Some work with the browser compatibility and some others don't work

In this article, I am trying to solve the problem of scrolling headers in the  ASP.NET GridView control.

This article will fulfill the following requirements:

  • GridView will have fixed header.

  • GridView can be scrolled vertically.

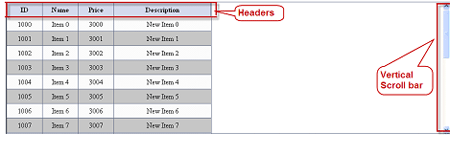

Initial view of GridView when loaded

GridView in ASP.NET
Final view of GridView when scrolls down

ASP.NET GridView
Overview

GridView doesn't have the ability to scroll. But if the GridView contains a larger number of rows or columns (say more than 100 rows and 15 columns), we want it to have scrollbars.

Since the Div control has the ability to scroll horizontally and vertically, therefore, to achieve scrolling in GridView, we have to wrap the GridView in the Div control. It is the Div that actually scrolls, but it looks like the GridView is scrolling.

Using the Code

    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
    <meta http-equiv='X-UA-Compatible' content='IE=7' />
    <link rel='stylesheet' type='text/css' href='Styles/StaticHeader.css' />
    <title></title>

    <script type='text/javascript' src='Styles/x.js'></script>

    <script type='text/javascript' src='Styles/xtableheaderfixed.js'></script>

    <script type='text/javascript'>
        xAddEventListener(window, 'load',
            function() { new xTableHeaderFixed('gvTheGrid', 'table-container', 0); }, false);
    </script>

    <
div id='table-container'>
        <asp:GridView ID="gvTheGrid" runat="server" GridLines="Both" CellPadding="3" AutoGenerateColumns="false"
            BackColor="WhiteSmoke" AlternatingRowStyle-BackColor="Silver" HeaderStyle-Font-Size="Medium"
            OnPreRender="gvTheGrid_PreRender" CssClass="gvTheGrid">
            <Columns>
                <asp:BoundField DataField="ID" HeaderText="ID" HeaderStyle-Width="60" ItemStyle-Width="60" />
                <asp:BoundField DataField="Name" HeaderText="Name" HeaderStyle-Width="60" ItemStyle-Width="60" />
                <asp:BoundField DataField="Price" HeaderText="Price" HeaderStyle-Width="60" ItemStyle-Width="60" />
                <asp:BoundField DataField="Description" HeaderText="Description" HeaderStyle-Width="200"
                    ItemStyle-Width="200" />
            </Columns>
        </asp:GridView>
    </div>

Reference

The main reference I have taken is this from site to fix the issue.

http://cross-browser.com/x/examples/xthf-demo.php?s=sep&n=3
