Start working with Workflow 4.0 in Visual Studio 2010

This is my first article on this site I hope it will help some-one..


A workflow is a series of distinct programming steps or phases. Each step is modeled in WF as an Activity. It has been completely reengineered from the ground up. It is a way to execute business processes and in today's applications supporting business processes we are frequently using Windows Workflow technologies as the key technical solution.

A key component of workflow design is the use of extensions to configure the environment in which the workflow activities operate, the .NET Framework provides a library of activities and custom activities can also be developed for additional functionality. The Workflow Designer is built using Windows Presentation Foundation (WPF). This enhances the activity designer experience and improves performance for large and complex workflows.

Some of the major criteria for workflows are listed below:

  • Visual Representation of process
  • Can be dynamically modified at run-time
  • Can be long-running

Activities can be assembled visually into workflows using the Workflow Designer, a design surface that runs within Visual Studio. The designer can also be hosted in other applications.

Getting Started:

Step 1: Start Visual Studio 2010 and select the New Project and choose Workflow Console Application give name in my case HelloWorld

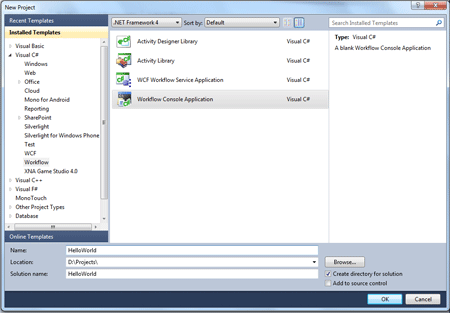

Workflow application

The application generates a Program.cs file and Workflow1.xaml file which is used for the console application and workflow

autogenerated files in Workflow 4.0

Step 2: First go to Workflow1.xaml file initial it is empty, drag a WriteLine activity

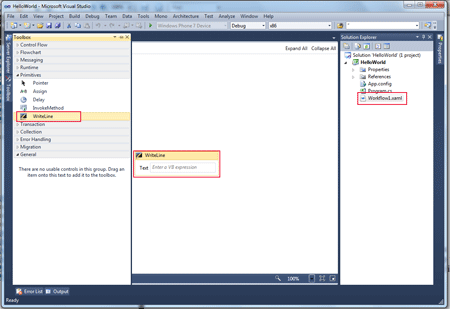

writeline activity in Workflow 4.0

Step 3: Go to the  properties of WriteLine activity and insert the value

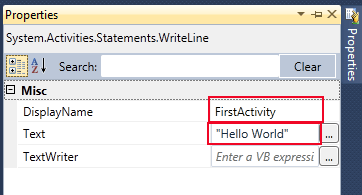

activity properties in Workflow 4.0

Step 4: Go to the Program.cs file and modify the code like below

program file in Workflow 4.0

using System;
using System.Linq;
using System.Activities;
using System.Activities.Statements;
namespace HelloWorld
    class Program
        static void Main(string[] args)
            WorkflowInvoker.Invoke(new Workflow1());

            Console.WriteLine("Press ENTER to exit");

Step 5: Run the application

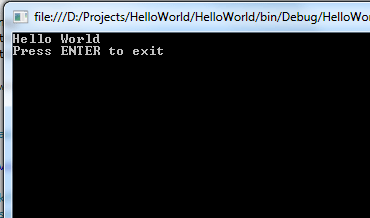

output file in Workflow 4.0


Press Enter to exit the application output

Thank You I hope you like this article....
