Using LinearGradientBrush and PathGradientBrush in GDI+

This article has been excerpted from book "Graphics Programming with GDI+".

Listing 12.6 uses LinearGradientBrush and PathGradientBrush to fill a rectangle and a path. First we create a linear gradient brush and a graphics path, and we add ellipses to the graphics path.

Next we create a path gradient brush, which take the path as its only parameter, and we set the CenterColor property of the path. Then we create Bitmap and Graphics objects and call Graphics.FillPath and Graphics.FillRectangle, which fill a path and rectangle, respectively.

As in the previous examples, finally we call the Bitmap.Save method and dispose of the objects.

LISTING 12.6: Using LinearGradientBrush and PathGradientBrush

        private void Page_Load(object sender, system.EventArgs e)
            //Create a linear gradient brush
            LinearGradientBrush lgBrush =
            new LinearGradientBrush(
            new Rectangle(0, 0, 10, 10),
            Color.Yellow, Color.Blue,
            //Create a path
            GraphicsPath path = new GraphicsPath();
            path.AddEllipse(50, 50, 150, 150);
            path.AddEllipse(10, 10, 50, 50);
            //Create a path gradient brush
            PathGradientBrush pgBrush =
            new PathGradientBrush(path);
            pgBrush.CenterColor = Color.Red;
            //Create a Bitmap and ghraphics object
            Bitmap curBitmap = new Bitmap(500, 300);
            Graphics g = Graphics.FromImage(curBitmap);
            g.SmoothingMode = SmoothingMode.AntiAlias;
            g.FillPath(pgBrush, path);
            g.FillRectangle(lgBrush, 250, 20, 100, 100);

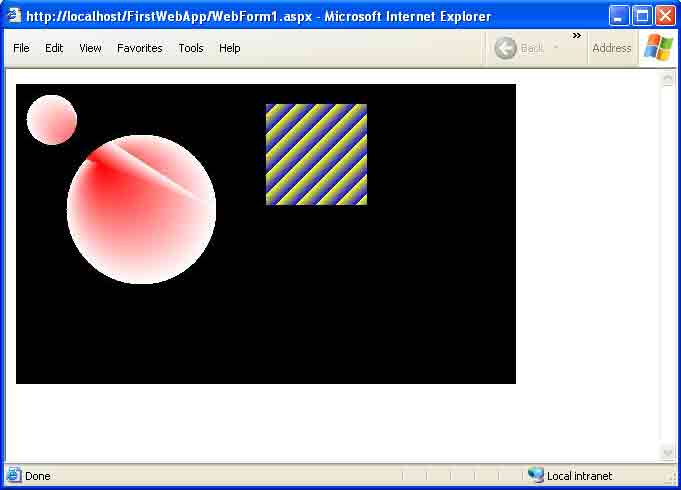

Figure 12.12 shows the output from Listing 12.6

Drawing Transparent Graphics Objects

The alpha component of a color represents its transparency. Alpha component values vary from 0 to 255, where 0 indicates fully transparent and 255 indicate opaque. Listing 12.7 draws a rectangle, an ellipse, and text on top of an image.

Figure 12.12.jpg

FIGURE 12.12: Using LinearGradeintBrush and PathGradientBrush

LISTING 12.7: Drawing semitransparent objects

//Create a Bitmap and Graphics objects
Bitmap curBitmap = new Bitmap ("C:\\flower13.jpg");
Graphics g = Graphics.FromImage (curBitmap);
g.SmoothingMode = SmoothingMode.AntiAlias;
//Create brushes and pens with alpha values
Color redColor = Color.FromArgb (120, 0, 0, 255);
Pen alphaPen = new Pen (redColor, 10);
SolidBrush alphaBrush =
new SolidBrush (Color.FromArgb (90, 0, 255, 0);
//Draw a rectangle, an ellipse, and text
g.DrawRectangle (alphaPen, 100, 100, 50, 100);
g.FillEllipse (alphaBrush, 50, 50, 100, 100);
g.DrawString ("Alpha String", new Font ("Tahoma", 30),
new SolidBrush (Color.FromArgb (150, 160, 0, 0)),
new PointF(20, 20));
curBitmap.Save (this.Response.OutputStream,

First we create Bitmap and Graphics objects and set the Graphics smoothing mode. Then we create a color with transparency using the Color.FromArgb method, where transparency is the first parameter. Next, using the following code, we create a pen from this semitransparent color, which gives us a semitransparent pen:

            Color redColor = Color.FromArgb(120, 0, 0, 255);
            Pen alphaPen = new Pen(redColor, 10);

We also create a semitransparent brush by passing a semitransparent color as a parameter to SolidBrush as follows:

            SolidBrush alphaBrush =
            new SolidBrush(Color.FromArgb(90, 0, 255, 0));

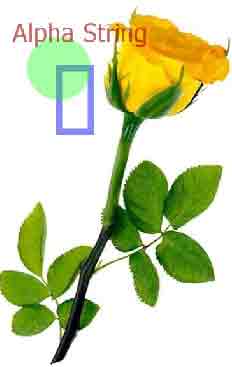

Now to draw transparent shapes, we simply use the transparent brushes and pens. As Figures 12.13 shows, the graphics shapes are semitransparent.
Figure 12.13.jpg

FIGURE 12.13: Drawing semitransparent objects
