Following are the feature of rich text box control
-
Rich content - multimedia
-
Inline images
-
Formatted text
-
Hyperlinks
Rich text box offer two modes
-
Editing mode which is by default.
-
Read only mode which can be set by using IsReadOnly="True"
![image1.gif]()
Note: The hyperlinks will work only if IsReadOnly property is set to
true.
Main Page

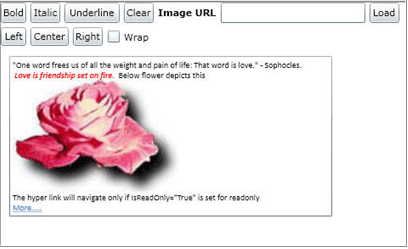

Following image shows how the page looks with rich text box.
![image2.gif]()
To set the content of RichTextBox control you can use Paragraph element as shown
below
![image3.gif]()
Hyperlink
To show the hyperlink you can use the Hyperlink element. The hyperlink will
navigate only if the rich text box is in read only mode i.e. isReadOnly=True
![image4.gif]()
UIElement
To show the text with the inline UIElement object like image as shown below
![image5.gif]()
Left Alignment
To change the alignment to left or start typing from left, then select the text
and click on the left button. As shown below
![image6.gif]()
For this use the following code:
![image7.gif]()
Center Alignment

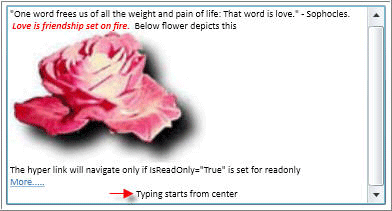

To change the alignment to center or start typing from center, then select the
text and click on the center button. As shown below.
![image8.gif]()
For this use the following code:
![image9.gif]()
Right Alignment

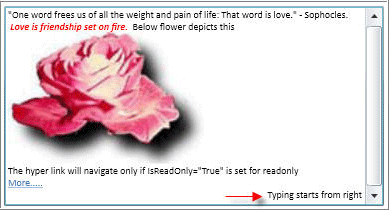

To change the alignment to right or start typing from right, then select the
text and click on the right button. As shown below.
![image10.gif]()
For this use the following code:
![image11.gif]()

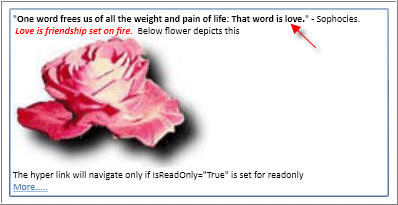

Bold
To make the text bold, then first select the text and click on the bold button.
As shown below:
![image12.gif]()

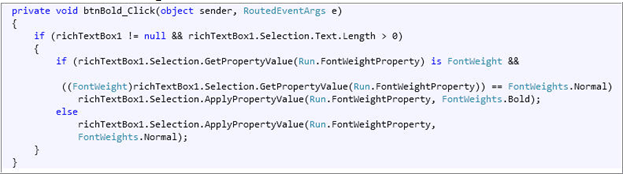

For this use the following code:
![image13.gif]()
Italic
To make the text italic, then first select the text and click on the italic
button. As shown below:
![image14.gif]()
For this use the following code:
![image15.gif]()
Underline

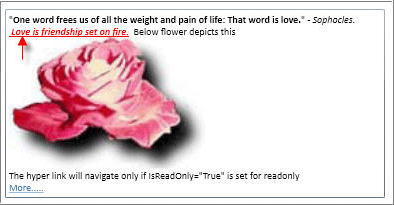

To make the text underline, then first select the text and click on the
underline button. As shown below:
![image16.gif]()

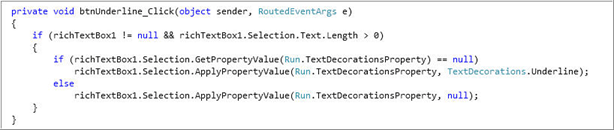

For this use the following code:
![image17.gif]()
Wrap / Unwrap

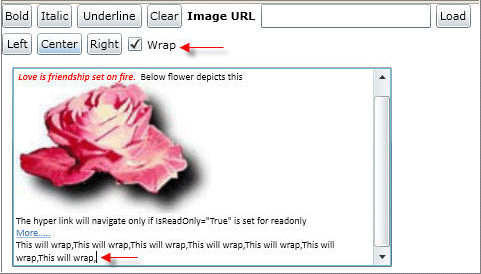

To wrap the content, then check wrap checkbox. As shown below:
![image18.gif]()

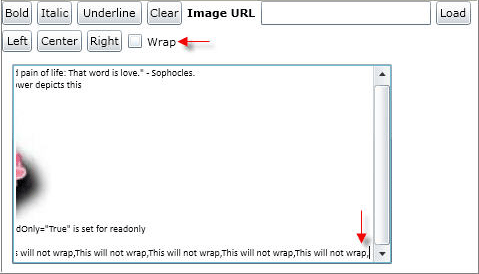

To remove wrap, then uncheck wrap checkbox. As shown below:
![image19.gif]()
For this use the following code:
![image19.1.gif]()
Load image
To load multimedia content like image, specify the location of the image and
then click load button. As shown below.
![image20.gif]()

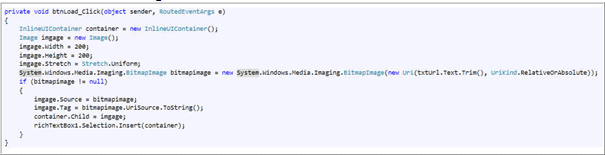

For this use the following code:
![image21.gif]()
