How to use WCF Service with LINQ in ASP.NET

Raj Kumar
14y
21.8k
0
0

100

Article

WCFLINQSample.zip

This article explains the basic use of a WCF Service and how to use LINQ in an ASP.Net application.

Getting Started:

Creating a ASP.NET Application:

Open Visual Studio 2010.
Go to File => New => Project
Select Web in installed templates
Select ASP.NET Web Application
Enter the Name and choose the location.

Click OK.

And now using mouse right click Add New Linq to SQL Classes from installed Data template.

Image 1.

Now drag and drop data table using server explorer.

Note - You can rename table name also using double click.

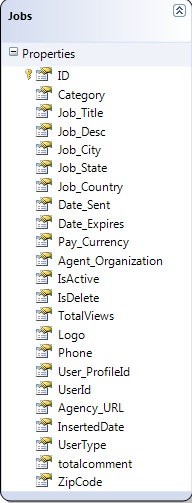

Image 2.

After adding tables as you can see in web.config there is a connection string that has been added automatically.

Now add a new WCF service using Add New Item.

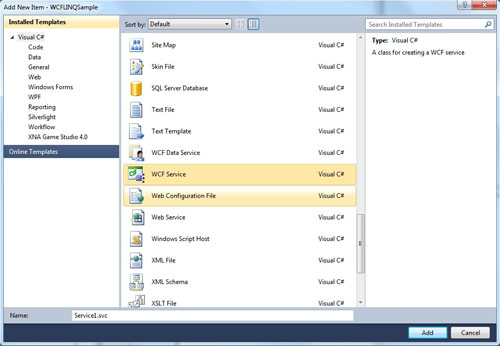

Image 3.

Service1.svc

public void DoWork()
        {
        }

        //This function gets all active events
        public IEnumerable<Events> GetLatestEvents()
        {
            DataClasses1DataContext _context = new DataClasses1DataContext();
            var dateTime = DateTime.Now.ToString();
            var events = (from r in _context.Jobs
                          orderby r.InsertedDate descending
                          select new Events
                          {
                              Title = r.Job_Title,
                              Description = r.Job_Desc,
                              City = r.Job_City,
                              State = r.Job_State,
                              Country = r.Job_Country,
                              StartingOn = DateTime.Parse(r.Date_Sent),
                              ExpiringOn = DateTime.Parse(r.Date_Expires)
                          });
            return events.AsEnumerable();
        }

IService1.cs

[ServiceContract]
    public interface IService1
    {
        [OperationContract]
        void DoWork();

        [OperationContract]
        IEnumerable<Events> GetLatestEvents();
    }

    [DataContract]
    public class Events
    {
        string title;
        string description;
        string category;
        string city;
        string state;
        string country;
        DateTime startingOn;
        DateTime expiringOn;

[DataMember]

public string Title { get { return title; } set { title = value; } }

[DataMember]
public string Description { get { return description; } set { description = value; } }

[DataMember]
public string Category { get { return category; } set { category = value; } }

[DataMember]
public string City { get { return city; } set { city = value; } }

[DataMember]
public string State { get { return state; } set { state = value; } }

[DataMember]
public string Country { get { return country; } set { country = value; } }

[DataMember]
public DateTime StartingOn { get { return startingOn; } set { startingOn = value; } }

        [DataMember]
        public DateTime ExpiringOn { get { return expiringOn; } set { expiringOn = value; } }
    }

Now add a service reference to the application.

Image 4.

After adding a service refrence to the application, a service model is added in web.config which has all service details and properties.

<system.serviceModel>
    <bindings>
      <basicHttpBinding>
        <binding name="BasicHttpBinding_IService1" closeTimeout="00:01:00"
          openTimeout="00:01:00" receiveTimeout="00:10:00" sendTimeout="00:01:00"
          allowCookies="false" bypassProxyOnLocal="false" hostNameComparisonMode="StrongWildcard"
          maxBufferSize="200000000" maxBufferPoolSize="200000000" maxReceivedMessageSize="200000000"
          messageEncoding="Text" textEncoding="utf-8" transferMode="Buffered"
          useDefaultWebProxy="true">
          <readerQuotas maxDepth="32" maxStringContentLength="200000" maxArrayLength="16384"
            maxBytesPerRead="4096" maxNameTableCharCount="16384" />
          <security mode="None">
            <transport clientCredentialType="None" proxyCredentialType="None"              realm="" />
            <message clientCredentialType="UserName" algorithmSuite="Default" />
          </security>
        </binding>
      </basicHttpBinding>
    </bindings>
    <client>
      <endpoint address="http://localhost:31533/Service1.svc" binding="basicHttpBinding"
        bindingConfiguration="BasicHttpBinding_IService1" contract="ServiceReference1.IService1"
        name="BasicHttpBinding_IService1" />
    </client>
    <behaviors>
      <serviceBehaviors>
        <behavior name="">
          <serviceMetadata httpGetEnabled="true" />
          <serviceDebug includeExceptionDetailInFaults="false" />
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
</system.serviceModel>

Now start work on the page. Drag and drop a GridView data control onto the page.

Default.aspx

Default.aspx.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;

using WCFLINQSample.ServiceReference1;

namespace WCFLINQSample
{
    public partial class Default : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            Service1Client serviceClient = new Service1Client();
            GridView1.DataSource = serviceClient.GetLatestEvents();
            GridView1.DataBind();
        }
    }
}

Now time to run the application to see the result.

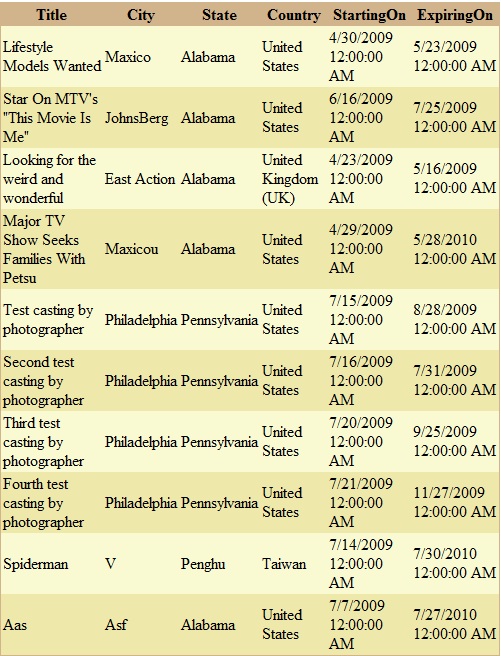

Image 5.
