Cross-Browser HTML5 Canvas
Canvas is a relatively new HTML5 technology that provides a "scriptable" image. You can add a <canvas>
element to your page and draw on its surface using JavaScript commands.
The HTML5 Canvas element is an HTML tag similar to the <div>, <a>, or <table> tag, with the exception that its contents are rendered with JavaScript.
A "canvas" tag can be placed on an HTML5 page with the following code:
<canvas id="myCanvas" width="200" height="100" style="border:1px solid #000000;">
Your browser does not support the HTML5 canvas tag.
</canvas>
Assuming that the canvas tag is supported, JavaScript can be used to draw directly onto the canvas.
First, we will find the "<canvas>" element:
var c=document.getElementById("myCanvas");
Then, call its "getContext()" method (you must the string "2d" to the "getContext()" method):
var ctx=c.getContext("2d");
The getContext("2d") object is a built-in HTML5 object, with many properties and methods for drawing paths, boxes, circles, text, images, etc.
ctx.fillStyle="#FF0000";
ctx.fillRect(0,0,150,75);
The fillStyle property can be a CSS color, a gradient, or a pattern. The default fillStyle is #000000 (black).
The fillRect(x,y,width,height) method draws a rectangle filled with the current fill style.
Step 1:
Beginning with the code, our HTML5 head
contains a small script that declares a canvas element.
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<title>Canvas Example</title>
<script>
document.createElement("canvas");
</script>
Step 2:
We can now define CSS styles for our canvas
tag.
<style>
#mycanvas {
float: left;
width: 300px;
height: 300px;
margin: 0 20px 0 0;
background-image: url(rain.jpg);
border: 1px solid #000;
}
#mycanvas.active {
background-image: none;
}
</style>
Step 3:
We can now place a canvas
tag on the page.
</head>
<body>
<h1>HTML Canvas Example with Image Fall Back</h1>
<canvas id="mycanvas" width="300" height="300"></canvas>
Step 4:
The first few lines check whether canvas
is supported, and applies a class of "active" to the element to remove the static background:
var canvas = document.getElementById("mycanvas");
if (canvas.getContext) {
// canvas supported
canvas.className = "active";
Step 5:
The following will start the animation:
// start animation
var cxt = canvas.getContext("2d");
cxt.fillStyle = "rgba(255,255,255,0.5)";
setInterval(function() {
var x = Math.round(Math.random()*canvas.width),
y = Math.round(Math.random()*canvas.height),
e = 20 + Math.round(Math.random()*30),
s = 0;
(function() {
s++;
if (s <= e) {
setTimeout(arguments.callee,s);
var c = 255-(e-s)*3;
cxt.strokeStyle = "rgb("+c+","+c+","+c+")";
cxt.beginPath();
cxt.arc(x,y,s,0,Math.PI*2,true);
cxt.fill();
cxt.stroke();
}
})();
},100);
}
Example:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<title>Canvas Example</title>
<script>
document.createElement("canvas");
</script>
<style>
body {
font-family: sans-serif;
margin: 20px;
color: #333;
background-color: #fff;
}
#mycanvas {
float: left;
width: 300px;
height: 300px;
margin: 0 20px 0 0;
background-image: url(rain.jpg);
border: 1px solid #000;
}
#mycanvas.active {
background-image: none;
}
</style>
</head>
<body>
<h1>HTML Canvas Example</h1>
<canvas id="mycanvas" width="300" height="300"></canvas>
<p>This page works in any browser.</p>
<script>
var canvas = document.getElementById("mycanvas");
if (canvas.getContext) {
// canvas supported
canvas.className = "active";
// start animation
var cxt = canvas.getContext("2d");
cxt.fillStyle = "rgba(255,255,255,0.5)";
setInterval(function () {
var x = Math.round(Math.random() * canvas.width),
y = Math.round(Math.random() * canvas.height),
e = 20 + Math.round(Math.random() * 30),
s = 0;
(function () {
s++;
if (s <= e) {
setTimeout(arguments.callee, s);
var c = 255 - (e - s) * 3;
cxt.strokeStyle = "rgb(" + c + "," + c + "," + c + ")";
cxt.beginPath();
cxt.arc(x, y, s, 0, Math.PI * 2, true);
cxt.fill();
cxt.stroke();
}
})();
}, 100);
}
</script>
</body>
</html>

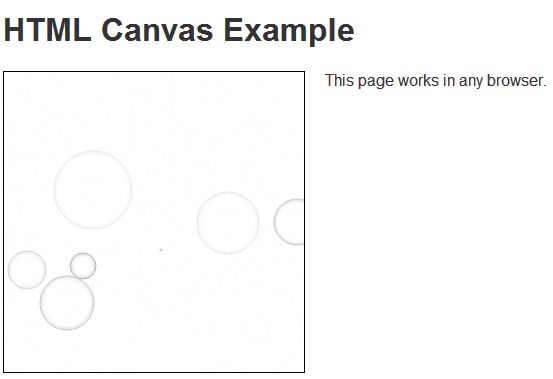

Output
