ASP.Net MVC Application Using Backbone.js

Introduction

This article shows the use of Backbone.js with ASP.NET MVC with a simple MVC application using backbone.js. Before this article we used backbone with HTML but here we will use with cshtml.

Use the following procedure to create the sample.

Step 1

Create a Web API application with the following:

  • Start Visual Studio 2013.
  • From Start window Select "New Project".
  • Select "Installed" -> "Template" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and select "ASP.NET MVC4 Web Application".
  • Click the "OK" button.

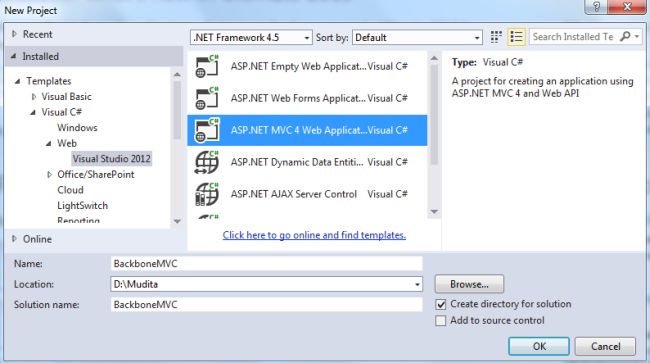

Select MVC4 application

  • From the MVC4 project window select "Empty application".

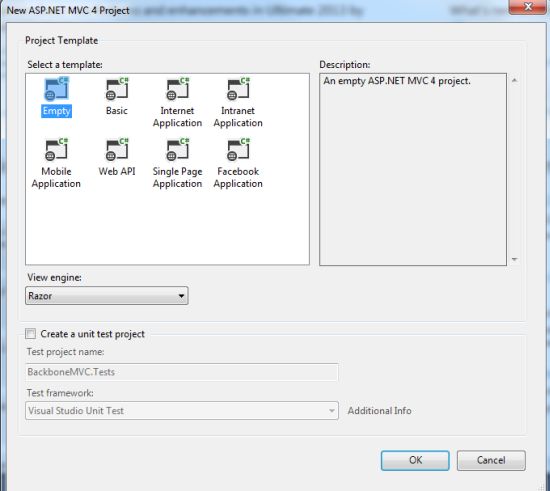

Select Empty project

  • Click on the "OK" button.

Step 2

Now add a MVC controller class in the Controller folder.

  • In the Solution Explorer.
  • Right-click on the Controller folder.
  • Select "Add" -> "Controller" then select "Empty MVC Controller" and click on the "Add" button.

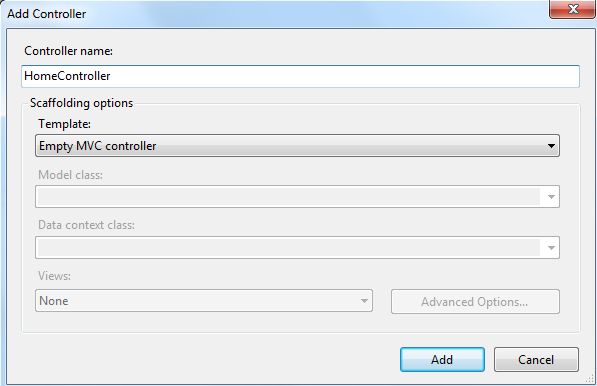

Add MVC Controller

Add the "Person Action method".

 public class HomeController : Controller

    {

        //

        // GET: /Home/

      public ActionResult Index()

        {

            return View();

        }

        public ActionResult Person()

        {

            return View();

        }

Now we need to add a "index.cshtml" view in the Home folder.

Right-click on the "Person()" action method, select "Add view" then open an "Add View" window then click on the "Add" button.

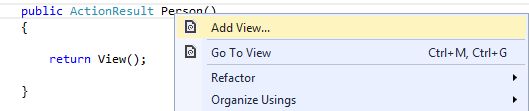

Select Add View

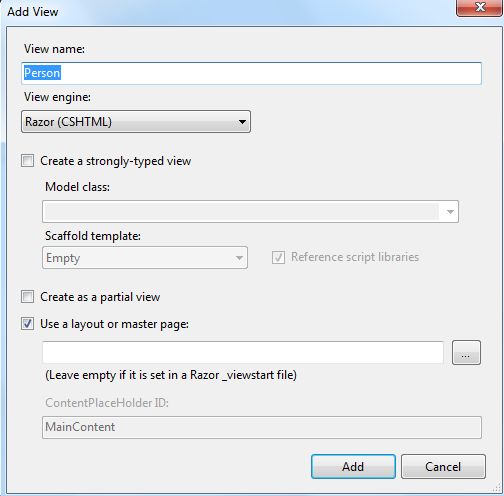

Add View in Project

Add the following code in this view:

@{

    ViewBag.Title = "Person";

}

<!DOCTYPE html>

<html lang="en">

<head>

    <meta charset="UTF-8" />

    <title>Backbone.js Web App</title>

    <link href="~/Content/style.css" rel="stylesheet" type="text/css"/>

</head>

<body>

    <div id="persons"></div>

    <script id="personTemplate" type="text/template">

        <img src="<%= photo %>" alt="<%= name %>" />

        <h1><%= name %><span><%= type %></span></h1>

        <div><%= address %></div>

        <dl>

            <dt>Tel:</dt>

            <dd><%= tel %></dd>

            <dt>Email:</dt>

            <dd><a href="mailto:<%= email %>"><%= email %></a></dd>

        </dl>

    </script>

    <script src="~/Scripts/jquery-1.8.2.min.js"></script>

    <script src="~/Scripts/json2.js"></script>

    <script src="~/Scripts/underscore-min.js"></script>

    <script src="~/Scripts/backbone-min.js"></script>

    <script src="~/Scripts/main.js" type="text/javascript"></script>

    </div>

</body>

</html>

Step 3

Now we create a JavaScript file as "main.js".

  • In the Solution Explorer.
  • Right-click on the "Scripts" folder select "Add" -> "JavaScript".

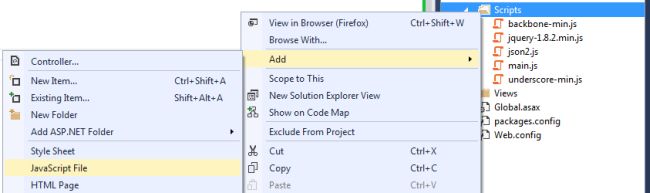

Select JAvaSCript

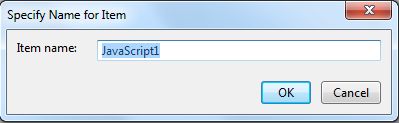

Change name of the Script
  • Click on the "Add" button.

Add the following code;

(function ($) {

    //demo data

    var persons = [       { name: "Person 1", address: "Address 1", tel: "0123456789", email: "[email protected]", type: "family" },       { name: "Person 2", address: "Address 2", tel: "0123456789", email: "[email protected]", type: "family" },

    ];

    //define product model

    var Person= Backbone.Model.extend({

        defaults: {

            photo: "img/placeholder.png"

    }

    });

//define directory collection

var Directory = Backbone.Collection.extend({

    model: Person

});

//define individual person view

var PersonView = Backbone.View.extend({

    tagName: "article",

    className: "person-container",

    template: $("#personTemplate").html(),

    render: function () {

        var tmpl = _.template(this.template);

        $(this.el).html(tmpl(this.model.toJSON()));

        return  this;

    }

});

//define master view

var DirectoryView = Backbone.View.extend({

    el: $("#persons"),

    initialize: function () {

        this.collection = new Directory(persons);

        this.render();

    },

    render: function () {

        var that = this;

        _.each(this.collection.models, function (item) {

            that.renderPerson(item);

        }, this);

    },

    renderPerson: function (item) {

        var personView = new PersonView({

            model: item

        });

        this.$el.append(personView.render().el);

    }

});

//create instance of master view

var directory = new DirectoryView();

} (jQuery));

 There is were we need the other scripting files "backbone.js","underscore.js", "json2.js" and "jquery-1.8.2.min.js".

Step 4

Now execute the application:

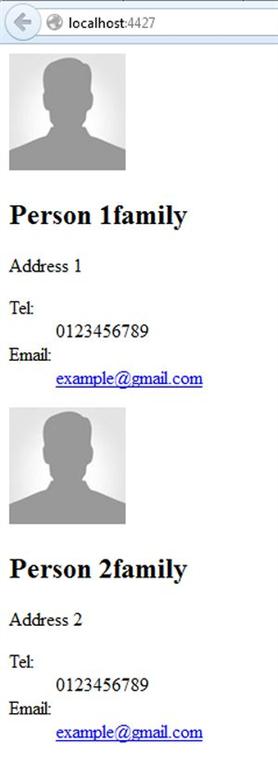

Display Persom Details
