Introduction
This article explains how to dynamically bind the data of a view to the model and retrieve the data from the model by the controller in a Web API.
Let's see the example of dynamically binding the view data.
Step 1
First create a Web API application as in the following:

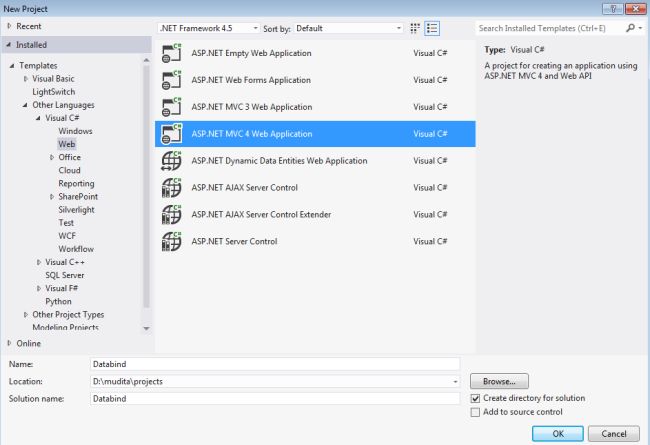

- Start Visual Studio 2012.
- From Start Window select "Installed" -> "Visual C#" -> "Web".
- Select "ASP.NET MVC 4 Web Application" and click the "OK" button.
![data.jpg]()

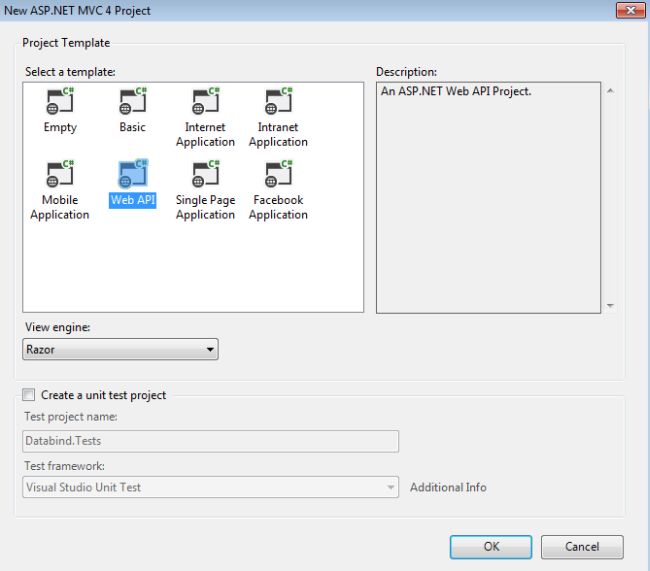

- From the "MVC4 Project" Window select "Web API".
![data1.jpg]()
Step 2

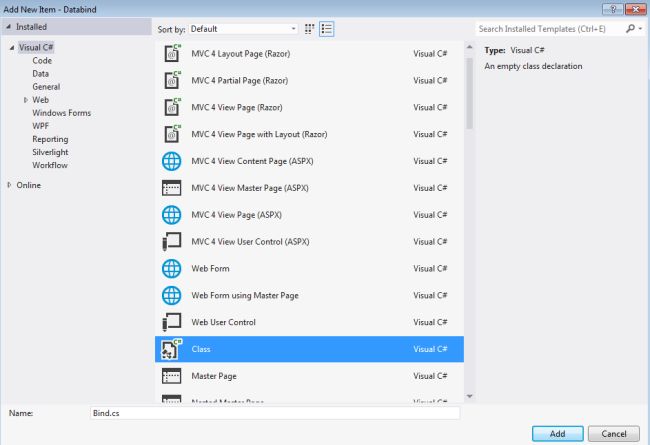

Create a model class "Bind.cs".
- In the "Solution Explorer".
- Right-click on the "Model" then seelct "Add" -> "Class".
- Select "Installed" -> "Visual C#" and select "Class".
![data3.jpg]()
Add the following code:
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Web;
namespace Databind.Models
{
public class Bind
{
[DisplayName("Your Name:")]
public string F_Name
{
get;
set;
}
[DisplayName("Your Last name")]
public string L_Name
{
get;
set;
}
[DisplayName("Your Address")]
public string Add
{
get;
set;
}
[DisplayName("Your State")]
public string state
{
get;
set;
}
}
}
Step 3

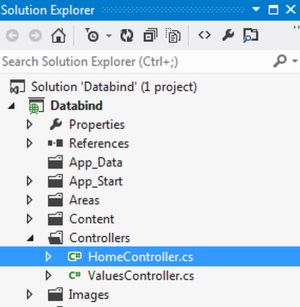

In the "HomeController.cs" file write some code. This file exists:
- In the "Solution Explorer".
- Select "Controller" -> "HomeController".
![data4.jpg]()
Add the following code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using Databind.Models;
namespace Databind.Controllers
{
public class HomeController : Controller
{
public ActionResult Index()
{
return View();
}
[HttpPost]
public ActionResult ClientInfo(Bind bind)
{
return View(bind);
}
}
}
Step 4
Create a View Page, "Index.aspx" as in the following:
-
In the "Solution Explorer".
-
Right-click on "Home" then select "Add" -> "New Item".
-
Select "Installed" -> "Visual C#" -> "Web" and select "MVC4 View Page (ASPX)".
![data6.jpg]()
Add the following code:
<%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage<Databind.Models.Bind>" %>
<!DOCTYPE html>
<html>
<head runat="server">
<meta name="viewport" content="width=device-width" />
<title></title>
</head>
<body>
<% using (Html.BeginForm("ClientInfo","Home",FormMethod.Post)) %><%{ %>
<div>
<center>
<h2>Enter Details:</h2>
<table style="font-family:Calibri" >
<tr>
<td> <%: Html.LabelFor(m => m.F_Name) %> </td>
<td> <%: Html.TextBoxFor(m => m.F_Name) %> </td>
</tr>
<tr>
<td> <%: Html.LabelFor(m => m.L_Name) %> </td>
<td> <%: Html.TextBoxFor(m => m.L_Name) %> </td>
</tr>
<tr>
<td> <%: Html.LabelFor(m => m.Add) %> </td>
<td> <%: Html.TextBoxFor(m => m.Add) %> </td>
</tr>
<tr>
<td> <%: Html.LabelFor(m=>m.state) %></td>
<td> <%: Html.TextBoxFor(m => m.state) %> </td>
</tr>
<tr>
<td colspan="3" align="center">
<input type="submit" value="Submit"/>
</td>
</tr>
<% } %>
</table>
</center>
</div>
</body>
</html>
Step 5

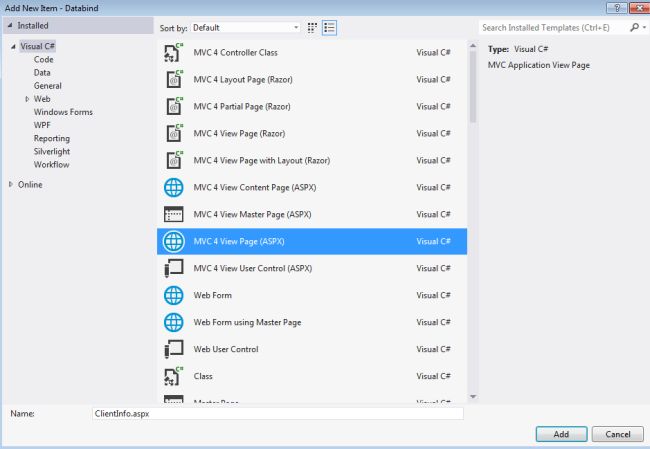

Create another View Page "ClientInfo.aspx". We use the same procedure as in Step 3.
![data7.jpg]()
Add the following code:
<%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage<Databind.Models.Bind>" %>
<!DOCTYPE html>
<html>
<head runat="server">
<meta name="viewport" content="width=device-width" />
<title>ClientInfo</title>
</head>
<body>
<div>
<h2>Welcome! <%: Html.Label(ViewData.Model.F_Name)%>
<%: Html.Label(ViewData.Model.L_Name)%></h2>
<h2>Belongs to <%: Html.Label(ViewData.Model.Add)%>
<%: Html.Label(ViewData.Model.state) %>
</h2>
</div>
</body>
</html>
Step 6

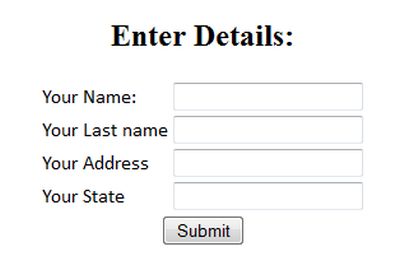

Execute the application; press "F5". The output looks as in the following:
![data8.jpg]()

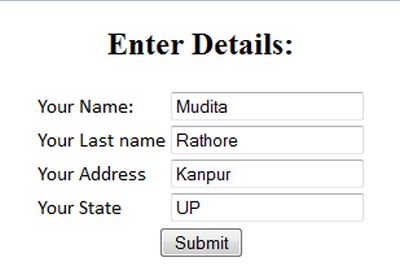

Fill in the following detail:
![data9.jpg]()

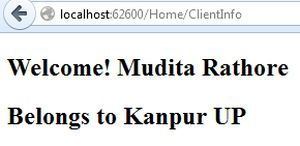

Click the "Submit" button.
![data10.jpg]()
