HTML Helper In ASP.NET MVC

In MVC there is no server side control, we have to use HTML HELPER.

There are the following types of HTML HELPERS:

  1. Non Strongly Typed Html Helper
  2. Strongly Typed Html Helper
  3. Custom Helper

1. Non Strongly Typed Html Helper

Html.TextBox is not strongly typed and it do not require a strongly typed view.

It is not bounded with Model and non-strongly typed html helper is independent of model kind of things.

2. Strongly Typed Html Helper

Html.TextBoxFor is strongly typed and it require a strongly typed view. It is bounded with Model property.

3. Custom Helper: You can design your own helper with.

Through the following charts, I had indirectly designed a form control for FRIEND entry for NON STRONGLY TYPED.

CONTROL NAME NON STRONGLY TYPED HTML HELPERS
CheckBox @Html.CheckBox(“chkMarried”,0)

HTML RENDER:

<input id="chkMarried" name="chkMarried" type="checkbox" value="true" /><input name="chkMarried" type="hidden" value="false" />
Drop Down List @Html.DropDownList(“ddlEducationLevel”, new SelectList(new[]{“SSC”,”HSC”,”Graducation”,”Post Graducation”}))

HTML RENDER:

<select id="ddlEducationLevel" name="ddlEducationLevel"><option>SSC</option>
<option>HSC</option>
<option>Graduation</option>
<option>Post Graducation</option>
</select>
HiddenField @Html.Hidden(“hdnDateTime”,@DateTIme.Now.Tostring())

HTML RENDER:

<input id="hdnDateTime" name="hdnDateTime" type="hidden" value="01/09/16 20:47:46" />
Label @Html.Label(“lblFriendName”,”Friend Name”)

HTML RENDER:

<label for="lblFriendName">Name</label>
ListBox @{
var items = new List<SelectListItem>{
new SelectListItem {Value = "1", Text = "Visual Foxpro"},
new SelectListItem {Value = "2", Text = "Visual Basic"},
new SelectListItem {Value = "3", Text = "C#", Selected = true},
new SelectListItem {Value = "4", Text = "Javascript", Selected = true},
new SelectListItem {Value = "5", Text = "Java"}
};
}
@Html.ListBox(“lstLanguageKnow”, items)

HTML RENDER:

<select id="lstLanguageKnow" multiple="multiple" name="lstLanguageKnow"><option value="1">Visual Foxpro</option>
<option value="2">Visual Basic</option>
<option selected="selected" value="3">C#</option>
<option selected="selected" value="4">Javascript</option>
<option value="5">Java</option>
</select>
Password @Html.Password(“txtPassword”)

HTML RENDER:

<input id="txtPassword" name="txtPassword" type="password" />
Radio Button Male: @Html.RadioButton(“rbGender”,”Male”)
Female:@Html.RadioButton(“rbGender”,”Female”)

HTML RENDER:

Male: <input id="rbGender" name="rbGender" type="radio" value="Male" />
Female: <input id="rbGender" name="rbGender" type="radio" value="Female" />
TextArea @Html.TextArea(“txtAddress”)

HTML RENDER:

<textarea cols="20" id="txtAddress" name="txtAddress" rows="2">
</textarea>
TextBox @Html.TextBox(“txtName”)

HTML RENDER:

<input id="txtName" name="txtName" placeholder="Enter Friend Name" type="text" value="" />

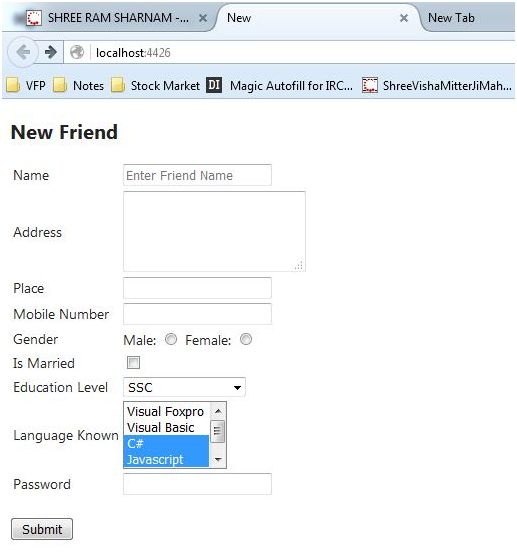

Output

Run

VIEW CODE: new.cshtml

  1. @{
  2.     ViewBag.Title = "New";
  3.     Layout = "~/Views/Shared/_Layout.cshtml";
  4. }
  5.
  6. <h2>New Friend</h2>
  7. <form method="post">
  8.
  9.     <table>
  10.         <tr>
  11.             <td>
  12.                 @Html.Label("lblName""Name")
  13.                 @Html.Hidden("hdnDateTime", @DateTime.Now.ToString())
  14.             </td>
  15.             <td>
  16.                 @Html.TextBox("txtName"""new { placeholder = "Enter Friend Name" })
  17.             </td>
  18.         </tr>
  19.         <tr>
  20.             <td>
  21.                 @Html.Label("lblAddress""Address")
  22.             </td>
  23.             <td>
  24.                 @*@Html.TextArea("txtAddress""", 4, 30, new {placeholder="Enter Your Address"})*@
  25.                 @Html.TextArea("txtAddress")
  26.             </td>
  27.         </tr>
  28.         <tr>
  29.             <td>
  30.                 @Html.Label("lblPlace""Place")
  31.             </td>
  32.             <td>
  33.                 @Html.TextBox("txtPlace")
  34.             </td>
  35.         </tr>
  36.
  37.         <tr>
  38.             <td>
  39.                 @Html.Label("lblMobile""Mobile Number")
  40.             </td>
  41.             <td>
  42.                 @Html.TextBox("txtMobile")
  43.             </td>
  44.         </tr>
  45.         <tr>
  46.             <td>
  47.                 @Html.Label("lblGender""Gender")
  48.             </td>
  49.             <td>
  50.                Male: @Html.RadioButton("rbGender""Male"new {value="Male"})
  51.                Female: @Html.RadioButton("rbGender""Female",new {value="Female"})
  52.             </td>
  53.         </tr>
  54.
  55.         <tr>
  56.             <td>
  57.                 @Html.Label("lblMarital""Is Married")
  58.             </td>
  59.             <td>
  60.                 @Html.CheckBox("chkMarried", 0)
  61.             </td>
  62.         </tr>
  63.         <tr>
  64.             <td>
  65.                 @Html.Label("lblEducationLevel""Education Level")
  66.             </td>
  67.             <td>
  68.                 @Html.DropDownList("ddlEducationLevel"new SelectList(new[] { "SSC""HSC""Graduation""Post Graducation" }))
  69.             </td>
  70.         </tr>
  71.
  72.         <tr>
  73.             <td>
  74.                 @Html.Label("lblLanguageKnown""Language Known")
  75.             </td>
  76.             <td>
  77.                 @{
  78.                     var items = new List<SelectListItem>{
  79.         new SelectListItem {Value = "1", Text = "Visual Foxpro"},
  80.         new SelectListItem {Value = "2", Text = "Visual Basic"},
  81.         new SelectListItem {Value = "3", Text = "C#", Selected = true},
  82.         new SelectListItem {Value = "4", Text = "Javascript", Selected = true},
  83.         new SelectListItem {Value = "5", Text = "Java"}
  84.     };
  85.                 }
  86.
  87.                 @Html.ListBox("lstLanguageKnow", items)
  88.             </td>
  89.         </tr>
  90.         <tr>
  91.             <td>
  92.                 @Html.Label("lblPassword""Password")
  93.             </td>
  94.             <td>
  95.                 @Html.Password("txtPassword")
  96.             </td>
  97.         </tr>
  98.     </table>
  99.     <br />
  100.     <input type="submit"  id="submit" value="Submit" />
  101.
  102. </form>
In the next article, I will explain about Strongly Typed HTML HELPER.
