SSRS Tutorial: Part 1 - Create A Simple Report

This article explains the following,
  • How to create a ssrs project.
  • How to add a shared data sources to your project.
  • How to add shared dataset to your project.
  • How to add a report to your project.
  • how to populate the data by using shared dataset.
Here are the steps to create a simple report in SSRS,

Step 1: If your using Microsoft SQL server 2012, then go to Start and and click on Search and select SQL Server Data Tools.



If your using SQL server 2008r2 or earlier versions, go to Start, Microsoft SQL Server 2008 and select SQL server Business Intelligence studio.

Step 2: Click on File Menu, and expand New, then select Project,

Project

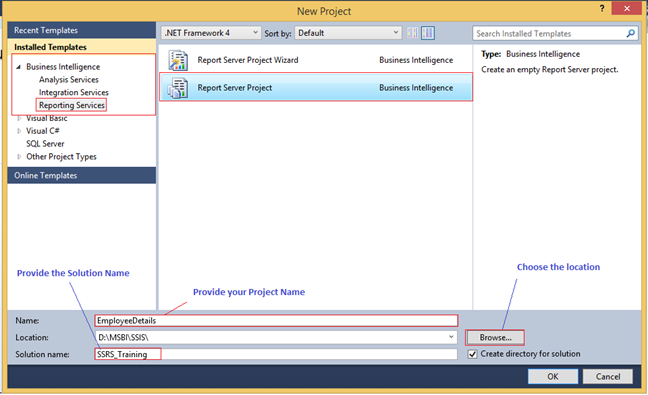

After that, expand Business Intelligence and select Reporting Services, and Report Server Project Wizard. Give it to a meaningful name to your Solution and Project. Specify an appropriate location for where you want to save this project clicking on Browse.

browse

Step 3: Create Shared DataSource

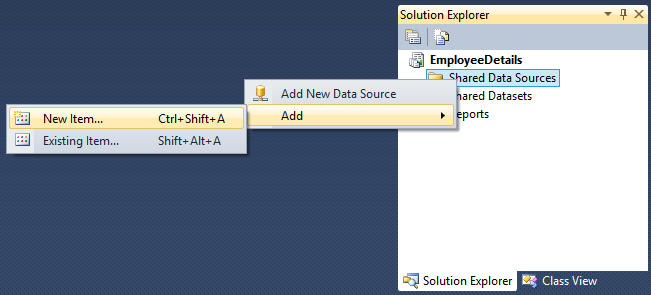

Go to Solution Explorer and right click on Shared Data Sources,and expand Add, then click on New Item.

New Item

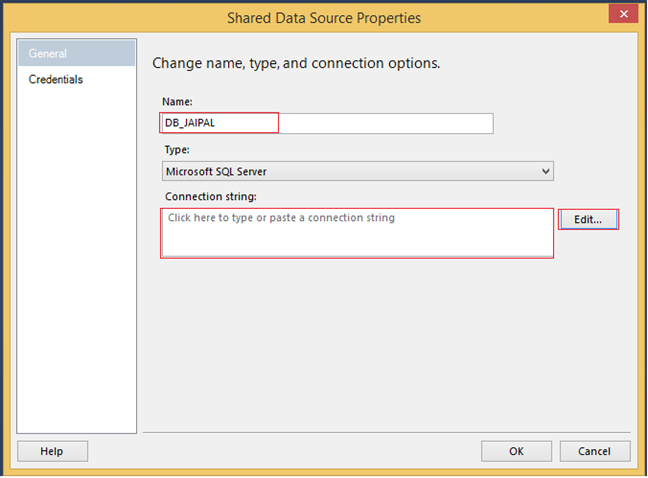

Then you will see the following wizard. Provide data source name in this article i gave it as DB_Jaipal. And then clicked on Edit to made the connectionString.

shared data

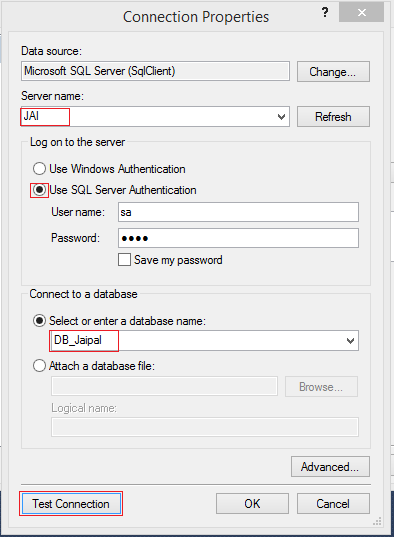

After clicking on Edit, we have to provide the following Connection Properties,
  • Select the Server name.
  • Select the "Use SQL Server Authentication" radio button.
  • Enter the User name and Password in the password text box.
  • Check the "Save my password" checkbox.
  • Select the "Select or enter a database name:" radio button.
  • Select the database to which you want to set the connection.
  • Click on the "Test Connection" button to ensure the connection can be established
connection properties


























If the connection was established successfully then the following wizard will come. Then click on OK.

connection

Step 4: Shared DataSet

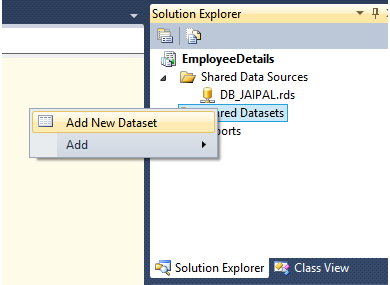

Go to Solution Explorer then right click on Shared Datasets and then click on Add New Dataset

Add dataset

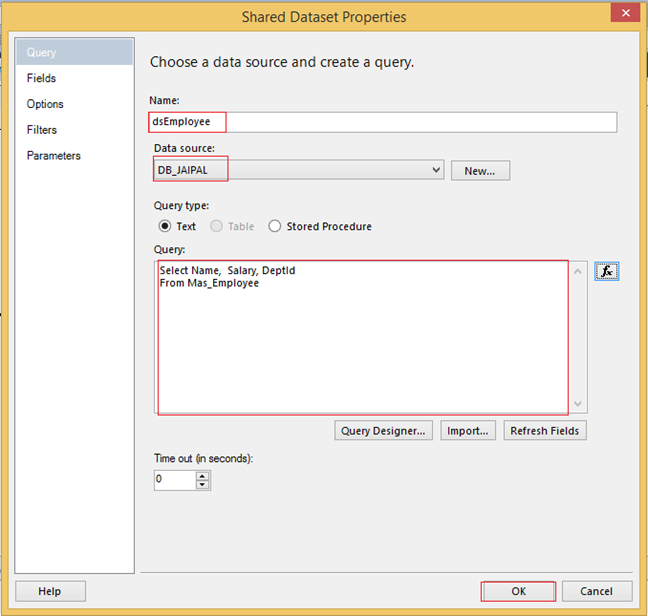

Next provide the dataset name and data source. And then select the Query type as Text and write your query in Query text field. Then click OK.

shared dataset properties

Step 5: Report

Go to Solution Explorer - Right click Report, then click Add -- > New Item

Report

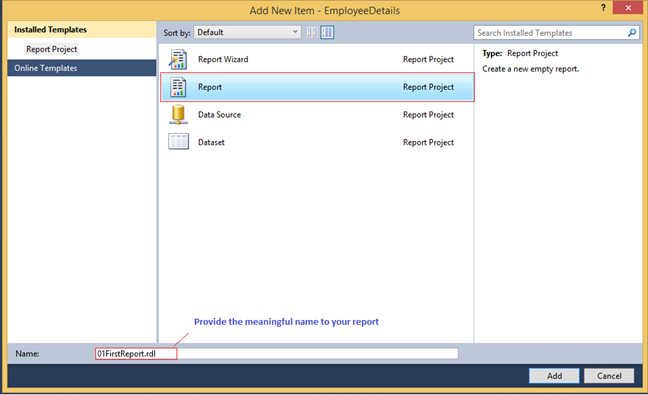

Select Report and provide the meaningful name to your report and then click Add.

Report1

Some shortcut keys:
ToolBox (Ctrl + Alt + X),
Report Data (Ctrl + Alt + D),
Solution Explorer (Ctrl + Alt + L),
Properties (F4).

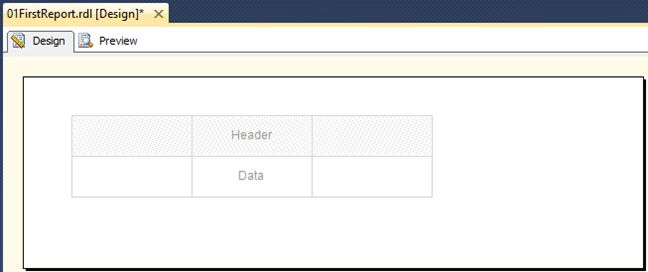

Step 6: Drag and Drop a table in design surface. And a table has two sections such as Header and Data. In Header section provide column name and in Data section populate the data with respect to the column.

Data Section

click on Data section and select Use a Shared DataSet radio button and name it to your dataset and click OK.

deemployee

Step 7: To populate the data in Data section with your dataset, provide the column name in Header section and select the appropriate properties in Data section as following.

Data Section

Step 8: Next click On Preview and see the report preview.

Result

I hope you enjoyed it. Please provide your valuable feedback and suggestions to make this article helpful.
