Understanding Basic Input Events In Windows 10

Here we are going to understand the press, tap, hold, and entered events of any control in Universal Windows Platform.

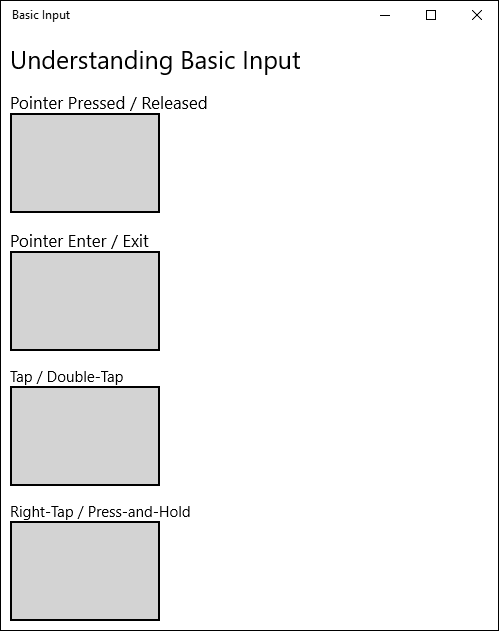

Step 1: Open a blank app with four borders with a text block child to it by copying the following XAML code in to your page. Please have a look at the different events assigned for each.

  1. <StackPanel Margin="10,10,0,0">
  2.     <TextBlock Text="Understanding Basic Input" FontSize="25"></TextBlock>
  3.     <TextBlock Text="Pointer Pressed / Released" FontSize="17" Margin="0,15,0,0" />
  4.     <Border x:Name="pressedTarget" Background="LightGray" Height="100" Width="150" BorderBrush="Black" BorderThickness="2" HorizontalAlignment="Left" ManipulationMode="None" PointerPressed="pressedTarget_PointerPressed" PointerReleased="pressedTarget_PointerReleased">
  5.         <TextBlock x:Name="pressedTargetText" HorizontalAlignment="Center" VerticalAlignment="Center" />
  6.     </Border>
  7.     <TextBlock Margin="0,15,0,0" FontSize="17" Text="Pointer Enter / Exit" />
  8.     <Border x:Name="enterExitTarget" Background="LightGray" Height="100" Width="150" BorderBrush="Black" BorderThickness="2" HorizontalAlignment="Left" ManipulationMode="None" PointerEntered="enterExitTarget_PointerEntered" PointerExited="enterExitTarget_PointerExited">
  9.         <TextBlock x:Name="enterExitTargetText" HorizontalAlignment="Center" VerticalAlignment="Center" />
  10.     </Border>
  11.     <TextBlock Margin="0,15,0,0" FontSize="15" Text="Tap / Double-Tap" />
  12.     <Border x:Name="tapTarget" Background="LightGray" Height="100" Width="150" BorderBrush="Black" BorderThickness="2" HorizontalAlignment="Left" ManipulationMode="None" DoubleTapped="tapTarget_DoubleTapped" Tapped="tapTarget_Tapped">
  13.         <TextBlock x:Name="tapTargetText" HorizontalAlignment="Center" VerticalAlignment="Center" />
  14.     </Border>
  15.     <TextBlock Margin="0,15,0,0" FontSize="15" Text="Right-Tap / Press-and-Hold" />
  16.     <Border x:Name="holdTarget" Background="LightGray" Height="100" Width="150" BorderBrush="Black" BorderThickness="2" HorizontalAlignment="Left" ManipulationMode="None" RightTapped="holdTarget_RightTapped" Holding="holdTarget_Holding">
  17.         <TextBlock x:Name="holdTargetText" HorizontalAlignment="Center" VerticalAlignment="Center" />
  18.     </Border>
  19. </StackPanel>





Step 2: Copy and paste the following code to the cs page which will handle each events assigned to each border. We are also doing a change of color for understanding.
  1. private void pressedTarget_PointerPressed(object sender, PointerRoutedEventArgs e)
  2. {
  3.     pressedTarget.Background = new SolidColorBrush(Windows.UI.Colors.RoyalBlue);
  4.     pressedTargetText.Text = "Pointer Pressed";
  5. }
  6. private void pressedTarget_PointerReleased(object sender, PointerRoutedEventArgs e)
  7. {
  8.     pressedTarget.Background = new SolidColorBrush(Windows.UI.Colors.LightGray);
  9.     pressedTargetText.Text = "Pointer Released";
  10. }
  11. private void enterExitTarget_PointerEntered(object sender, PointerRoutedEventArgs e)
  12. {
  13.     enterExitTarget.Background = new SolidColorBrush(Windows.UI.Colors.RoyalBlue);
  14.     enterExitTargetText.Text = "Pointer Entered";
  15. }
  16. private void enterExitTarget_PointerExited(object sender, PointerRoutedEventArgs e)
  17. {
  18.     enterExitTarget.Background = new SolidColorBrush(Windows.UI.Colors.LightGray);
  19.     enterExitTargetText.Text = "Pointer Exited";
  20. }
  21. private void tapTarget_DoubleTapped(object sender, DoubleTappedRoutedEventArgs e)
  22. {
  23.     tapTarget.Background = new SolidColorBrush(Windows.UI.Colors.RoyalBlue);
  24.     tapTargetText.Text = "Double-Tapped";
  25. }
  26. private void tapTarget_Tapped(object sender, TappedRoutedEventArgs e)
  27. {
  28.     tapTarget.Background = new SolidColorBrush(Windows.UI.Colors.DeepSkyBlue);
  29.     tapTargetText.Text = "Tapped";
  30. }
  31. private void holdTarget_RightTapped(object sender, RightTappedRoutedEventArgs e)
  32. {
  33.     holdTarget.Background = new SolidColorBrush(Windows.UI.Colors.RoyalBlue);
  34.     holdTargetText.Text = "Right Tapped";
  35. }
  36. private void holdTarget_Holding(object sender, HoldingRoutedEventArgs e)
  37. {
  38.     if (e.HoldingState == Windows.UI.Input.HoldingState.Started)
  39.     {
  40.         holdTarget.Background = new SolidColorBrush(Windows.UI.Colors.DeepSkyBlue);
  41.         holdTargetText.Text = "Holding";
  42.     } else if (e.HoldingState == Windows.UI.Input.HoldingState.Completed)
  43.     {
  44.         holdTarget.Background = new SolidColorBrush(Windows.UI.Colors.LightGray);
  45.         holdTargetText.Text = "Held";
  46.     } else
  47.     {
  48.         holdTarget.Background = new SolidColorBrush(Windows.UI.Colors.LightGray);
  49.         holdTargetText.Text = "Hold Canceled";
  50.     }
  51. }

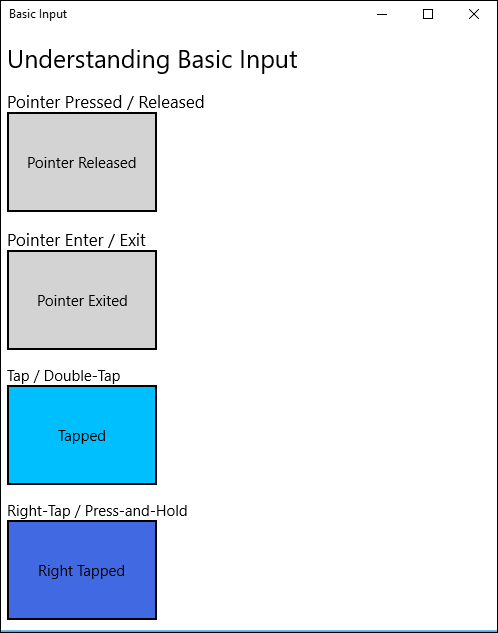

Step 3: Run your application and test yourself with each borders.
