Calender Items in SharePoint 2010 Programmatically Using VS 2012

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.

Question: What is calendar item?


In simple terms "It enables addition of a list of events or items to the calendar where the user can keep track of activities going on".

Step 1: Open SharePoint 2010 Central Administration and navigate to a specific site.

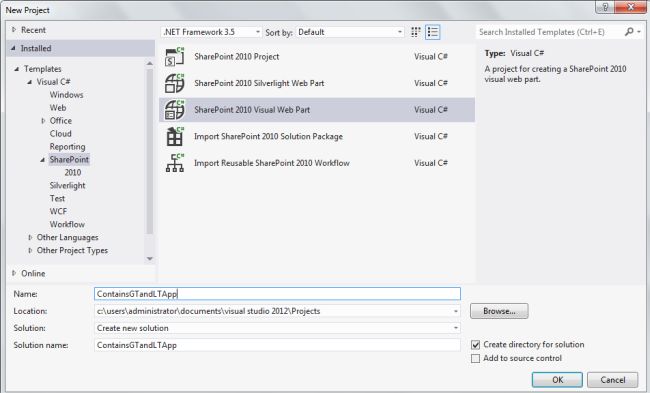

Step 2: Open up Visual Studio 2012 and try to create a "SharePoint Visual Web Part" project, as in:

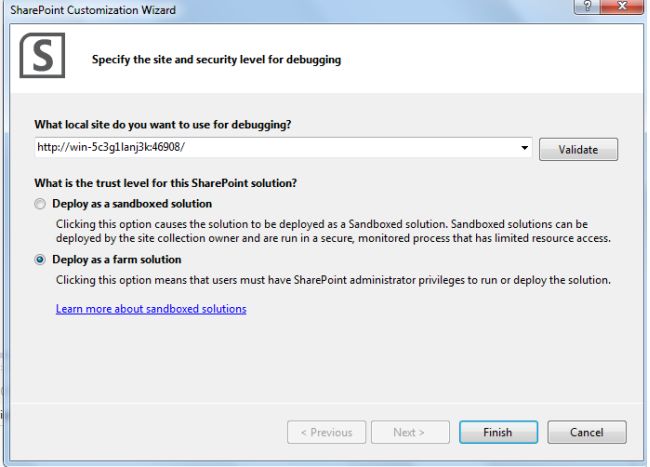

Step 3: Select "Deploy as a farm solution" as in the following and click the "Finish" button.






Step 4: The complete code of visualwebpart1usercontrol.ascx looks like this:


<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"

    Inherits="CalendarItemApp.VisualWebPart1.VisualWebPart1" %>

<center>

    <div>

        <table style="font-family: Verdana; text-align: center;">

            <tr>

                <td colspan="2">

                    <asp:label id="Label1" runat="server" text="Add New Item to Calendar - SharePoint 2010 via Visual Studio 2012"

                        font-bold="true" forecolor="Maroon" font-size="Large"></asp:label>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label2" runat="server" text="Please Enter List Name:"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox1" runat="server" width="117px"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label3" runat="server" text="Please Enter Title Name:"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox2" runat="server" width="117px"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label5" runat="server" text="Please Enter Location Name"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox3" runat="server" textmode="SingleLine" width="117px"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label6" runat="server" text="Please Enter Description"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox4" runat="server" textmode="MultiLine" width="117px"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label7" runat="server" text="Please Select Category"></asp:label>

                </td>

                <td>

                    <asp:dropdownlist id="DropDownList1" runat="server" width="117px"><asp:ListItem>Meeting</asp:ListItem><asp:ListItem>Work Hours</asp:ListItem><asp:ListItem>Business</asp:ListItem><asp:ListItem>Holiday</asp:ListItem><asp:ListItem>Get-Together</asp:ListItem><asp:ListItem>Gifts</asp:ListItem><asp:ListItem>BirthDay</asp:ListItem><asp:ListItem>Anniversary</asp:ListItem></asp:dropdownlist>

                </td>

            </tr>

            <tr>

                <td colspan="2">

                    <asp:button id="Button1" runat="server" text="Add New Item" forecolor="Orange" font-bold="true"

                        backcolor="Black" width="154px" onclick="Button1_Click" />

                </td>

            </tr>

            <tr>

                <td colspan="2">

                    <asp:label id="Label4" runat="server" font-bold="true"></asp:label>

                </td>

            </tr>

        </table>

    </div>

</center>



Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:



using Microsoft.SharePoint;

using System;

using System.ComponentModel;

using System.Web.UI.WebControls.WebParts;namespace CalendarItemApp.VisualWebPart1

{

    [ToolboxItemAttribute(false)]

    public partial class VisualWebPart1 : WebPart

    {

        // Uncomment the following SecurityPermission attribute only when doing Performance Profiling using

        // the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready

        // for production. Because the SecurityPermission attribute bypasses the security check for callers of

        // your constructor, it's not recommended for production purposes.

        // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]

        public VisualWebPart1()

        {

        }

        protected override void OnInit(EventArgs e)

        {

            base.OnInit(e);

            InitializeControl();

        }

        protected void Page_Load(object sender, EventArgs e)

        {

            TextBox1.Focus();

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text)|| string.IsNullOrEmpty(TextBox3.Text))

            {

                Label4.Text = "Please Enter Some Values";

                Label4.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                SPWeb web = SPContext.Current.Web;

                SPList list = web.Lists[TextBox1.Text];

                SPListItem item = list.Items.Add();

                item["Title"] = TextBox2.Text;

                item["Location"] = TextBox3.Text;

                item["Description"] = TextBox4.Text;

                item["Category"] = DropDownList1.SelectedValue;

                item["Start Time"] = DateTime.Today;

                item["End Time"] = DateTime.Today.AddDays(1);

                item.Update();

                Label4.Text = TextBox2.Text + " - Created Successfully";

                Label4.ForeColor = System.Drawing.Color.Green;

                TextBox1.Text = string.Empty;

                TextBox2.Text = string.Empty;

                TextBox3.Text = string.Empty;

                TextBox4.Text = string.Empty;

            }

        }

    }

}


Step 6: Deploy the solution file and add the new webpart to a SharePoint site.

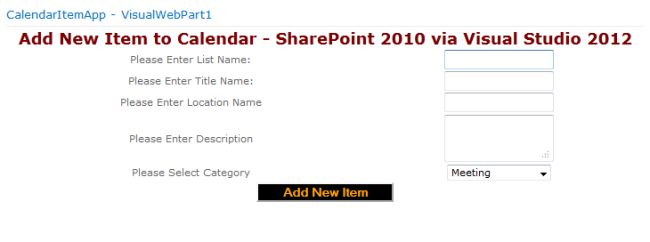

Step 7: The output of the application looks like this:

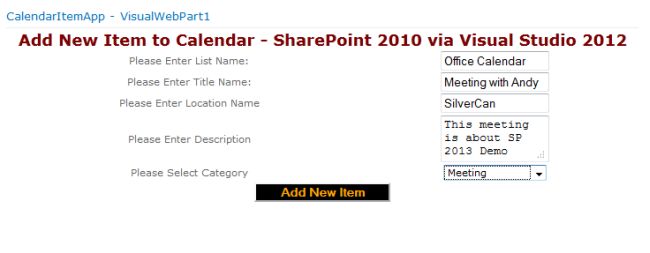

Step 8: Data entering output of the application looks like this:

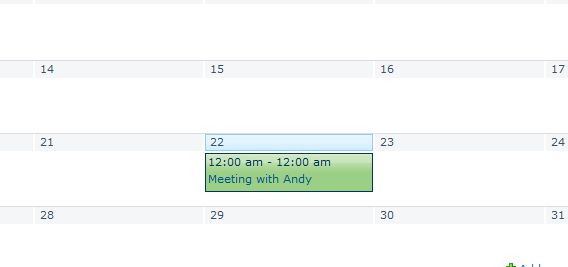

Step 9: Calendar item created output of the application looks like this:



I hope this article is useful for you.
