Create Document Set in SharePoint 2010 Programmatically Using VS 2012

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.

Question: What is Document Set?

In simple terms "Document set helps to manage group of documents as a single entity".

Step 1

Open SharePoint 2010 Central Administration and navigate to the specific site.

Step 2

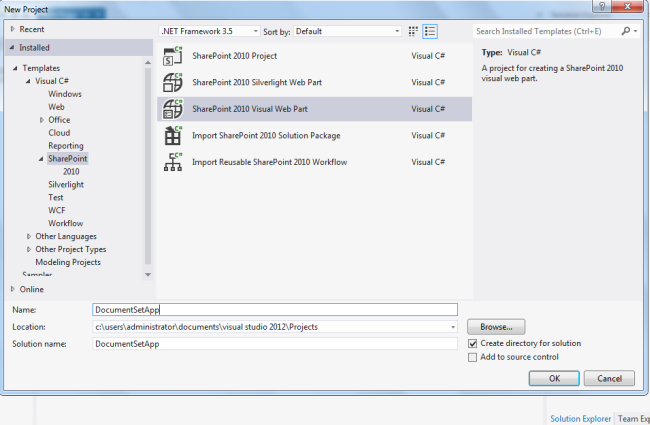

Open up Visual Studio 2012 and try to select "SharePoint Visual Web Part" project, as in:


Step 3

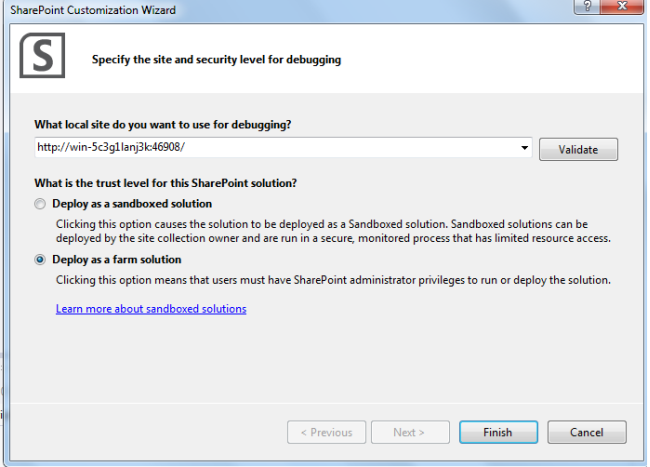

Select "Deploy as a farm solution" as in the following and click on the "Finish" button.


Step 4

The complete code of visualwebpart1usercontrol.ascx looks like this:

<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>
<%
@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%
@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"
    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%
@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%
@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>
<%
@ Import Namespace="Microsoft.SharePoint" %>
<%
@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"
    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%
@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"
    Inherits="DocumentSetApp.VisualWebPart1.VisualWebPart1" %>
<center>
    <div>
        <table style="text-align: center">
            <tr>
                <td colspan="2">
                    <asp:label id="Label1" runat="server" text="DocumentSet  - SharePoint 2010 Programatically using VS 2012"
                        font-bold="true" font-size="Large" font-names="Verdana" forecolor="Maroon"></asp:label>
                </td>
            </tr>
            <tr>
                <td>
                    <asp:label id="Label2" runat="server" text="Please Enter List Name" font-size="Large"
                        font-names="Verdana" font-italic="true"></asp:label>
                </td>
                <td>
                    <asp:textbox id="TextBox1" runat="server"></asp:textbox>
                </td>
            </tr>
            <tr>
                <td>
                    <asp:label id="Label3" runat="server" text="Please Enter DocumentSet Name" font-size="Large"
                        font-names="Verdana" font-italic="true"></asp:label>
                </td>
                <td>
                    <asp:textbox id="TextBox2" runat="server"></asp:textbox>
                </td>
            </tr>

            <tr>

                <td colspan="2">

                    <asp:button id="Button1" runat="server" text="Create Document Set" font-names="Verdana"

                        width="174px" backcolor="Orange" font-bold="True" onclick="Button1_Click" />

                </td>

            </tr>

            <tr>

                <td colspan="2">

                    <asp:label id="Label5" runat="server" font-bold="true" font-names="Verdana"></asp:label>

                </td>

            </tr>
        </table>
    </div>
</center>

Step 5

The complete code of visualwebpart1usercontrol.ascx.cs looks like this:

using Microsoft.Office.DocumentManagement.DocumentSets;
using
Microsoft.SharePoint;
using
System;
using
System.Collections;
using
System.ComponentModel;
using
System.Web.
I.WebControls.WebParts;

namespace
DocumentSetApp.VisualWebPart1
{
    [ToolboxItemAttribute(false)]
    public partial class VisualWebPart1 : WebPart
    {
        // Uncomment the following SecurityPermission attribute only when doing Performance Profiling using
        // the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready
        // for production. Because the SecurityPermission attribute bypasses the security check for callers of
        // your constructor, it's not recommended for production purposes.
        // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]
        public VisualWebPart1() { }
        protected override void OnInit(EventArgs e)
        {
            base.OnInit(e); InitializeControl();
        }
        protected void Page_Load(object sender, EventArgs e)
        {
            TextBox1.Focus();
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))
            {
                Label5.Text = "Please Enter Some Values"; Label5.ForeColor = System.Drawing.Color.Red;
            }
            else
            {
                try
                {
                    SPWeb web = SPContext.Current.Web; SPList list = web.Lists[TextBox1.Text];
                    if (list != null)
                    {
                        SPContentType contentType = web.ContentTypes["Document Set"];
                        if (contentType != null)
                        {
                            var hashTable = new Hashtable();
                            hashTable.Add("DocumentSet", "New Doc Setting"); hashTable.Add("CreatedBy", SPContext.Current.Web.CurrentUser.Name);
                            hashTable.Add("ModifiedBy", SPContext.Current.Web.CurrentUser.Name);
                            DocumentSet documentSet = DocumentSet.Create(list.RootFolder, TextBox2.Text, contentType.Id, hashTable,true);
                            documentSet.Item.ProgId = "SharePoint.DocumentSet"; documentSet.Item.Update();
                        }
                    }
                }
                catch (SPException ex)
                {
                    Label5.Text = ex.Message;
                }
                Label5.Text = TextBox2.Text + " Document Set Created Successfully";
                Label5.ForeColor = System.Drawing.Color.Green;
                TextBox1.Text = string.Empty;
                TextBox2.Text = string.Empty;
            }
        }
    }
}

Step 6

Deploy the solution file and add the created webpart to SharePoint site.

Step 7

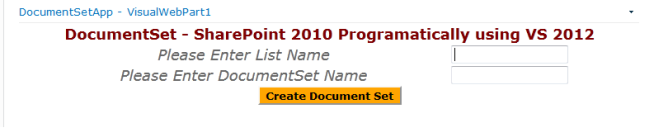

The output of the application looks like this:


Step 8

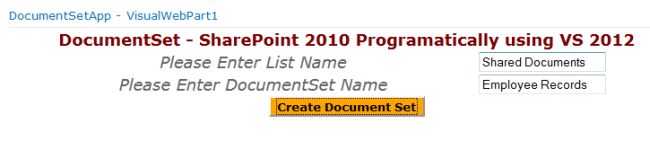

Entering document set data output of the application looks like this:


Step 9

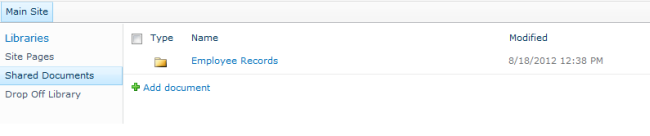

Document set create output of the application looks like this:
