Inner Join using LINQ for Multiple Tables (3 Tables Now)

Introduction



Today, in this article let's play around with one of the interesting and most useful concept in LINQ.



Question: What is inner join using LINQ for multiple tables?



In simple terms "It provides flexibility to pull out the matching result sets from 3 or more tables with help of inner join using LINQ"

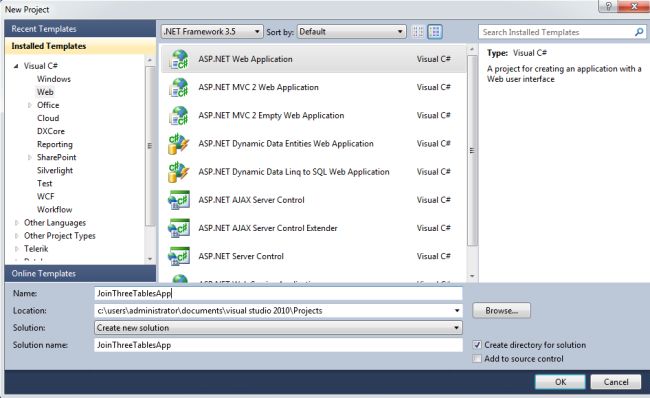

Step 1: Create a new webform project

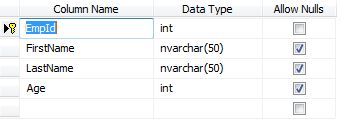

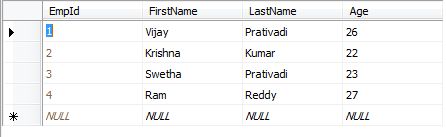

Step 2: Design of Employee table looks like this

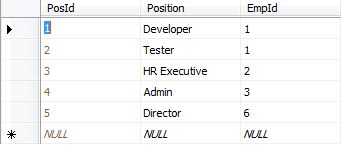

Step 3: Design of Position table looks like this

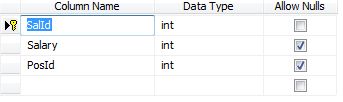

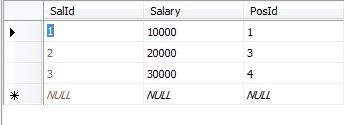

Step 4: Design of Salary table looks like this





Step 5: The complete code of WebForm1.aspx looks like this



<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="LINQInnerJoinApp._Default" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2">

                        <asp:Label ID="Label1" runat="server" Text="INNER JOIN using LINQ for Multiple Tables (3 Tables)"

                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <br />

                        <asp:GridView ID="GridView1" runat="server" BackColor="LightGoldenrodYellow" BorderColor="Tan"

                            BorderWidth="1px" CellPadding="2" EnableModelValidation="True" ForeColor="Black"

                            GridLines="None" AutoGenerateColumns="False">

                            <AlternatingRowStyle BackColor="PaleGoldenrod"></AlternatingRowStyle>

                            <FooterStyle BackColor="Tan"></FooterStyle>

                            <HeaderStyle BackColor="Tan" Font-Bold="True"></HeaderStyle>

                            <PagerStyle HorizontalAlign="Center" BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue">

                            </PagerStyle>

                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite"></SelectedRowStyle>

                            <Columns>

                                <asp:BoundField DataField="FirstName" HeaderText="First Name" ReadOnly="true" />

                                <asp:BoundField DataField="LastName" HeaderText="Last Name" />

                                <asp:BoundField DataField="Position1" HeaderText="Position" />

                                <asp:BoundField DataField="Salary1" HeaderText="Salary" />

                            </Columns>

                        </asp:GridView>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>



Step 6: The complete code of WebForm1.aspx.cs looks like this



using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

namespace LINQInnerJoinApp

{

    public partial class _Default : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            var query = from r in objEntities.Employeejoin p in objEntities.Position on r.EmpId equals p.EmpIdjoin q in objEntities.Salary on p.PosId equals q.PosIdselect new{r.FirstName,r.LastName,p.Position1,q.Salary1};

            GridView1.DataSource = query;

            GridView1.DataBind();

        }

        #region

        Instance MembersCompanyEntities objEntities = new CompanyEntities();

        #endregion

    }

}



Step 7: The output of the application looks like this





Step 8: The results retrieved output of the application looks like this


I hope this article is useful for you ...I look forward for your comments and feedback....Thanks Vijay Prativadi
