Convert Value Using Nintex Workflows In SharePoint 2013 And Office 365

Welcome to an article on how to convert value in SharePoint 2013 and Office 365 using Nintex Workflows. This article will display the action “Convert Value” so that all my developer friends don’t have to spend much time and effort while using this function in their projects.


This action assists you to convert the string to Boolean values according to your regional settings. Let’s see the implementation of this functionality.
  • Create a list, Dev Testing.

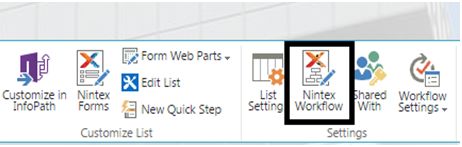

  • Click on the List tab on the Top ribbon and click on Nintex Workflow.

    Nintex Workflows

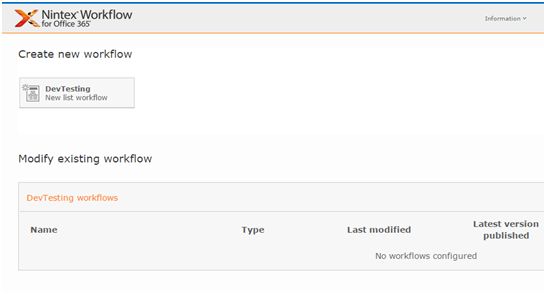

  • You will see the following screen, to create a new workflow.

  • Click on “Create new workflow”.

    Create new workflow

  • You will come to the design phase of the Nintex workflows.

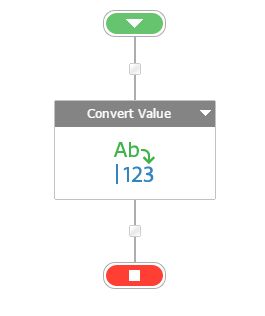

  • Add the action, “Convert Value” either by right click on the workflow or by dragging and dropping from the left toolbox.

    Convert Value

  • Now let’s configure it.

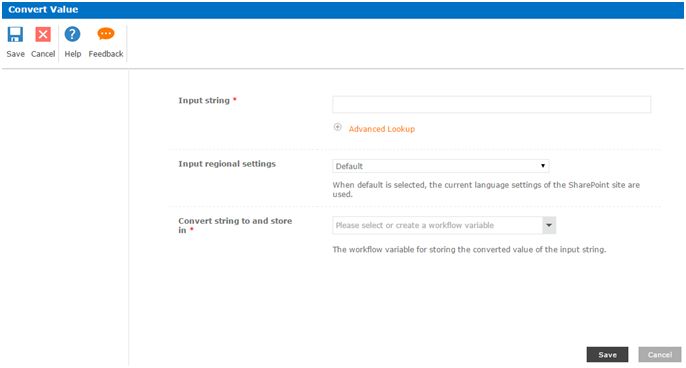

  • When you double click on the action the following screen opens up.

    action

    Configure:

    • Input String: You can define texts or variables which will act as a input string which you want to convert into a Boolean value.

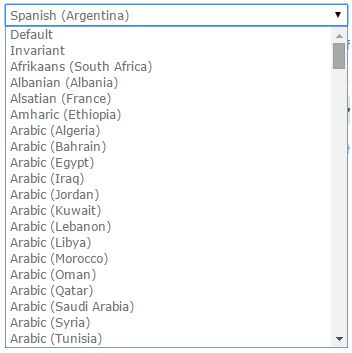

    • Input regional settings: Here you can choose one among the following regions which depicts the region language you have used for input string so that the value is converted correctly.

      Input regional settings

    • Convert string to and store in: The output of the above will be stored by the workflow.

  • Now we have configured our workflow, let’s go and publish it to use it.

  • Click on Publish on the left corner of the ribbon of Nintex Designer.

    Click on Publish

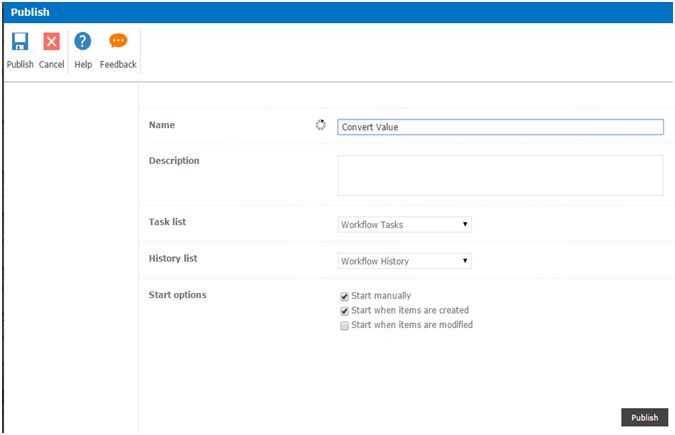

  • You will see the screen below.

    publish

  • Give your workflow a name.

  • Description.

  • Choose your task list where it should store the tasks, It will be Workflow Tasks by default.

  • Choose your history list where it should store the history logs, It will be Workflow History by default.

  • Start Options:

      - You can either start your workflow manually.
      - Or you can start your workflow automatically when an item is created
      - Or you can start your workflow automatically when an item is modified.

  • Click on Publish.

  • Your workflow will get published.

So in this article we saw how to convert value using Nintex Workflows in SharePoint 2013 and Office 365. This action makes it a way to convert values which are in strings and generate an output in Boolean, isn’t it great!

We will see more new articles on the actions of Nintex Workflows in the other parts of the article. Till then, keep learning!
