Working With Control Template in Windows Store App

Introduction

In this article we are going to see how to change an image using a Control Template in Windows 8 Silverlight.

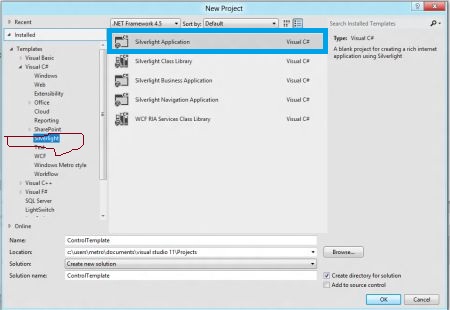

Step 1 : First of all you will create a new Metro Style Application. Let us see the description with images of how you will create it.

  • Open Visual Studio 2011
  • File -> New -> Project
  • Choose Template -> Visual C# ->Silverlight Application
  • Rename this Application :

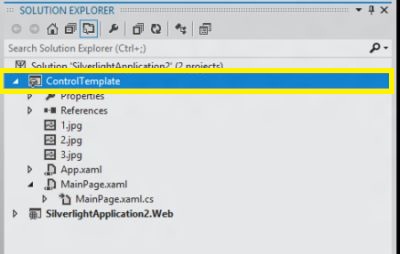

Step 2 : In the Solution Explorer there are two files that we will primarily work with; MainPage.xaml and MainPage.xaml.cs files.


Step 3 : The MainPage.xaml file is as in the following code.

Code : Let us see the code which is given below.

<UserControl x:Class="SilverlightApplication1.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d"

    d:DesignHeight="300" d:DesignWidth="400">

    <UserControl.Resources>

       <ControlTemplate x:Key="ButtonTemplate" TargetType="Button">

           <Grid>

              <VisualStateManager.VisualStateGroups>

                  <VisualStateGroup x:Name="CommonStates">

                     <VisualState x:Name="Disabled"/>

                     <VisualState x:Name="Normal"/>

             <VisualState x:Name="MouseOver">

                            <Storyboard>

                  <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="mouseOverImage">

                                <DiscreteObjectKeyFrame KeyTime="0">

                              <DiscreteObjectKeyFrame.Value>

                            <Visibility>Visible</Visibility>

                       </DiscreteObjectKeyFrame.Value>

                 </DiscreteObjectKeyFrame>

                              </ObjectAnimationUsingKeyFrames>

                              <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="normalImage">

                  <DiscreteObjectKeyFrame KeyTime="0">

                            <DiscreteObjectKeyFrame.Value>

                     <Visibility>Collapsed</Visibility>

                           </DiscreteObjectKeyFrame.Value>

                     </DiscreteObjectKeyFrame>

                        </ObjectAnimationUsingKeyFrames>

                        </Storyboard>

                      </VisualState>

                        <VisualState x:Name="Pressed">

                       <Storyboard>

                            <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="mouseOverImage">

                           <DiscreteObjectKeyFrame KeyTime="0">

                             <DiscreteObjectKeyFrame.Value>

                                 <Visibility>Collapsed</Visibility>

                                </DiscreteObjectKeyFrame.Value>

                             </DiscreteObjectKeyFrame>

                             </ObjectAnimationUsingKeyFrames>

                              <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="normalImage">

                                <DiscreteObjectKeyFrame KeyTime="0">

                                     <DiscreteObjectKeyFrame.Value>

                              <Visibility>Collapsed</Visibility>

                                 </DiscreteObjectKeyFrame.Value>

                                  </DiscreteObjectKeyFrame>

                              </ObjectAnimationUsingKeyFrames>

                             <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="mousePressedImage">

                                  <DiscreteObjectKeyFrame KeyTime="0">

                                  <DiscreteObjectKeyFrame.Value>

                       <Visibility>Visible</Visibility>

                           </DiscreteObjectKeyFrame.Value>

                                  </DiscreteObjectKeyFrame>

                          </ObjectAnimationUsingKeyFrames>

                          </Storyboard>

                      </VisualState>

                  </VisualStateGroup>

              </VisualStateManager.VisualStateGroups>

              <Image x:Name="normalImage" Margin="0" Source="1.jpg" Stretch="Fill" />

              <Image x:Name="mouseOverImage" Margin="0" Source="2.jpg" Stretch="Fill" Visibility="Collapsed" />

             <Image x:Name="mousePressedImage" Margin="0" Source="3.jpg" Stretch="Fill" Visibility="Collapsed" />

           </Grid>

        </ControlTemplate>

    </UserControl.Resources>

    <Grid x:Name="LayoutRoot" Background="Pink">

    <Button Content="Hello" HorizontalAlignment="Center" VerticalAlignment="Top"  Width="300" Height="300" Template="{StaticResource ButtonTemplate}" Margin="2,50,0,25" />

    </Grid>

    </UserControl>

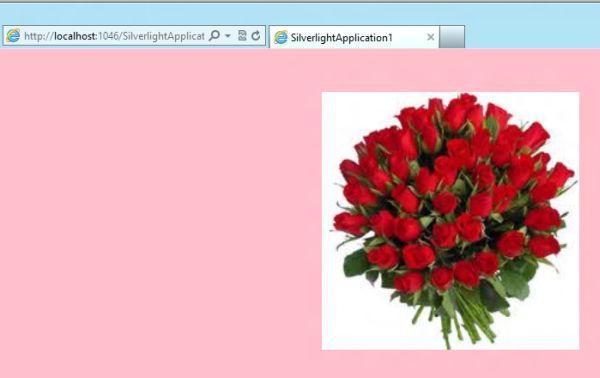

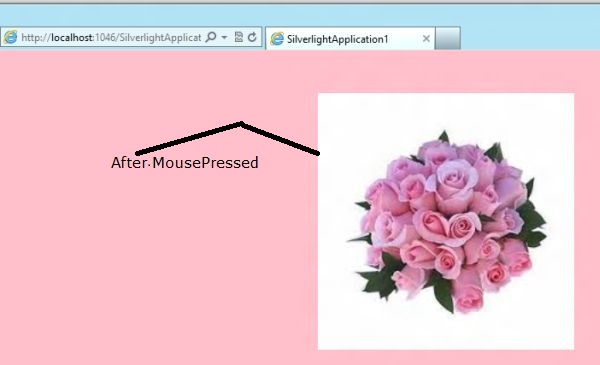

Step 4 : After running this code we get the following output.
