Introduction
This article helps you to port C# Windows Stores components to C++ Windows Stores components using the Windows RunTime components project.
Step 1: Create Visual C# Runtime Component Project

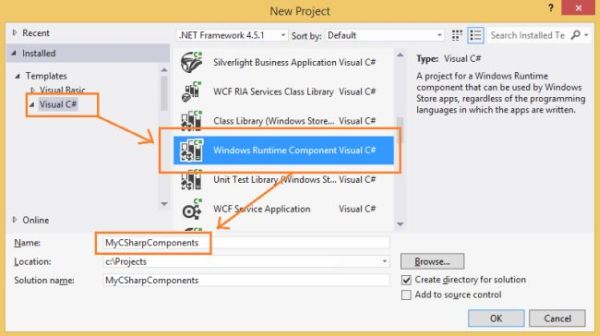

Create a “Windows Runtime Component Visual C#” project form the following navigations.
- File -> New -> Project (the following “New Project” dialog will open).
- Choose the “Windows Runtime Component Visual C#” project from Templates -> Visaul C# -> Windows Runtime Component Visual C# with a name like “MyCSharpComponents” or whatever you desire.
Step 2: Add a UserControl to hold our desire C# controls

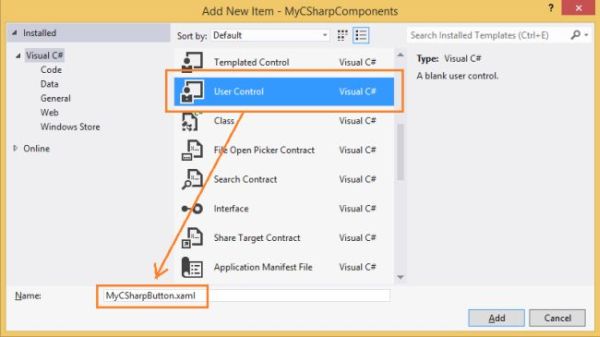

- Create a UserControl to hold our desired C# control by pressing Ctrl+Shift+A to show the following “Add New Item” dialog.
- Create a UserControl with a name like “MyCSharpButton.xaml” or whatever you desire.
Step 3: Add desired C# Control like Button
- Here I am using a C# Button, so double-click on the “MyCSharpButton.xaml” file and add the following code.
- <UserControl
- x:Class="MyCSharpComponents.MyCSharpButton"
- xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
- xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
- xmlns:local="using:MyCSharpComponents"
- xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
- xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
- mc:Ignorable="d"
- d:DesignHeight="300"
- d:DesignWidth="400">
-
- <Button x:Name="MyButtonCSharp" Content="Button" VerticalAlignment="Stretch" HorizontalAlignment="Stretch"></Button>
- </UserControl>
- Now rebuild the project to ensure the compilation.
Step 4: Create a C++ Windows Store Application

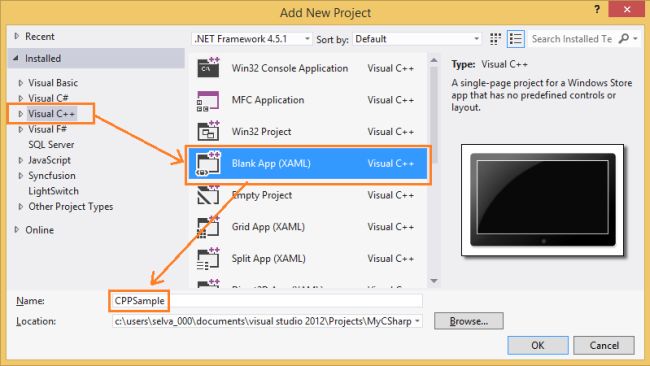

- Create a C++ Windows Store Blank App to use the C# button by right-clicking the solution then Add -> New Project to show the “Add New Project” dialog as below:
- Create a “Blank App” from Visual C++ with a name like “CPPSample” or whatever you desire.
Step 5: Add “MyCSharpComponents” project as a reference for the “CPPSample”
- Add a “MyCSharpComponents” Runtime Component project as a reference of “CPPSample” by right-clicking the “CPPSample” and click the “Reference” menu to show the “CPPSample Property Page”.

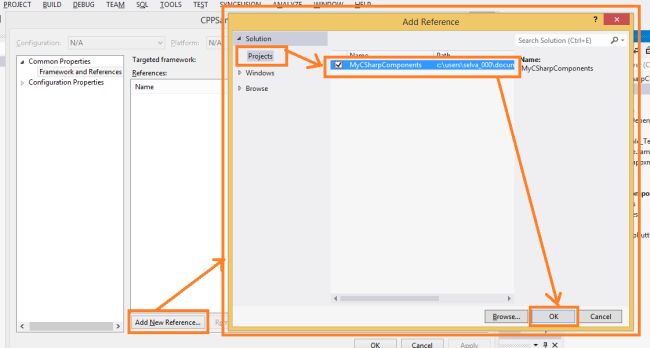

- Click the “Add New Reference” button to open the “Add Reference” dialog.
- Refer to “CSharpComponent” from Solution -> Projects.
Step 6: Add the C# Control with CPP sample
- Double-click the “MainPage.xaml” and implement the following code with a namespace and C# button hosted.
- <Page
- x:Class="CPPSample.MainPage"
- xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
- xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
- xmlns:local="using:CPPSample"
- xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
- xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
- xmlns:csharp="using:MyCSharpComponents"
- mc:Ignorable="d">
-
- <Grid Background="{StaticResource ApplicationPageBackgroundThemeBrush}">
- <csharp:MyCSharpButton Width="200" Height="50"></csharp:MyCSharpButton>
- </Grid>
- </Page>

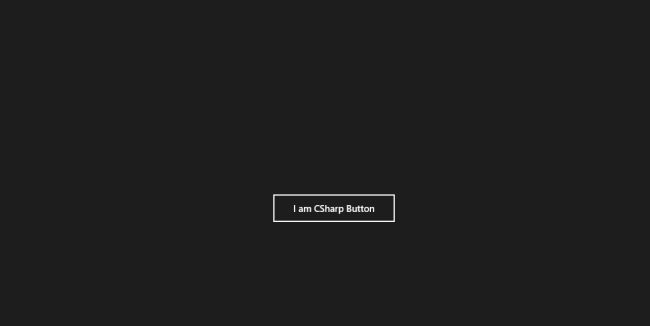

- Now rebuild and the set the “CPPSample” as the startup project and run the application.
