Introduction
The column's value of a new row can be incremented
by the AutoIncrement property of the DataColumn class. At first, set the
AutoIncrement property to true. The two other properties used with the
AutoIncrement property are
AutoIncrementSeed and AutoIncrementStep.
- AutoIncrementSeed : It is used to set initial value for increment.
- AutoIncrementStep : It is used to set value to be increment.
Now we use these properties in our application. I
am creating a simple application in which I am sending the value from textbox to
DataTable's row and showing the value of DataTable into DataDridView. Open
Visual Studio 2010 and take a Window Form Application. Write the following code.
using System;
using
System.Collections.Generic;
using
System.ComponentModel;
using
System.Data;
using
System.Drawing;
using
System.Linq;
using
System.Text;
using
System.Windows.Forms;
namespace
parameterclass
{
public partialclass
Form1 :
Form
{
public Form1()
{
InitializeComponent();
}
private void
btnok_Click(object sender,EventArgs e)
{
// Creating new row and assigning value to column
DataRow dr =
dtable.NewRow();
dr[1]=textBox1.Text;
dr[2] = int.Parse(textBox2.Text);
dr[3] = textBox3.Text;
// Adding DataRow to DataTable
dtable.Rows.Add(dr);
// Binding DataGridView to DataTable
dataGridView1.DataSource = dtable;
}
DataTable dtable;
private void
Form1_Load(object sender,EventArgs e)
{ // Creating Intance of DataTable
dtable = new System.Data.DataTable();
// Creating Instance to DataColumns
DataColumn dcid =new System.Data.DataColumn("ID",typeof(int));
DataColumn dcname =new System.Data.DataColumn("NAME",typeof(string));
DataColumn dcage =new System.Data.DataColumn("AGE",typeof(int));
DataColumn dccity =new System.Data.DataColumn("CITY");
// Adding Columns to DataTable
dtable.Columns.Add(dcid);
dtable.Columns.Add(dcname);
dtable.Columns.Add(dcage);
dtable.Columns.Add(dccity);
// Set AutoIncrement property to true
dcid.AutoIncrement =true;
// Set starting value for increment
dcid.AutoIncrementSeed
= 11;
// Set increment value
dcid.AutoIncrementStep
= 2;
// Binding DataGridView to DataTable
dataGridView1.DataSource = dtable;
}
}
}
Run the application.

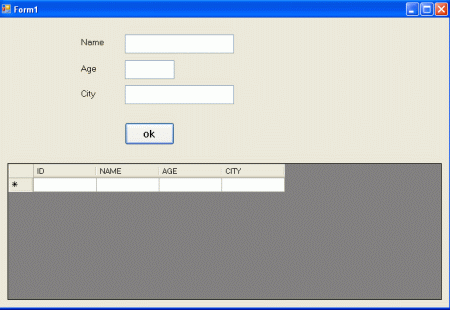

Output
![autoincrement in .net]()

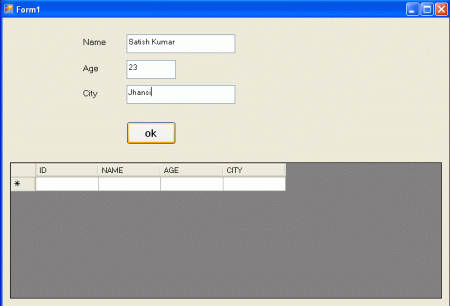

Fill the textboxes
![autoincrement propety]()

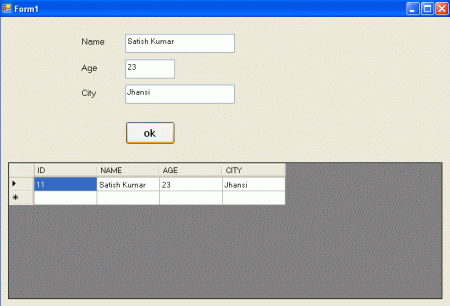

Click the "ok" button. You will note that you are not assigning any value for
"ID". But when you click the button, It shows 11 as "ID" DataGridView. Because
the
AutoIncrementSeed
property is set to 11. Look
at the following figure.
![autoincrement]()

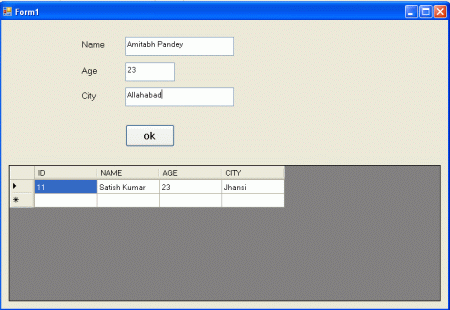

Again fill the textboxes with
a value.
![autoincrement in ado.net]()

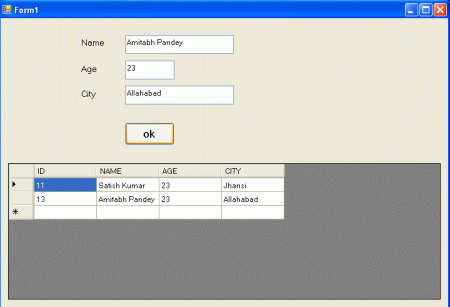

Click the button. You will note that "ID" will
be incremented by 2. Because the
AutoIncrementStep property is set to 2. Which means it is
incremented by 2. Look at the following figure.
![autoincrement in ado.net]()
