Bind SharePoint Library Images Into Repeater Control Using ASP.NET

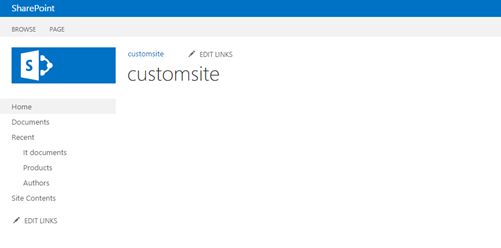

Open a SharePoint team site.

SharePoint team site

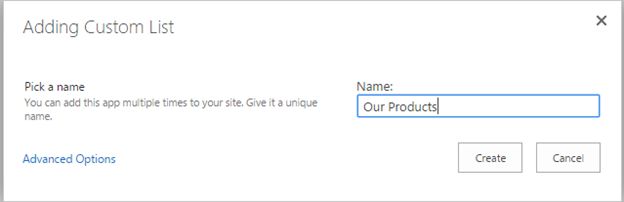

Create a Custom list for binding a data into repeater control.

Custom list

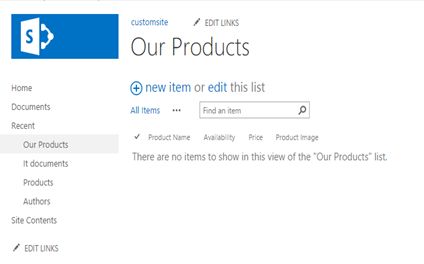

So now the list has been created successfully. Create some custom columns into the list.

Create some custom columns into the list

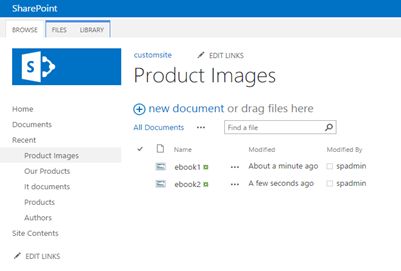

Create a document library for storing ‘Product’ Images and insert some images into the library.

Create a document library

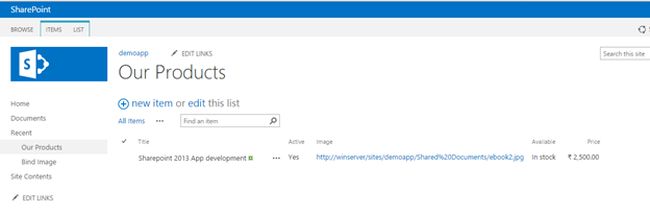

Now open our product list and insert some products into it.

Provide the product image URL from Products images library.

product

Open Visual studio, create a new SharePoint 2013 empty project and Add a visual webpart into it.

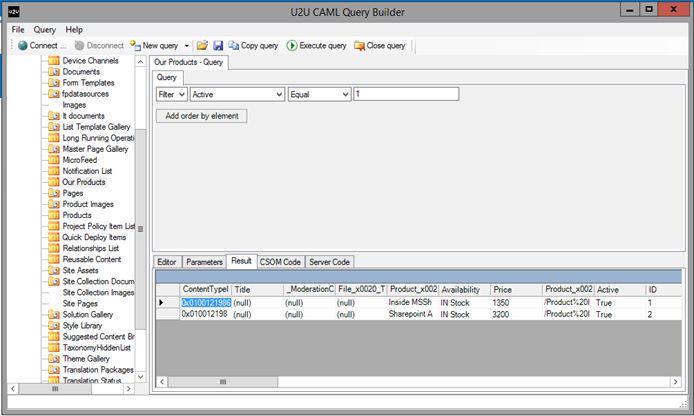

Use CAML Query to retrieve the server code.

CAML Query

Code

ASPX Code

  1. <div style="height:300px; width:400px">
  2.     <table style="width:100%">
  3.         <tr>
  4.             <td style="width:10%"></td>
  5.             <td style="width:80%">
  6.                 <div class="rptprods" style="padding-right: 20px; height:150px; width:200px;">
  7.
  8.                     <asp:Repeater ID="rptprod" runat="server">
  9.                         <ItemTemplate>
  10.                             <img src="<%#DataBinder.Eval(Container.DataItem," Image ") %>" width="200" height="200" />
  11.                             <br />
  12.                             <h2 style="padding-top: 5px; font-weight: bold; font-size: 10px;"><%#DataBinder.Eval(Container.DataItem,"Title") %></h2>
  13.                             <br />
  14.                             <b> Availablity:</b>
  15.                             <p style="color:green;">
  16.                                 <%#DataBinder.Eval(Container.DataItem,"Available") %>
  17.                             </p>
  18.                             <br />
  19.                             <b> Price:</b>
  20.                             <p style="color:green;">
  21.                                 <%#DataBinder.Eval(Container.DataItem,"Price") %>
  22.                             </p>
  23.
  24.                             <hr />
  25.                         </ItemTemplate>
  26.                     </asp:Repeater>
  27.
  28.                 </div>
  29.
  30.             </td>
  31.             <td style="width:10%"></td>
  32.
  33.         </tr>
  34.     </table>
  35. </div>
CS Code
  1. using Microsoft.SharePoint;
  2. using System;
  3. using System.ComponentModel;
  4. using System.Web.UI;
  5. using System.Web.UI.WebControls.WebParts;
  6.
  7. namespace Rollup_announcement.annao2
  8. {
  9.     [ToolboxItemAttribute(false)]
  10.     public partial class annao2 : WebPart
  11.     {
  12.         public annao2()
  13.         {
  14.         }
  15.
  16.         protected override void OnInit(EventArgs e)
  17.         {
  18.             base.OnInit(e);
  19.             InitializeControl();
  20.         }
  21.
  22.         protected void Page_Load(object sender, EventArgs e)
  23.         {
  24.           if (!Page.IsPostBack)
  25.             {
  26.
  27.                 Bindspeaker();
  28.             }
  29.
  30.
  31.         }
  32.
  33.
  34.         private void Bindspeaker()
  35.         {
  36.             using (SPSite site = new SPSite(SPContext.Current.Site.Url))
  37.             {
  38.                 using (SPWeb web = site.OpenWeb())
  39.                 {
  40.                     SPList list = web.Lists["Our Products"];
  41.                     if (list != null)
  42.                     {
  43.                         SPQuery query = new SPQuery();
  44.                         query.Query = "<Where><Eq><FieldRef Name='Active' /><Value Type='Boolean'>1</Value></Eq></Where>";
  45.                         SPListItemCollection collitem = list.GetItems(query);
  46.                         if (collitem != null)
  47.                         {
  48.                             rptprod.DataSource = collitem.GetDataTable();
  49.                             rptprod.DataBind();
  50.                         }
  51.                     }
  52.                 }
  53.             }
  54.         }
  55.     }
  56.
  57.
  58. }

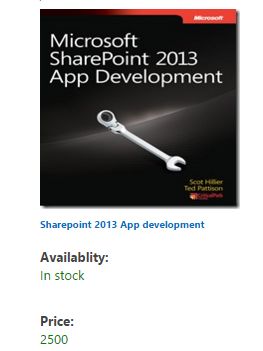

Final Result

Final Result

Happy SharePoint!
