User Profile service application in SharePoint 2013

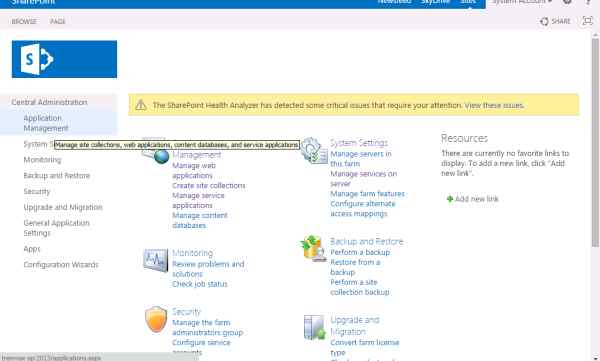

Open Central Administration.

central administration

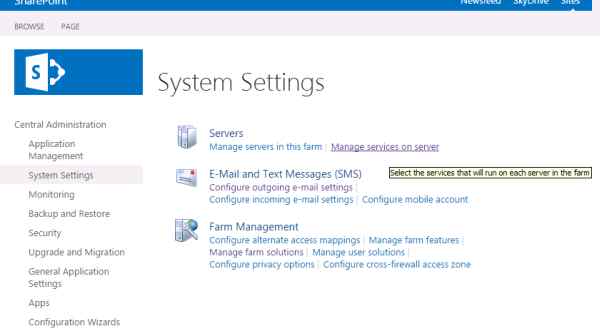

Under System Settings click Manage services on the server.

Manage services on the server

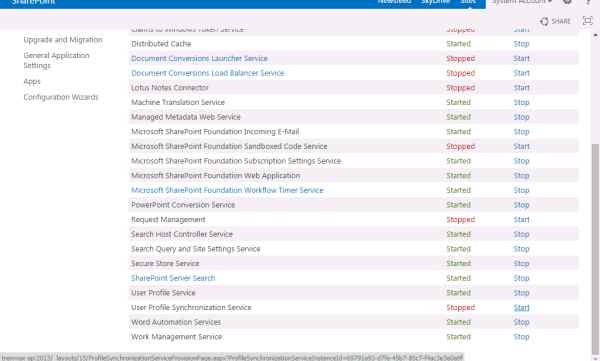

Navigate through the User profile service then click Start if its not started.

Click Start if its not started

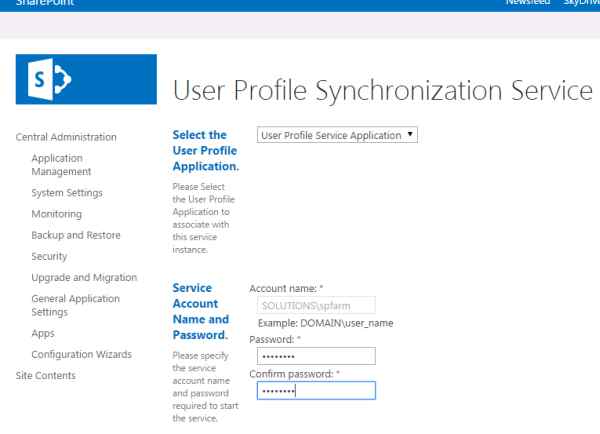

Enter your valid service account credentials.

Enter your valid service account credentials

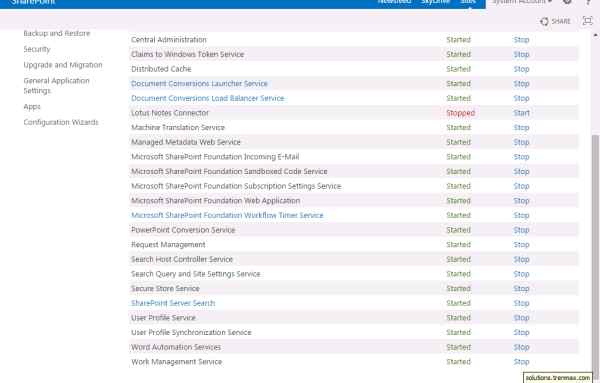

So now the service has been successfully begun.

service has been successfully started

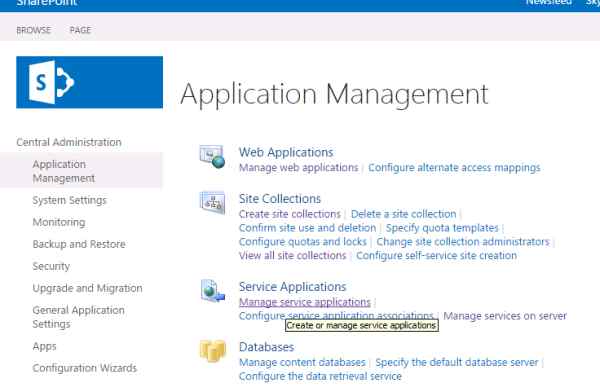

Open Manage service application under service application.

service application

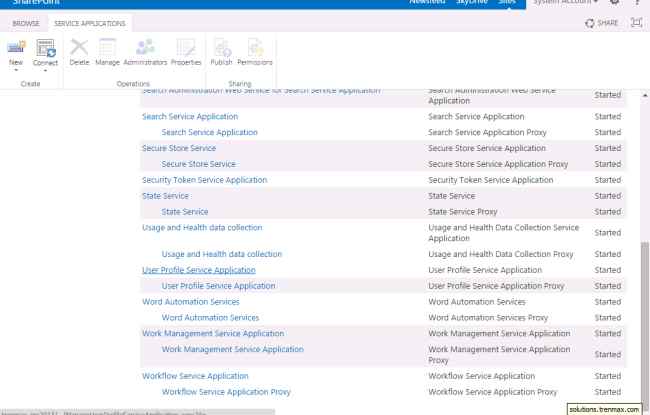

Click on User profile service application.

User profile service application

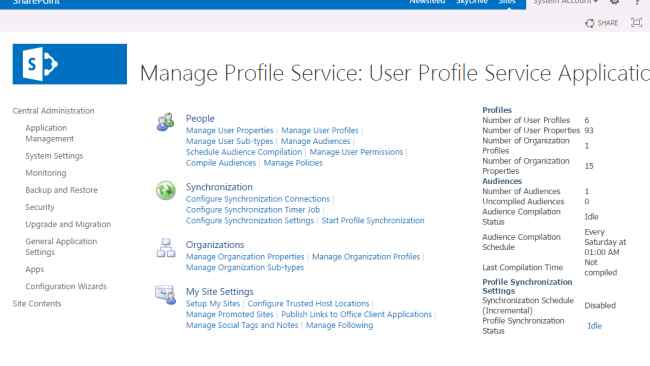

On this page you are able to see the default number of user profiles.

see the default number of user profile

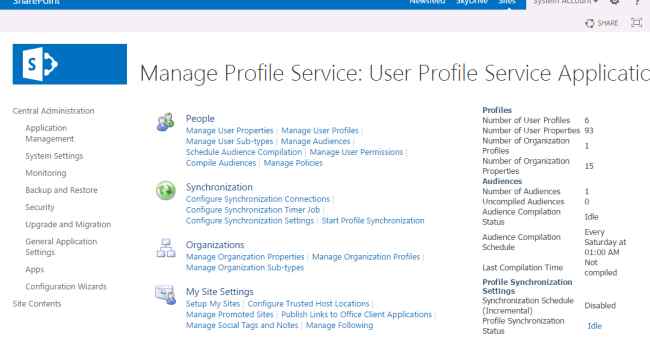

We will create the connection to synchronize the profile from Active Directory domain services.

Active directory

Click on Configure Synchronization Connections.

Configure Synchronization Connections

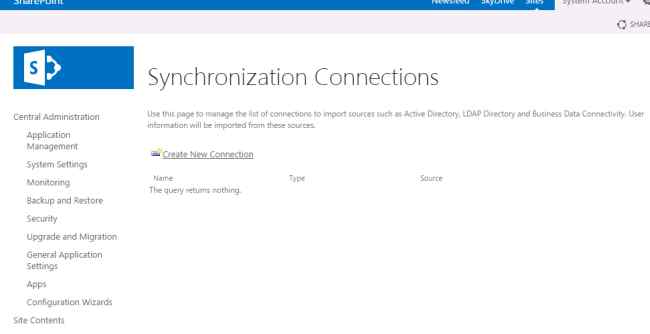

Click Create new connection.

Create new connection

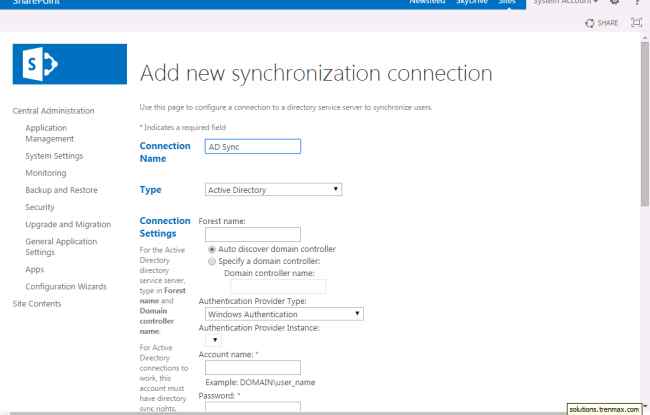

Provide the new connection name.

Provide the new connection name

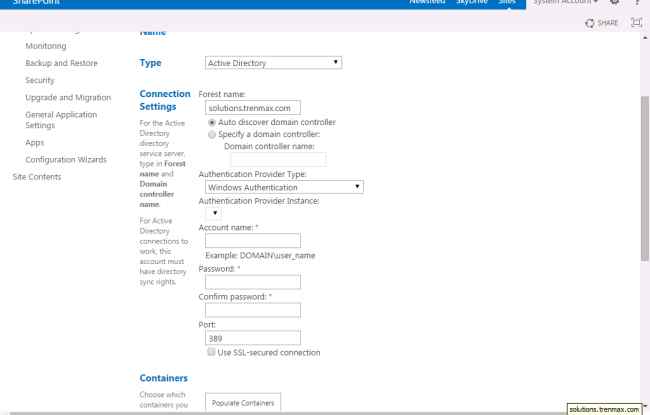

Enter the Forest name.

Enter Forest name

Choose auto discover the domain controller.

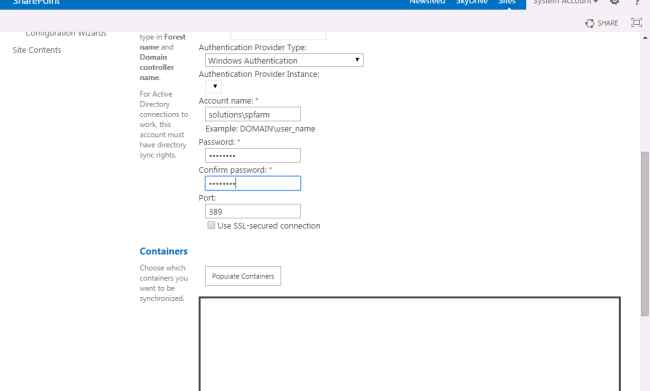

Enter your domain username and password.

Enter your domain

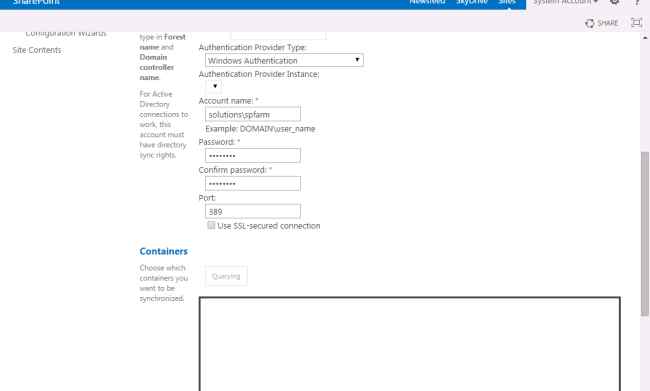

Click Populate container.

So it will be querying.

Populate container

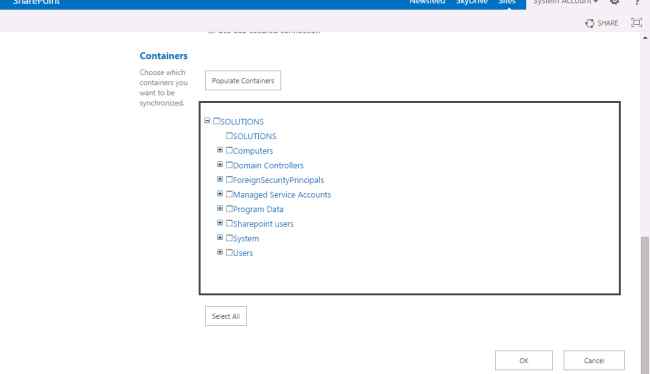

Now you are able to see the containers available in your AD Services.

AD Services

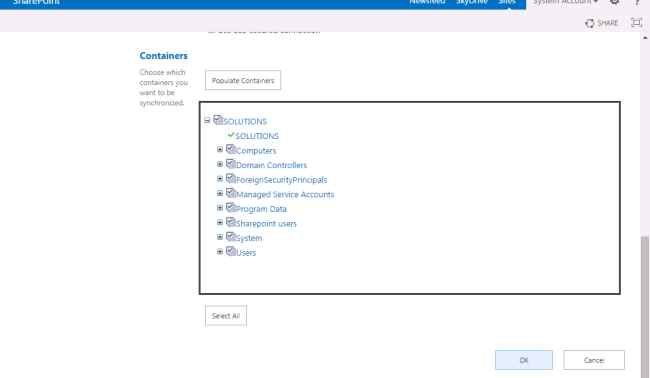

Click Select all or select the units you need. In my case I selected all the units.

select all the units

Click Ok to complete.

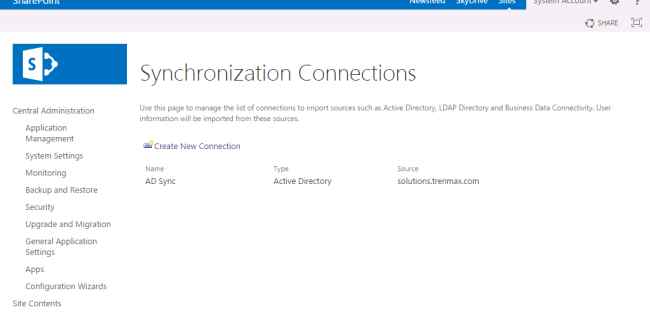

So now the new AD Sync connection has been created successfully.

Sync connection

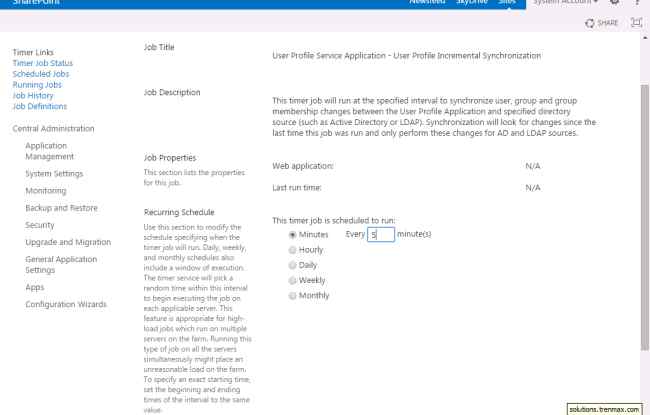

Now open the Configure synchronization timer job.

Configure synchronization

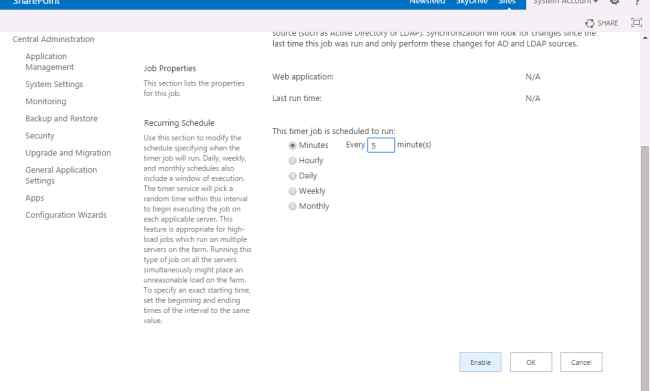

I am set for every "5" Minutes.

set time job

set time

Click Enable.

Click Start Profile synchronization.

synchronization

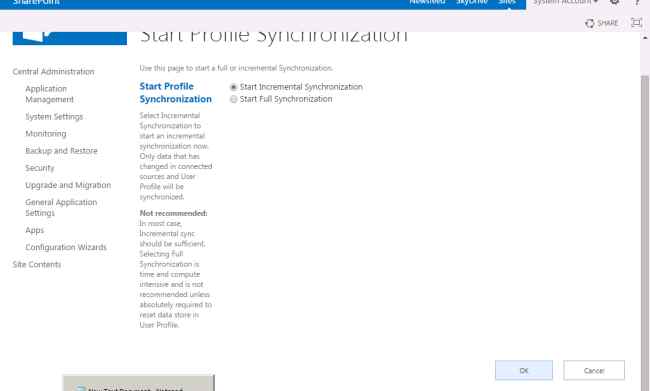

Start incremental then click Ok.

Start incremental

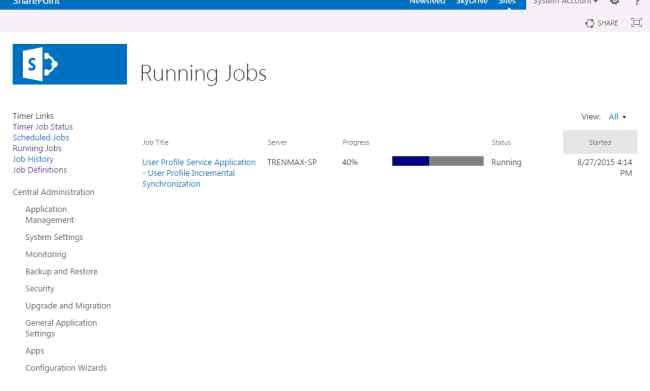

Let's see whether the timer job is running on the back end.

timer job

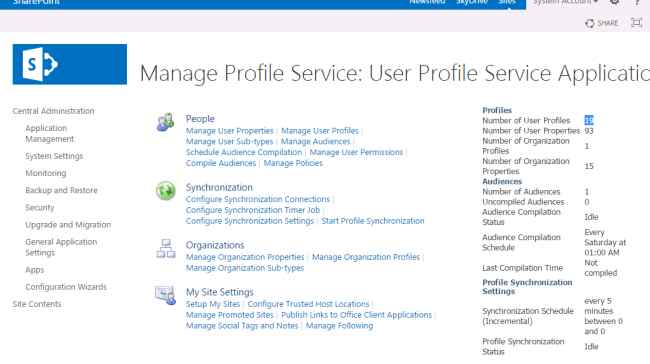

So see the final result.

result

The number of user profiles synced is 19.
