Binding Data in ListView on LinkButton Click

We will learn here how to bind controls with data without a database and how to handle paging on controls. This binding of data depends on the link button text on link button click event.

Also read:

Initial Chamber

Step 1

Open your Visual Studio and create an empty website then provide a suitable name such as ListViewLinkBtn.

Step 2

In Solution Explorer you will get your empty website, then add some web forms.

ListViewLinkBtn (your empty website). Right-click and select Add New Item Web Form. Name it ListViewLinkBtn.aspx.

Design Chamber

Step 3

Open the ListViewLinkBtn.aspx file and write some code for the design of the application.

Step 3.1

Add the following style sheet code to the head chamber of the page:

  1. <style type="text/css">
  2.    .linkCat {
  3.       background-color:aqua;
  4.    }
  5. </style>

Set your style of page depending on your needs.

Step 3.2

Choose the control from the toolbox and make your design page like:

  1. <div>
  2.      <h3>ListView</h3>
  3.
  4.      <%-- Linkbutton --%>
  5.      <asp:LinkButton ID="lnkCat1" CssClass="linkCat" runat="server" ClientIDMode="Static" Text="Cat1" OnClick="ENameLinkBtn_Click" CommandArgument="Cat1"></asp:LinkButton>
  6.      <asp:LinkButton ID="lnkCat2" CssClass="linkCat" runat="server" ClientIDMode="Static" Text="Cat2" OnClick="ENameLinkBtn_Click" CommandArgument="Cat2"></asp:LinkButton>
  7.      <asp:LinkButton ID="lnkCat3" CssClass="linkCat" runat="server" ClientIDMode="Static" Text="Cat3" OnClick="ENameLinkBtn_Click" CommandArgument="Cat3"></asp:LinkButton>
  8.      <asp:HiddenField ID="hdnText" runat="server" ClientIDMode="Static" Value="" />
  9.      <%-- end --%>
  10.
  11.      <asp:ListView ID="lvCustomers" runat="server" GroupPlaceholderID="groupPlaceHolder1"
  12.          ItemPlaceholderID="itemPlaceHolder1" OnPagePropertiesChanging="OnPagePropertiesChanging">
  13.          <LayoutTemplate>
  14.              <table border="1">
  15.                  <tr>
  16.                      <th>Product
  17.                      </th>
  18.                      <th>Quantity
  19.                      </th>
  20.                      <th>Price
  21.                      </th>
  22.                      <th>Category
  23.                      </th>
  24.                  </tr>
  25.                  <asp:PlaceHolder runat="server" ID="groupPlaceHolder1"></asp:PlaceHolder>
  26.                  <tr>
  27.                      <td colspan="3">
  28.                          <asp:DataPager ID="DataPager1" runat="server" PagedControlID="lvCustomers" PageSize="2">
  29.                              <Fields>
  30.                                  <asp:NextPreviousPagerField ButtonType="Link" ShowFirstPageButton="false" ShowPreviousPageButton="true"
  31.                                      ShowNextPageButton="false" />
  32.                                  <asp:NumericPagerField ButtonType="Link" />
  33.                                  <asp:NextPreviousPagerField ButtonType="Link" ShowNextPageButton="true" ShowLastPageButton="false" ShowPreviousPageButton="false" />
  34.                              </Fields>
  35.                          </asp:DataPager>
  36.                      </td>
  37.                  </tr>
  38.              </table>
  39.          </LayoutTemplate>
  40.          <GroupTemplate>
  41.              <tr>
  42.                  <asp:PlaceHolder runat="server" ID="itemPlaceHolder1"></asp:PlaceHolder>
  43.              </tr>
  44.          </GroupTemplate>
  45.          <ItemTemplate>
  46.              <td>
  47.                  <%# Eval("Product_Name") %>
  48.              </td>
  49.              <td>
  50.                  <%# Eval("Quantity") %>
  51.              </td>
  52.              <td>
  53.                  <%# Eval("Price") %>
  54.              </td>
  55.              <td>
  56.                  <%# Eval("Category") %>
  57.              </td>
  58.          </ItemTemplate>
  59.      </asp:ListView>
  60.  </div>

Here I've designed the ListView Control and used some property as in the following.

Design Page

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="ListViewLinkBtn.aspx.cs" Inherits="ListViewLinkBtn" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.     <style type="text/css">
  9.         .linkCat {
  10.             background-color:aqua;
  11.         }
  12.     </style>
  13. </head>
  14. <body>
  15.     <form id="form1" runat="server">
  16.         <div>
  17.             <h3>ListView</h3>
  18.
  19.             <%-- Linkbutton --%>
  20.             <asp:LinkButton ID="lnkCat1" CssClass="linkCat" runat="server" ClientIDMode="Static" Text="Cat1" OnClick="ENameLinkBtn_Click" CommandArgument="Cat1"></asp:LinkButton>
  21.             <asp:LinkButton ID="lnkCat2" CssClass="linkCat" runat="server" ClientIDMode="Static" Text="Cat2" OnClick="ENameLinkBtn_Click" CommandArgument="Cat2"></asp:LinkButton>
  22.             <asp:LinkButton ID="lnkCat3" CssClass="linkCat" runat="server" ClientIDMode="Static" Text="Cat3" OnClick="ENameLinkBtn_Click" CommandArgument="Cat3"></asp:LinkButton>
  23.             <asp:HiddenField ID="hdnText" runat="server" ClientIDMode="Static" Value="" />
  24.             <%-- end --%>
  25.
  26.             <asp:ListView ID="lvCustomers" runat="server" GroupPlaceholderID="groupPlaceHolder1"
  27.                 ItemPlaceholderID="itemPlaceHolder1" OnPagePropertiesChanging="OnPagePropertiesChanging">
  28.                 <LayoutTemplate>
  29.                     <table border="1">
  30.                         <tr>
  31.                             <th>Product
  32.                             </th>
  33.                             <th>Quantity
  34.                             </th>
  35.                             <th>Price
  36.                             </th>
  37.                             <th>Category
  38.                             </th>
  39.                         </tr>
  40.                         <asp:PlaceHolder runat="server" ID="groupPlaceHolder1"></asp:PlaceHolder>
  41.                         <tr>
  42.                             <td colspan="3">
  43.                                 <asp:DataPager ID="DataPager1" runat="server" PagedControlID="lvCustomers" PageSize="2">
  44.                                     <Fields>
  45.                                         <asp:NextPreviousPagerField ButtonType="Link" ShowFirstPageButton="false" ShowPreviousPageButton="true"
  46.                                             ShowNextPageButton="false" />
  47.                                         <asp:NumericPagerField ButtonType="Link" />
  48.                                         <asp:NextPreviousPagerField ButtonType="Link" ShowNextPageButton="true" ShowLastPageButton="false" ShowPreviousPageButton="false" />
  49.                                     </Fields>
  50.                                 </asp:DataPager>
  51.                             </td>
  52.                         </tr>
  53.                     </table>
  54.                 </LayoutTemplate>
  55.                 <GroupTemplate>
  56.                     <tr>
  57.                         <asp:PlaceHolder runat="server" ID="itemPlaceHolder1"></asp:PlaceHolder>
  58.                     </tr>
  59.                 </GroupTemplate>
  60.                 <ItemTemplate>
  61.                     <td>
  62.                         <%# Eval("Product_Name") %>
  63.                     </td>
  64.                     <td>
  65.                         <%# Eval("Quantity") %>
  66.                     </td>
  67.                     <td>
  68.                         <%# Eval("Price") %>
  69.                     </td>
  70.                     <td>
  71.                         <%# Eval("Category") %>
  72.                     </td>
  73.                 </ItemTemplate>
  74.             </asp:ListView>
  75.         </div>
  76.     </form>
  77. </body>
  78. </html>

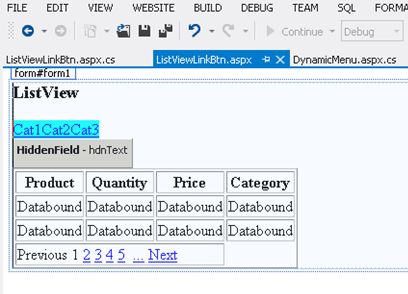

Your design looks as in Figure 1.

design
Figure 1

Code Chamber

Step 4

In the code Chamber we will write some code so that our application works.

Add the following namespaces to the namespace section of your code behind page.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Data.SqlClient;
  5. using System.Linq;
  6. using System.Web;
  7. using System.Web.UI;
  8. using System.Web.UI.WebControls;

Now your page looks as in the following.

Code behind Page

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Data.SqlClient;
  5. using System.Linq;
  6. using System.Web;
  7. using System.Web.UI;
  8. using System.Web.UI.WebControls;
  9.
  10. public partial class ListViewLinkBtn : System.Web.UI.Page
  11. {
  12.     protected void Page_Load(object sender, EventArgs e)
  13.     {
  14.         if (!IsPostBack) {
  15.
  16.             BindListView("");
  17.
  18.         }
  19.
  20.     }
  21.     protected void BindListView(string sGroup)
  22.     {
  23.
  24.         //Creating a dataset
  25.         DataSet ds = new DataSet();
  26.         DataTable dt;
  27.         DataRow dr;
  28.         DataColumn pName;
  29.         DataColumn pQty;
  30.         DataColumn pPrice;
  31.         DataColumn pCategory;
  32.         //create an object of datatable
  33.         dt = new DataTable();
  34.         //creating column of datatable with datatype
  35.         pName = new DataColumn("Product_Name", Type.GetType("System.String"));
  36.         pQty = new DataColumn("Quantity", Type.GetType("System.Int32"));
  37.         pPrice = new DataColumn("Price", Type.GetType("System.Int32"));
  38.         pCategory = new DataColumn("Category", Type.GetType("System.String"));
  39.         //bind data table columns in datatable
  40.         dt.Columns.Add(pName);
  41.         dt.Columns.Add(pQty);
  42.         dt.Columns.Add(pPrice);
  43.         dt.Columns.Add(pCategory);
  44.         //creating data row and assiging the value to columns of datatable
  45.         dr = dt.NewRow();
  46.         dr["Product_Name"] = "Product 1";
  47.         dr["Quantity"] = 2;
  48.         dr["Price"] = 200;
  49.         dr["Category"] = "Cat1";
  50.         dt.Rows.Add(dr);
  51.
  52.         dr = dt.NewRow();
  53.         dr["Product_Name"] = "Product 2";
  54.         dr["Quantity"] = 5;
  55.         dr["Price"] = 480;
  56.         dr["Category"] = "Cat2";
  57.         dt.Rows.Add(dr);
  58.
  59.         dr = dt.NewRow();
  60.         dr["Product_Name"] = "Product 3";
  61.         dr["Quantity"] = 8;
  62.         dr["Price"] = 100;
  63.         dr["Category"] = "Cat1";
  64.         dt.Rows.Add(dr);
  65.
  66.         dr = dt.NewRow();
  67.         dr["Product_Name"] = "Product 4";
  68.         dr["Quantity"] = 2;
  69.         dr["Price"] = 500;
  70.         dr["Category"] = "Cat2";
  71.         dt.Rows.Add(dr);
  72.
  73.         dr = dt.NewRow();
  74.         dr["Product_Name"] = "Product 5";
  75.         dr["Quantity"] = 8;
  76.         dr["Price"] = 1050;
  77.         dr["Category"] = "Cat3";
  78.         dt.Rows.Add(dr);
  79.
  80.         dr = dt.NewRow();
  81.         dr["Product_Name"] = "Product 6";
  82.         dr["Quantity"] = 2;
  83.         dr["Price"] = 5005;
  84.         dr["Category"] = "Cat3";
  85.         dt.Rows.Add(dr);
  86.
  87.         dr = dt.NewRow();
  88.         dr["Product_Name"] = "Product 7";
  89.         dr["Quantity"] = 8;
  90.         dr["Price"] = 1000;
  91.         dr["Category"] = "Cat3";
  92.         dt.Rows.Add(dr);
  93.
  94.         dr = dt.NewRow();
  95.         dr["Product_Name"] = "Product 8";
  96.         dr["Quantity"] = 2;
  97.         dr["Price"] = 5000;
  98.         dr["Category"] = "Cat3";
  99.         dt.Rows.Add(dr);
  100.         //Add datatable to the dataset
  101.
  102.         ds.Tables.Add(dt);
  103.         if (sGroup != "")
  104.         {
  105.             var dv = ds.Tables[0].DefaultView;
  106.             dv.RowFilter = "Category='" + sGroup + "'";
  107.             DataSet ds1 = new DataSet();
  108.             var newdt = dv.ToTable();
  109.             ds1.Tables.Add(newdt);
  110.             //bind data to data controls
  111.             lvCustomers.DataSource = ds1.Tables[0];
  112.             lvCustomers.DataBind();
  113.         }
  114.         else {
  115.             lvCustomers.DataSource = ds.Tables[0];
  116.             lvCustomers.DataBind();
  117.         }
  118.     }
  119.     //paging code
  120.     protected void OnPagePropertiesChanging(object sender, PagePropertiesChangingEventArgs e)
  121.     {
  122.         (lvCustomers.FindControl("DataPager1"as DataPager).SetPageProperties(e.StartRowIndex, e.MaximumRows, false);
  123.
  124.         if (hdnText.Value != "")
  125.         {
  126.             string yourValue = hdnText.Value.ToString();
  127.             this.BindListView(yourValue);
  128.         }
  129.         else
  130.         {
  131.             this.BindListView("");
  132.         }
  133.     }
  134.     protected void ENameLinkBtn_Click(object sender, EventArgs e)
  135.     {
  136.         LinkButton btn = (LinkButton)(sender);
  137.         string yourValue = btn.CommandArgument;
  138.         // do what you need here
  139.         hdnText.Value = yourValue;
  140.         BindListView(yourValue);
  141.     }
  142. }

Output

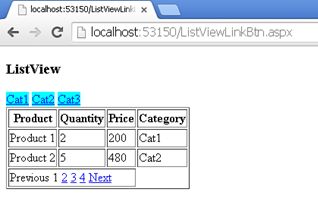

On initial load:

On initial load
Figure 2

On first link button click:

On first link button click
Figure 3

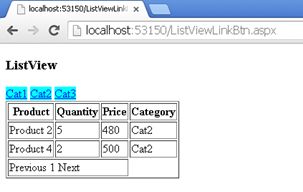

On second link button click:

On 2nd link button click
Figure 4

On third link button click:

On 3rd link button click
Figure 5

On third link page click:

list view
Figure 6

I hope you liked this. Have a good day. Thank you for reading.

Up Next
    Ebook Download
    View all
    Learn
    View all
