Step 1: Create Form
- Start the Excel application.
- On the Developer tab click Insert then click Command Button from ActiveX Controls group.
- Place the button on the spreadsheet.
Figure 1: Login Image
- Press Alt+F11 to activate the Visual Basic Editor (VBE)
- On the Insert tab click User Form to insert the user form.
Figure 2: User Id
Step 2: Add Controls
Add the controls listed in the table below. Clicking on control from the Toolbox then drag a control onto a User Form.
Control |
Name |
Image1 |
Login Image |
Image2 |
User Id |
Image3 |
Correct Id |
Image4 |
Home |
TextBox |
User Id Text |
ChackBox |
User Check |
Label |
Submit Label |
- Add all the preceding specified controls on the user form
- Add the controls such that the form looks as in Figure 3
Figure 3: User Validation
- In the Project Explorer, right-click on UserForm1 and then click View Code.
- Add the following code lines.
- Private Sub SubmitLabel_Click()
- Me.Hide
- Call Setting
- UserForm2.Show
- End Sub
- Private Sub UserIDText_Change()
- Dim i As Integer
- If UserIDText.Value = "" Then
- UserIDText.BorderColor = RGB(255, 102, 0)
- End If
- i = 1
- Do Until IsEmpty(Cells(i, 1).Value)
- If UserIDText.Value = Cells (i, 1).Value Then
- With UserIDText
- .Border Color = RGB (186, 214, 150)
- .Back Color = RGB (216, 241, 211)
- .Fore Color = RGB (81, 99, 51)
- End With
- Image3.Visible = True
- End If
- ii = i + 1
- Loop
- End Sub
- Private Sub UserForm_Initialize()
- Call Setting
- End Sub
- Sub Setting ()
- UserIDText. Text = ""
- UserCheck.Value = False
- UserIDText.BackStyle = fmBackStyleTransparent
- UserIDText.BorderStyle = fmBorderStyleSingle
- UserIDText.BorderColor = &H8000000D
- SubmitLabel.TextAlign = fmTextAlignCenter
- SubmitLabel.BackColor = &H8000000D
- Image3.Visible = False
- End Sub
Step 3: Test the User from
- Press Alt+F11 to exit from VBA
- Right-click CommandButton1 and click View code.

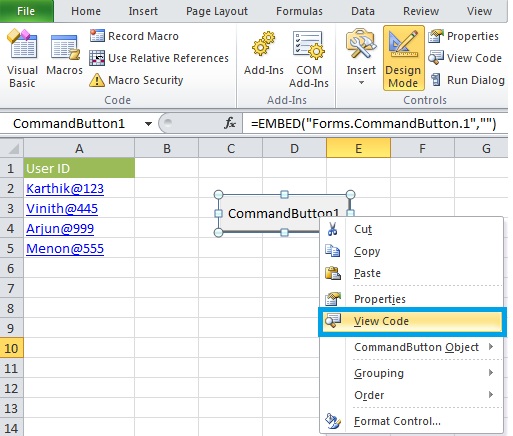

Figure 4: Design Mode
Right-click Sheet1 and click View code to write the code between Private Sub CommandButton1_Click () and End Sub.
Add the code shown below.
Private Sub CommandButton1_Click ()
UserForm1.Show
End Sub
- Press Alt+F11 to exit from the Visual Basic Editor (VBE)
- Press the Command button (Be sure Design made is deselected)

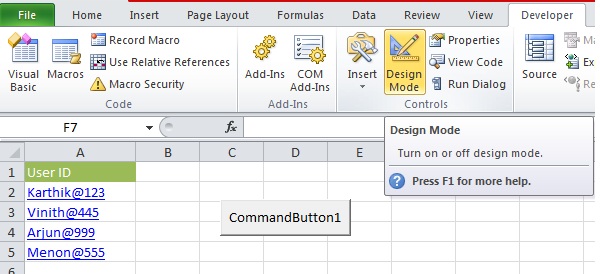

Figure 5: Command Button
Output
- Press the command button1
- Type the User ID given in the spreadsheet
Figure 6: User Form
Check the Check box then press the submit button.

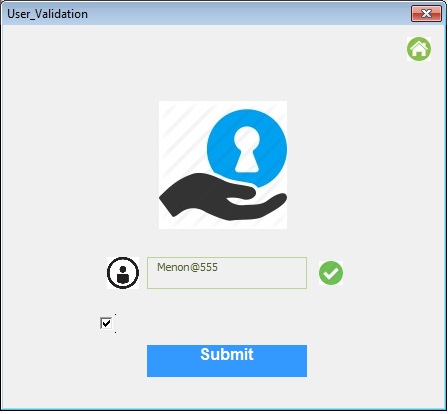

Figure 7: Submit Button

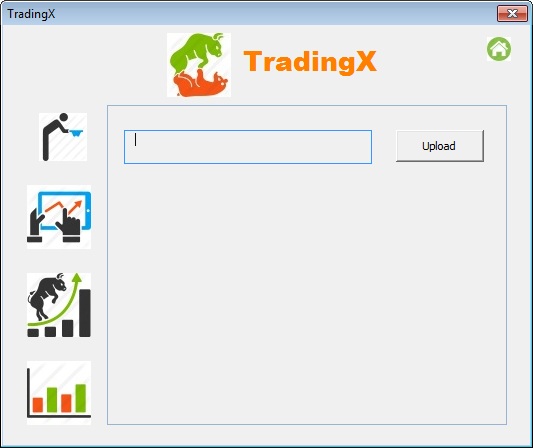

Figure 8: TradingX
Conclusion
I hope this article is useful for VBA beginners and those new to VBA. Thanks for reading and please provide your valuable suggestions.
