Pagination in SQL Server 2012

SQL Server 2012 has a new Paging function which is far easier and provides better performance compared to its predecessors. In this article, we will compare the pagination mechanism between previous versions and how it can be done in SQL Server 2012.

This article assumes that SQL Server 2012 is installed in the computer to test the query. Open SQL Server 2012 Management studio and create a dummy database to check the new pagination function.


Figure: Creating a new database

Name the database as "Dummy" as below:


Figure: Naming new database

Click the "Add" button and it will create a database called "Dummy". Now create a new table in the database by running the following script:

USE [Dummy]

GO



/****** Object:  Table [dbo].[DummyTable]    Script Date: 10/1/2012 9:00:12 PM ******/

SET ANSI_NULLS ON

GO



SET QUOTED_IDENTIFIER ON

GO



SET ANSI_PADDING ON

GO



CREATE TABLE [dbo].[DummyTable](

       [DummyID] [int] NOT NULL,

       [Name] [varchar](50) NULL,

       [Details] [varchar](50) NULL,

 CONSTRAINT [PK_DummyTable] PRIMARY KEY CLUSTERED

(

       [DummyID] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]



GO



SET ANSI_PADDING OFF

GO

Now we need to insert some 5000 records into the table to check the pagination function in SQL Server 2012.

Run the following script to do that:


declare @count int = 1

declare @max int = 5000



delete from DummyTable



while(@count <= @max)

Begin



insert into DummyTable(DummyID,Name,Details)

select @count, 'Name' + CAST(@count as varchar(5)),'Details'+ CAST(@count as varchar(5))



set @count = @count + 1



End

This will insert 5000 records into the table.

Paginatation in previous versions


Common Practice 1

We normally create a pagination control in the UI and pass a start value and end value to the stored procedure to get the records.

Let us see how we would do that in versions prior to 2012:


Create Procedure PaginationBefore2012

(

 @start int = 1,

 @end int = 500

)

As

Begin

select

DummyID,

Name,

Details

from DummyTable

where DummyID between @start and @end

order by DummyID

End


To get records from 1 to 10, we execute the procedure as below:

PaginationBefore2012 1,10

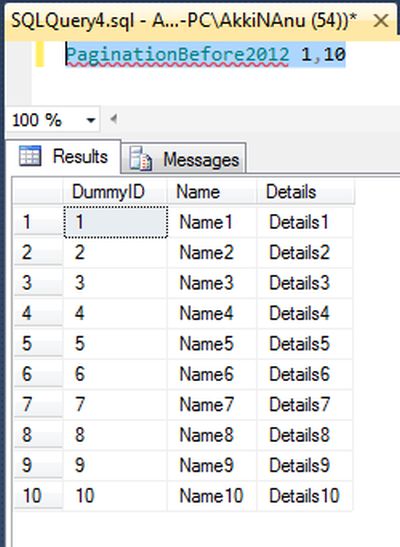

Figure: Records from 1 to 10

Similarly to get values from 11 to 20 we pass the numbers as below:

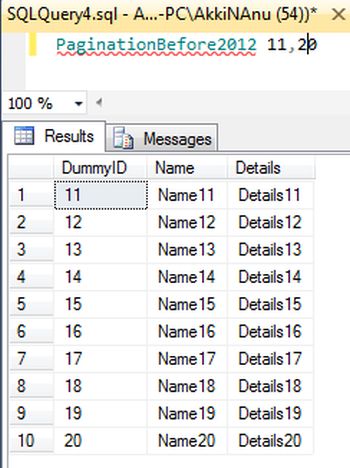

Figure: Records from 11 to 20

Common Practice 2

Another way is to use the TOP… statement and get the records as below:


Create Procedure PaginationBefore2012WithTOP

(

 @start int = 1

)

As

Begin

select TOP 10

DummyID,

Name,

Details

from DummyTable

where DummyID >= @start

order by DummyID

End

If we want to get the first 10 records, then we have to pass the value 1.

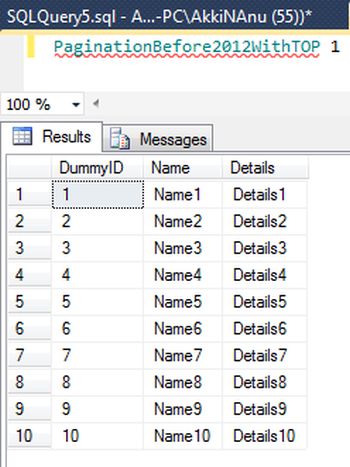

Figure: First 10 Records

To get the next 10 records we need to pass the value 11.

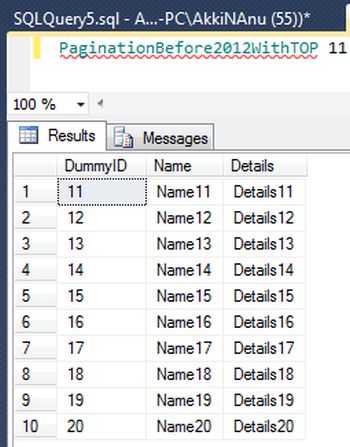

Figure: Next 10 records

Note: To make this more dynamic we can use Dynamic SQL to get N number of records at a time.

Let us see how we can use the Paging function introduced in SQL Server version 2012.

SQL Server 2012

The Paging Function is part of the SELECT statement as an extension to the ORDER BY clause. The following stored procedure shows the same as what we performed in the preceding two common methods:


Create Procedure PaginationWith2012

(

 @start int = 1

)

As

Begin

select

DummyID,

Name,

Details

from DummyTable

Order by DummyID

OFFSET @start Rows

Fetch NEXT 10 ROWS ONLY

End


The OFFSET value can be expressed as an integer variable and so as FETCH NEXT Value which we can make them configurable so that we can manage a number of records displayed at a time and then also from the start record number from the UI. This allows the developer to retrieve only a certain range of data from the database. If you compare this with the ROW_NUMBER() function introduced in SQL Server 2008, you can see this script is shorter and more intuitive.

Now to get the first 10 records, pass the @start value as 0; as in:

First-10-records-in-SQL Server 2012.jpg

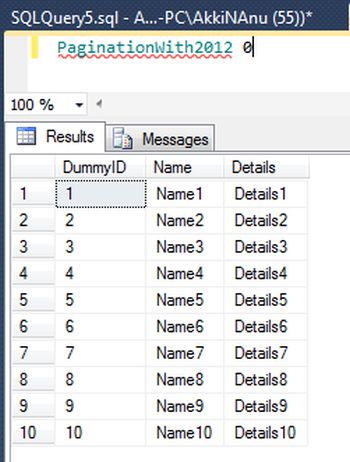

Figure: First 10 records in SQL Server 2012

To get the next 10 records, pass the @start value as 10.

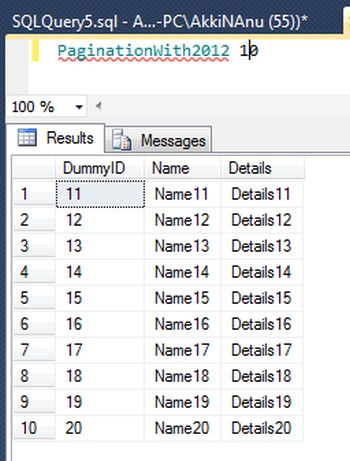

Figure: Next 10 records

Hope this article is useful for you. Do not forget to use the Paging function introduced in 2012 if you get a chance to avail yourself of the greater intuition and flexibility.
