This sample demonstrates how to customize the rendering process for a custom
drop down field in SharePoint 2013 Preview. You can provide custom logic to
control the rendering process of various template sets, such as the View,
Display, Add and Edit forms.
The JavaScript code that controls the rendering process is in the
MyTestScripts.js file.

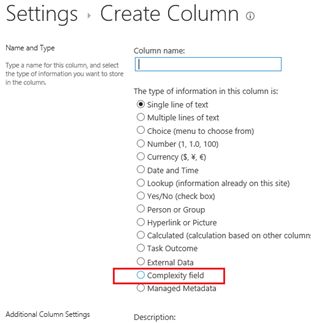

Figure 1 shows the selection of Custom Field

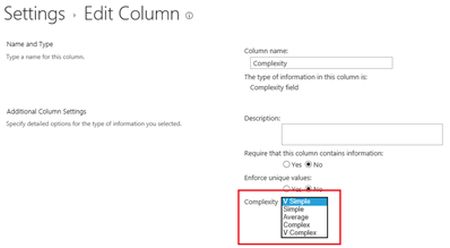

Figure 2 shows the default values in custom field

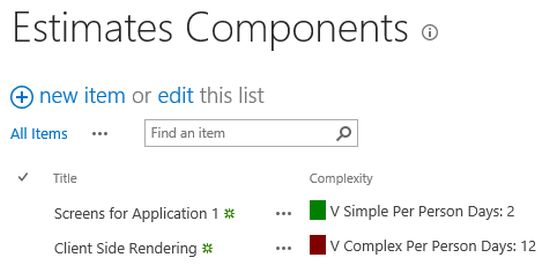

Figure 3 shows the custom field rendered in the view form

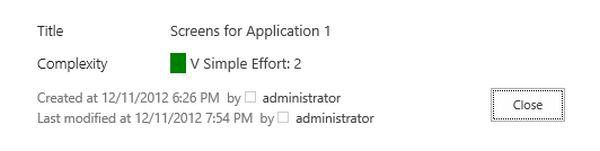

Figure 4 shows the custom field rendered in the display form

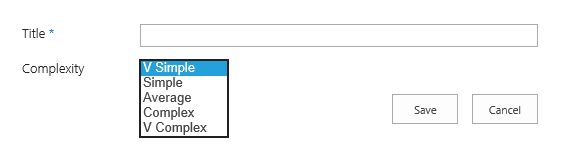

Figure 5 shows the custom field rendered in the Add New form

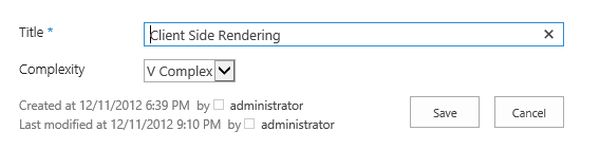

Figure 6 shows the custom field rendered in the Edit form
Prerequisites
This sample requires the following:
- Microsoft Visual Studio 2012
- SharePoint development tools in Visual
Studio 2012
- A SharePoint 2013 Preview development
environment
Key components of the sample
The sample contains the following
SPFieldTest project, which contains the
following files:
- fldtypes_ComplexityFieldType.xml, which
declares the custom field.
- ComplexityField.cs which extends the
SPFieldChoice and overrides the JSLink property.
- MyTestScripts.js, which contains the
rendering logic .
Configure the sample
Update the SiteUrl property of the solution with the URL of your SharePoint
website.
