Create SSRS Report Using Report Wizard

Introduction

This article demonstrates how to create a SSRS report. This article begins with a SSRS Introduction, then the use of SSRS and finally step-by-step creation of a report.

What is SSRS?

SSRS is a server based reporting platform. It provides tools and services to create, manage and deploy reports.

We can use SSRS for:

  • Business Reporting
  • Ad hoc Reporting
  • Embedded Reporting
  • Portal Integration

Report Development Process

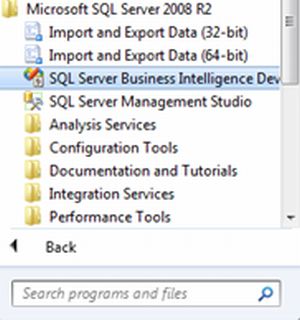

Step 1

  • Start => All Programs => SQL Server 2008 R2 => SQL Server Business Intelligence Development Studio

    Sql -Server-Business-Intelligence-Development-Studio.jpg

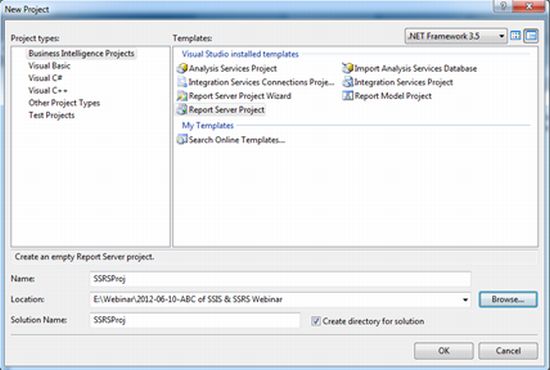

Step 2

  • File => New => Project
  • Business Intelligence Project => Report Server Project
  • Give Project Name ... Select Location... Click OK

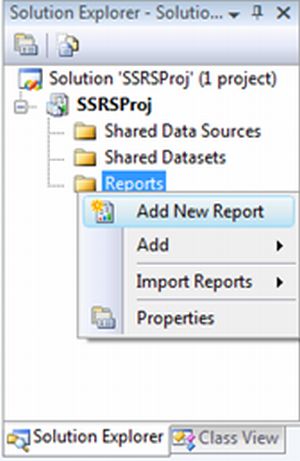

Step 3

  • Right-click on Reports and Select Add New Report

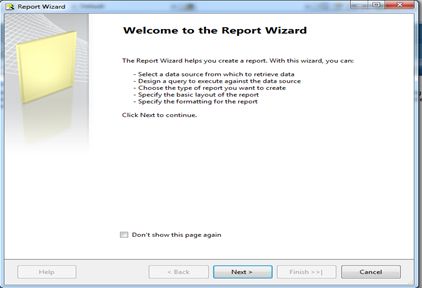

Step 4

  • Click on the Next Button

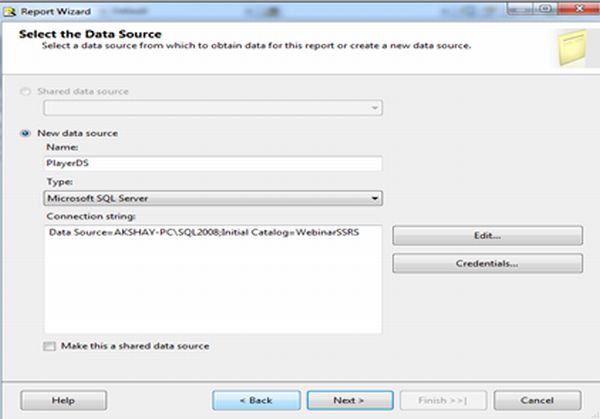

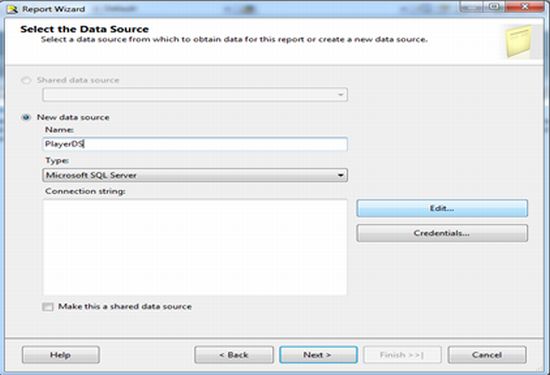

Step 5

  • Give a Data Source name and Click on the Edit Button

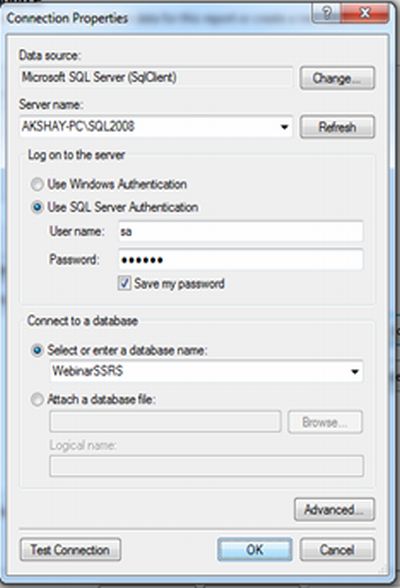

Step 6

  • Select Server Name
  • Select "Use SQL Server Authentication" Radio Button
  • Give User name and Password
  • Select Database Name and Click on the "OK" button.


Step 7

  • Press the Next Button

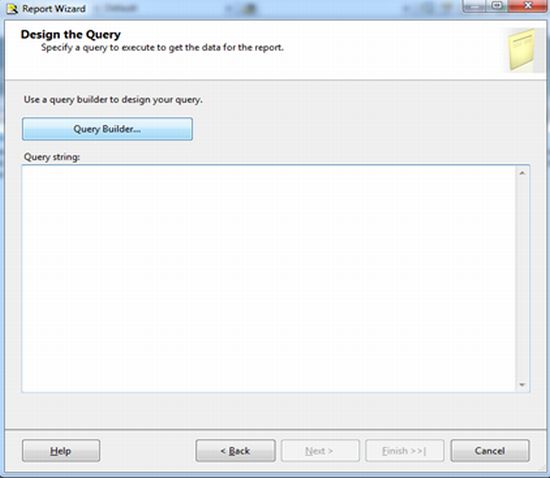

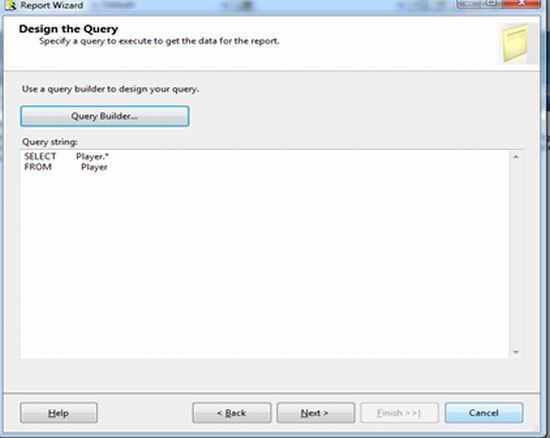

Step 8

  • Click on the "Query Builder ..." button, as in:

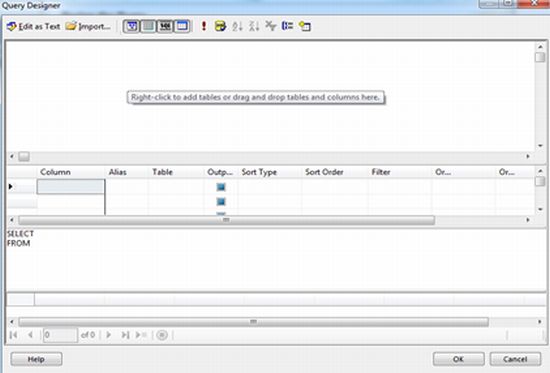

Step 9

  • Right-click and select Add Table
  • Select Table and Click on the Add button

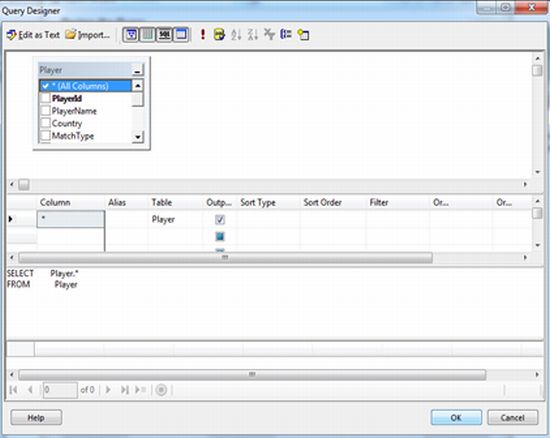

Step 10

  • Select all columns and press the ok button


Step 11

  • Click on the Next Button

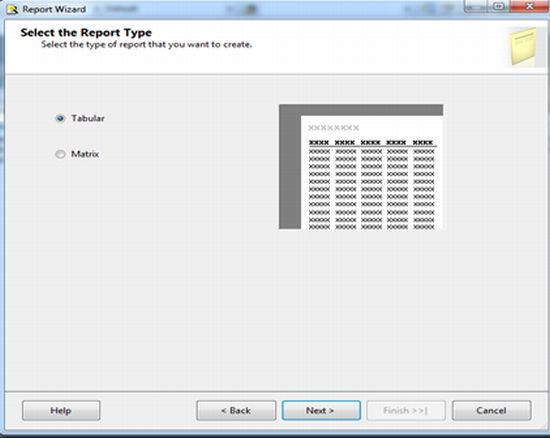

Step 12

  • Select Tabular Option and Click on the Next Button

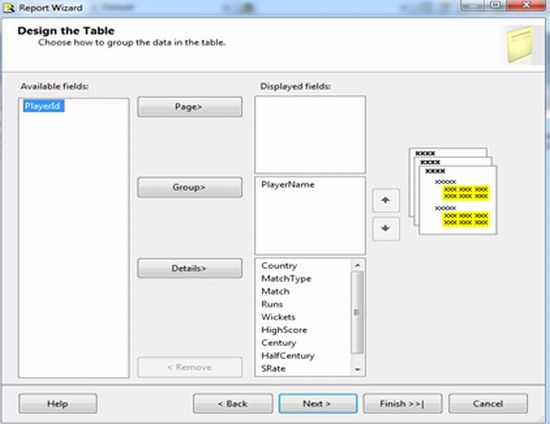

Step 13

  • Select PlayerName for the Group list and the Rest is for Details
  • Click on the Next Button

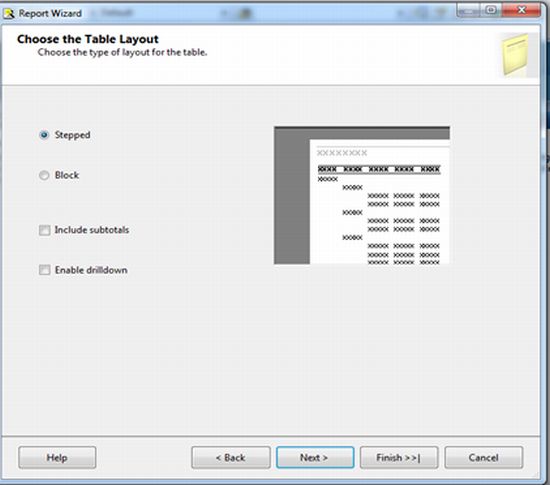

Step 14

  • Select Stepped option and Click on the next button

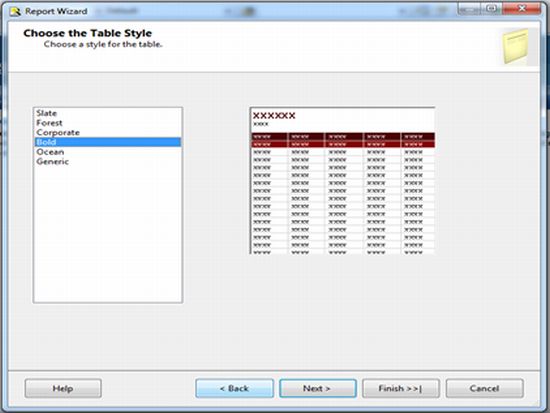

Step 15

  • Select a table style and press the next button

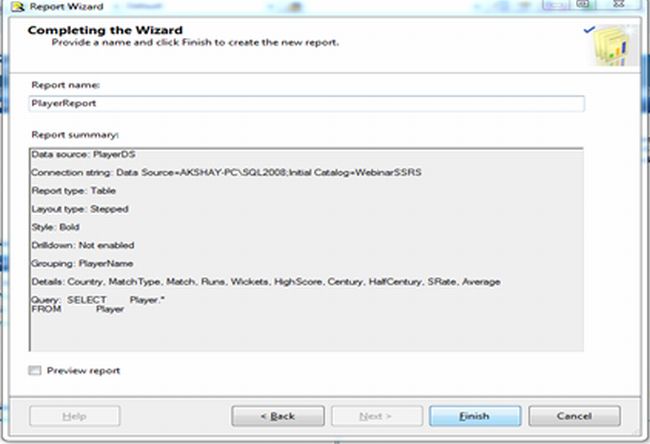

Step 16

  • Give the Report Name and Press the Finish Button

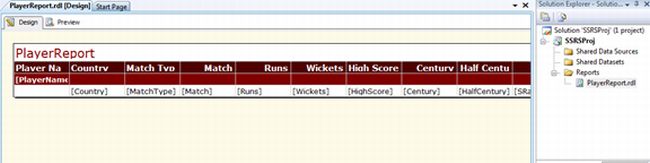

Step 17

  • PlayerReport.rdl is added in the Reports folder and you can see the rdl file in design mode

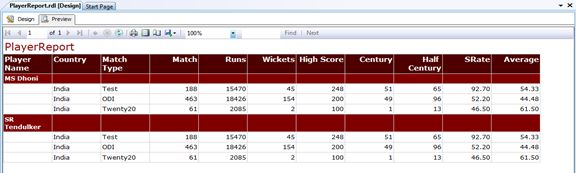

Step 18

  • To see the preview of the report Click on the preview tab



Conclusion

This is a very basic and simple report of SSRS. You can also customize table layout, style, report type etc. In this report I have used only a single table. You can also create a report using multiple tables with the help of joins.
