Step By Step SSRS in 11 Hours: Hour 3

Introduction

We try to get a list of countries from the CountryMaster table.

Contents

• Hour 1: What is SSRS and Determine it is installed
• Hour 2: Report using wizard
• Hour 3: First SSRS report
• Hour 4: Report with parameter
• Hour 5: Custom template
• Hour 6: Drill down report
• Hour 7: Sub report
• Hour 8: Report with style
• Hour 9: Report with chart
• Hour 10: Report deployment
• Hour 11: Rdl file to ASP.Net

First SSRS Report

Step 1

• Open Visual Studio 2012 ad click on "Project…" to create a new project.


• Expand "Business Intelligence" under the Installed Templates from the left panel.


• Click on "Report Server Project".


• Right-click on "Shared Data Sources".


• Click on "Add New Data Source" to create a new shared data source.



Step 2

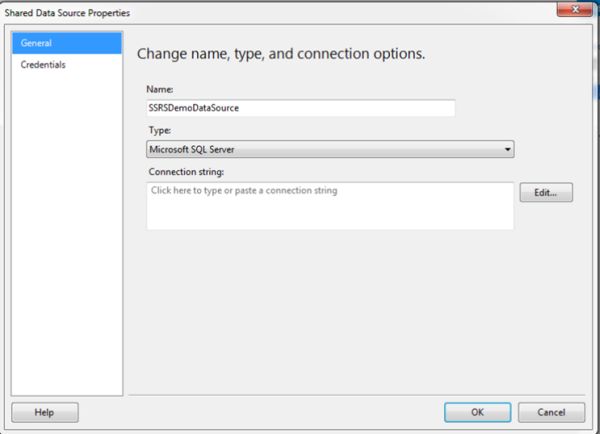

• Select the "General" Tab.


• Provide appropriate an name of the data source.


• Select "Microsoft SQL Server" from the type drop-down list.


• Click on the "Edit" button to set up the connection string.



Step 3

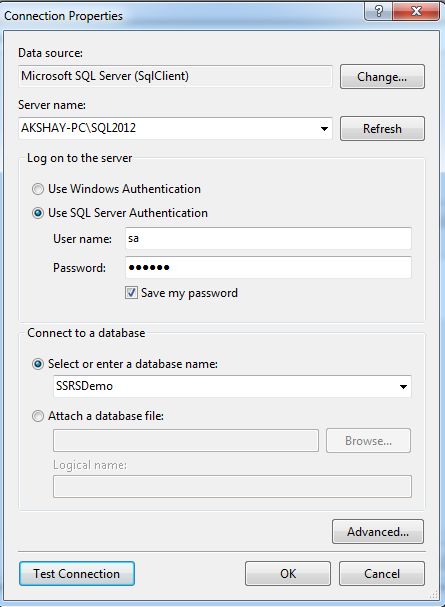

• Select "Server name" from the server name drop-down list.


• Select the "Use SQL Server Authentication" radio button.


• Provide the SQL Server Authentication a user name.


• Provide the password.


• Select "SSRSDemo" as the database name.



Step 4

• Click on "Test Connection", it shows a message box with test connection status.



Step 5

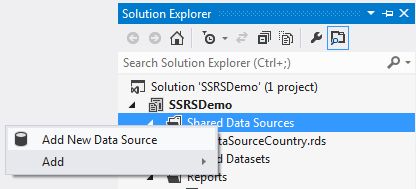

• Right-click on "Shared Data Sources" and click on "Add New Data Source".


• Provide a data source name and connection string.

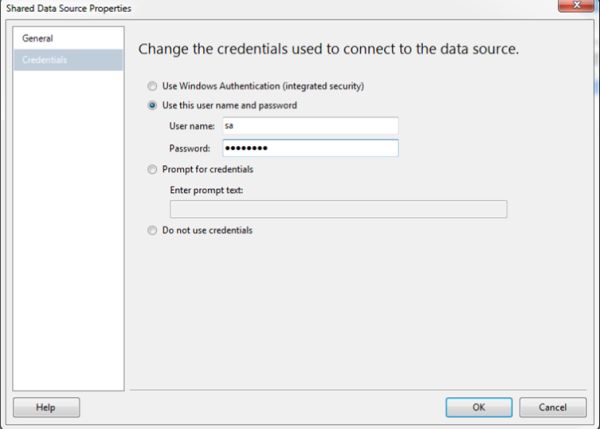

• You can also change the credentials of your data source.



Step 6

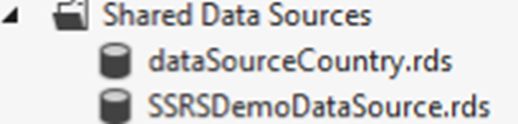

• The .rds file is shown under "Shared Data Sources".



Step 7

• The next step is to add a dataset.

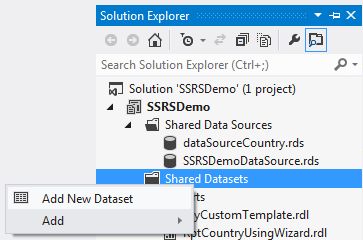

• Right-click on "Shared Datasets" and click on "Add New Dataset".



Step 8

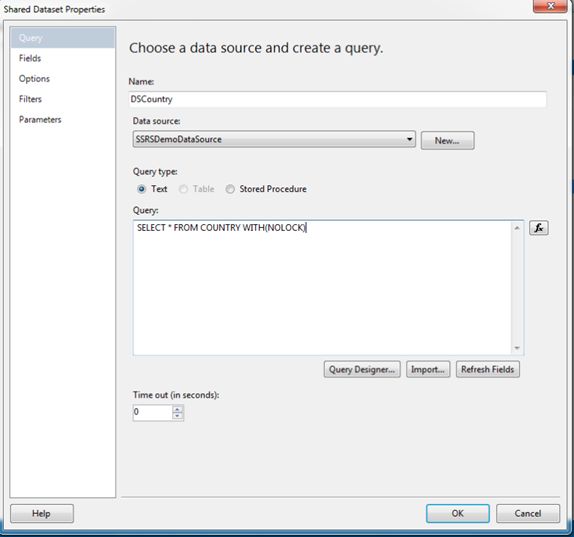

• Provide dataset name.


• Select the data source created.


• If you want to write a query then select the "Text" radio button and provide your query.



Step 9

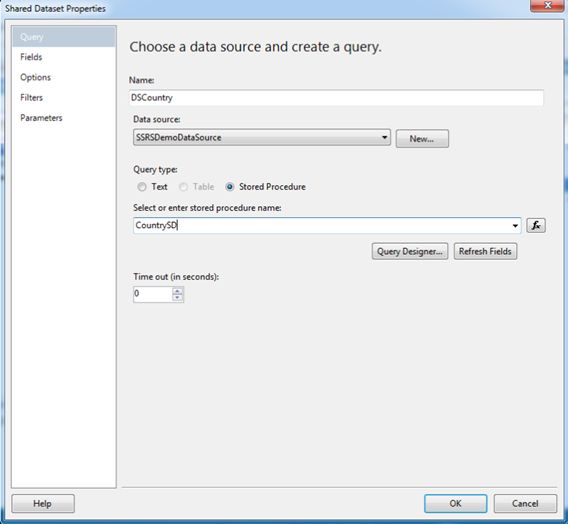

• For Stored Procedure select the "Stored Procedure" radio button and provide the Stored Procedure name.



Step 10

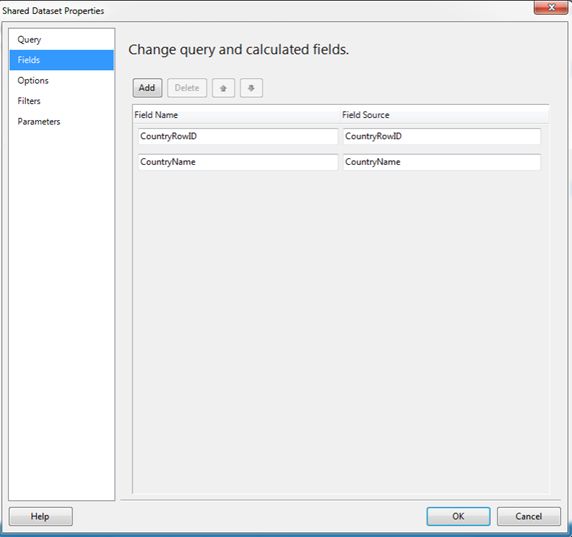

• Select the fields you want to display in the report and map with the field source.



Step 11

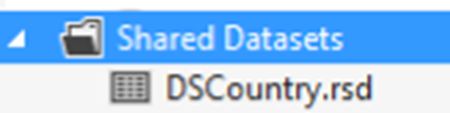

• Now your data set file, in other words .rsd file, is ready.



Step 12

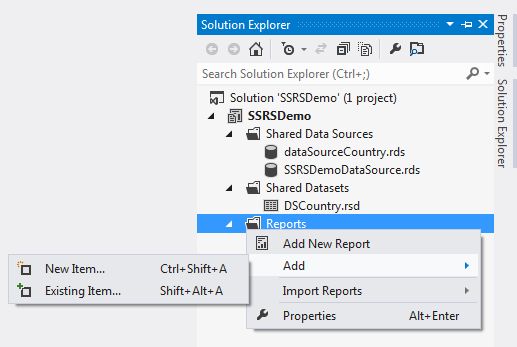

• To create a report, right-click on "Reports", select "Add" and click on "New Item".



Step 13

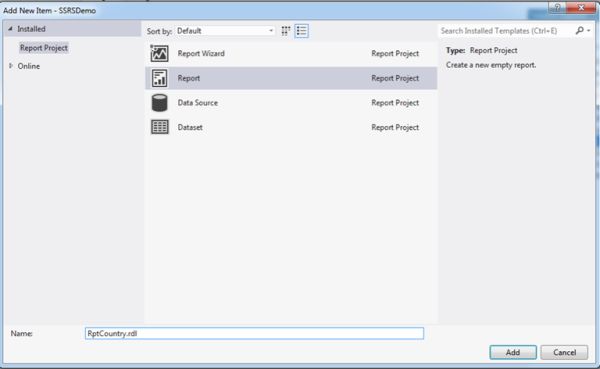

• Select "Report" and provide an appropriate name for report.


• Click on the "Add" button and it will add a .rdl file under "reports".



Step 14

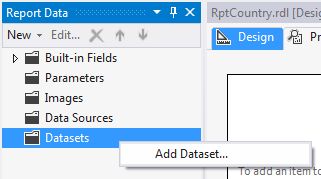

• In the report data right-click on "Datasets" and click on "Add Dataset…".



Step 15

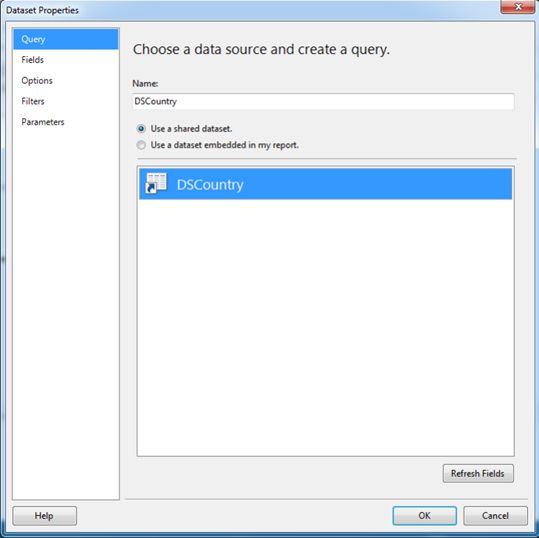

• Select the previously created data set.


• Press the "OK" button.



Step 16

• It will add a data set and show the fields.



Step 17

• Open the RptCountry.rdl file in design mode.

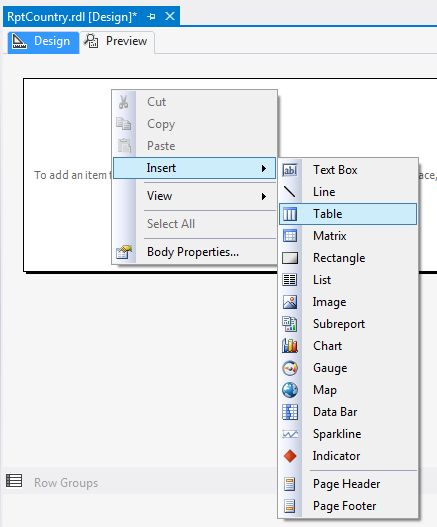

• Right-click on "Design Surface", select "Insert" and click on "Table".



Step 18

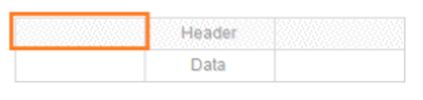

• Click on the bordered area and it will allow you to add a column header.



Step 19

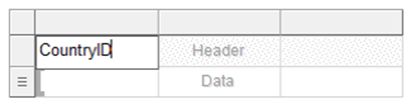

• Insert "CountryID" as header.



Step 20

• Now click on the highlighted icon.



Step 21

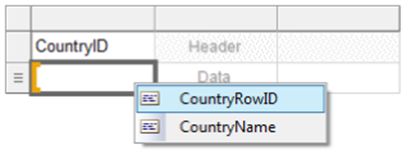

• Map the "CountryRowID" as the column source.



Step 22

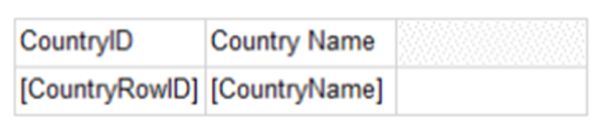

• We need to add "CountryName" in the same way.



Step 23

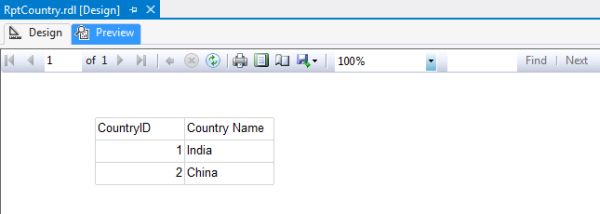

• Click on "Preview" and your first SSRS report is ready.
