Step By Step SSRS in 11 Hours: Hour 5

Introduction

This article shows how to create a custom template inside the report.

Contents

• Step By Step SSRS in 11 Hours: Hour 1
• Step By Step SSRS in 11 Hours: Hour 2
• Step By Step SSRS in 11 Hours: Hour 3
• Step By Step SSRS in 11 Hours: Hour 4
• Hour 5: Custom template
• Hour 6: Drill down report
• Hour 7: Sub report
• Hour 8: Report with style
• Hour 9: Report with chart
• Hour 10: Report deployment
• Hour 11: RDL file to ASP.NET

Custom Template

Step 1

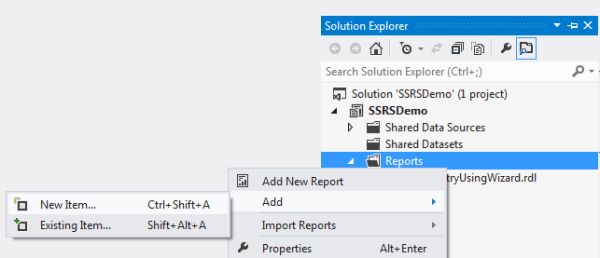

• Right-click on "Reports", select "Add" and click on "New Item".



Step 2

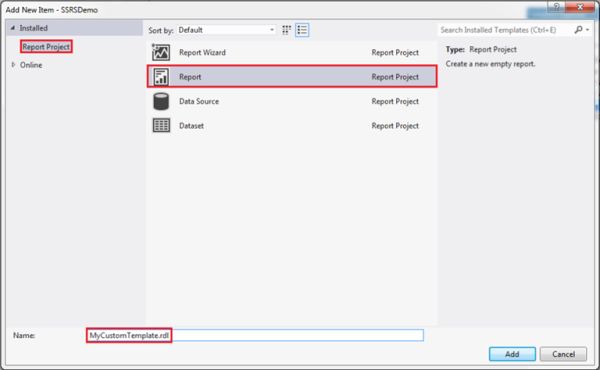

• Select "Report Project" from the left panel and select "Report".


• Provide an appropriate name to the RDL.


• Press the "Add" button.



Step 3

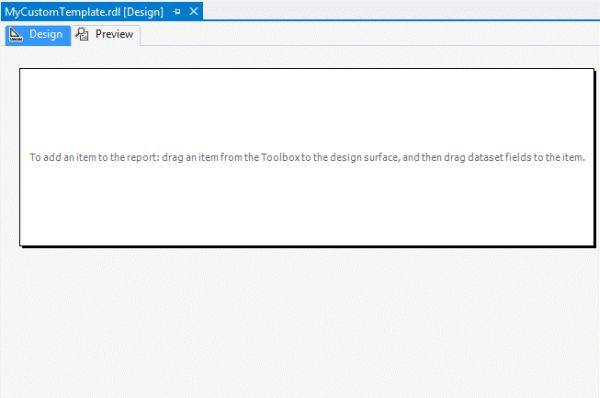

• The RDL file is created and we have the design surface to design the report.



Step 4

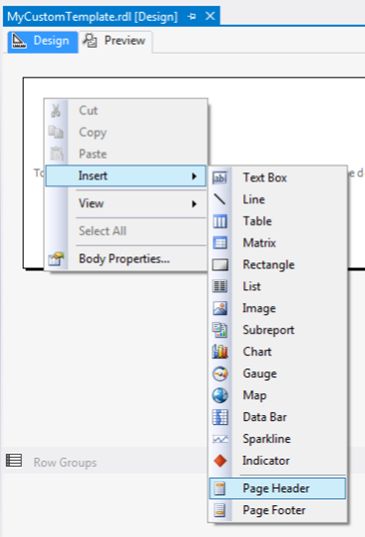

• Right-click on the design surface then select "Insert" and click on "Page Header".



Step 5

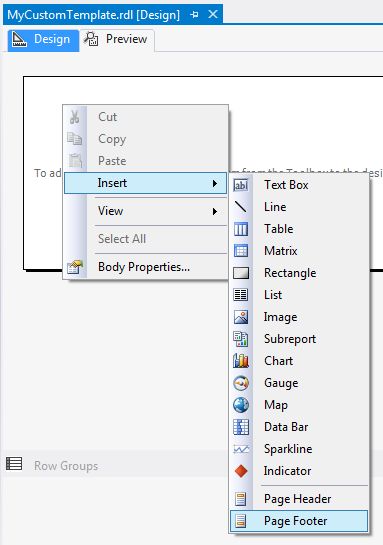

• Right-click on the design surface then select "Insert" and click on "Page Footer".



Step 6

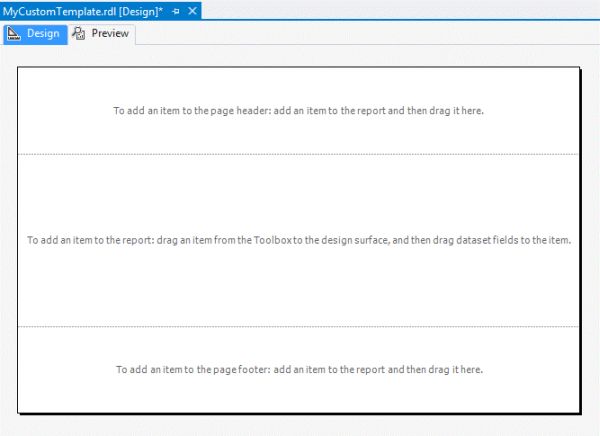

• The page header and page footer is created in the RDL file.



Step 7

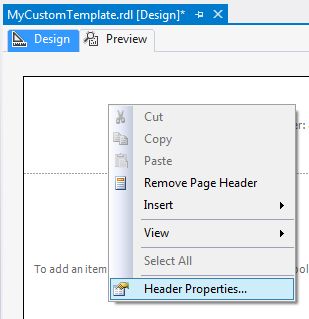

• Right-click on the header portion and select "Header Properties" to design the header.



Step 8

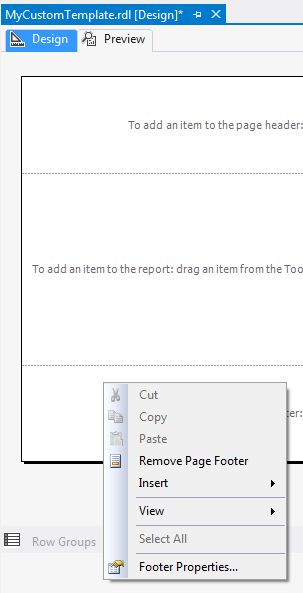

• In the same way right-click on the footer portion and select "Footer Properties" to design the footer.



Step 9

• In general properties we have the option to print on the first page and / or the last page. Also we can set the height of the header or footer.

  *Print on the first page.

Step 10

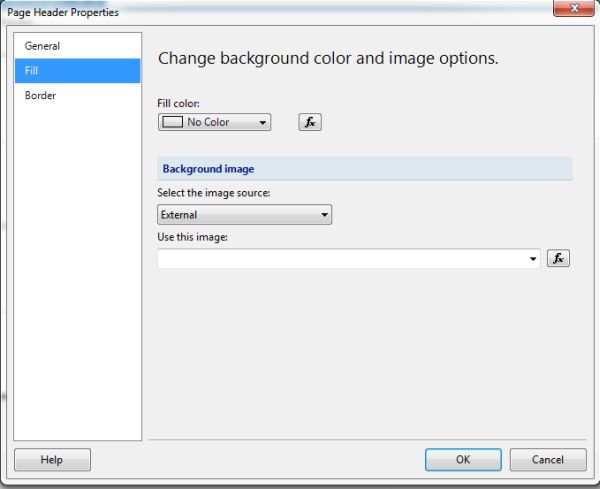

• In the fill properties we can set the background color or set the background image.



Step 11

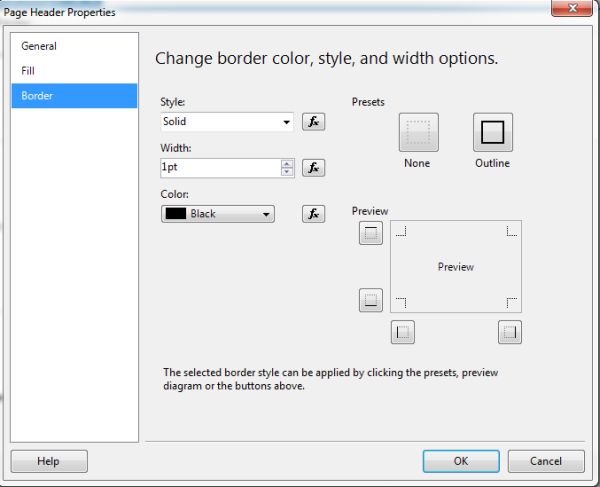

• We can also select the border style, width and color using the border properties.



Step 12

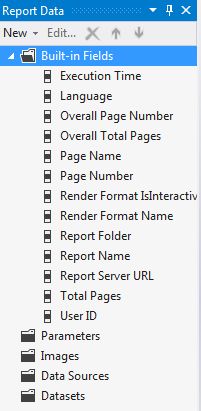

• We can use built-in-fields for the header and footer, like the page name, page number and so on.



Step 13

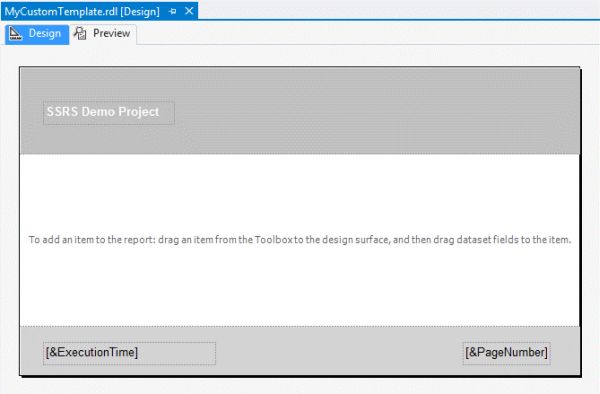

• Here in our example we set Grey as the background color in the header and footer.


• We set the execution time and page number from the built-in fields for the footer.



Step 14

• Our custom template is ready, now we need to save it.

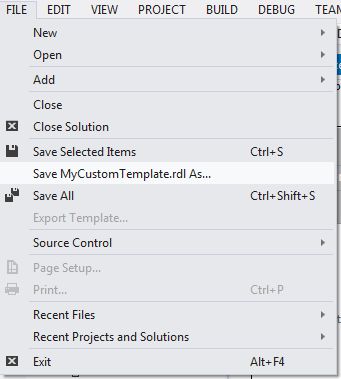

• Click on "File" >> "Save MyCustomTemplate.rdl As".



Step 15

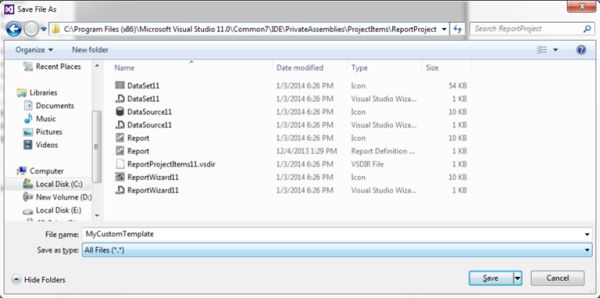

• Provide an appropriate name and save it on the following path.



Step 16

• Now let's design a report using the created template.

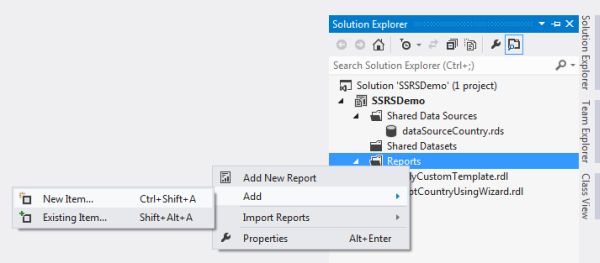

• Right-click on "Reports", select "Add" and click on "New Item".



Step 17

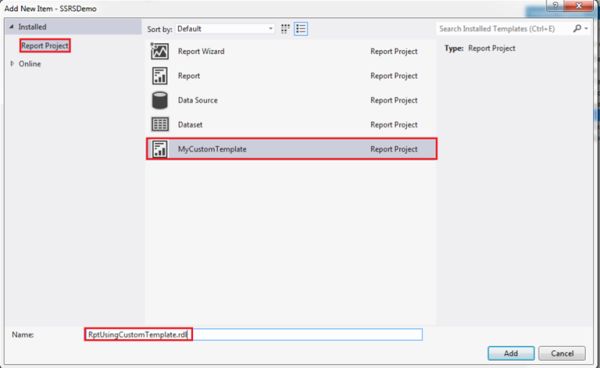

• Select "Report Project" from the left panel.


• Select "MyCustomTemplate" rather than "Report" to implement the template.


• Provide an appropriate name to the report.



Step 18

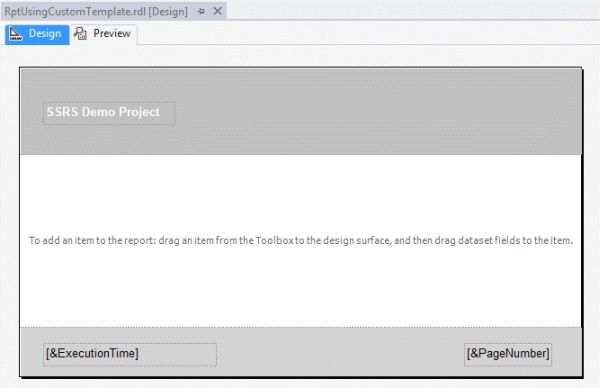

• Now you can see, our custom template is automatically added to the report design surface.
