How to Store Date and Time in Separate Columns in SQL Server 2005


In this article I will explain how to store Date and Time in SQL Server 2005 using a User Defined Type.

Introduction

In SQL Server 2008 four new data types were added. Two of them are Date and Time for storing date and time as separate data types. But if you need to deal with separate Date and Time in SQL Server 2005, either you store Date in DateTime and parse its date and time part or store date and time in a string data type.

An alternative is to create a User Defined Data Type (UDT) for storing Date and Time. So here we will create two UDTs and then we will use these User Defined Data Types in table columns. Then we will add a CHECK CONSTRAINT to the columns to ensure only valid data is inserted in these columns.

Step 1: Create User Defined Data Types

CREATE TYPE Date
FROM VARCHAR(10) NOT NULL
CREATE TYPE Time
FROM VARCHAR(8) NOT NULL

Here we have created two User Defined Data Types for date and time based on VARCHAR data type.

Step 2: Create Table

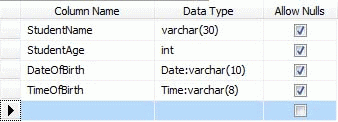

Create a table named "Student" and define its "DateOfBirth" and "TimeOfBirth" columns with the Date and Time UDTs respectively.

Step 3: Add Functions for validation

CREATE FUNCTION ValidateDate(@Date VARCHAR(10))
RETURNS INTEGER
AS
BEGIN
      DECLARE @ReturnValue INT
      DECLARE @DD VARCHAR(2)
      DECLARE @MM VARCHAR(2)
      DECLARE @YYYY VARCHAR(4)
      IF(@Date LIKE'[0-3][0-9]/[0-1][0-9]/[0-9][0-9][0-9][0-9]')
            BEGIN
                  SET @DD=SUBSTRING(@Date, 1, 2)
                  SET @MM=SUBSTRING(@Date, 4, 2)
                  SET @YYYY=SUBSTRING(@Date, 7, 4)
                  SET @ReturnValue=ISDATE(@MM+'/'+@DD+'/'+@YYYY)
            END
      ELSE
            SET @ReturnValue=0
      RETURN @ReturnValue
END

CREATE FUNCTION ValidateTime(@Time VARCHAR(8))
RETURNS INTEGER
AS
BEGIN
      DECLARE @ReturnValue INTEGER
      DECLARE @HH INT
      DECLARE @MM INT
      DECLARE @SS INT

      IF(@Time LIKE'[0-9][0-9]:[0-9][0-9]:[0-9][0-9]')
            BEGIN
                  SET @HH=CAST(SUBSTRING(@Time, 1, 2) AS INT)
                  SET   @MM=CAST(SUBSTRING(@Time, 4, 2) AS INT)
                  SET @SS=CAST(SUBSTRING(@Time, 7, 2) AS INT)

                  IF((@HH BETWEEN 0 AND 23)AND (@MM BETWEEN 0 AND 59) AND(@SS BETWEEN 0 AND 59))
                        BEGIN
                              SET @ReturnValue=1
                        END
                  ELSE
                        BEGIN
                              SET @ReturnValue=0
                        END
            END
      ELSE
            SET @ReturnValue=0

      RETURN @ReturnValue
END

Here we have added two functions ValidateDate and ValidateTime for validating Date and Time. Date accepts data in the (dd/mm/yyyy) format and Time accepts data in the (hh:mm:ss) format.

Step 4: Add Constraint to the Columns

ALTER TABLE Student
WITH NOCHECK -- Optional
ADD CONSTRAINT chkDate CHECK(dbo.ValidateDate(DateOfBirth)=1)

ALTER TABLE Student
WITH NOCHECK -- Optional
ADD CONSTRAINT chkTime CHECK(dbo.ValidateTime(TimeOfBirth)=1)

Here we have added two CHECK CONSTRAINTs, "chkDate" and "chkTime" to the DateOfBirth and TimeOfBirth columns respectively for validating data inserted in these columns.

If you try to insert data in DateOfBirth and TimeOfBirth columns in a format other than specified, you will get an error stating "Conflicted with CHECK constraint".

Happy Programming!
