Grouped LongListSelector in Windows Phone 8 Silverlight

LongListSelector in Windows Phone 8 is a very flexible control.  You can use this control to implement Grouping of Items in the list.

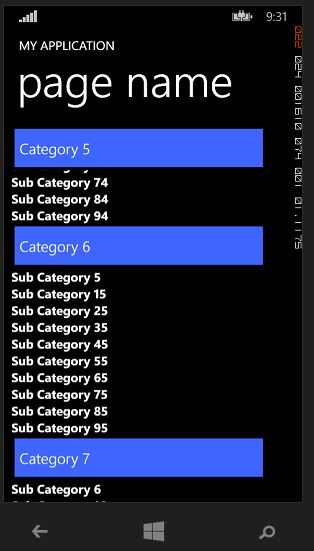

Let us say we have some Categories and associated Sub-Categories as shown in the emulator snapshot below:



XAML

Add a DataContext to phone:PhoneApplicationPage, I have used the MVVM Pattern.
  1. DataContext="{Binding CatSubCat, Source={StaticResource Locator}}"
LongListSelector:
  1. <phone:LongListSelector ItemsSource="{Binding Categories}"
  2. JumpListStyle="{StaticResource CategoryJumpListStyle}"
  3. Background="Transparent"
  4. GroupHeaderTemplate="{StaticResource CategoryHeaderTemplate}"
  5. ItemTemplate="{StaticResource SubCategoryItemTemplate}"
  6. LayoutMode="List"
  7. IsGroupingEnabled="true"
  8. HideEmptyGroups ="true"/>
  9.
So we need CategoryJumpListStyleCategoryHeaderTemplate, and SubCategoryItemTemplate.

Add them in PhoneApplicationPage.Resources as in the following:
  1. <phone:PhoneApplicationPage.Resources></phone:PhoneApplicationPage.Resources>

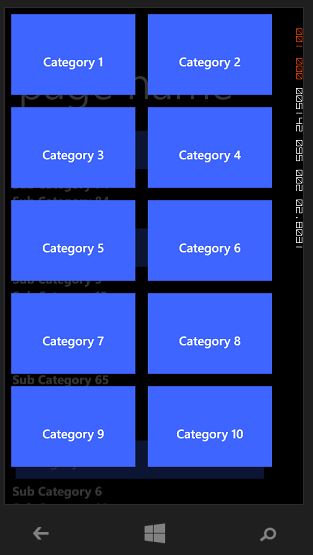

CategoryJumpListStyle :
  1. <phone:JumpListItemBackgroundConverter x:Key="BackgroundConverter"/>
  2.         <phone:JumpListItemForegroundConverter x:Key="ForegroundConverter"/>
  3.         <Style x:Key="CategoryJumpListStyle" TargetType="phone:LongListSelector">
  4.             <Setter Property="GridCellSize"  Value="220,150"/>
  5.             <Setter Property="LayoutMode" Value="Grid" />
  6.             <Setter Property="ItemTemplate">
  7.                 <Setter.Value>
  8.                     <DataTemplate>
  9.                         <Border Background="{Binding Converter={StaticResource BackgroundConverter}}"  Height="150" Margin="10" >
  10.                             <TextBlock TextWrapping="Wrap" Text="{Binding CategoryName}" FontFamily="{StaticResource PhoneFontFamilySemiBold}" FontSize="20" Padding="6"
  11.                Foreground="{Binding Converter={StaticResource ForegroundConverter}}" TextAlignment="Center" VerticalAlignment="Center"/>
  12.                         </Border>
  13.                     </DataTemplate>
  14.                 </Setter.Value>
  15.             </Setter>
  16.         </Style>
CategoryHeaderTemplate :
  1. <DataTemplate x:Key="CategoryHeaderTemplate">
  2.             <Border Background="Transparent" Padding="5">
  3.                 <Border Background="{StaticResource PhoneAccentBrush}" BorderBrush="{StaticResource PhoneAccentBrush}" BorderThickness="2" Width="400"
  4.          Height="62" Margin="0,0,18,0" HorizontalAlignment="Left">
  5.                     <TextBlock Text="{Binding CategoryName}" Foreground="{StaticResource PhoneForegroundBrush}" FontSize="24" Padding="6"
  6.             FontFamily="{StaticResource PhoneFontFamilySemiLight}" HorizontalAlignment="Left" VerticalAlignment="Center"/>
  7.                 </Border>
  8.             </Border>
  9.         </DataTemplate>
SubCategoryItemTemplate:
  1. <DataTemplate x:Key="SubCategoryItemTemplate">
  2.            <StackPanel VerticalAlignment="Top">
  3.                <TextBlock FontWeight="Bold"  Text="{Binding SubCategoryName}" />
  4.
  5.            </StackPanel>
  6.        </DataTemplate>
Code:
LongListSelector for grouping needs an object of type: List<List<T>>.

In our case we use List<T> as in the following:
  1. public class SubCategoryGroup : List<SubCategory>
  2.    {
  3.        public string CategoryName { getset; }
  4.
  5.        public SubCategoryGroup(IEnumerable<SubCategory> subCategoryList,string Name)
  6.        {
  7.            this.CategoryName = Name;
  8.            this.AddRange(subCategoryList);
  9.        }
  10.    }
And our View Model should return List<List<T>> (in our case List<SubCategoryGroup>) as in the following:
  1. public class CatSubCatViewModel : ViewModelBase
  2.    {
  3.        IRepository db;
  4.        public List<SubCategoryGroup> Categories { getset; }
  5.        public CatSubCatViewModel(IRepository _db)
  6.        {
  7.            db = _db;
  8.            Categories = new List<SubCategoryGroup>();
  9.
  10.            var allCategories = db.GetAllCategories();
  11.
  12.            var allSubCategories = db.GetAllSubCategories();
  13.
  14.            foreach (var categoryItem in allCategories)
  15.            {
  16.               Categories.Add(new SubCategoryGroup(allSubCategories.Where(p => p.CategoryId == categoryItem.CategoryId),categoryItem.CategoryName));
  17.            }
  18.        }
  19.
  20.
  21.    }
So we have used the Categories Property to contain a List<SubCategoryGroup> that we directly bind to our LongListSelector.

That's all about the basics, you can customize it more depending on your requirements. I hope the article is helpful. Happy WP Coding!
