Set up Virtual Machine On Azure For SharePoint 2016 IT Preview

Microsoft has announced the availability of the SharePoint Server 2016 IT Preview. The SharePoint product team has created a new Azure virtual machine gallery image with SharePoint Server 2016 IT Preview and its prerequisites pre-installed.

Here you can have a step by step guide to setup the VM using the new image in Azure.

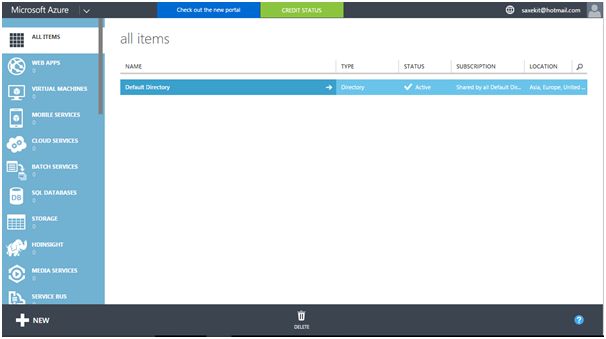

  1. Login to manage.windowsazure.com

    a. You can register for a free azure account.
    b. The new azure portal is also live.

    azure portal

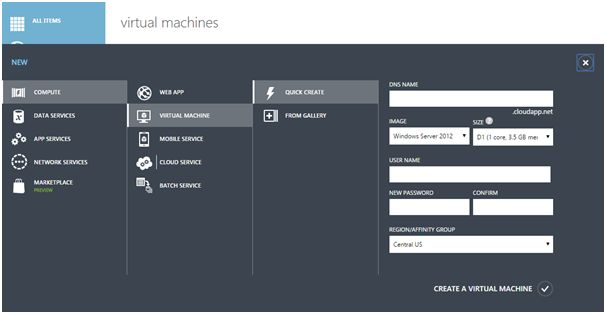

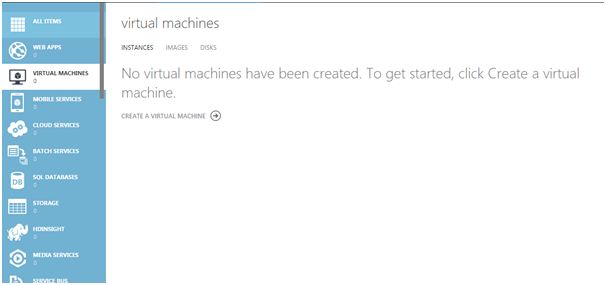

  2. Click on VIRTUAL MACHINES in the left navigation and create a new Virtual Machine

    left Navigation

    Click on Virtual Machine

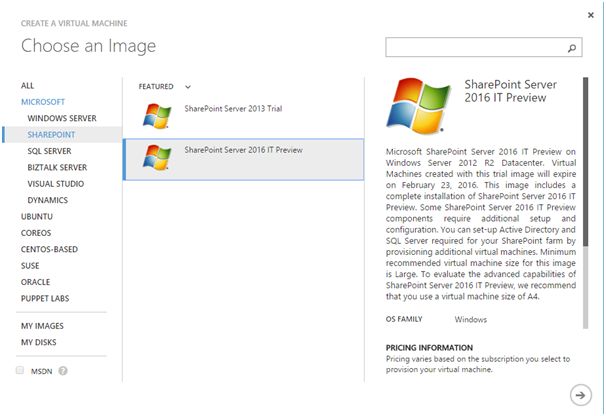

  3. Click on FROM GALLERY. On clicking you will see the following:

    Gallery

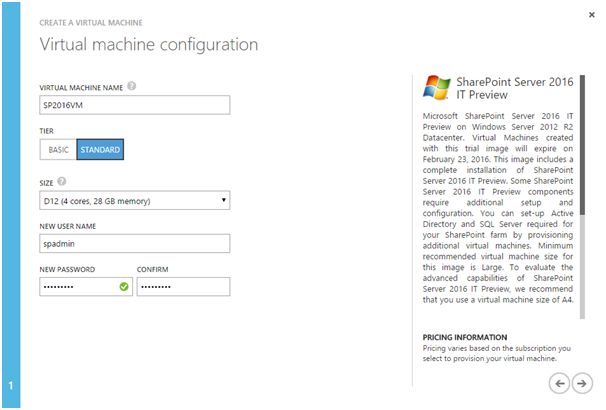

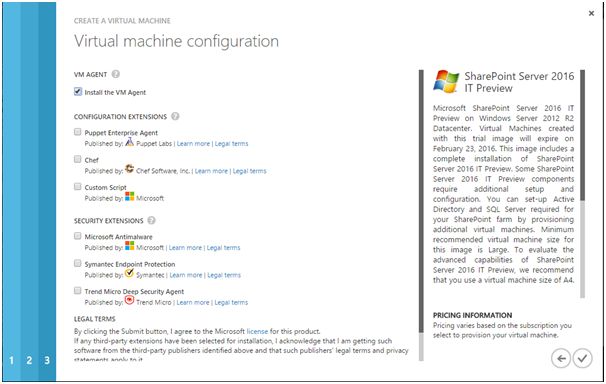

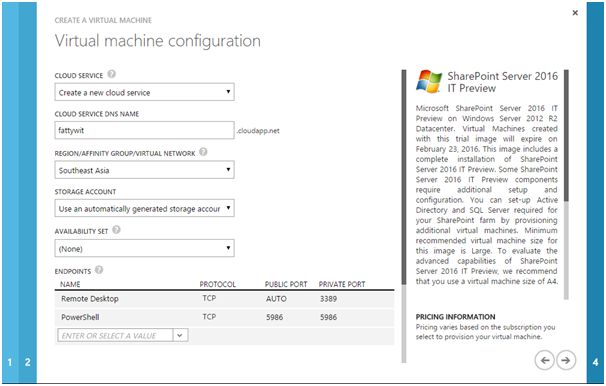

  4. In the next screen select the VM Name, tier, user name and password. Important to note here is that the VM size by default selected is D12 (4 Core, 28 GB memory), You can choose bigger size, but less than this is not recommended for SharePoint 2016 Preview kit.

    SharePoint 2016 Preview
    virtul machineconfiguration

    virtul machine

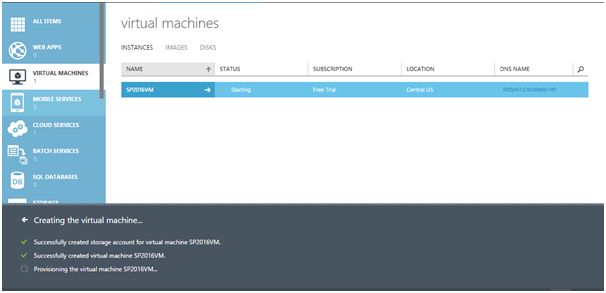

  5. Now the VM will be provisioned.

    VM

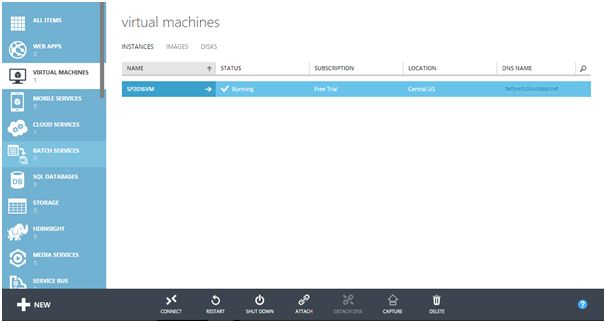

  6. Check the status. Once it’s set to Running, click on Connect at the bottom pane of the screen.

    Click on Connect

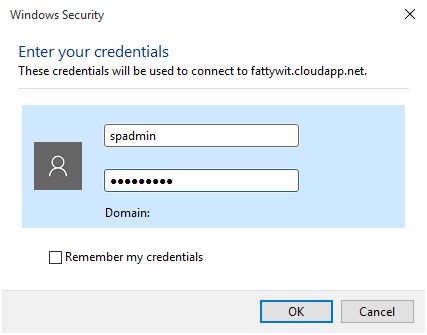

  7. It will download an rdp file. Double click on the rdp file. You will be prompted for credentials. Enter the same credentials that you have provided in step 4.

    login

  8. The VM will have Windows Server 2012 R2 as the operating system.

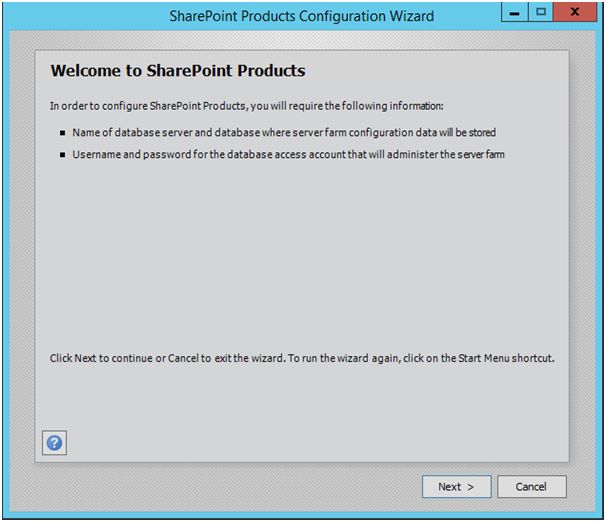

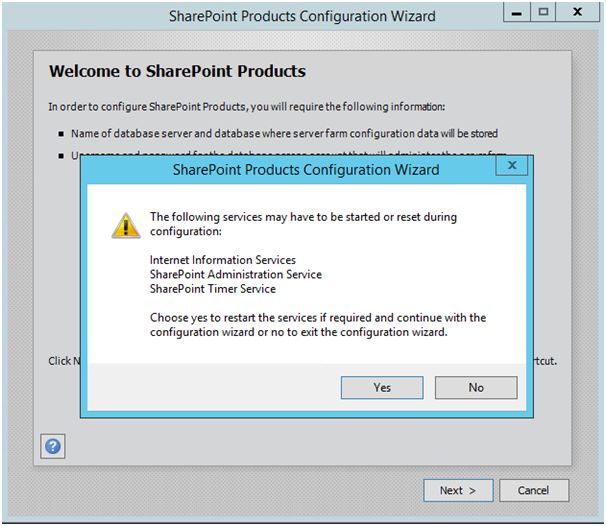

  9. To start the SharePoint 2016 central admin you first need to run the SharePoint Configuration wizard.

    SharePoint 2016 central Admin

    Sharepoint

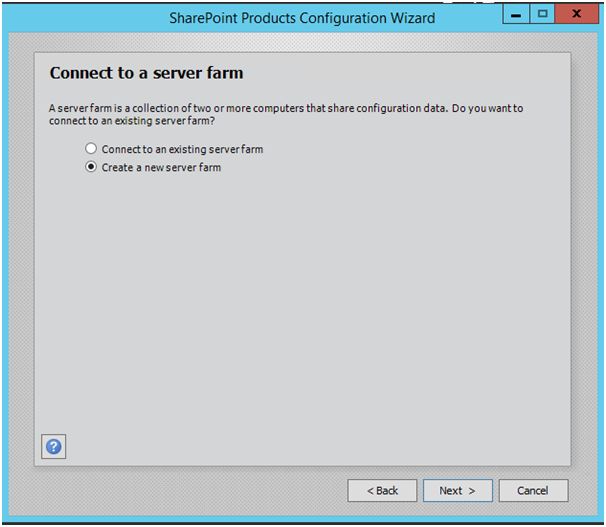

    connect to a server

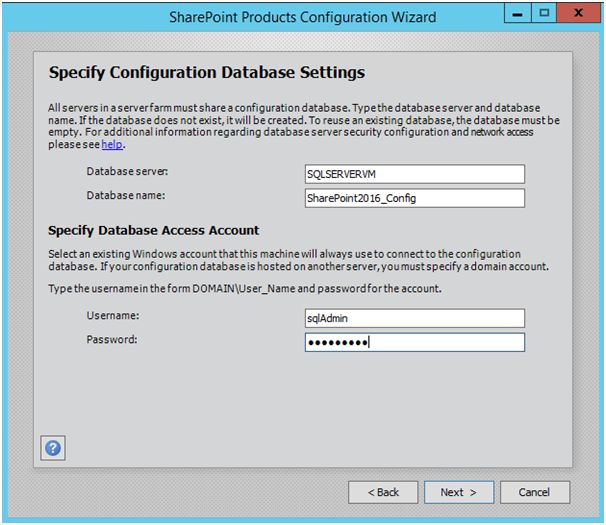

  10. Now you need to have SQL set up as well, to complete the SharePoint setup. You can create a SQL VM and use the same here. This set up do not have SQL installed.

    SQL installed

  11. Once you complete the configuration wizard you are all set to explore the SharePoint 2016 world.
