Visitor Pattern In C#

In this article I will explain the visitor pattern in detail, but before jumping to Visitor Pattern, let’s have a look at the following screenshot for Design Patterns and its types.

Design Pattern

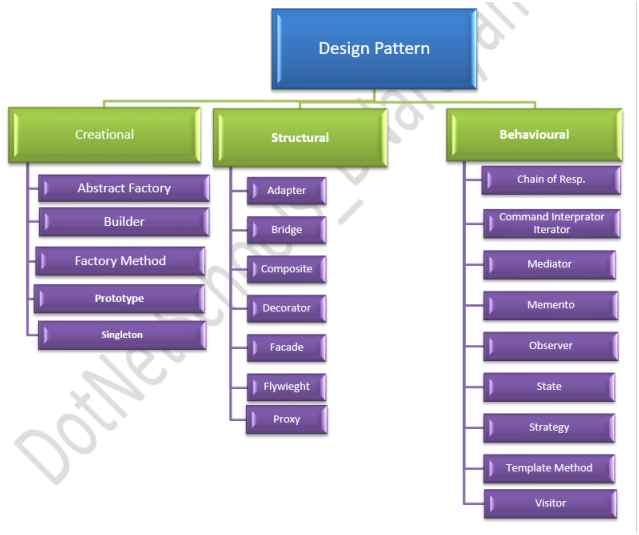

There are a lot of design patterns (around 35-40), I am not going to explain other design pattern here otherwise the topic will become too large.

Let’s go to Visitor Pattern

Visitor is one of the most important design pattern of C#. As you can see in the above  screenshot, it falls under the category of Behavioural design pattern that means it will work and change the behaviour of the class.

Visitor pattern is used for separation of Business logic and algorithm from an object data structure i.e. it is used for separating logic from actual data structure.

Due to the separation of data structure and its logic we can add new logic without changing the current data structure and vice-versa.

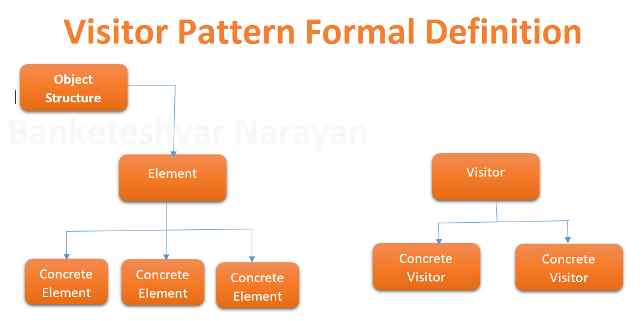

Visitor Pattern represent an operation to be performed on the elements of an object structure. Visitor lets you define a new operation without changing the classes of the elements on which it operates (as per GOF).

Visitor Pattern

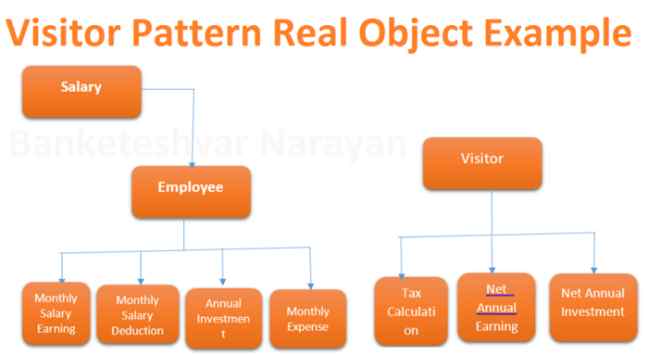

To co-relate the example with real world let’s take an example of Employee Monthly Salary, investment and Tax calculation.

Employee Monthly Salary

Let’s calculate Income Tax, Annual Investment, Annual Net Earning… with C#.

Without Visitor Pattern

Without Visitor Pattern

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Globalization;
  4. namespace Earning_TaxInIndiaWithoutVisitorPattern
  5. {
  6.     class Program
  7.     {
  8.         static void Main(string[] args)
  9.         {
  10.             Employee emp = new Employee
  11.             {
  12.                 EmployeeId = "XYZ1001", EmployeeName = "Banketeshvar Narayan"
  13.             };
  14.             AddDataForEmployee(emp);#
  15.             region Calculate Net Earning of the Year
  16.             double NetEarningoftheYear = 0.0;
  17.             foreach(var monthlySalary_Earning in emp.MonthlySalary_Earnings)
  18.             {
  19.                 NetEarningoftheYear += (monthlySalary_Earning.BasicSalary + monthlySalary_Earning.ConveyanceAllowance + monthlySalary_Earning.FoodCard_Bill + monthlySalary_Earning.HRAExemption + monthlySalary_Earning.MedicalAllowance + monthlySalary_Earning.OtherBills + monthlySalary_Earning.PersonalAllowance + monthlySalary_Earning.TelephoneBill);
  20.             }
  21.             foreach(var monthlySalary_Deduction in emp.MonthlySalary_Deductions)
  22.             {
  23.                 NetEarningoftheYear -= (monthlySalary_Deduction.ProvidentFund_EmployeeContribution + monthlySalary_Deduction.ProvidentFund_EmployerContribution + monthlySalary_Deduction.ProfessionTax + monthlySalary_Deduction.OtherDeduction);
  24.             }#
  25.             endregion# region Calculate TaxableAmount
  26.             double TaxableAmount = 0.0;
  27.             foreach(var monthlySalary_Earning in emp.MonthlySalary_Earnings)
  28.             {
  29.                 TaxableAmount += (monthlySalary_Earning.BasicSalary + monthlySalary_Earning.HRAExemption + monthlySalary_Earning.MedicalAllowance + monthlySalary_Earning.PersonalAllowance);
  30.                 //Non Taxable parts
  31.                 //monthlySalary_Earning.FoodCard_Bill
  32.                 //monthlySalary_Earning.ConveyanceAllowance
  33.                 //monthlySalary_Earning.TelephoneBill
  34.                 //monthlySalary_Earning.OtherBills
  35.             }
  36.             foreach(var monthlySalary_Deduction in emp.MonthlySalary_Deductions)
  37.             {
  38.                 TaxableAmount -= (monthlySalary_Deduction.ProvidentFund_EmployeeContribution + monthlySalary_Deduction.ProvidentFund_EmployerContribution + monthlySalary_Deduction.ProfessionTax + monthlySalary_Deduction.OtherDeduction);
  39.             }
  40.             foreach(var monthlyExpense in emp.MonthlyExpenses)
  41.             {
  42.                 TaxableAmount -= monthlyExpense.MonthlyRent;
  43.             }
  44.             foreach(var annualInvestment in emp.AnnualInvestments)
  45.             {
  46.                 TaxableAmount -= annualInvestment.InvestmentAmmount;
  47.             }#
  48.             endregion
  49.             Console.WriteLine("Annual Net Earning Amount : {0}", NetEarningoftheYear);
  50.             Console.WriteLine("Annual Taxable Amount : {0}", TaxableAmount);
  51.         }
  52.         private static void AddDataForEmployee(Employee emp)
  53.         {
  54.             for (int i = 1; i <= 12; i++)
  55.             {
  56.                 emp.MonthlySalary_Earnings.Add(new MonthlySalary_Earning
  57.                 {
  58.                     MonthName = DateTimeFormatInfo.CurrentInfo.GetMonthName(i),
  59.                         BasicSalary = 120000,
  60.                         HRAExemption = 50000,
  61.                         ConveyanceAllowance = 1600,
  62.                         PersonalAllowance = 45000,
  63.                         MedicalAllowance = 1500,
  64.                         TelephoneBill = 2500,
  65.                         FoodCard_Bill = 3000,
  66.                         OtherBills = 35000
  67.                 });
  68.                 emp.MonthlySalary_Deductions.Add(new MonthlySalary_Deduction
  69.                 {
  70.                     MonthName = DateTimeFormatInfo.CurrentInfo.GetMonthName(i),
  71.                         ProvidentFund_EmployeeContribution = 8000,
  72.                         ProvidentFund_EmployerContribution = 8000,
  73.                         OtherDeduction = 700,
  74.                         ProfessionTax = 200,
  75.                         TDS = 15000
  76.                 });
  77.                 emp.MonthlyExpenses.Add(new MonthlyExpense
  78.                 {
  79.                     MonthName = DateTimeFormatInfo.CurrentInfo.GetMonthName(1), MonthlyRent = 10000
  80.                 });
  81.             }
  82.             emp.AnnualInvestments.Add(new AnnualInvestment
  83.             {
  84.                 InvestmentDetails = "MediclaimPolicy", InvestmentAmmount = 15000
  85.             });
  86.             emp.AnnualInvestments.Add(new AnnualInvestment
  87.             {
  88.                 InvestmentDetails = "MediclaimPolicyforParents", InvestmentAmmount = 25000
  89.             });
  90.             emp.AnnualInvestments.Add(new AnnualInvestment
  91.             {
  92.                 InvestmentDetails = "HouseLoan", InvestmentAmmount = 0.0
  93.             });
  94.             emp.AnnualInvestments.Add(new AnnualInvestment
  95.             {
  96.                 InvestmentDetails = "EducationLoan", InvestmentAmmount = 0.0
  97.             });
  98.             emp.AnnualInvestments.Add(new AnnualInvestment
  99.             {
  100.                 InvestmentDetails = "OtherInvestment", InvestmentAmmount = 5000
  101.             });
  102.             emp.AnnualInvestments.Add(new AnnualInvestment
  103.             {
  104.                 InvestmentDetails = "RGESS", InvestmentAmmount = 5500
  105.             });
  106.             emp.AnnualInvestments.Add(new AnnualInvestment
  107.             {
  108.                 InvestmentDetails = "Section80Cn80CCD_ExceptPF", InvestmentAmmount = 100000
  109.             });
  110.             //emp.AnnualInvestments.Add(new AnnualInvestment
  111.             //{
  112.             // //MediclaimPolicy = 15000,
  113.             // //MediclaimPolicyforParents = 25000,
  114.             // //HouseLoan = 0.0,
  115.             // //EducationLoan = 0.0,
  116.             // //OtherInvestment = 5000,
  117.             // //RGESS = 5500,
  118.             // //Section80Cn80CCD_ExceptPF = 100000
  119.             //});
  120.         }
  121.     }#
  122.     region Employee
  123.     public class Employee
  124.     {
  125.         public string EmployeeId
  126.         {
  127.             get;
  128.             set;
  129.         }
  130.         public string EmployeeName
  131.         {
  132.             get;
  133.             set;
  134.         }
  135.         public List < MonthlySalary_Earning > MonthlySalary_Earnings = new List < MonthlySalary_Earning > ();
  136.         public List < MonthlySalary_Deduction > MonthlySalary_Deductions = new List < MonthlySalary_Deduction > ();
  137.         public List < AnnualInvestment > AnnualInvestments = new List < AnnualInvestment > ();
  138.         public List < MonthlyExpense > MonthlyExpenses = new List < MonthlyExpense > ();
  139.     }#
  140.     endregion# region MonthlySalary_Earning
  141.     public class MonthlySalary_Earning
  142.     {
  143.         public string MonthName
  144.         {
  145.             get;
  146.             set;
  147.         }
  148.         public double BasicSalary
  149.         {
  150.             get;
  151.             set;
  152.         }
  153.         public double HRAExemption
  154.         {
  155.             get;
  156.             set;
  157.         }
  158.         public double ConveyanceAllowance
  159.         {
  160.             get;
  161.             set;
  162.         }
  163.         public double PersonalAllowance
  164.         {
  165.             get;
  166.             set;
  167.         }
  168.         public double MedicalAllowance
  169.         {
  170.             get;
  171.             set;
  172.         }
  173.         public double TelephoneBill
  174.         {
  175.             get;
  176.             set;
  177.         }
  178.         public double FoodCard_Bill
  179.         {
  180.             get;
  181.             set;
  182.         }
  183.         public double OtherBills
  184.         {
  185.             get;
  186.             set;
  187.         }
  188.     }#
  189.     endregion# region MonthlySalary_Deduction
  190.     public class MonthlySalary_Deduction
  191.     {
  192.         public string MonthName
  193.         {
  194.             get;
  195.             set;
  196.         }
  197.         public double ProvidentFund_EmployeeContribution
  198.         {
  199.             get;
  200.             set;
  201.         }
  202.         public double ProvidentFund_EmployerContribution
  203.         {
  204.             get;
  205.             set;
  206.         }
  207.         public double ProfessionTax
  208.         {
  209.             get;
  210.             set;
  211.         }
  212.         public double TDS
  213.         {
  214.             get;
  215.             set;
  216.         }
  217.         public double OtherDeduction
  218.         {
  219.             get;
  220.             set;
  221.         }
  222.     }#
  223.     endregion# region AnnualInvestment
  224.     public class AnnualInvestment
  225.     {
  226.         public string InvestmentDetails
  227.         {
  228.             get;
  229.             set;
  230.         }
  231.         public double InvestmentAmmount
  232.         {
  233.             get;
  234.             set;
  235.         }
  236.         //public double MediclaimPolicy { get; set; }
  237.         //public double MediclaimPolicyforParents { get; set; }
  238.         //public double HouseLoan { get; set; }
  239.         //public double EducationLoan { get; set; }
  240.         //public double Section80Cn80CCD_ExceptPF { get; set; }
  241.         //public double RGESS { get; set; }
  242.         //public double OtherInvestment { get; set; }
  243.     }#
  244.     endregion# region MonthlyExpense
  245.     public class MonthlyExpense
  246.     {
  247.         public string MonthName
  248.         {
  249.             get;
  250.             set;
  251.         }
  252.         public double MonthlyRent
  253.         {
  254.             get;
  255.             set;
  256.         }
  257.     }#
  258.     endregion
  259. }
With Visitor Pattern

With Visitor Pattern
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Globalization;
  4. namespace Earning_TaxationInIndiaWithVisitorPattern
  5. {
  6.     class Program
  7.     {
  8.         static void Main(string[] args)
  9.         {
  10.             Employee emp = new Employee
  11.             {
  12.                 EmployeeId = "XYZ1001", EmployeeName = "Banketeshvar Narayan Sharma"
  13.             };
  14.             AddDataForEmployee(emp);
  15.             var netAnnualEarningVisitor = new NetAnnualEarningVisitor();
  16.             var annualTaxableAmount = new TaxableAmountVisitor();
  17.             emp.Accept(netAnnualEarningVisitor);
  18.             emp.Accept(annualTaxableAmount);
  19.             Console.WriteLine("Annual Net Earning Amount : {0}", netAnnualEarningVisitor.NetEarningoftheYear);
  20.             Console.WriteLine("Annual Taxable Amount : {0}", annualTaxableAmount.TaxableAmount);
  21.             Console.ReadKey();
  22.         }
  23.         private static void AddDataForEmployee(Employee emp)
  24.         {
  25.             for (int i = 1; i <= 12; i++)
  26.             {
  27.                 emp.Salaries.Add(new MonthlySalary_Earning
  28.                 {
  29.                     MonthName = DateTimeFormatInfo.CurrentInfo.GetMonthName(i),
  30.                         BasicSalary = 120000,
  31.                         HRAExemption = 50000,
  32.                         ConveyanceAllowance = 1600,
  33.                         PersonalAllowance = 45000,
  34.                         MedicalAllowance = 1500,
  35.                         TelephoneBill = 2500,
  36.                         FoodCard_Bill = 3000,
  37.                         OtherBills = 35000
  38.                 });
  39.                 emp.Salaries.Add(new MonthlySalary_Deduction
  40.                 {
  41.                     MonthName = DateTimeFormatInfo.CurrentInfo.GetMonthName(i),
  42.                         ProvidentFund_EmployeeContribution = 8000,
  43.                         ProvidentFund_EmployerContribution = 8000,
  44.                         OtherDeduction = 700,
  45.                         ProfessionTax = 200,
  46.                         TDS = 15000
  47.                 });
  48.                 emp.Salaries.Add(new MonthlyExpense
  49.                 {
  50.                     MonthName = DateTimeFormatInfo.CurrentInfo.GetMonthName(1), MonthlyRent = 10000
  51.                 });
  52.             }
  53.             emp.Salaries.Add(new AnnualInvestment
  54.             {
  55.                 InvestmentDetails = "MediclaimPolicy", InvestmentAmmount = 15000
  56.             });
  57.             emp.Salaries.Add(new AnnualInvestment
  58.             {
  59.                 InvestmentDetails = "MediclaimPolicyforParents", InvestmentAmmount = 25000
  60.             });
  61.             emp.Salaries.Add(new AnnualInvestment
  62.             {
  63.                 InvestmentDetails = "HouseLoan", InvestmentAmmount = 0.0
  64.             });
  65.             emp.Salaries.Add(new AnnualInvestment
  66.             {
  67.                 InvestmentDetails = "EducationLoan", InvestmentAmmount = 0.0
  68.             });
  69.             emp.Salaries.Add(new AnnualInvestment
  70.             {
  71.                 InvestmentDetails = "OtherInvestment", InvestmentAmmount = 5000
  72.             });
  73.             emp.Salaries.Add(new AnnualInvestment
  74.             {
  75.                 InvestmentDetails = "RGESS", InvestmentAmmount = 5500
  76.             });
  77.             emp.Salaries.Add(new AnnualInvestment
  78.             {
  79.                 InvestmentDetails = "Section80Cn80CCD_ExceptPF", InvestmentAmmount = 100000
  80.             });
  81.         }
  82.     }
  83.     public class NetAnnualEarningVisitor: IVisitor
  84.     {
  85.         public double NetEarningoftheYear
  86.         {
  87.             get;
  88.             set;
  89.         }
  90.         public void Visit(MonthlySalary_Earning monthlySalary_Earning)
  91.         {
  92.             NetEarningoftheYear += (monthlySalary_Earning.BasicSalary + monthlySalary_Earning.ConveyanceAllowance + monthlySalary_Earning.FoodCard_Bill + monthlySalary_Earning.HRAExemption + monthlySalary_Earning.MedicalAllowance + monthlySalary_Earning.OtherBills + monthlySalary_Earning.PersonalAllowance + monthlySalary_Earning.TelephoneBill);
  93.         }
  94.         public void Visit(MonthlySalary_Deduction monthlySalary_Deduction)
  95.         {
  96.             NetEarningoftheYear -= (monthlySalary_Deduction.ProvidentFund_EmployeeContribution + monthlySalary_Deduction.ProvidentFund_EmployerContribution + monthlySalary_Deduction.ProfessionTax + monthlySalary_Deduction.OtherDeduction);
  97.         }
  98.         public void Visit(AnnualInvestment annualInvestment)
  99.         {
  100.             // do nothing
  101.         }
  102.         public void Visit(MonthlyExpense monthlyExpense)
  103.         {
  104.             //do nothing
  105.         }
  106.     }
  107.     public class TaxableAmountVisitor: IVisitor
  108.     {
  109.         public double TaxableAmount
  110.         {
  111.             get;
  112.             set;
  113.         }
  114.         public void Visit(MonthlySalary_Earning monthlySalary_Earning)
  115.         {
  116.             TaxableAmount += (monthlySalary_Earning.BasicSalary + monthlySalary_Earning.HRAExemption + monthlySalary_Earning.MedicalAllowance + monthlySalary_Earning.PersonalAllowance);
  117.         }
  118.         public void Visit(MonthlySalary_Deduction monthlySalary_Deduction)
  119.         {
  120.             TaxableAmount -= (monthlySalary_Deduction.ProvidentFund_EmployeeContribution + monthlySalary_Deduction.ProvidentFund_EmployerContribution + monthlySalary_Deduction.ProfessionTax + monthlySalary_Deduction.OtherDeduction);
  121.         }
  122.         public void Visit(MonthlyExpense monthlyExpense)
  123.         {
  124.             TaxableAmount -= monthlyExpense.MonthlyRent;
  125.         }
  126.         public void Visit(AnnualInvestment annualInvestment)
  127.         {
  128.             TaxableAmount -= annualInvestment.InvestmentAmmount;
  129.         }
  130.     }
  131.     public interface ISalary
  132.     {
  133.         void Accept(IVisitor visitor);
  134.     }
  135.     public interface IVisitor
  136.     {
  137.         void Visit(MonthlySalary_Earning monthlySalary_Earning);
  138.         void Visit(MonthlySalary_Deduction monthlySalary_Deduction);
  139.         void Visit(MonthlyExpense monthlyExpense);
  140.         void Visit(AnnualInvestment annualInvestment);
  141.     }#
  142.     region Employee
  143.     public class Employee: ISalary
  144.     {
  145.         public string EmployeeId
  146.         {
  147.             get;
  148.             set;
  149.         }
  150.         public string EmployeeName
  151.         {
  152.             get;
  153.             set;
  154.         }
  155.         public List < ISalary > Salaries = new List < ISalary > ();
  156.         public void Accept(IVisitor visitor)
  157.         {
  158.             foreach(var salary in Salaries)
  159.             {
  160.                 salary.Accept(visitor);
  161.             }
  162.         }
  163.     }#
  164.     endregion# region MonthlySalary_Earning
  165.     public class MonthlySalary_Earning: ISalary
  166.     {
  167.         public string MonthName
  168.         {
  169.             get;
  170.             set;
  171.         }
  172.         public double BasicSalary
  173.         {
  174.             get;
  175.             set;
  176.         }
  177.         public double HRAExemption
  178.         {
  179.             get;
  180.             set;
  181.         }
  182.         public double ConveyanceAllowance
  183.         {
  184.             get;
  185.             set;
  186.         }
  187.         public double PersonalAllowance
  188.         {
  189.             get;
  190.             set;
  191.         }
  192.         public double MedicalAllowance
  193.         {
  194.             get;
  195.             set;
  196.         }
  197.         public double TelephoneBill
  198.         {
  199.             get;
  200.             set;
  201.         }
  202.         public double FoodCard_Bill
  203.         {
  204.             get;
  205.             set;
  206.         }
  207.         public double OtherBills
  208.         {
  209.             get;
  210.             set;
  211.         }
  212.         public void Accept(IVisitor visitor)
  213.         {
  214.             visitor.Visit(this);
  215.         }
  216.     }#
  217.     endregion# region MonthlySalary_Deduction
  218.     public class MonthlySalary_Deduction: ISalary
  219.     {
  220.         public string MonthName
  221.         {
  222.             get;
  223.             set;
  224.         }
  225.         public double ProvidentFund_EmployeeContribution
  226.         {
  227.             get;
  228.             set;
  229.         }
  230.         public double ProvidentFund_EmployerContribution
  231.         {
  232.             get;
  233.             set;
  234.         }
  235.         public double ProfessionTax
  236.         {
  237.             get;
  238.             set;
  239.         }
  240.         public double TDS
  241.         {
  242.             get;
  243.             set;
  244.         }
  245.         public double OtherDeduction
  246.         {
  247.             get;
  248.             set;
  249.         }
  250.         public void Accept(IVisitor visitor)
  251.         {
  252.             visitor.Visit(this);
  253.         }
  254.     }#
  255.     endregion# region AnnualInvestment
  256.     public class AnnualInvestment: ISalary
  257.     {
  258.         public string InvestmentDetails
  259.         {
  260.             get;
  261.             set;
  262.         }
  263.         public double InvestmentAmmount
  264.         {
  265.             get;
  266.             set;
  267.         }
  268.         public void Accept(IVisitor visitor)
  269.         {
  270.             visitor.Visit(this);
  271.         }
  272.     }#
  273.     endregion# region MonthlyExpense
  274.     public class MonthlyExpense: ISalary
  275.     {
  276.         public string MonthName
  277.         {
  278.             get;
  279.             set;
  280.         }
  281.         public double MonthlyRent
  282.         {
  283.             get;
  284.             set;
  285.         }
  286.         public void Accept(IVisitor visitor)
  287.         {
  288.             visitor.Visit(this);
  289.         }
  290.     }#
  291.     endregion
  292. }



Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
