How To Connect Java With Oracle10g Database

Introduction

This article explains how to connect to the Oracle10g database in Java.

Connect To Oracle10g database In Java

There are 5 steps to create a connection with an Oracle10g database in Java.

  1. First register the driver class
  2. Create the connection
  3. Create a statement
  4. Execute queries
  5. Close the connection

1. First, register the driver class

The class.forName() method of the class registers the driver class.

Syntax

public static void forName(String classname) throws ClassNotFoundException

Example

Class.forName("oracle.jdbc.driver.OracleDriver");

2. Create the connection object

The getConnection() method of the DriverManager class establishes the connection with the Oracle database.

Syntax

public static Connection getConnection(String url) throws Exception
public static Connection getConnetion(String name, String url, String password)

Example

Connection connection=DriverManager.getConnection("jdbc.oracle.thin:@localhost:xe","system","password");

Instead of localhost we provide our system name there.

3. Create the Statement object

The createStatement() method of the Connection interface is used to create the statement. This object is responsible for executing queries with the Oracle database.

Syntax

public Statement createStatement() throws Exception

Example

Statement statement=connection.cretaeStatement();

4. Execute the Queries

This method of the Statement interface executes the queries to the Oracle database. This method returns the object of ResultSet that can be used to get all the records of a table.

Syntax

public ResultSet executeQuery(String s) throws Exception

Example

ResultSet resultset=statement.executeQuery("Select 8 from emp");

while(resultset.next());
{
System.out.println(resultset.getInt(1)+ "" + resultset.getString(2));
}

5. Close the connection object

By closing the connection object the statement and ResultSet will be closed automatically. The close() method of the Connection interface closes the connection.

Syntax

public void close() throws Exception

Example

connection.close();

Now, take an example that shows a connection with Oracle10g database

For making a Java application with the Oracle database, we need to use the above 5 steps to perform database connectivity. In this example, we are using Oracle10g as the database. So we need to know the following information for the Oracle database.

Driver class
         For Oracle; the driver class is in oracle.jdbc.driver.OracleDriver.

Connection URL
         For Oracle10g the URL is "jdbc:oracle:thin:@localhost:1521:xe" (instead of localhost we provide our system name also) where jdbc is the API, Oracle is the database, thin is the driver, localhost is the server name on which Oracle is running, we may also use IP address, 1521 is the port number and XE is the Oracle service name. We may get all that information from the tnsnames.ora file.

username
         The default username for the Oracle database is SYSTEM.

Password
         This is user define given at the time of installing the Oracle database.

Now, start creating a connection with the Oracle10g database.

Create a table

Now open the Run SQL command line and write the following:

create table student(s_id number(5), s_name varchar2(35),s_age number(3));

Our table is created, now insert some data into it.

insert into student values(10,'Sandeep',22);
insert into student values(11,'Rahul',20);

Now we have inserted two rows into the student table that we have to display using Java.

To connect a Java application with the Oracle database we need the ojdbc14.jar file.

There are two ways to load this jar file

  1. paste the jar ojdbc14.jar in C:\Program Files\Java\jre7\lib\ext folder.
  2. set classpath for this jar file.

1. Paste the file

First search the ojdbc14.jar file (Like C:\oraclexe\app\oracle\product\10.2.0\server\jdbc\lib contains this file) then goto JRE/lib/ext folder and paste the ojdbc14.jar file in it.

2. Set the classpath

Go to environment variable then click on the new tab. In the variable name write the classpath and in the variable value paste the path to the ojdbc14.jar (like C:\oraclexe\app\oracle\product\10.2.0\server\jdbc\lib\ojdbc14.jar;.;)

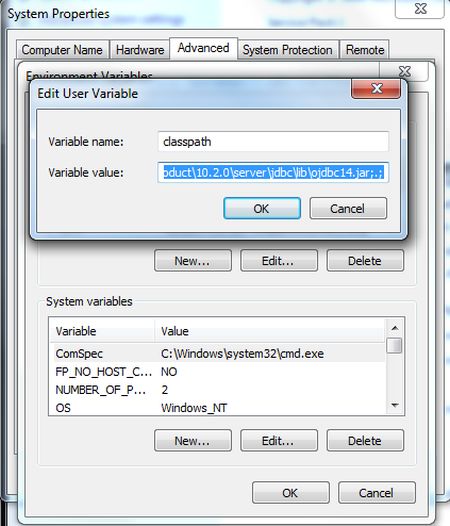

See the following image:


Display the student record

The following example Java file displays the student record.

Example

OracleConnectionEx.java

This example fetches all the records of the student table.

import java.sql.*;

class OracleConnectionEx

  {

    public static void main(String args[]) throws Exception

      {

        try

          {

            Class.forName("oracle.jdbc.driver.OracleDriver");

            Connection connection=DriverManager.getConnection("jdbc:oracle:thin:@mcndesktop07:1521:xe","system","sandeep");

            Statement statement=connection.createStatement();

            ResultSet resultset=statement.executeQuery("select * from student");

            while(resultset.next())

              {

                System.out.println(resultset.getInt("S_ID")+"  "+resultset.getString("S_NAME")+"  "+resultset.getInt("S_AGE"));

              }

            connection.close();

          }

        catch(Exception ex)

          {

            System.out.println(ex);

          }

      }

  }

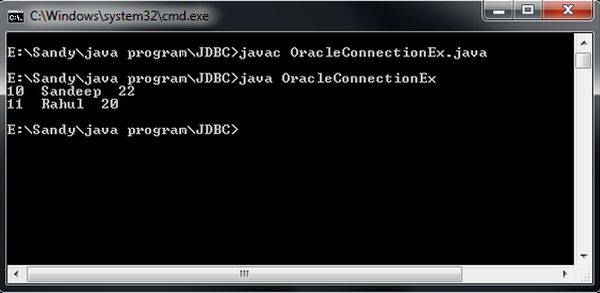

Output
