ASP.Net MVC 4: Showing DATA in Nested Grid View Using jQuery

Project

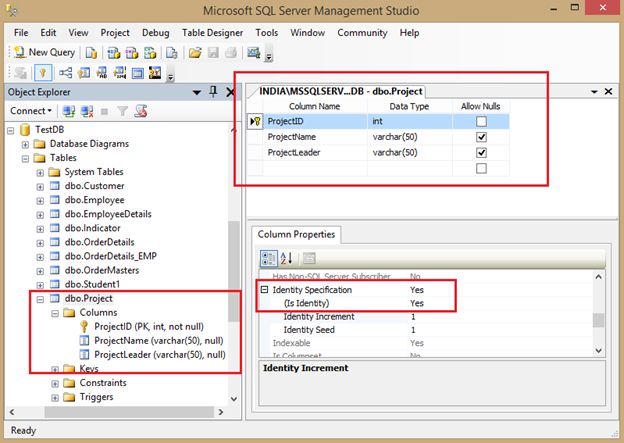

My Table
Figure 1: Project Table

The following  is the script of the table:

  1. CREATE TABLE [dbo].[Project](
  2.     [ProjectID] [int] IDENTITY(1,1) NOT NULL,
  3.     [ProjectName] [varchar](50) NULL,
  4.     [ProjectLeader] [varchar](50) NULL,
  5.  CONSTRAINT [PK_Project] PRIMARY KEY CLUSTERED
  6. (
  7.     [ProjectID] ASC
  8. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ONON [PRIMARY]
  9. ON [PRIMARY]
  10.
  11. GO
  12. SET ANSI_PADDING OFF
  13. GO
And the second table is Employee:

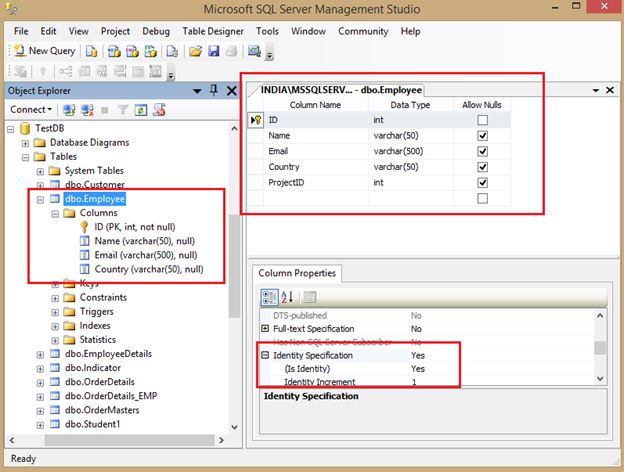

table is Employee
Figure 2: Employee Table

The script of the Employee table is:
  1. CREATE TABLE [dbo].[Employee](
  2.     [ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Name] [varchar](50) NULL,
  4.     [Email] [varchar](500) NULL,
  5.     [Country] [varchar](50) NULL,
  6.     [ProjectID] [intNULL,
  7.  CONSTRAINT [PK_Employee] PRIMARY KEY CLUSTERED
  8. (
  9.     [ID] ASC
  10. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ONON [PRIMARY]
  11. ON [PRIMARY]
  12.
  13. GO
  14. SET ANSI_PADDING OFF
  15. GO
Now create a new Visual Studio Project.

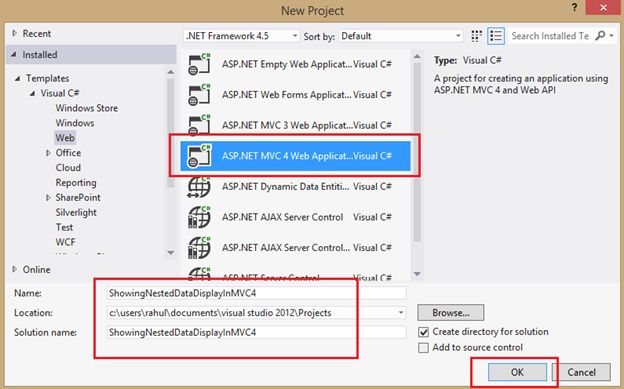

new Visual Studio Project
Figure 3: Creating a new Visual Studio project

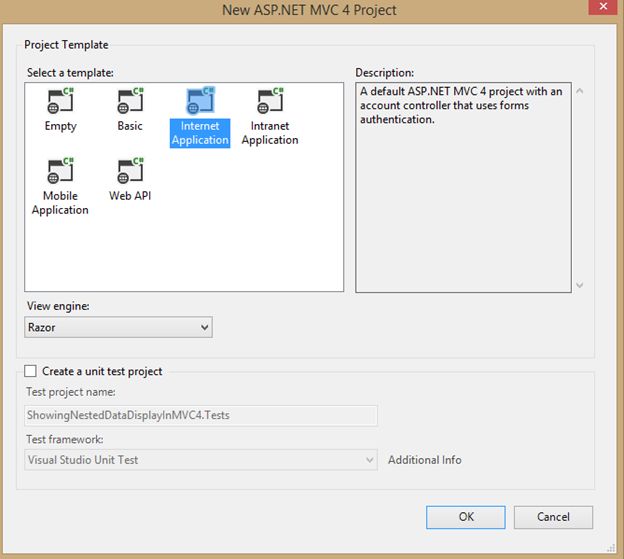

internet application
Figure 4: Visual Studio Project

Now right-click on the Project Solution Explorer and Add New ADO.NET Entity Data Model as in the following:

add project
Figure 5: Add New ADO.NET Entity Data Model

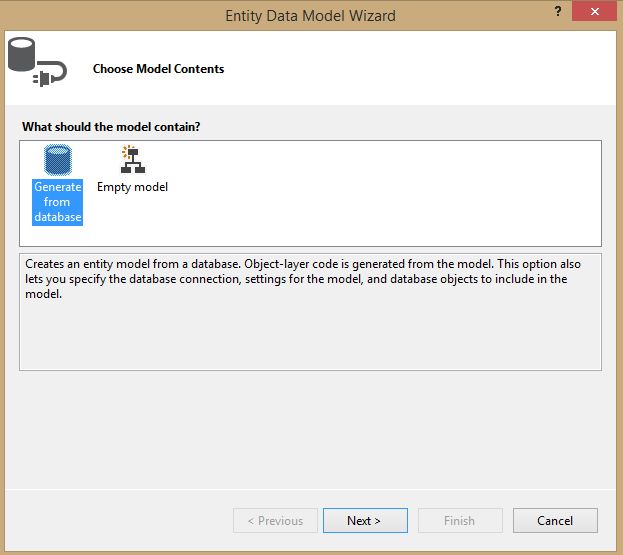

click next
Figure 6: Choose Model Contents

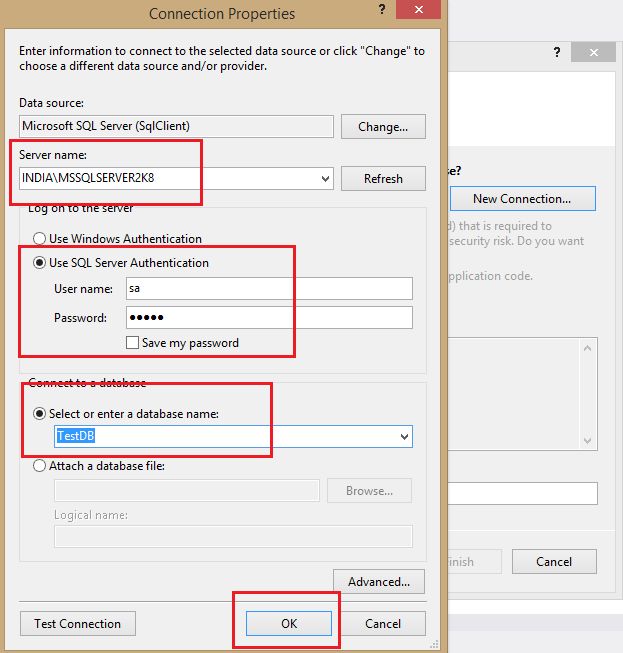

clock ok
Figure 7: Connection Properties

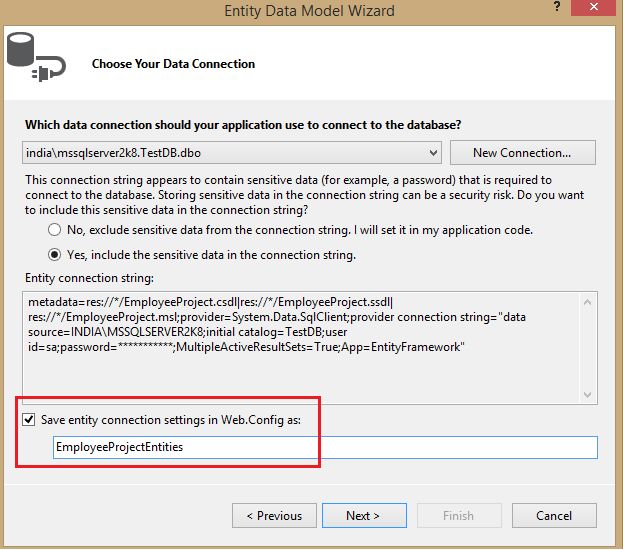

Employee project
Figure 8: Choose your Data Connection

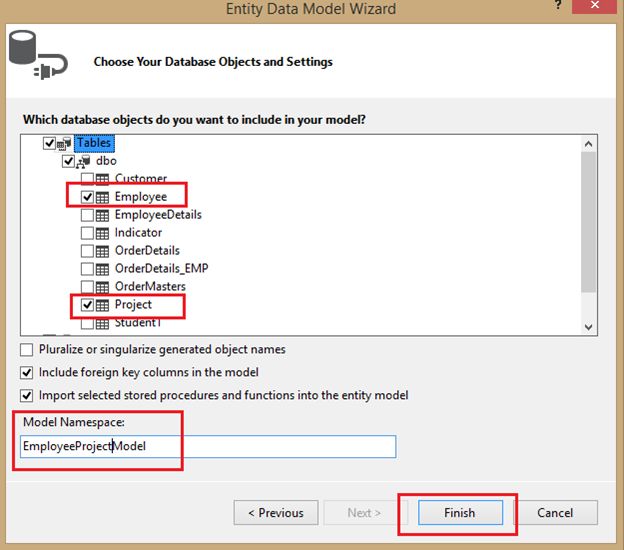

finish
Figure 9: Choose Database objects and settings

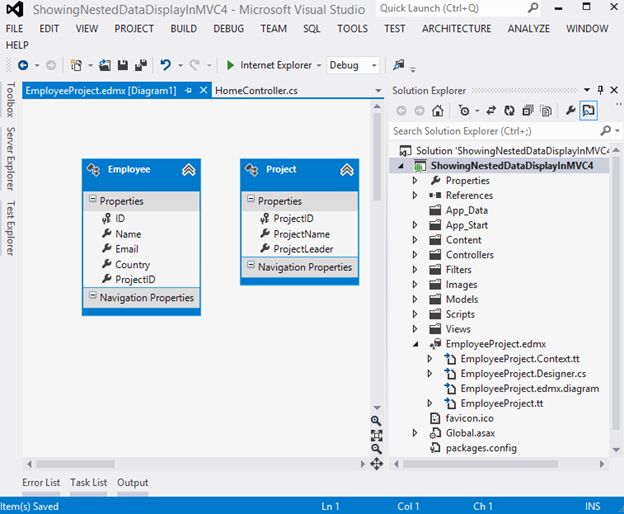

design
Figure 10: Tables are created

Now see the data in the tables, Project and Employee:

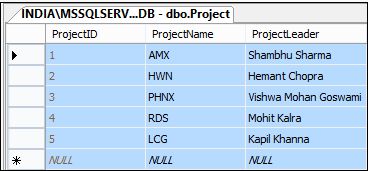

see Data
Figure 11: Added some data

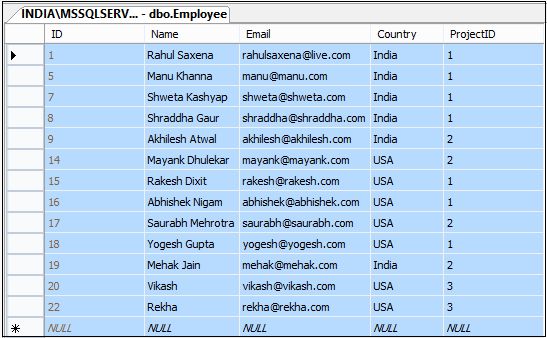

Employee Tables
Figure 12: Employee Table

Now right-click on the Model folder inside your project's Solution Explorer and Add New Item. Now add a new class and name it EmpProject.cs.

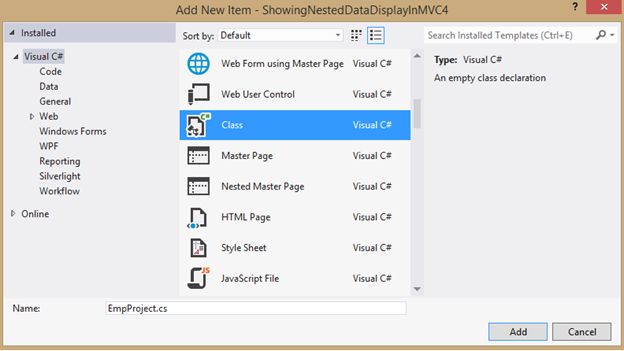

Class
Figure 13: New class created

Write the following code snippet.

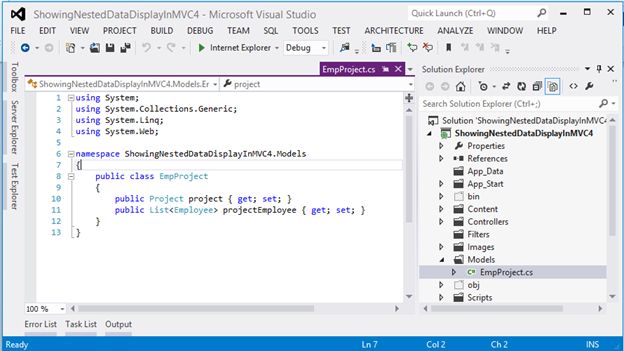

code
Figure 14: Code written
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace ShowingNestedDataDisplayInMVC4.Models
  7. {
  8.     public class EmpProject
  9.     {
  10.         public Project project { getset; }
  11.         public List<Employee> projectEmployee { getset; }
  12.     }
  13. }
Now right-click on Controller and Add New Controller.

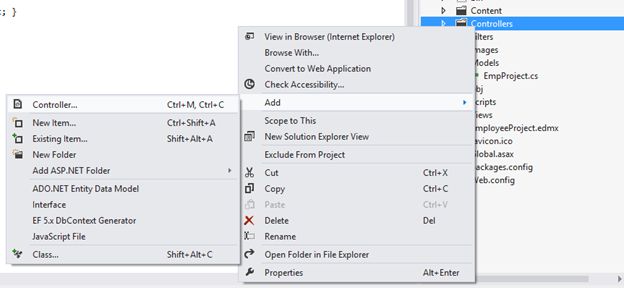

new controller
Figure 15: Add New Controller

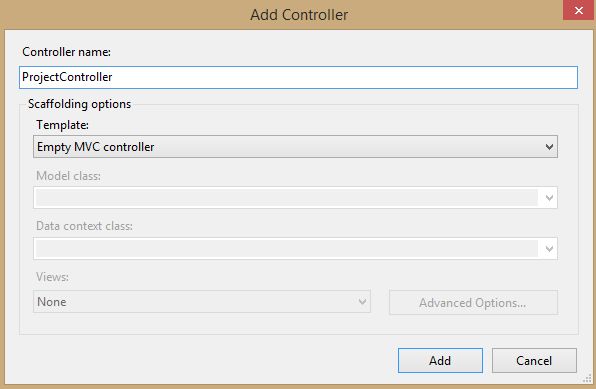

project controller
Figure 16: Added Project Controller

Write the following code in the project's Controller:

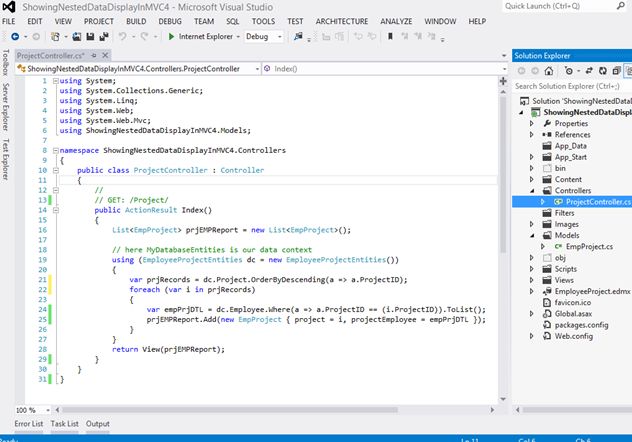

Figure 17: Code added.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using ShowingNestedDataDisplayInMVC4.Models;
  7.
  8. namespace ShowingNestedDataDisplayInMVC4.Controllers
  9. {
  10.     public class ProjectController : Controller
  11.     {
  12.         //
  13.         // GET: /Project/
  14.         public ActionResult Index()
  15.         {
  16.             List<EmpProject> prjEMPReport = new List<EmpProject>();
  17.
  18.             // here MyDatabaseEntities is our data context
  19.             using (EmployeeProjectEntities dc = new EmployeeProjectEntities())
  20.             {
  21.                 var prjRecords = dc.Project.OrderByDescending(a => a.ProjectID);
  22.                 foreach (var i in prjRecords)
  23.                 {
  24.                     var empPrjDTL = dc.Employee.Where(a => a.ProjectID == (i.ProjectID)).ToList();
  25.                     prjEMPReport.Add(new EmpProject { project = i, projectEmployee = empPrjDTL });
  26.                 }
  27.             }
  28.             return View(prjEMPReport);
  29.         }
  30.     }
  31. }
Now right-click on the Index Action method and select Add View.

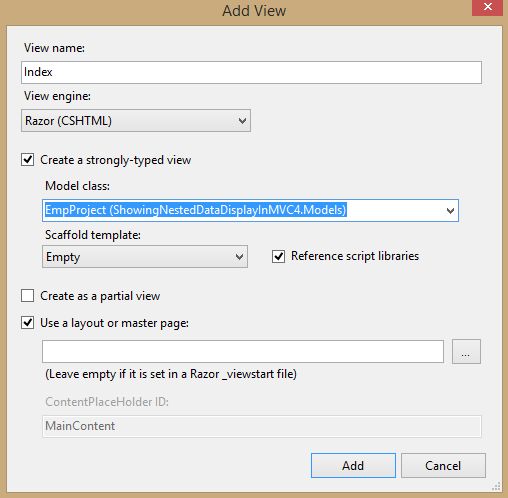

Add View
Figure 18: Add View

In Index.cshtm write the following code:
  1. @model IEnumerable<ShowingNestedDataDisplayInMVC4.Models.EmpProject>
  2.
  3. @{
  4.     ViewBag.Title = "Displaying Data In Nested Grid View In MVC4";
  5.     WebGrid grid = new WebGrid(source: Model, canSort: false);
  6. }
  7.
  8. <style>
  9.     #gridT, #gridT tr {
  10.         border: 1px solid #0D857B;
  11.     }
  12.
  13.     #nestedT, #nestedT tr {
  14.         border: 1px solid #f3f3f3;
  15.     }
  16.
  17.     #nestedT {
  18.         margin: 0px 0px 0px 10px;
  19.         padding: 5px;
  20.         width: 95%;
  21.     }
  22.
  23.         #nestedT th {
  24.             font-size: 14px;
  25.             font-weight: bold;
  26.             background-color: green;
  27.         }
  28.
  29.     .recordHoverEffect {
  30.         cursor: pointer;
  31.     }
  32.
  33.         .recordHoverEffect:hover {
  34.             background-color: rgb(248, 242, 242);
  35.         }
  36.
  37.     .expandRecordRecord {
  38.         background-image: url(/Images/ShowHideImage.png);
  39.         background-position-x: -22px;
  40.         background-repeat: no-repeat;
  41.     }
  42.
  43.     .collapseRecordRecord {
  44.         background-image: url(/Images/ShowHideImage.png);
  45.         background-position-x: -2px;
  46.         background-repeat: no-repeat;
  47.     }
  48. </style>
  49. @section Scripts{
  50.     <script>
  51.         $(document).ready(function () {
  52.             var size = $("#main #gridT > thead > tr >th").size();
  53.             $("#main #gridT > thead > tr >th").last().remove();
  54.             $("#main #gridT > thead > tr").prepend("<th></th>");
  55.             $("#main #gridT > tbody > tr").each(function (i, el) {
  56.                 $(this).prepend(
  57.                         $("<td></td>")
  58.                         .addClass("expandRecord")
  59.                         .addClass("recordHoverEffect")
  60.                         .attr('title'"Show Hide Details")
  61.                     );
  62.
  63.
  64.                 var table = $("table"this).parent().html();
  65.
  66.                 $(this).after("<tr><td></td><td style='padding:5px; margin:0px;' colspan='" + (size - 1) + "'>" + table + "</td></tr>");
  67.                 $("table"this).parent().remove();
  68.
  69.                 $(".recordHoverEffect"this).live("click", function () {
  70.                     $(this).parent().closest("tr").next().slideToggle(100);
  71.                     $(this).toggleClass("expandRecord collapseRecord");
  72.                 });
  73.             });
  74.
  75.
  76.             $("#main #gridT > tbody > tr td.expandRecord").each(function (i, el) {
  77.                 $(this).toggleClass("expandRecord collapseRecord");
  78.                 $(this).parent().closest("tr").next().slideToggle(100);
  79.             });
  80.
  81.         });
  82.     </script>
  83. }
  84. <div id="main" style="padding: 25px; background-color: yellow;">
  85.     @grid.GetHtml(
  86.                 htmlAttributes: new { id = "gridT", width = "900px", style = "background-color:skyblue; color:blue; font-size:14pt; font-family:TimesNewRoman;" },
  87.                 columns: grid.Columns(
  88.                         grid.Column("project.ProjectID""Project ID"),
  89.                         grid.Column("project.ProjectName""Project Name"),
  90.                         grid.Column("project.ProjectLeader""Project Leader"),
  91.
  92.                         grid.Column(format: (item) =>
  93.                         {
  94.                             WebGrid subGrid = new WebGrid(source: item.projectEmployee);
  95.                             return subGrid.GetHtml(
  96.                                 htmlAttributes: new { id = "nestedT", style = "background-color:red; color:white; font-size:12pt; font-family:verdana;" },
  97.                                 columns: subGrid.Columns(
  98.                                         subGrid.Column("ID"" Employee ID"),
  99.                                         subGrid.Column("Name""Name"),
  100.                                         subGrid.Column("Email""Email"),
  101.                                         subGrid.Column("Country""Country")
  102.                                     )
  103.                                 );
  104.                         })
  105.                     )
  106.                 )
  107. </div>
You can set your view as start up, for this open Route.config inside App_Start Folder and make the following settings:

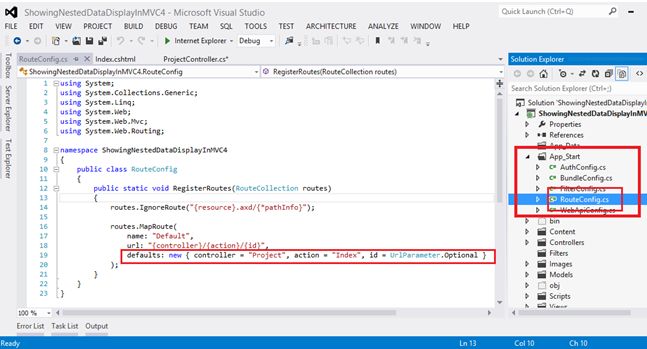

setting
Figure 19: RouteConfig.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using System.Web.Routing;
  7.
  8. namespace ShowingNestedDataDisplayInMVC4
  9. {
  10.     public class RouteConfig
  11.     {
  12.         public static void RegisterRoutes(RouteCollection routes)
  13.         {
  14.             routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
  15.
  16.             routes.MapRoute(
  17.                 name: "Default",
  18.                 url: "{controller}/{action}/{id}",
  19.                 defaults: new { controller = "Project", action = "Index", id = UrlParameter.Optional }
  20.             );
  21.         }
  22.     }
  23. }
Now run your application:

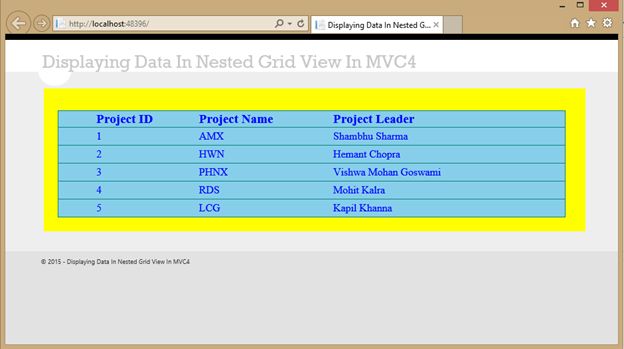

output
Figure 20: Output

Now go to Project ID to expand the details of this project as in the following:

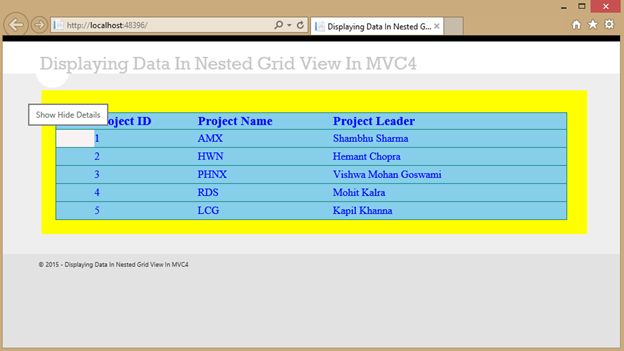

show hide detail
Figure 21: Expand the details

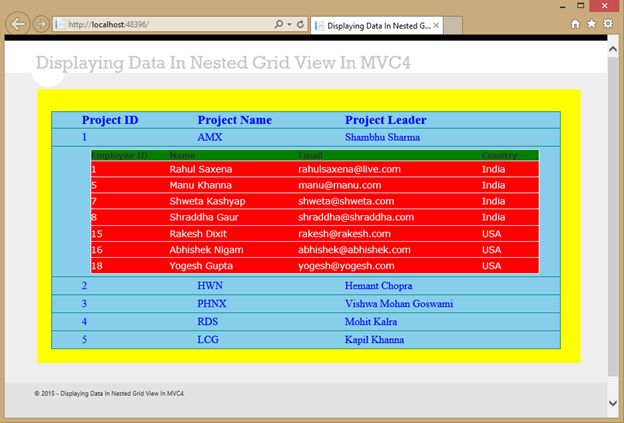

emp email
Figure 22: After expanding the details

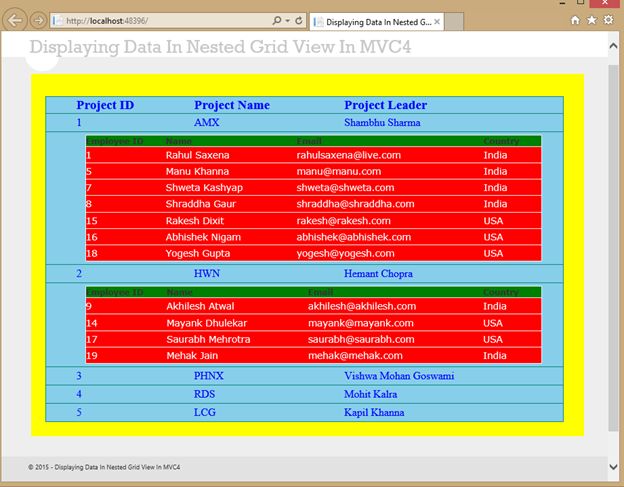

project id
Figure 23: After expanding the details of Project ID 2

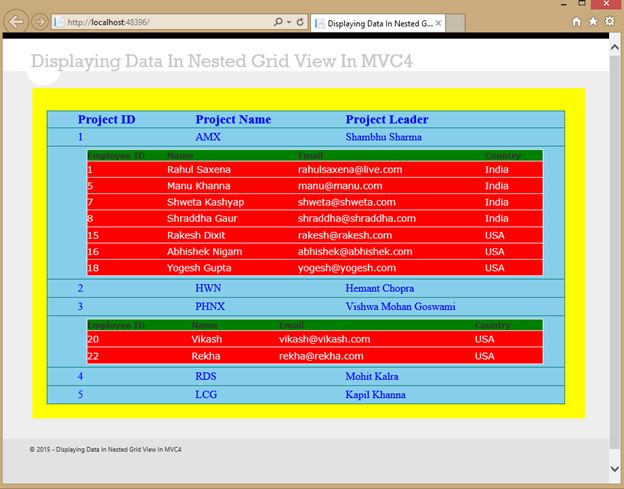

employee
Figure 24: Details for Project ID 3

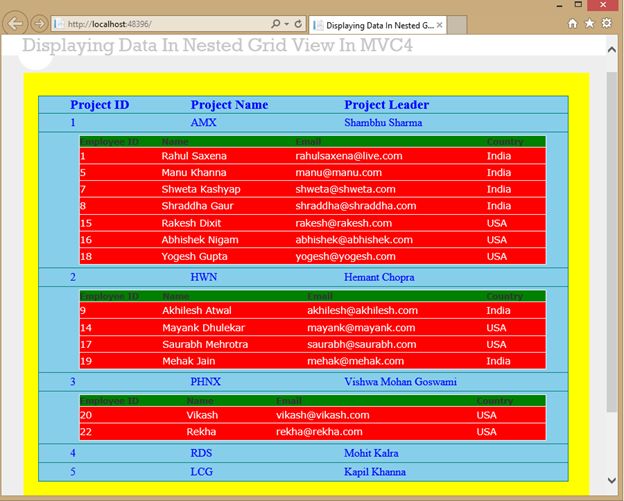

product

Figure 25: Details for Project ID 1, 2 and 3
