Web Grid in MVC 4 Application Using ADO

First we need to understand what a Web Grid in MVC is.

A WebGrid is used to display data on a web page. The main properties of a WebGrid are:

  • Source: Where your data comes from. Usually the model passed by the controller action.

  • DefaultSort: Here you can define how the data will be sorted. Just provide the column name here.

  • RowsPerPage: Number of records that will be shown in the table.

  • CanPage: Allows paging.

  • CanSort: Allows sorting by clicking on column title.

  • SelectedFieldName: Gets the full name of the query-string field that specifies the selected row of the WebGrid instance.

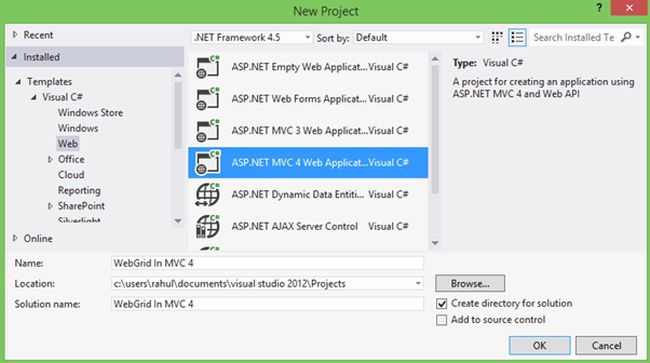

I will create a new application as in the following:

mvc web application
Image 1

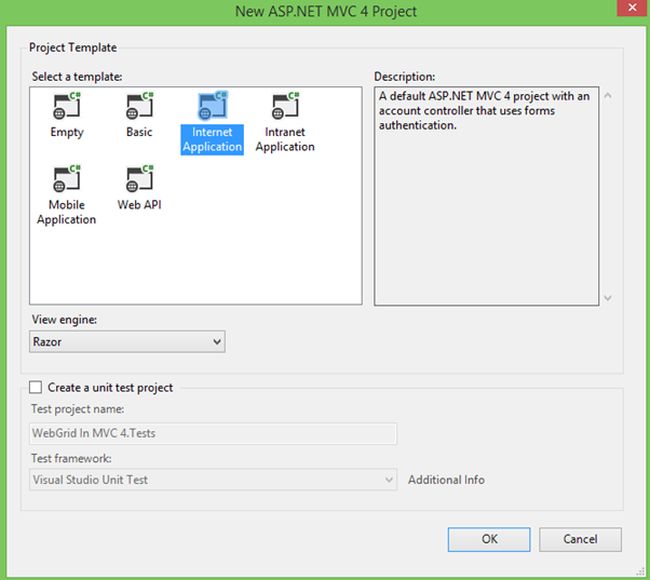

internet application
Image 2

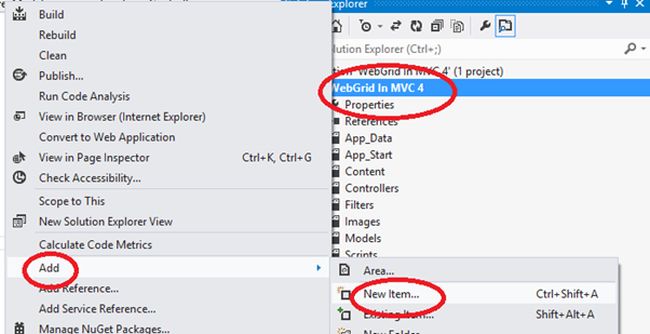

Now right-click on Solution Explorer then select Add New Item.

add new item
Image 3

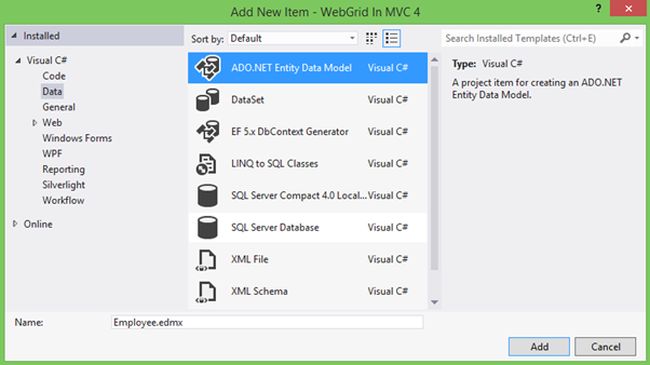

ado dot net
Image 4

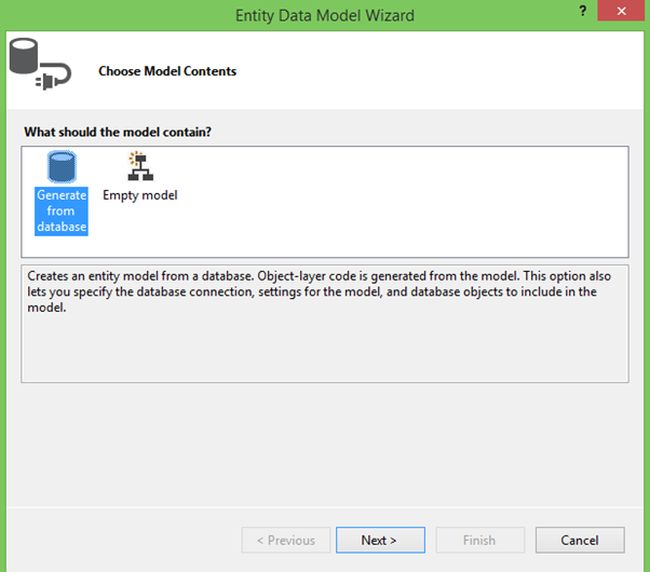

generate form database
Image 5

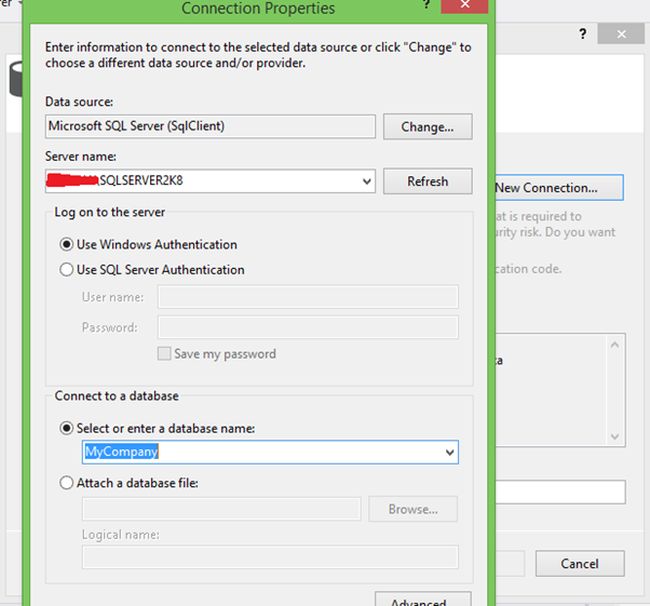

select database
Image 6

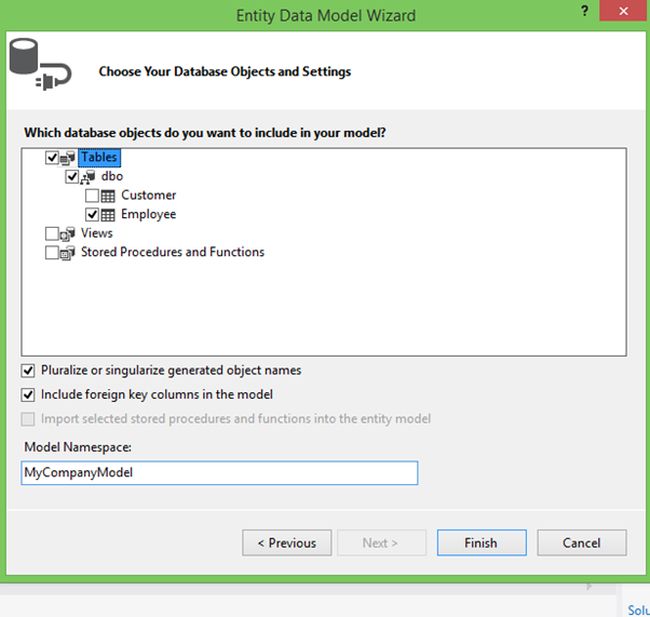

select table
Image 7

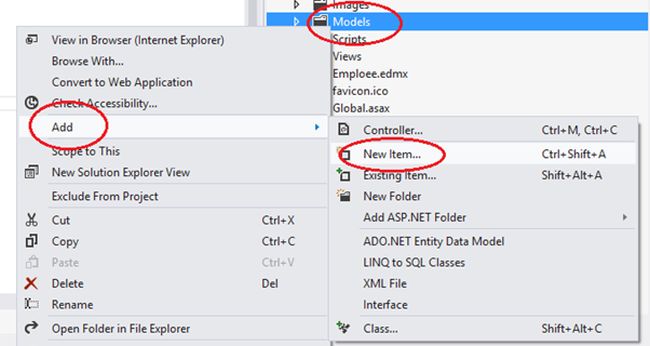

After clicking Finish right-click on the Model folder then select Add New Item.

add new item in model
Image 8

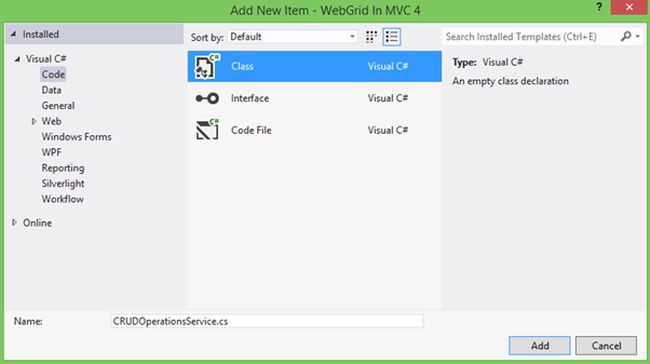

add new class
Image 9

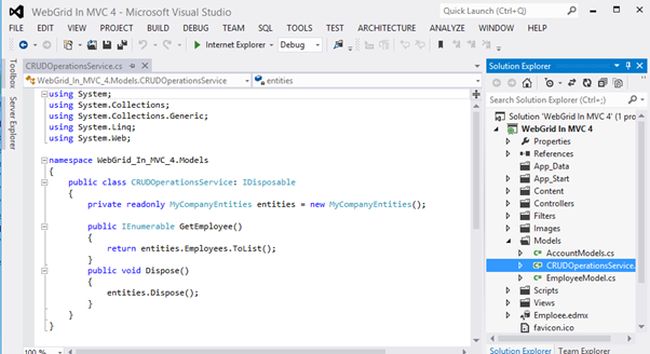

The code inside CRUDOperationsService.cs will look like the following:

cs code
Image 10

Now right-click on the Controller Folder in Solution Explorer then select Add New Controller -> Employee

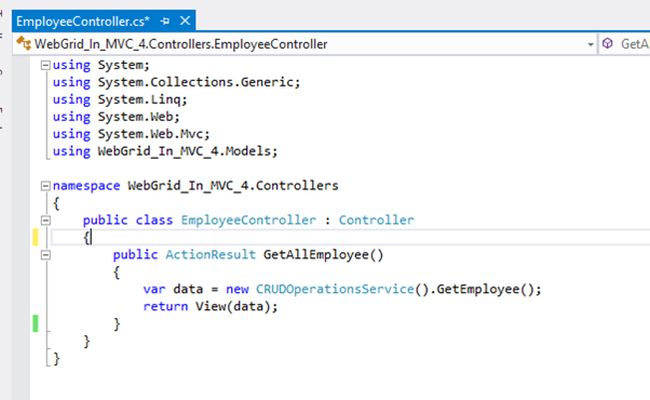

Add a new Action here like in the following image:

controller code
Image 11

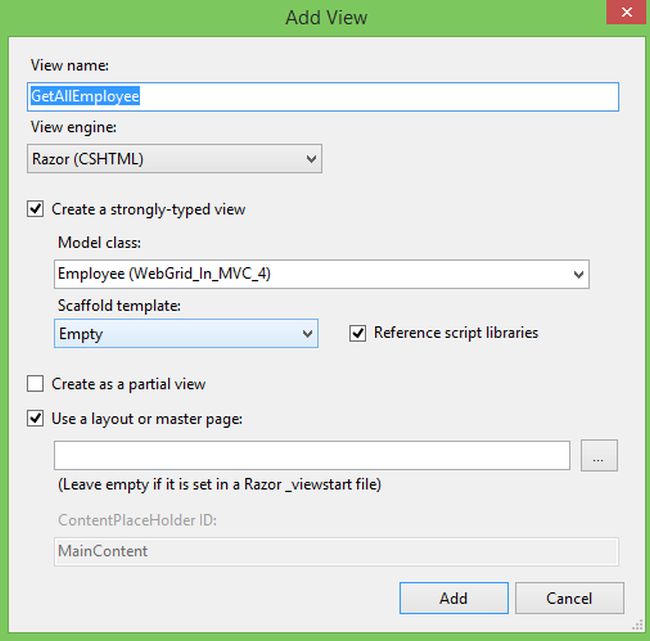

Now right-click on GetAllEmployee then select Add New View.

add view
Image 12

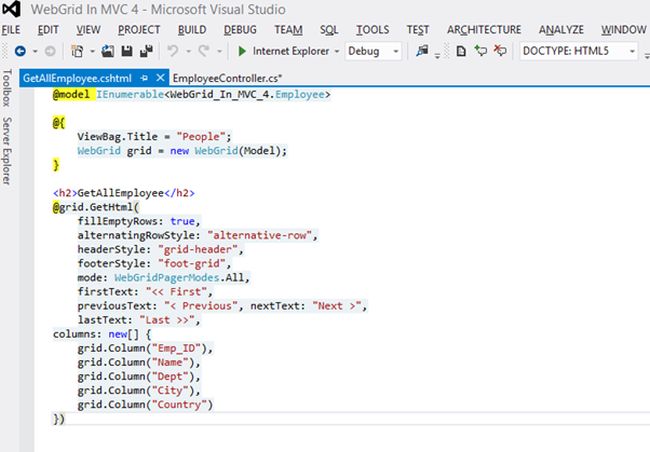

Here we can use a WebGrid as below:

get all employee code
Image 13

Here we can customize our WebGrid by:

  • Formatting: Column property.
  • Sorting and Paging: rowsPerPage, canPage.
  • Styling: alternatingRowStyle,headerStyle or tableStyle attributes
    and so on..

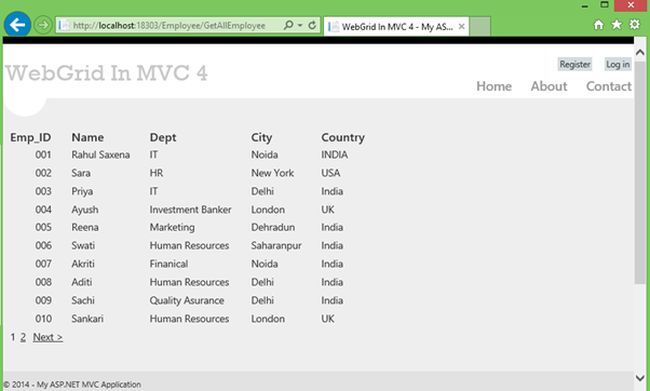

Now run your application:

webgrid in mvc
Image 14
