Introduction

This is the Part 2 of ADO.NET. In this section we will touch base on one of important concepts in ADO.NET.

In case if you have not seen Part 1 of ADO.NET, click here

Happy job hunting......

(B) How do we use stored procedure in ADO.NET and how do we provide parameters to the stored procedures?

ADO.NET provides the SqlCommand object, which provides the functionality of executing stored procedures.

Note :- Sample code is provided in folder "WindowsSqlClientCommand". There are two stored procedures created in same database "Employees" which was created for the previous question.

CREATE PROCEDURE SelectByEmployee @FirstName nvarchar(200) AS
Select
FirstName from Employees where FirstName like @FirstName + '%'
CREATE PROCEDURE
SelectEmployee AS
Select
FirstName from Employees
If
txtEmployeeName.Text.Length = 0 Then
objCommand = New SqlCommand("SelectEmployee")

Else

objCommand = New SqlCommand("SelectByEmployee")
objCommand.Parameters.Add("@FirstName", Data.SqlDbType.NVarChar, 200)
objCommand.Parameters.Item("@FirstName").Value = txtEmployeeName.Text.Trim()

End If

In the above sample, not much has been changed only that the SQL is moved to the stored procedures. There are two stored procedures one is "Select Employee" which selects all the employees and the other is "SelectByEmployee" which returns employee name starting with a specific character. As you can see to provide parameters to the stored procedures, we are using the parameter object of the command object. In such question interviewer expects two simple answers one is that we use command object to execute stored procedures and the parameter object to provide parameter to the stored procedure. Above sample is provided only for getting the actual feel of it. Be short be nice and get a job.

(B) How can we force the connection object to close after my data reader is closed?

Command method Execute reader takes a parameter called as Command Behavior where in we can specify saying close connection automatically after the Data reader is close.

objDataReader = pobjCommand.ExecuteReader (CommandBehavior.CloseConnection)

(B) I want to force the data reader to return only schema of the data store rather than data.

objDataReader = pobjCommand.ExecuteReader (CommandBehavior.SchemaOnly)

(B) How can we fine-tune the command object when we are expecting a single row?

Again, CommandBehaviour enumeration provides two values Single Result and Single Row. If you are expecting a single value then pass "CommandBehaviour.SingleResult" and the query is optimized accordingly, if you are expecting single row then pass "CommandBehaviour.SingleRow" and query is optimized according to single row.

(B) Which is the best place to store connection string in .NET projects?

Config files are the best places to store connection strings. If it is a web-based application "Web.config" file will be used and if it is a windows application "App.config" files will be used.

(B) What are the steps involved to fill a dataset?

Twist: - How can we use data adapter to fill a dataset?

Sample code is provided in "WindowsDataSetSample" folder in CD."LoadData" has all the implementation of connecting and loading to dataset. This dataset is finally bind to a List Box. Below is the sample code.

Private Sub LoadData()
    Dim strConnectionString As String
    strConnectionString = AppSettings.Item("ConnectionString")
    Dim objConn As New SqlConnection(strConnectionString)
    objConn.Open()
    Dim objCommand As New SqlCommand("Select FirstName from Employees")
    objCommand.Connection = objConn
    Dim objDataAdapter As New SqlDataAdapter()
    objDataAdapter.SelectCommand = objCommand
    Dim objDataSet As New DataSet

End Sub

In such type of questions interviewer is looking from practical angle, that have you worked with dataset and datadapters. Let me try to explain the above code first and then we move to what steps should be told during interview.

    Dim objConn As New SqlConnection(strConnectionString)
    objConn.Open()

First step is to open the connection. Again, note the connection string is loaded from config file.

    Dim objCommand As New SqlCommand("Select FirstName from Employees")
    objCommand.Connection = objConn

Second step is to create a command object with appropriate SQL and set the connection object to this command.

    Dim objDataAdapter As New SqlDataAdapter()
    objDataAdapter.SelectCommand = objCommand

Third steps is to create the Adapter object and pass the command object to the adapter object.

objDataAdapter.Fill(objDataSet)

Fourth step is to load the dataset using the "Fill" method of the data adapter.

lstData.DataSource = objDataSet.Tables(0).DefaultView
lstData.DisplayMember = "FirstName"

lstData.ValueMember = "FirstName"

Fifth step is to bind to the loaded dataset with the GUI. At this moment sample has list box as the UI. Binding of the UI is done by using Default View of the dataset. Just to revise every dataset has tables and every table has views. In this sample, we have only loaded one table i.e. Employees table so we are referring that with an index of zero.

Just say all the five steps during interview and you will see the smile on the interviewer's face and appointment letter in your hand.

(B) What are the various methods provided by the dataset object to generate XML?

Note:- XML is one of the most important leap between classic ADO and ADO.NET. So this question is normally asked more generally how can we convert any data to XML format. Best answer is convert in to dataset and use the below methods.

  • ReadXML
    Read's a XML document in to Dataset.
  • GetXML
    This is a function, which returns the string containing XML document.
  • Writexml
    This writes a XML data to disk.

(B) How can we save all data from dataset?

Dataset has "Accept Changes" method, which commits all the changes since last time "Accept changes" has been executed.

Note:- This book does not have any sample of Acceptchanges. We leave that to readers as homework sample. But yes from interview aspect that will be enough.

(B) How can we check that some changes have been made to dataset since it was loaded?

Twist: - How can we cancel all changes done in dataset?

Twist: - How do we get values, which are changed, in a dataset?

For tracking down changes, Dataset has two methods, which comes as rescue "Get Changes "and "Has Changes".

  • Get Changes

  • Returns dataset, which are changed since it, was loaded, or since Accept changes was executed.

  • Has Changes
    Or abandon all changes since the dataset was loaded use "Reject Changes This property indicates that has any changes been made since the dataset was loaded or accept changes method was executed.

Note:- One of the most misunderstood things about these properties is that it tracks the changes of actual database. That is a fundamental mistake; actually the changes are related to only changes with dataset and have nothing to with changes happening in actual database. As dataset are disconnected and do not know anything about the changes happening in actual database.

(B) How can we add/remove row is in "Data Table" object of "Dataset"?

"Data table" provides "NewRow" method to add new row to "Data Table". "Data Table" has "DataRowCollection" object that has all rows in a "Data Table" object. Following are the methods provided by "DataRowCollection" object:-

  • Add
    Adds a new row in Data Table
  • Remove
    It removes a "Data Row" object from "Data Table"
  • Remove At
    It removes a "Data Row" object from "Data Table" depending on index position of the "Data Table".

(B) What is basic use of "Data View"?

"Data View" represents a complete table or can be small section of rows depending on some criteria. It is best used for sorting and finding data with in "data table".

Data view has the following methods:-

  • Find
    It takes an array of values and returns the index of the row.
  • Find Row
    This also takes array of values but returns a collection of "Data Row".

If we want to manipulate data of "Data Table" object create "Data View" (Using the "Default View" we can create "Data View" object) of the "Data Table" object and use the following functionalities:-

  • Add New
    Adds a new row to the "Data View" object.
  • Delete
    Deletes the specified row from "Data View" object.

(B) What is the difference between "Dataset" and "Data Reader" ?

Twist: - Why is Dataset slower than Data Reader is?Fourth point is the answer to the twist.

Note:- This is my best question and we expect everyone to answer it. It is asked almost 99% in all companies....Basic very Basic cram it.

Following are the major differences between "Dataset" and "Data Reader":-

  • "Dataset" is a disconnected architecture, while "Data Reader" has live connection while reading data. If we want to cache data and pass to a different tier "Dataset" forms the best choice and it has decent XML support.
  • When application needs to access data from more than one table "Dataset" forms the best choice.
  • If we need to move back while reading records, "data reader" does not support this functionality.
  • However, one of the biggest drawbacks of Dataset is speed. As "Dataset" carry considerable overhead because of relations, multiple table's etc speed is slower than "Data Reader". Always try to use "Data Reader" wherever possible, as it is meant especially for speed performance.

(B) How can we load multiple tables in a Dataset?

objCommand.CommandText = "Table1"
objDataAdapter.Fill(objDataSet, "Table1")
objCommand.CommandText = "Table2"

objDataAdapter.Fill(objDataSet, "Table2")

Above is a sample code, which shows how to load multiple "Data Table" objects in one "Dataset" object. Sample code shows two tables "Table1" and "Table2" in object ObjDataSet.

lstdata.DataSource = objDataSet.Tables("Table1").DefaultView

In order to refer "Table1" Data Table, use Tables collection of Datasets and the Default view object will give you the necessary output.

(B) How can we add relation between tables in a Dataset?

Dim objRelation As DataRelation
objRelation=New
DataRelation("CustomerAddresses",objDataSet.Tables("Customer").Columns("Custid")
,objDataSet.Tables("Addresses").Columns("Custid_fk"))

objDataSet.Relations.Add(objRelation)

Relations can be added between "Data Table" objects using the "Data Relation" object. Above sample, code is trying to build a relationship between "Customer" and "Addresses" "Data table" using "Customer Addresses" "Data Relation" object.

(B) What is the use of Command Builder?

Command Builder builds "Parameter" objects automatically. Below is a simple code, which uses command builder to load its parameter objects.

Dim pobjCommandBuilder As New OleDbCommandBuilder(pobjDataAdapter)
pobjCommandBuilder.DeriveParameters(pobjCommand)

Be careful while using "Derive Parameters" method as it needs an extra trip to the Data store, which can be very inefficient

(B) What's difference between "Optimistic" and "Pessimistic" locking ?

In pessimistic locking when user wants to update data it locks the record and till then no one can update data. Other user's can only view the data when there is pessimistic locking.

In optimistic locking multiple users can open the same record for updating, thus increase maximum concurrency. Record is only locked when updating the record. This is the most preferred way of locking practically. Now a days in browser based application it is very common and having pessimistic locking is not a practical solution.

(A) How many ways are there to implement locking in ADO.NET?

Following are the ways to implement locking using ADO.NET:-

  • When we call "Update" method of Data Adapter it handles locking internally. If the Dataset values are not matching with current data in Database, it raises concurrency exception error. We can easily trap this error using Try. Catch block and raise appropriate error message to the user.
  • Define a Date time stamp field in the table. When actually you are firing the UPDATE SQL statements, compare the current timestamp with one existing in the database. Below is a sample SQL which checks for timestamp before updating and any mismatch in timestamp it will not update the records. This I the best practice used by industries for locking.

    Update
    table1 set field1=@test where Last Timestamp=@Current Timestamp
  • Check for original values stored in SQL SERVER and actual changed values. In stored procedure check before updating that the old data is same as the current Example in the below shown SQL before updating field1 we check that is the old field1 value same. If not then some one else has updated and necessary action has to be taken.

    Update
    table1 set field1=@test where field1 = @oldfield1value
    Locking can be handled at ADO.NET side or at SQL SERVER side i.e. in stored procedures. For more details of how to implementing locking in SQL SERVER read "What are different locks in SQL SERVER?" in SQL SERVER chapter.

(A) How can we perform transactions in .NET?

The most common sequence of steps that would be performed while developing a transactional application is as follows:

  • Open a database connection using the Open method of the connection object.
  • Begin a transaction using the Begin Transaction method of the connection object. This method provides us with a transaction object that we will use later to commit or rollback the transaction. Note that changes caused by any queries executed before calling the Begin Transaction method will be committed to the database immediately after they execute. Set the Transaction property of the command object to the above mentioned transaction object.
  • Execute the SQL commands using the command object. We may use one or more command objects for this purpose, as long as the Transaction property of all the objects is set to a valid transaction object.
  • Commit or roll back the transaction using the Commit or Rollback method of the transaction object.
  • Close the database connection.

(I) What is difference between Dataset? Clone and Dataset. Copy?

  • Clone: - It only copies structure, does not copy data.
  • Copy: - Copies both structure and data.

(A) Can you explain the difference between an ADO.NET Dataset and an ADO Record set?

There two main basic differences between record set and dataset:-

  • With dataset you an retrieve data from two databases like oracle and sql server and merge them in one dataset , with record set this is not possible
  • All representation of Dataset is using XML while record set uses COM.
  • Record set cannot be transmitted on HTTP while Dataset can be.

(A) Explain in detail the fundamental of connection pooling?

When a connection is opened first time, a connection pool is created and is based on the exact match of the connection string given to create the connection object. Connection pooling only works if the connection string is the same. If the connection string is different, then a new connection will be opened, and connection pooling will not be used.

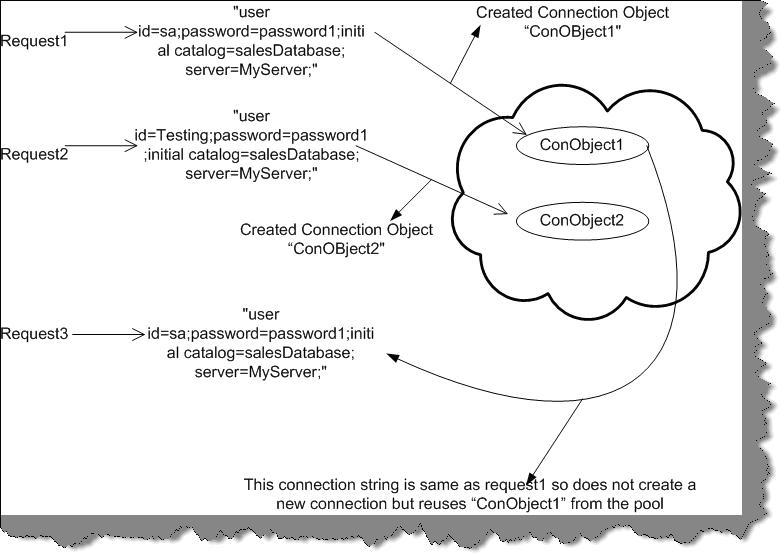

Figure 9.5: - Connection Pooling action.

Let us try to explain the same pictorially. In the above figure, you can see there are three requests "Request1", "Request2", and "Request3". "Request1" and "Request3" have same connection string so no new connection object is created for "Request3" as the connection string is same. They share the same object "ConObject1". However, new object "ConObject2" is created for "Request2" as the connection string is different.

Note: - The difference between the connection string is that one has "User id=sa" and other has "User id=Testing".

(A)What is Maximum Pool Size in ADO.NET Connection String?

Maximum pool size decides the maximum number of connection objects to be pooled. If the maximum pool size is reached and there is no usable connection available the request is queued until connections are released back in to pool. So it's always a good habit to call the close or dispose method of the connection as soon as you have finished work with the connection object.

(A)How to enable and disable connection pooling?

For .NET it is enabled by default but if you want to just make sure set Pooling=true in the connection string. To disable connection pooling set Pooling=false in connection string if it is an ADO.NET Connection. If it is an OLEDBConnection object set OLE DB Services=-4 in the connection string.

(I) What extra features does ADO.Net 2.0 have ?

  • Bulk Copy Operation
    Bulk copying of data from a data source to another data source is a newly added feature in ADO.NET 2.0. ADO.NET inrtoduces bulk copy classes which provide fastest way to transfer\ data from once source to the other. Each ADO.NET data provider has bulk copy classes. For example, in SQL .NET data provider, the bulk copy operation is handled by SqlBulkCopy class, which can read a DataSet, DataTable, DataReader, or XML objects.
  • Data Paging
    A new method is introduced ExecutePageReader which takes three parameters - CommandBehavior, startIndex, and pageSize. So if you want to get rows ony from 10 - 20, you can simply call this method with start index as 10 and page size as 10.
  • Batch Update
    If you want to update large number of data on set ADO.NET 2.0 provides UpdateBatchSize property, which allows you to set number of rows to be updated in a batch. This increases the performance dramatically as round trip to the server is minimized.
  • Load and Save Methods
    In previous version of ADO.NET, only DataSet had Load and Save methods. The Load method can load data from objects such as XML into a DataSet object and Save method saves the data to a persistent media. Now DataTable also supports these two methods. You can also load a DataReader object into a DataTable by using the Load method.
  • New Data Controls
    In toolbox you can see three new controls - DataGridView, DataConnector, and DataNavigator.
  • DataReader's New Execute Methods
    Some new execute methods introduced are ExecutePageReader, ExecuteResultSet, and ExecuteRow.
