Install SQL Server Reporting Service 2012 in SharePoint Integrated Mode

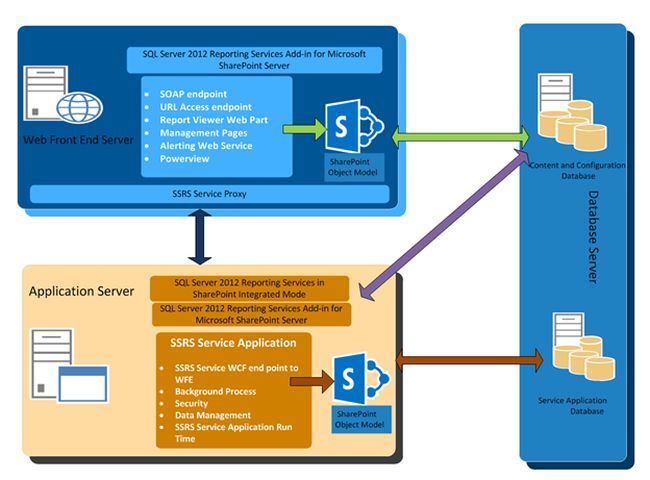

In SharePoint mode a report server is installed as part of a SharePoint server farm. The report server processing, rendering, and management features are represented by a SharePoint application server running the Reporting Services SharePoint shared service and one or more Reporting Services service applications. A SharePoint site provides the front-end access to report server content and operations.

For more details read the MSDN Article.

Procedure for installing SQL Server Reporting Services 2012 in SharePoint Integrated Mode

  • Run the SQL Server Installer


  • Click on the installation, and then click on "New SQL Server Stand-alone Installation or add feature to an existing installation".

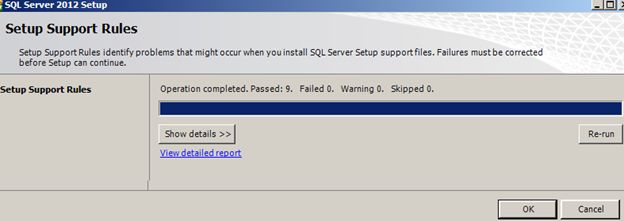

  • Click "OK"

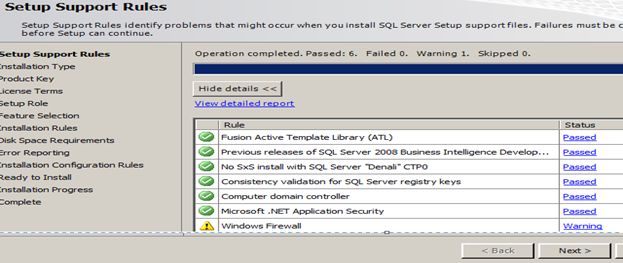

  • Click "Next"


  • Select "Perform a New installation"

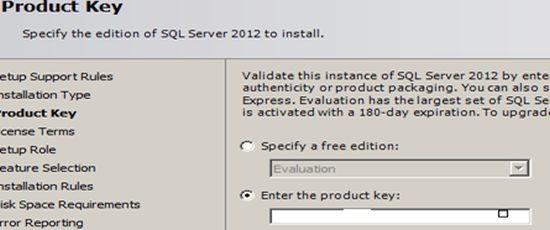

  • If you don't have a key then select "Evaluation", it doesn't matter because the Reporting Services Add-in is a free feature. And click "Next".

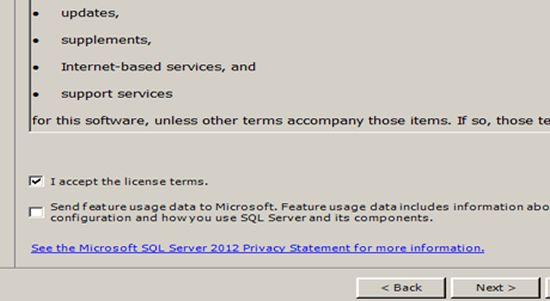

  • Accept the license and click "Next".

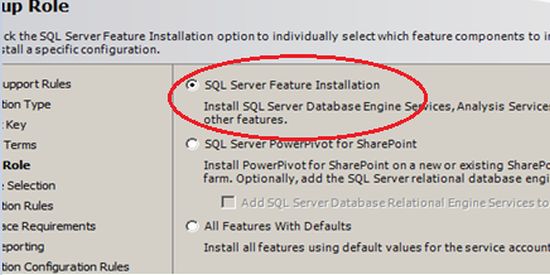

  • Select "SQL Server Feature Installation"

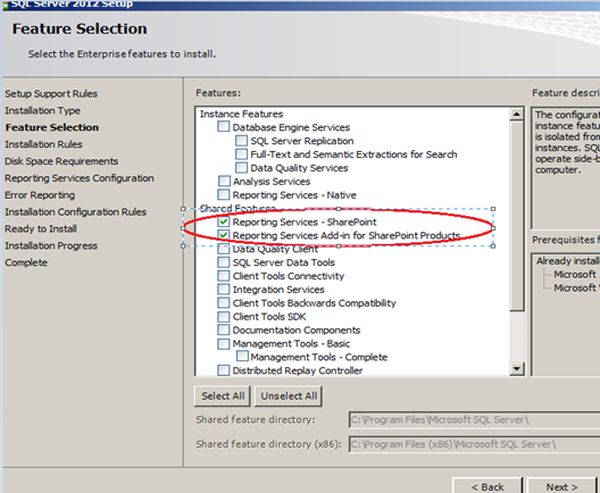

  • Select "Reporting Service - SharePoint" and "Reporting Service Add-in for SharePoint Products" then click "Next".

  • Click "Next" on a couple more screens until it reaches the Ready To Install screen.

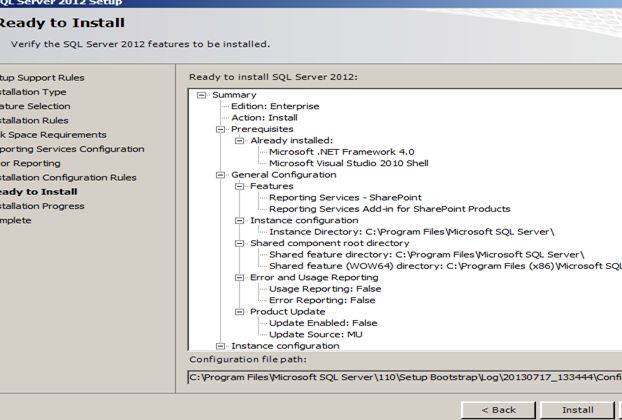

  • Verify the feature and click on the "Install" button of the Ready to Install Screen.

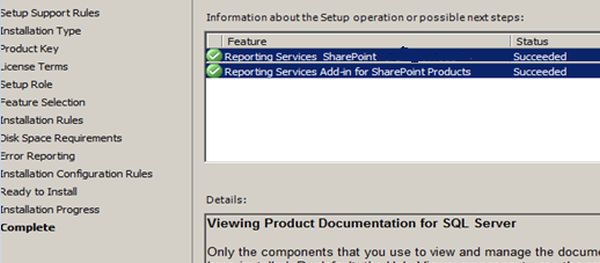

  • Verify the Completion report and restart the Server.
