Create Alarm Android Application

Introduction

Android is one of the most popular operating systems for mobiles. Alarm app takes place in day by day Android usage. Each Android mobile contains alarm application. Simply alarm is our wake-up assistant. So, I will show you How to create alarm android application using Android Studio. Android is the kernel based operating system.it allows the user can modify the GUI components and source code.

Requirements

• Android Studio
• Little bit XML and JAVA knowledge.
• Android Emulator (or) Android mobile

Download link (Android Studio) : https://developer.android.com/studio/index.html

Steps should be followed

Carefully follow my steps to create Alarm Android Application using Android Studio. I have included the source code below.

Step 1

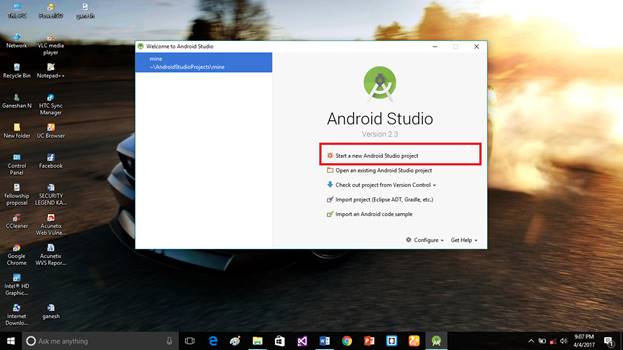

Open the Android Studio and start new project.



Step 2

Put the application name and company domain. If you wish to use C++ for coding the project , mark the "Include C++ support" checkbox and then click Next.



Step 3

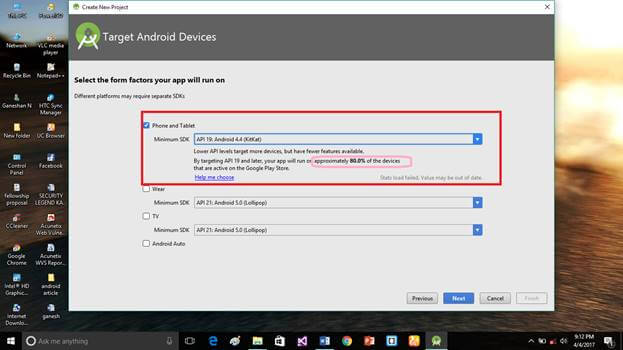

Select the Android minimum SDK. After you chose the minimum SDK, it will show approximate percentage of people who use that SDK. Click Next.



Step 4

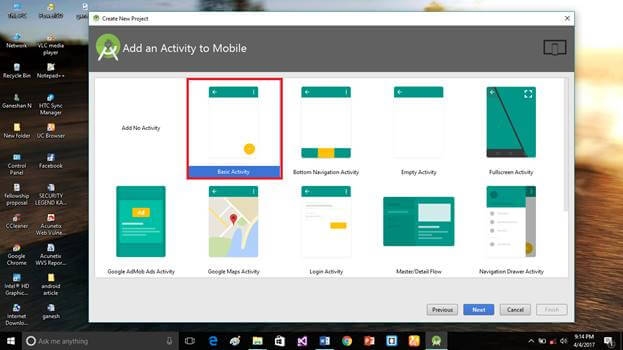

Choose the basic activity, then click Next.



Step 5

Put the activity name and layout name. Android Studio basically takes the java class name that you provide as the activity name and click Finish.



Step 6

Go to activity_main.xml then click the text bottom. This xml file contains the designing code for android app. Into the activity_main.xml copy and paste the below code.

Activity_main.xml code

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:context="ganeshannt.alarm.MainActivity">

    <android.support.design.widget.AppBarLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:theme="@style/AppTheme.AppBarOverlay">

        <android.support.v7.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            android:background="?attr/colorPrimary"
            app:popupTheme="@style/AppTheme.PopupOverlay" />

    </android.support.design.widget.AppBarLayout>

    <include layout="@layout/content_main" />

</android.support.design.widget.CoordinatorLayout>

Step 7

Create new content_main.xml file (File ⇒ New ⇒Activity⇒Empty_activity).

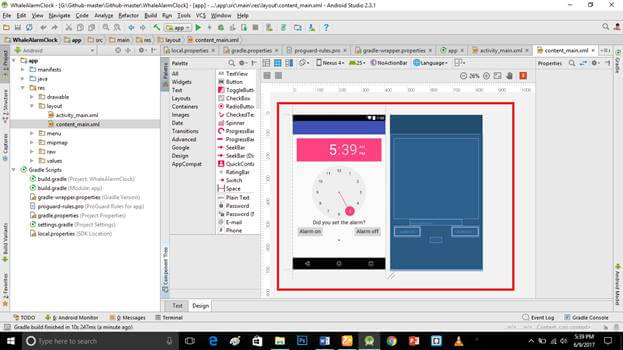

Go to content_main.xml then click the text bottom. This xml file contains the designing code for android app. Into the content_main.xml copy and paste the below code

content_main.xml code

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:context="ganeshannt.alarm.MainActivity">

    <android.support.design.widget.AppBarLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:theme="@style/AppTheme.AppBarOverlay">

        <android.support.v7.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            android:background="?attr/colorPrimary"
            app:popupTheme="@style/AppTheme.PopupOverlay" />

    </android.support.design.widget.AppBarLayout>

    <include layout="@layout/content_main" />

</android.support.design.widget.CoordinatorLayout>

Step 8

Into the MainActivity.java copy and paste the below code.java programming is the backend language for android. Do not replace your package name otherwise app will not run.

MainActivity.java code

package ganeshannt.alarm;

import android.annotation.TargetApi;
import android.app.AlarmManager;
import android.app.PendingIntent;
import android.content.Context;
import android.content.Intent;
import android.os.Build;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.support.v7.widget.Toolbar;
import android.util.Log;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.Spinner;
import android.widget.TextView;
import android.widget.TimePicker;

import java.util.Calendar;


public class MainActivity extends AppCompatActivity implements AdapterView.OnItemSelectedListener {

    //to make our alarm manager
    AlarmManager alarm_manager;
    TimePicker alarm_timepicker;
    TextView update_text;
    Context context;
    PendingIntent pending_intent;
    int choose_whale_sound;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);
        this.context = this;

        // initialize our alarm manager
        alarm_manager = (AlarmManager) getSystemService(ALARM_SERVICE);

        //initialize our timepicker
        alarm_timepicker = (TimePicker) findViewById(R.id.timePicker);

        //initialize our text update box
        update_text = (TextView) findViewById(R.id.update_text);

        // create an instance of a calendar
        final Calendar calendar = Calendar.getInstance();

        // create an intent to the Alarm Receiver class
        final Intent my_intent = new Intent(this.context, Alarm_Receiver.class);


        // create the spinner in the main UI
        Spinner spinner = (Spinner) findViewById(R.id.richard_spinner);
        // Create an ArrayAdapter using the string array and a default spinner layout
        ArrayAdapter<CharSequence> adapter = ArrayAdapter.createFromResource(this,
                R.array.whale_array, android.R.layout.simple_spinner_item);
        // Specify the layout to use when the list of choices appears
        adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
        // Apply the adapter to the spinner
        spinner.setAdapter(adapter);
        // Set an onclick listener to the onItemSelected method
        spinner.setOnItemSelectedListener(this);


        // initialize start button
        Button alarm_on = (Button) findViewById(R.id.alarm_on);

        // create an onClick listener to start the alarm
        alarm_on.setOnClickListener(new View.OnClickListener() {
            @TargetApi(Build.VERSION_CODES.M)
            @Override
            public void onClick(View v) {

                // setting calendar instance with the hour and minute that we picked
                // on the time picker
                calendar.set(Calendar.HOUR_OF_DAY, alarm_timepicker.getHour());
                calendar.set(Calendar.MINUTE, alarm_timepicker.getMinute());

                // get the int values of the hour and minute
                int hour = alarm_timepicker.getHour();
                int minute = alarm_timepicker.getMinute();

                // convert the int values to strings
                String hour_string = String.valueOf(hour);
                String minute_string = String.valueOf(minute);

                // convert 24-hour time to 12-hour time
                if (hour > 12) {
                    hour_string = String.valueOf(hour - 12);
                }

                if (minute < 10) {
                    //10:7 --> 10:07
                    minute_string = "0" + String.valueOf(minute);
                }

                // method that changes the update text Textbox
                set_alarm_text("Alarm set to: " + hour_string + ":" + minute_string);

                // put in extra string into my_intent
                // tells the clock that you pressed the "alarm on" button
                my_intent.putExtra("extra", "alarm on");

                // put in an extra int into my_intent
                // tells the clock that you want a certain value from the drop-down menu/spinner
                my_intent.putExtra("whale_choice", choose_whale_sound);
                Log.e("The whale id is" , String.valueOf(choose_whale_sound));

                // create a pending intent that delays the intent
                // until the specified calendar time
                pending_intent = PendingIntent.getBroadcast(MainActivity.this, 0,
                        my_intent, PendingIntent.FLAG_UPDATE_CURRENT);

                // set the alarm manager
                alarm_manager.set(AlarmManager.RTC_WAKEUP, calendar.getTimeInMillis(),
                        pending_intent);

            }



        });



        // initialize the stop button
        Button alarm_off = (Button) findViewById(R.id.alarm_off);
        // create an onClick listener to stop the alarm or undo an alarm set

        alarm_off.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {

                // method that changes the update text Textbox
                set_alarm_text("Alarm off!");

                // cancel the alarm
                alarm_manager.cancel(pending_intent);

                // put extra string into my_intent
                // tells the clock that you pressed the "alarm off" button
                my_intent.putExtra("extra", "alarm off");
                // also put an extra int into the alarm off section
                // to prevent crashes in a Null Pointer Exception
                my_intent.putExtra("whale_choice", choose_whale_sound);


                // stop the ringtone
                sendBroadcast(my_intent);


            }
        });



    }

    private void set_alarm_text(String output) {
        update_text.setText(output);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.menu_main, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        // Handle action bar item clicks here. The action bar will
        // automatically handle clicks on the Home/Up button, so long
        // as you specify a parent activity in AndroidManifest.xml.
        int id = item.getItemId();

        //noinspection SimplifiableIfStatement
        if (id == R.id.action_settings) {
            return true;
        }

        return super.onOptionsItemSelected(item);
    }

    @Override
    public void onItemSelected(AdapterView<?> parent, View view, int position, long id) {
        // An item was selected. You can retrieve the selected item using
        // parent.getItemAtPosition(pos)

        // outputting whatever id the user has selected
        //Toast.makeText(parent.getContext(), "the spinner item is "
        //        + id, Toast.LENGTH_SHORT).show();
        choose_whale_sound = (int) id;


    }

    @Override
    public void onNothingSelected(AdapterView<?> parent) {
        // Another interface callback

    }
}

Step 9

Create new Alarm_Receiver.java file (File ⇒ New ⇒Java class).

Into the Alarm_Receiver.java copy and paste the below code.java programming is the backend language for android. Do not replace your package name otherwise app will not run.

Alarm_Receiver.java code

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.util.Log;


public class Alarm_Receiver  extends BroadcastReceiver{


    @Override
    public void onReceive(Context context, Intent intent) {

        Log.e("We are in the receiver.", "Yay!");

        // fetch extra strings from the intent
        // tells the app whether the user pressed the alarm on button or the alarm off button
        String get_your_string = intent.getExtras().getString("extra");

        Log.e("What is the key? ", get_your_string);

        // fetch the extra longs from the intent
        // tells the app which value the user picked from the drop down menu/spinner
        Integer get_your_whale_choice = intent.getExtras().getInt("whale_choice");

        Log.e("The whale choice is ", get_your_whale_choice.toString());

        // create an intent to the ringtone service
        Intent service_intent = new Intent(context, RingtonePlayingService.class);

        // pass the extra string from Receiver to the Ringtone Playing Service
        service_intent.putExtra("extra", get_your_string);
        // pass the extra integer from the Receiver to the Ringtone Playing Service
        service_intent.putExtra("whale_choice", get_your_whale_choice);

        // start the ringtone service
        context.startService(service_intent);

    }

}

Step 10

Create new RingtonePlayingService.java file (File ⇒ New ⇒Java class).

Into the RingtonePlayingService.java copy and paste the below code.java programming is the backend language for android. Do not replace your package name otherwise app will not run.

RingtonePlayingService.java code

package ganeshannt.alarm;
import android.annotation.TargetApi;
import android.app.Notification;
import android.app.NotificationManager;
import android.app.PendingIntent;
import android.app.Service;
import android.content.Intent;
import android.media.MediaPlayer;
import android.os.Build;
import android.os.IBinder;
import android.util.Log;

import java.util.Random;


public class RingtonePlayingService extends Service {

    MediaPlayer media_song;
    int startId;
    boolean isRunning;


    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }

    @TargetApi(Build.VERSION_CODES.JELLY_BEAN)
    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        Log.i("LocalService", "Received start id " + startId + ": " + intent);

        // fetch the extra string from the alarm on/alarm off values
        String state = intent.getExtras().getString("extra");
        // fetch the whale choice integer values
        Integer whale_sound_choice = intent.getExtras().getInt("whale_choice");

        Log.e("Ringtone extra is ", state);
        Log.e("Whale choice is ", whale_sound_choice.toString());

        // put the notification here, test it out

        // notification
        // set up the notification service
        NotificationManager notify_manager = (NotificationManager)
                getSystemService(NOTIFICATION_SERVICE);
        // set up an intent that goes to the Main Activity
        Intent intent_main_activity = new Intent(this.getApplicationContext(), MainActivity.class);
        // set up a pending intent
        PendingIntent pending_intent_main_activity = PendingIntent.getActivity(this, 0,
                intent_main_activity, 0);

        // make the notification parameters
        Notification notification_popup = new Notification.Builder(this)

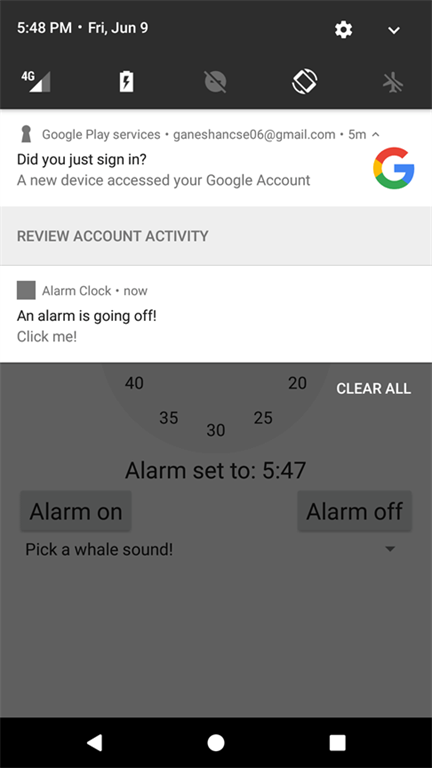

                .setContentTitle("An alarm is going off!")
                .setContentText("Click me!")
                .setSmallIcon(R.drawable.ic_action_call)
                .setContentIntent(pending_intent_main_activity)
                .setAutoCancel(true)
                .build();




        // this converts the extra strings from the intent
        // to start IDs, values 0 or 1
        assert state != null;
        switch (state) {
            case "alarm on":
                startId = 1;
                break;
            case "alarm off":
                startId = 0;
                Log.e("Start ID is ", state);
                break;
            default:
                startId = 0;
                break;
        }


        // if else statements

        // if there is no music playing, and the user pressed "alarm on"
        // music should start playing
        if (!this.isRunning && startId == 1) {
            Log.e("there is no music, ", "and you want start");

            this.isRunning = true;
            this.startId = 0;

            // set up the start command for the notification
            notify_manager.notify(0, notification_popup);



            // play the whale sound depending on the passed whale choice id

            if (whale_sound_choice == 0) {
                // play a randomly picked audio file

                int minimum_number = 1;
                int maximum_number = 13;

                Random random_number = new Random();
                int whale_number = random_number.nextInt(maximum_number + minimum_number);
                Log.e("random number is " , String.valueOf(whale_number));


                if (whale_number == 1) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_bubblenet_and_vocals);
                    media_song.start();
                }
                else if (whale_number == 2) {
                    // create an instance of the media player
                    media_song = MediaPlayer.create(this, R.raw.humpback_contact_call_moo);
                    // start the ringtone
                    media_song.start();
                }
                else if (whale_number == 3) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_contact_call_whup);
                    media_song.start();
                }
                else if (whale_number == 4) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_feeding_call);
                    media_song.start();
                }
                else if (whale_number == 5) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_flipper_splash);
                    media_song.start();
                }
                else if (whale_number == 6) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_tail_slaps_with_propeller_whine);
                    media_song.start();
                }
                else if (whale_number == 7) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_whale_song);
                    media_song.start();
                }
                else if (whale_number == 8) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_whale_song_with_outboard_engine_noise);
                    media_song.start();
                }
                else if (whale_number == 9) {
                    media_song = MediaPlayer.create(this, R.raw.humpback_wheeze_blows);
                    media_song.start();
                }
                else if (whale_number == 10) {
                    media_song = MediaPlayer.create(this, R.raw.killerwhale_echolocation_clicks);
                    media_song.start();
                }
                else if (whale_number == 11) {
                    media_song = MediaPlayer.create(this, R.raw.killerwhale_offshore);
                    media_song.start();
                }
                else if (whale_number == 12) {
                    media_song = MediaPlayer.create(this, R.raw.killerwhale_resident);
                    media_song.start();
                }
                else if (whale_number == 13) {
                    media_song = MediaPlayer.create(this, R.raw.killerwhale_transient);
                    media_song.start();
                }
                else {
                    media_song = MediaPlayer.create(this, R.raw.killerwhale_resident);
                    media_song.start();
                }


            }
            else if (whale_sound_choice == 1) {
                // create an instance of the media player
                media_song = MediaPlayer.create(this, R.raw.humpback_bubblenet_and_vocals);
                // start the ringtone
                media_song.start();
            }
            else if (whale_sound_choice == 2) {
                // create an instance of the media player
                media_song = MediaPlayer.create(this, R.raw.humpback_contact_call_moo);
                // start the ringtone
                media_song.start();
            }
            else if (whale_sound_choice == 3) {
                media_song = MediaPlayer.create(this, R.raw.humpback_contact_call_whup);
                media_song.start();
            }
            else if (whale_sound_choice == 4) {
                media_song = MediaPlayer.create(this, R.raw.humpback_feeding_call);
                media_song.start();
            }
            else if (whale_sound_choice == 5) {
                media_song = MediaPlayer.create(this, R.raw.humpback_flipper_splash);
                media_song.start();
            }
            else if (whale_sound_choice == 6) {
                media_song = MediaPlayer.create(this, R.raw.humpback_tail_slaps_with_propeller_whine);
                media_song.start();
            }
            else if (whale_sound_choice == 7) {
                media_song = MediaPlayer.create(this, R.raw.humpback_whale_song);
                media_song.start();
            }
            else if (whale_sound_choice == 8) {
                media_song = MediaPlayer.create(this, R.raw.humpback_whale_song_with_outboard_engine_noise);
                media_song.start();
            }
            else if (whale_sound_choice == 9) {
                media_song = MediaPlayer.create(this, R.raw.humpback_wheeze_blows);
                media_song.start();
            }
            else if (whale_sound_choice == 10) {
                media_song = MediaPlayer.create(this, R.raw.killerwhale_echolocation_clicks);
                media_song.start();
            }
            else if (whale_sound_choice == 11) {
                media_song = MediaPlayer.create(this, R.raw.killerwhale_offshore);
                media_song.start();
            }
            else if (whale_sound_choice == 12) {
                media_song = MediaPlayer.create(this, R.raw.killerwhale_resident);
                media_song.start();
            }
            else if (whale_sound_choice == 13) {
                media_song = MediaPlayer.create(this, R.raw.killerwhale_transient);
                media_song.start();
            }
            else {
                media_song = MediaPlayer.create(this, R.raw.killerwhale_resident);
                media_song.start();
            }










        }

        // if there is music playing, and the user pressed "alarm off"
        // music should stop playing
        else if (this.isRunning && startId == 0) {
            Log.e("there is music, ", "and you want end");

            // stop the ringtone
            media_song.stop();
            media_song.reset();

            this.isRunning = false;
            this.startId = 0;
        }

        // these are if the user presses random buttons
        // just to bug-proof the app
        // if there is no music playing, and the user pressed "alarm off"
        // do nothing
        else if (!this.isRunning && startId == 0) {
            Log.e("there is no music, ", "and you want end");

            this.isRunning = false;
            this.startId = 0;

        }

        // if there is music playing and the user pressed "alarm on"
        // do nothing
        else if (this.isRunning && startId == 1) {
            Log.e("there is music, ", "and you want start");

            this.isRunning = true;
            this.startId = 1;

        }

        // can't think of anything else, just to catch the odd event
        else {
            Log.e("else ", "somehow you reached this");

        }
      return START_NOT_STICKY;
    }

    @Override
    public void onDestroy() {
        // Tell the user we stopped.
        Log.e("on Destroy called", "ta da");

        super.onDestroy();
        this.isRunning = false;
    }

}

Step 11

Create new dimens.xml file into values folder (File ⇒ New ⇒Activity⇒Empty_activity).

Go to dimens.xml then click the text bottom. This xml file contains the designing code for android app. Into the dimens.xml copy and paste the below code

dimens.xml code

<resources>
    <!-- Default screen margins, per the Android Design guidelines. -->
    <dimen name="activity_horizontal_margin">16dp</dimen>
    <dimen name="activity_vertical_margin">16dp</dimen>
    <dimen name="fab_margin">16dp</dimen>
</resources>

Step 12

Create one folder into the Resources folder. Paste your set of ringtones into the folder.

Step 13

Create new strings.xml file into Values folder (File ⇒ New ⇒Activity⇒Empty_activity).

Go to strings.xml and click the text botton. This XML file contains the designing code for Android app. Into the strings.xml, copy and paste the below code.

strings.xml code

<resources>
    <string name="app_name">Alarm Clock</string>
    <string name="action_settings">Settings</string>

    <string-array name="whale_array">
        <item>Pick a whale sound!</item>
        <item>Humpback bubble net</item>
        <item>Humpback contact Call Moo</item>
        <item>Humpback contact Call Whup</item>
        <item>Humpback feeding Call</item>
        <item>Humpback flipper splash</item>
        <item>Humpback Tail slaps</item>
        <item>Humpback whale song</item>
        <item>Humpback whale song with outboard engine</item>
        <item>Humpback wheeze blows</item>
        <item>Killer whale echolocation clicks</item>
        <item>Killer whale offshore</item>
        <item>Killer whale resident</item>
        <item>Killer whale transient</item>
    </string-array>

</resources>

Step 14

Click the Make Project option and run.



Deliverables

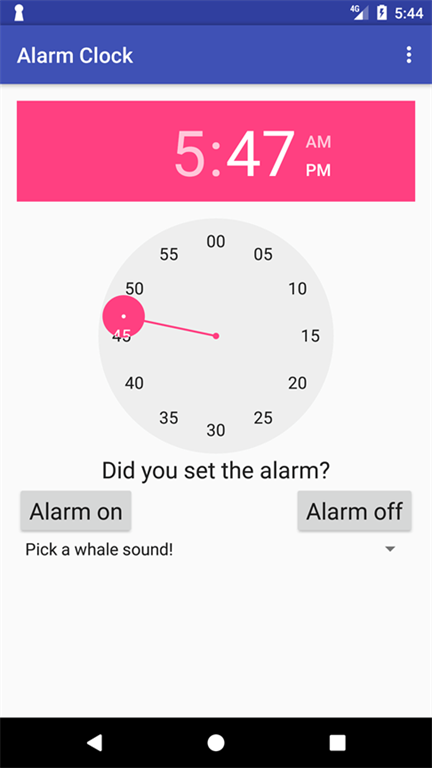

Here, we have successfully created Alarm Android application.

Don’t forgot to like and follow me. If you have any doubt, just commend below.
