Creating Xamarin Android SwipeRefreshLayout Using ListView Items

Let’s start,

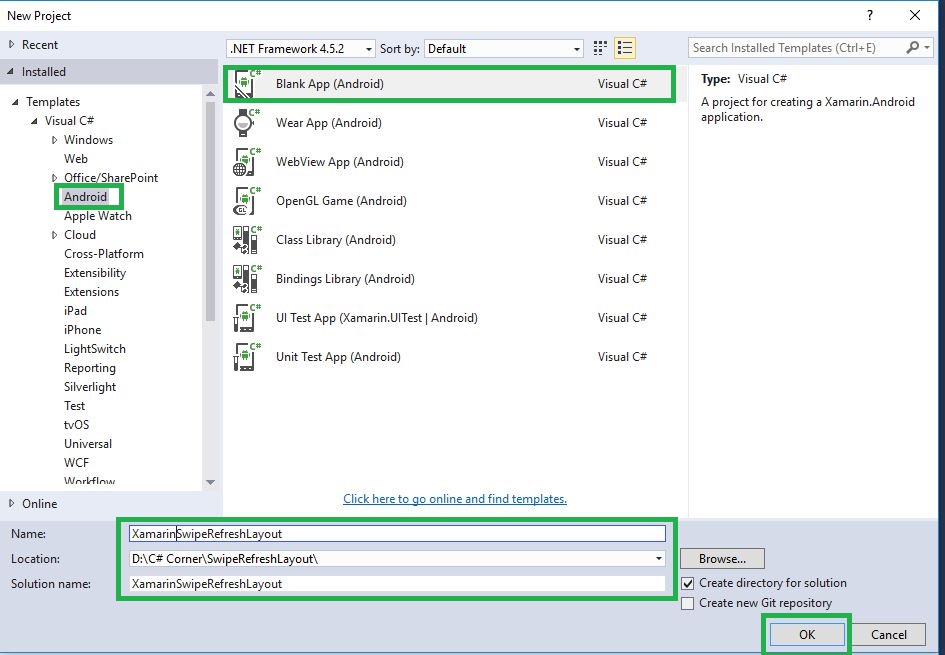

Step 1: Open Visual Studio->New Project->Templates->Visual C#->Android->Blank App

Select Blank App. Give the Project Name and Project Location.



Step 2

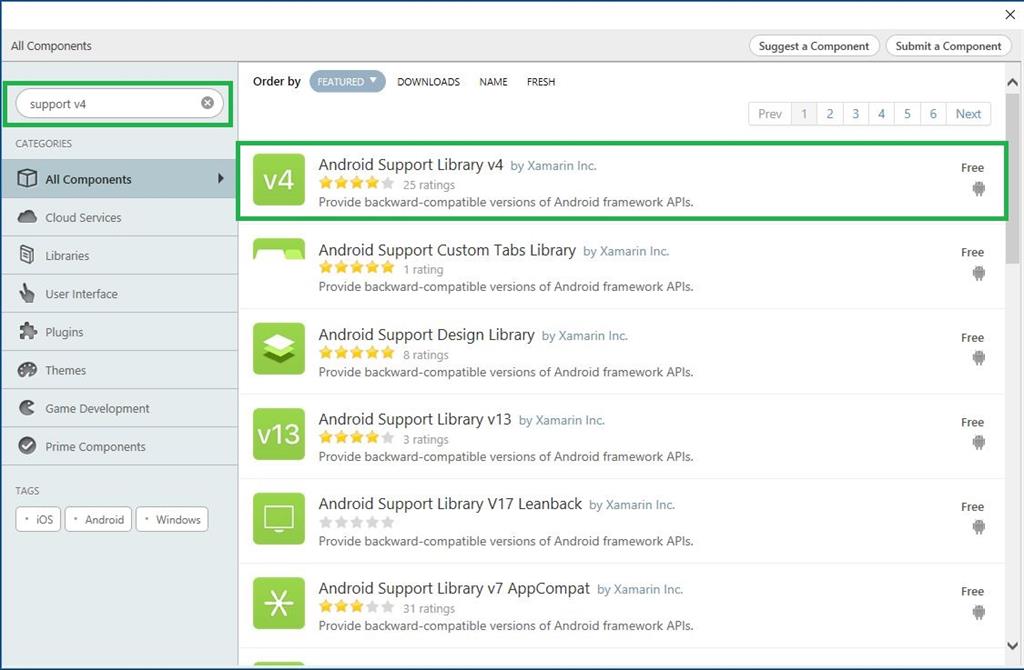

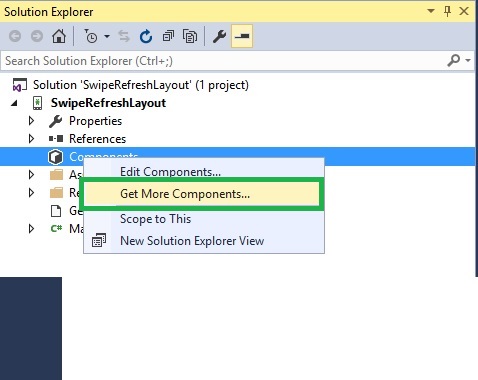

Go to Solution Explorer-> Project Name-> Components, right click to Get More Components and the new dialog box opens. This dialog box is required to search the Support V4, add the Android Support Library V4 Packages.




Step 3

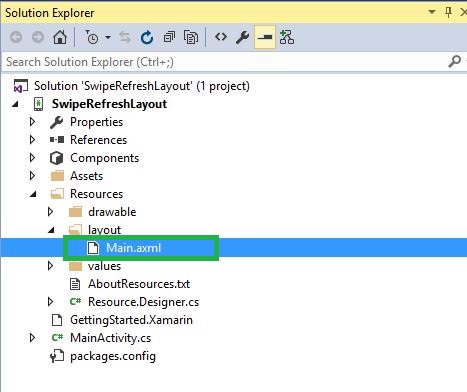

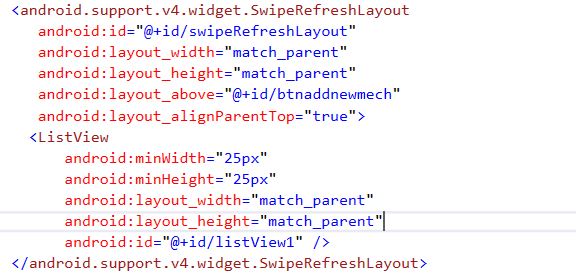

: To open Solution Explorer, go to -> Project Name->Resources->layout ->Main.axml, click to open Design View and the code, given below:




  1. <android.support.v4.widget.SwipeRefreshLayout
  2. android:id="@+id/swipeRefreshLayout"
  3. android:layout_width="match_parent"
  4. android:layout_height="match_parent"
  5. android:layout_above="@+id/btnaddnewmech"
  6. android:layout_alignParentTop="true">
  7. <ListView
  8. android:minWidth="25px"
  9. android:minHeight="25px"
  10. android:layout_width="match_parent"
  11. android:layout_height="match_parent"
  12. android:id="@+id/listView1" />
  13. </android.support.v4.widget.SwipeRefreshLayout>

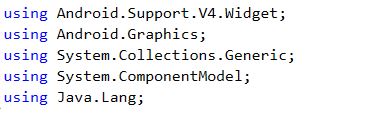

Step 4: After Design view creation, open Solution Explorer-> Project Name->MainActivity.cs, add the namespaces, given below:

  1. using Android.Support.V4.Widget;
  2. using Android.Graphics;
  3. using System.Collections.Generic;
  4. using System.ComponentModel;
  5. using Java.Lang;

Step 5: To create the new variables for RefreshLayout and ListView, one can use the code, given below:



  1. private SwipeRefreshLayout refreshLayout;
  2. private ListView listitem;

Step 6: Go to Oncreate() to declare the list view id and Listview<string>Variable.

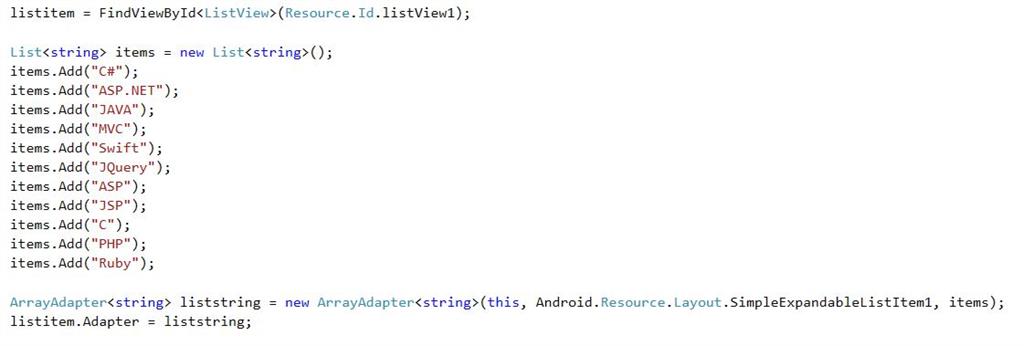

Step 7: Next step is to create one List String Item and then add the list view adapter.


C# Code

  1. listitem = FindViewById < ListView > (Resource.Id.listView1);
  2. List < string > items = new List < string > ();
  3. items.Add("C#");
  4. items.Add("ASP.NET");
  5. items.Add("JAVA");
  6. items.Add("MVC");
  7. items.Add("Swift");
  8. items.Add("JQuery");
  9. items.Add("ASP");
  10. items.Add("JSP");
  11. items.Add("C");
  12. items.Add("PHP");
  13. items.Add("Ruby");
  14. ArrayAdapter < string > liststring = new ArrayAdapter < string > (this, Android.Resource.Layout.SimpleExpandableListItem1, items);
  15. listitem.Adapter = liststring;

Step 8

After Listview declaration, assign Refresh Layout variables and colors. Here, create one more method for Refresh event. This event is declared after Oncreate().



C# Code

  1. refreshLayout = FindViewById < SwipeRefreshLayout > (Resource.Id.swipeRefreshLayout);
  2. refreshLayout.SetColorSchemeColors(Color.Red, Color.Green, Color.Blue, Color.Yellow);
  3. refreshLayout.Refresh += RefreshLayout_Refresh;

Step 9

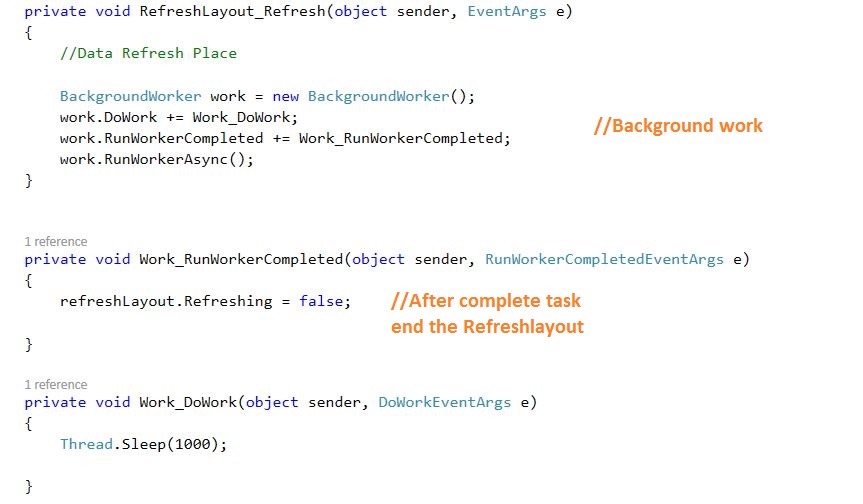

Declare RefreshLayout_refresh method. This method is working in the background process of the layout. Once the work completes, it will terminate the work.


C# Code

  1. private void RefreshLayout_Refresh(object sender, EventArgs e)
  2. {
  3.     //Data Refresh Place
  4.     BackgroundWorker work = new BackgroundWorker();
  5.     work.DoWork += Work_DoWork;
  6.     work.RunWorkerCompleted += Work_RunWorkerCompleted;
  7.     work.RunWorkerAsync();
  8. }
  9. private void Work_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e) {
  10.     refreshLayout.Refreshing = false;
  11. }
  12. private void Work_DoWork(object sender, DoWorkEventArgs e) {
  13.     Thread.Sleep(1000);
  14. }

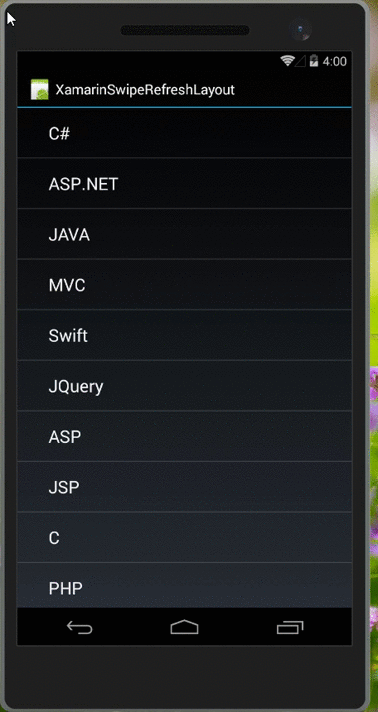

Step 10: Press F5 or build and run the Application.



Finally, we successfully created Xamarin Android SwipeRefreshLayout with ListView items.
