Customize Slider Control In Xamarin.Forms

Introduction

This article demonstrates how to create and use a Customize Slider control in Xamarin.Forms, XAML, and C#. This article starts with the introduction of the Customize Slider tag in XAML. After that, it demonstrates how to set MaxColor, MinColor, ThumbColor, and ThumbImage of a CustomSlider. In the end, the article

discusses how to create a Slider at run-time.

Implementation

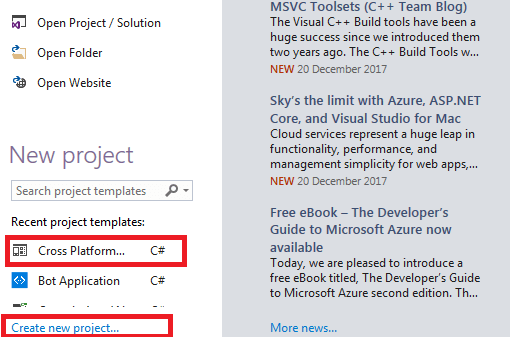

Open Visual Studio and select a New Project.

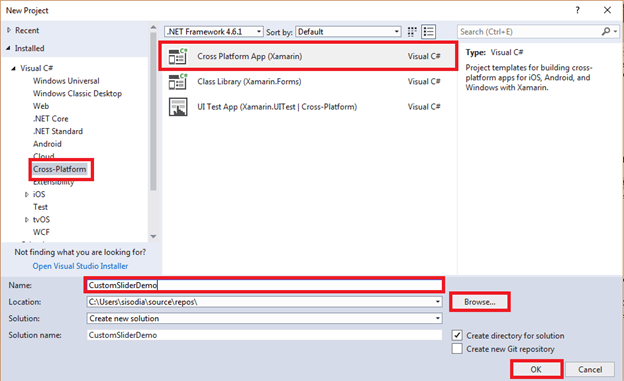

Now, select Cross Platform App, give the project a name, and set the project path. Then, click OK.

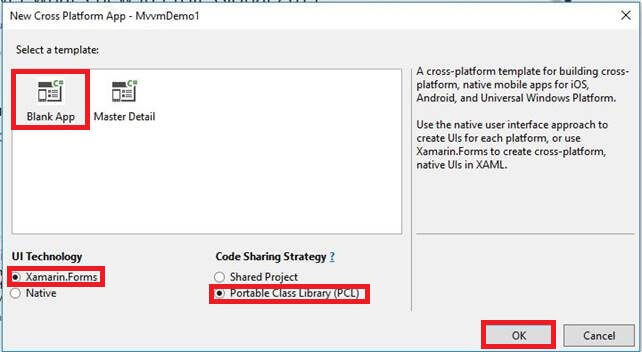

Select the template as "Blank App" and code sharing as "PCL".

Now we are creating a CustomSlider class for generating a custom properties ...

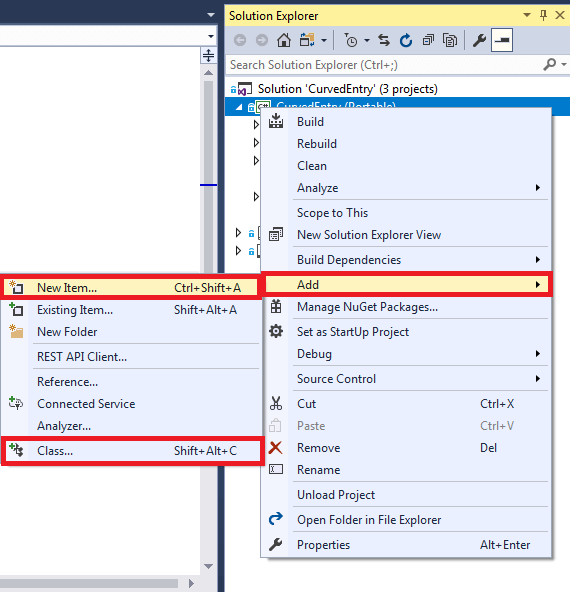

Right-click on PCL Project and select Add >> New Item or Add >> Class.

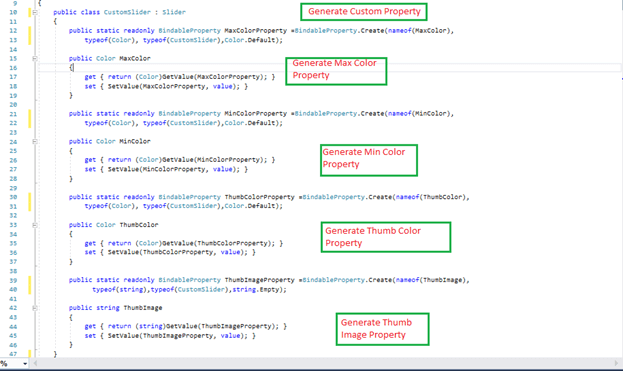

We are creating a class CustomSlider.cs and writing the following C# code.

CustomSlider.cs

public class CustomSlider : Slider
{
    public static readonly BindableProperty MaxColorProperty =BindableProperty.Create(nameof(MaxColor),
        typeof(Color), typeof(CustomSlider),Color.Default);

    public Color MaxColor
    {
        get { return (Color)GetValue(MaxColorProperty); }
        set { SetValue(MaxColorProperty, value); }
    }

    public static readonly BindableProperty MinColorProperty =BindableProperty.Create(nameof(MinColor),
        typeof(Color), typeof(CustomSlider),Color.Default);

    public Color MinColor
    {
        get { return (Color)GetValue(MinColorProperty); }
        set { SetValue(MinColorProperty, value); }
    }

    public static readonly BindableProperty ThumbColorProperty =BindableProperty.Create(nameof(ThumbColor),
        typeof(Color), typeof(CustomSlider),Color.Default);

    public Color ThumbColor
    {
        get { return (Color)GetValue(ThumbColorProperty); }
        set { SetValue(ThumbColorProperty, value); }
    }

    public static readonly BindableProperty ThumbImageProperty =BindableProperty.Create(nameof(ThumbImage),
          typeof(string),typeof(CustomSlider),string.Empty);

    public string ThumbImage
    {
        get { return (string)GetValue(ThumbImageProperty); }
        set { SetValue(ThumbImageProperty, value); }
    }
}

This properties is set in the Android project as well as in iOS project.

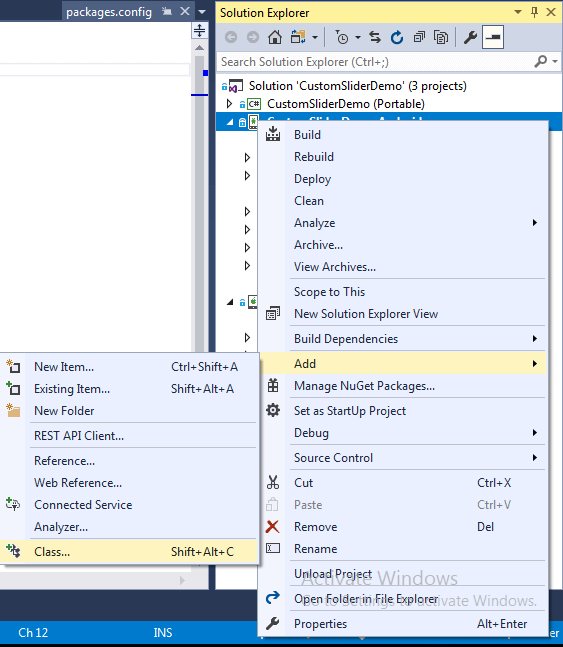

Let us start with Android. We are creating a Class in Android Project and rendering the slider.



Then, set all the properties when generat in PCL Project. and you Please make sure of the dependency

[assembly: ExportRenderer(typeof(CustomSlider), typeof(MySliderRenderer))]

of Android(MySliderRenderer) and PCL(CustomSlider)…

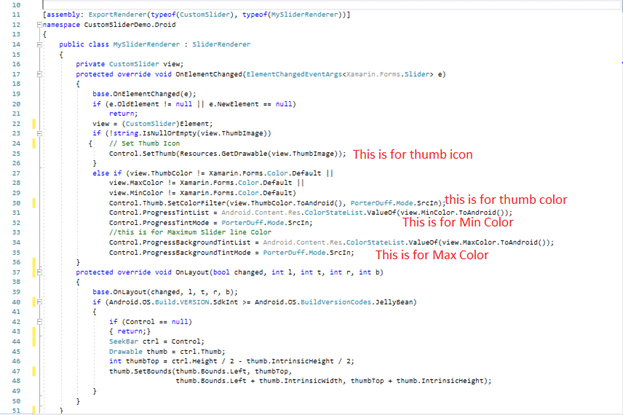

MySliderRenderer.cs

public class MySliderRenderer : SliderRenderer
{
    private CustomSlider view;
    protected override void OnElementChanged(ElementChangedEventArgs<Xamarin.Forms.Slider> e)
    {
        base.OnElementChanged(e);
        if (e.OldElement != null || e.NewElement == null)
            return;
        view = (CustomSlider)Element;
        if (!string.IsNullOrEmpty(view.ThumbImage))
       {    // Set Thumb Icon
            Control.SetThumb(Resources.GetDrawable(view.ThumbImage));
        }
        else if (view.ThumbColor != Xamarin.Forms.Color.Default ||
            view.MaxColor != Xamarin.Forms.Color.Default ||
            view.MinColor != Xamarin.Forms.Color.Default)
            Control.Thumb.SetColorFilter(view.ThumbColor.ToAndroid(), PorterDuff.Mode.SrcIn);
            Control.ProgressTintList = Android.Content.Res.ColorStateList.ValueOf(view.MinColor.ToAndroid());
            Control.ProgressTintMode = PorterDuff.Mode.SrcIn;
            //this is for Maximum Slider line Color
            Control.ProgressBackgroundTintList = Android.Content.Res.ColorStateList.ValueOf(view.MaxColor.ToAndroid());
            Control.ProgressBackgroundTintMode = PorterDuff.Mode.SrcIn;
    }
    protected override void OnLayout(bool changed, int l, int t, int r, int b)
    {
        base.OnLayout(changed, l, t, r, b);
        if (Android.OS.Build.VERSION.SdkInt >= Android.OS.BuildVersionCodes.JellyBean)
        {
            if (Control == null)
            { return;}
            SeekBar ctrl = Control;
            Drawable thumb = ctrl.Thumb;
            int thumbTop = ctrl.Height / 2 - thumb.IntrinsicHeight / 2;
            thumb.SetBounds(thumb.Bounds.Left, thumbTop,
                            thumb.Bounds.Left + thumb.IntrinsicWidth, thumbTop + thumb.IntrinsicHeight);
        }
    }
}

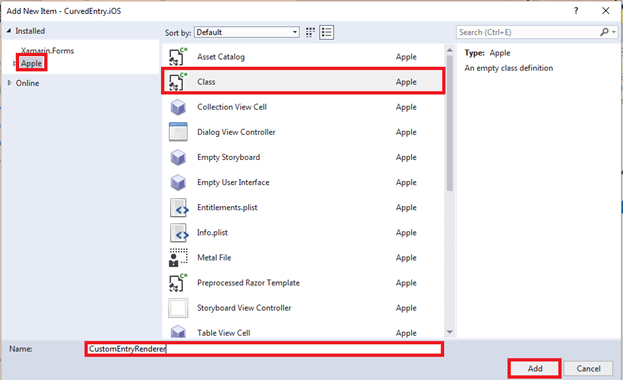

Now, it's time to go with iOS project. Now you set the PCL(CustomSlider) property in IOS Project…. We are creating a Class, so right click on iOS Project and select Apple. Then, select "Class" and give this class a name as MySliderRenerer.cs.



Now, let us write some code for Slider and Set Property.

MySliderRenderer.cs

[assembly: ExportRenderer(typeof(CustomSlider), typeof(MySliderRenderer))]
namespace CustomSliderDemo.iOS
{
    public class MySliderRenderer : SliderRenderer
    {
        private CustomSlider view;
        protected override void OnElementChanged(ElementChangedEventArgs<Xamarin.Forms.Slider> e)
        {
            base.OnElementChanged(e);
            if (e.OldElement != null || e.NewElement == null)
                return;

            view = (CustomSlider)Element;
            if (!string.IsNullOrEmpty(view.ThumbImage))
            {
                //Assigns a thumb image to the specified control states.
                Control.SetThumbImage(UIImage.FromFile(view.ThumbImage), UIControlState.Normal);
            }
            else if (view.ThumbColor != Xamarin.Forms.Color.Default ||
                view.MaxColor != Xamarin.Forms.Color.Default ||
                view.MinColor != Xamarin.Forms.Color.Default)
                // Set Progress bar Thumb color
                Control.ThumbTintColor = view.ThumbColor.ToUIColor();
            //this is for Minimum Slider line Color
            Control.MinimumTrackTintColor = view.MinColor.ToUIColor();
            //this is for Maximum Slider line Color
            Control.MaximumTrackTintColor = view.MaxColor.ToUIColor();

        }
    }
}



MySliderRenderer.cs

public class MySliderRenderer : SliderRenderer
    {
        protected override void OnElementChanged(ElementChangedEventArgs<Xamarin.Forms.Slider> e)
        {
            base.OnElementChanged(e);
            if (e.OldElement != null || e.NewElement == null)
                return;

           var view = (CustomSlider)Element;
            if (!string.IsNullOrEmpty(view.ThumbImage))
            {
                //Assigns a thumb image to the specified control states.
                Control.SetThumbImage(UIImage.FromFile(view.ThumbImage), UIControlState.Normal);
            }
            else if (view.ThumbColor != Xamarin.Forms.Color.Default ||
                view.MaxColor != Xamarin.Forms.Color.Default ||
                view.MinColor != Xamarin.Forms.Color.Default)
                // Set Progress bar Thumb color
                Control.ThumbTintColor = view.ThumbColor.ToUIColor();
            //this is for Minimum Slider line Color
            Control.MinimumTrackTintColor = view.MinColor.ToUIColor();
            //this is for Maximum Slider line Color
            Control.MaximumTrackTintColor = view.MaxColor.ToUIColor();
        }
    }

Now, go to the PCL Project and write this code in MainPage.xaml.

As you can see in the bellow code, we have to set the view reference in xmlns:cs="clr-namespace:CustomSliderDemo" MainPage.xaml.

Write the following code for CustomSider.

MainPage.xaml

<StackLayout Padding="20">
           <Label Text="Custom Slider" FontSize="Large"/>
           <cs:CustomSlider x:Name="customSlider"
                            MaxColor="Red" MinColor="Yellow"
                            ThumbColor="Green" />

           <cs:CustomSlider MaxColor="Red" MinColor="Yellow"
                            ThumbColor="Black" ThumbImage="icon.png"/>
       </StackLayout>

Now, its Ready your CustomSlider is working!!

Relaterd Video Click,

Features of CustomSlide controls

1. Custom Max Color Property=(MaxColor="#24C4FF")
2. Custom Min Color Property=(MinColor="Red")
3. Custom Thumb Color Property=(ThumbColor="Green")
4. Custom ThumbImage=(ThumbImage="icon")
