Draw Polygon Graphics In Xamarin Android App Using Visual Studio 2015

Introduction

Xamarin is a platform to develop cross-platform and multi-platform apps (for example, Windows phone, Android, iOS). In Xamarin platform, the code sharing concept is used. In Xamarin Studio, Visual Studio is also available.

Prerequisites

  • Visual Studio 2015 Update 3.

The steps, given below, are required to be followed in order to Draw Polygon Graphics in the Xamarin Android app, using Visual Studio 2015.

Step 1

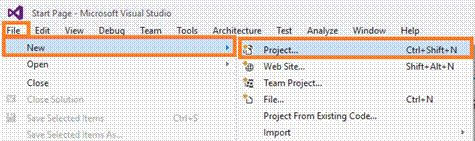

Click File--> select New--> select Project. The project needs to be clicked after opening all the types of projects in Visual Studio, or click (Ctrl+Shift+N).



Step 2

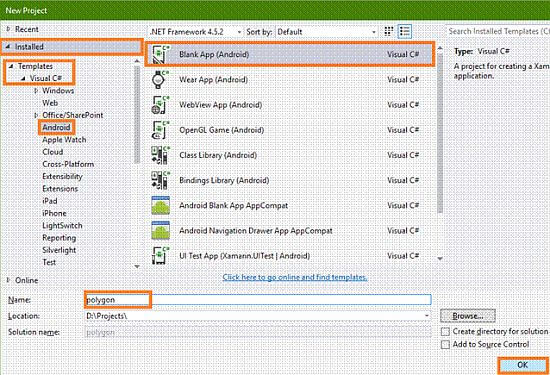

After opening the New Project, select Installed-->Templates-->Visual C#-->Android-->choose the Blank app (Android).

Now, give your Android app a name (Ex:sample) and give the path of your project. Afterwards, click OK.

Android

Step 3

Next, go to the Solution Explorer and select Resource-->Layout-->double click to open main.axml page. There, you can select either Source mode to write the code or Design mode to design your app.

Android

Step 4

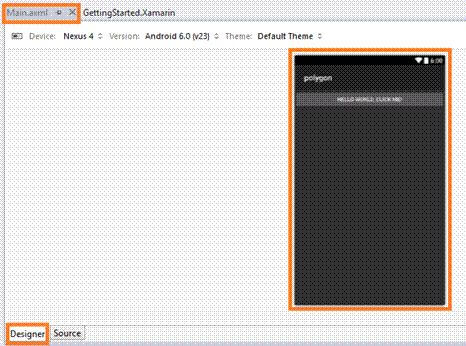

After opening it, the main.axml file will open the main page designer. In this page, you can design this page.

Android

Step 5

In this step, add one Class file called FilledPolygon.cs.

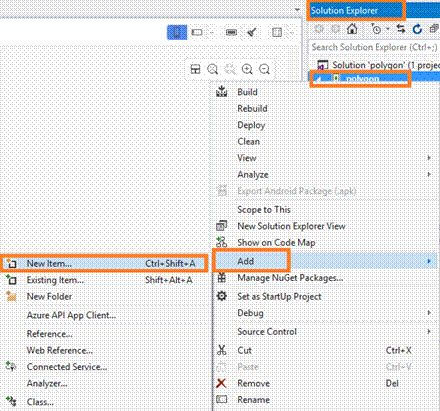

Go to Solution Explorer-->Resource-->Right Click-->Add-->New Item (Ctrl+shift+A).

Android

Step 6

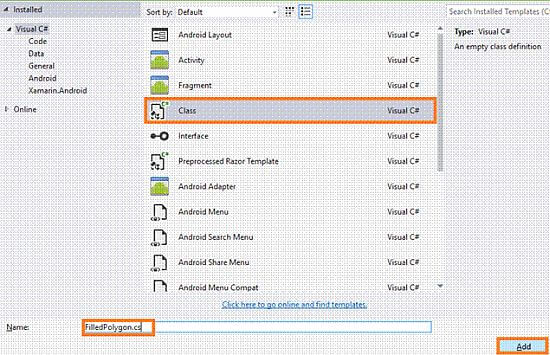

Now, select the Class file and give name FilledPolygon.cs, and click Add.

Android

Step 7

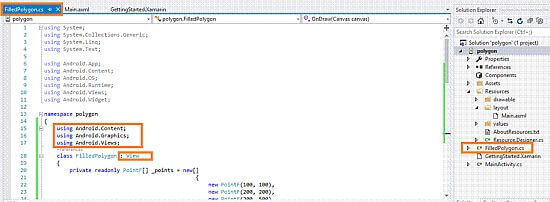

After creating the FilledPolygon.cs file, add the following Namespace inside the namespace and create one subclass called View.

FilledPolygon.cs
  1. namespace polygon {
  2.     using Android.Content;
  3.     using Android.Graphics;
  4.     using Android.Views;
  5.     class FilledPolygon: View {}
  6. }
Android

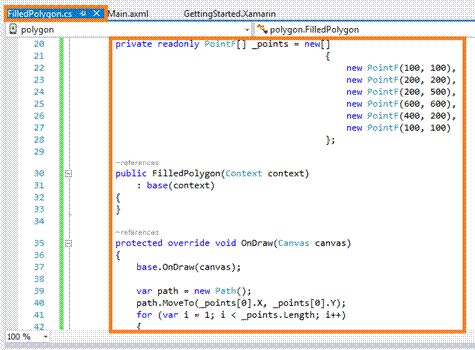

Step 8

Now, write the following code in FilledPolygon.cs page.

FilledPolygon.cs
  1. class FilledPolygon: View {
  2.     private readonly PointF[] _points = new [] {
  3.         new PointF(100, 100),
  4.             new PointF(200, 200),
  5.             new PointF(200, 500),
  6.             new PointF(600, 600),
  7.             new PointF(400, 200),
  8.             new PointF(100, 100)
  9.     };
  10.     public FilledPolygon(Context context): base(context) {}
  11.     protected override void OnDraw(Canvas canvas) {
  12.         base.OnDraw(canvas);
  13.         var path = new Path();
  14.         path.MoveTo(_points[0].X, _points[0].Y);
  15.         for (var i = 1; i < _points.Length; i++) {
  16.             path.LineTo(_points[i].X, _points[i].Y);
  17.         }
  18.         var paint = new Paint {
  19.             Color = Color.White
  20.         };
  21.         paint.SetStyle(Paint.Style.Fill);
  22.         canvas.DrawPath(path, paint);
  23.     }
  24. }
Android

Step 9

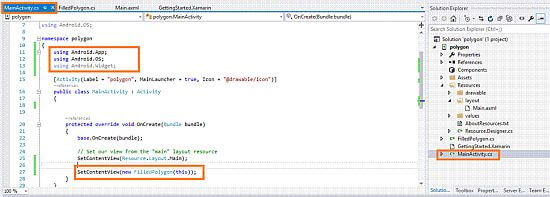

Next go to the MainActivity.cs page from Solution Explorer. write the following namespace inside the namespace. and write the contentview code between the OnCreate() Method.

MainActivity.cs
  1. namespace polygon {
  2.     using Android.App;
  3.     using Android.OS;
  4.     using Android.Widget;
  5.     [Activity(Label = "polygon", MainLauncher = true, Icon = "@drawable/icon")]
  6.     public class MainActivity: Activity {
  7.         protected override void OnCreate(Bundle bundle) {
  8.             base.OnCreate(bundle);
  9.             // Set our view from the "main" layout resource
  10.             SetContentView(Resource.Layout.Main);
  11.             SetContentView(new FilledPolygon(this));
  12.         }
  13.     }
  14. }
Android

Step 10

If you have Android Virtual device, run the app on it. Else, connect your Android phone and run the app in that.

Simply, connect your phone and go to Visual Studio. The connected phone will show up in the Run menu

(Ex:LENOVO A6020a40(Android 5.1-API 22)). Click the Run option.

Android

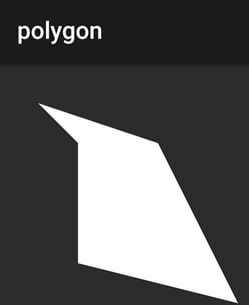

Output

After a few seconds, the app will start running on your phone.

You will see the Polygon Graphics is running.

Android

Summary

So, this was the process of drawing Polygon Graphics in Xamarin Android app, using Visual Studio 2015.
