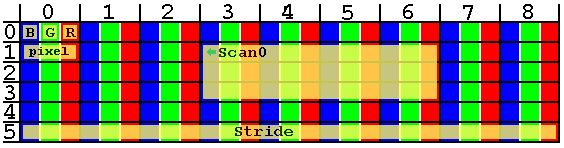

Using those values we can access the pixel (xx,yy) in the rectangle by the following calculation:
The following demo shows how can we use this class - The demo will replace the center of an image with its grey version of it.
In A1 we verify that the given image bitmap is color image in 24bpp-BGR or 32bpp-BGRA image format. Since those formats are similar, we can process them with same code,
- In 24bpp-BGR format each pixel is stored in 24 bits (3 bytes) per pixel. Each pixel component stored 8 bits(1 byte) in the following order:
- B component of the pixel is stored in byte 0 (Blue)
- G component of the pixel is stored in byte 1 (Green)
- R component of the pixel is stored in byte 2 (Red)
- 32bpp-BGRA format extends 24bpp-BGR format with an extra alpha component. In this format each pixel is stored in 32 bits(4 bytes) per pixel. Each pixel component stored 8 bits(1 byte) in the following order:
- B component of the pixel is stored in byte 0 (Blue)
- G component of the pixel is stored in byte 1 (Green)
- R component of the pixel is stored in byte 2 (Red)
- A component of the pixel is stored in byte 3 (Alpha)
In A2 we create the FastBitmap object with the given bitmap and the rectangle we want to process. In this case, the rectangle width and height is 3/4 of the bitmap and its left top pixel is located (1/8 of bitmap width, 1/8 of bitmap height). We are using the using block which will ensure invoking the Dispose method on the newlly created object at the end of the this block.
In A3 we start a unsafe since we are going to use pointers. Please note that we also need to compile with unsafe compiler flag.
In A4 we declare two pointers which allows us to access the pixels , pixel by pixel (top to down and left to right). The first byte pointer row point to the first pixel in the current row and initlized to to left top pixel of the rectangle we want to process. The second byte pointer bb will point to the current pixel.
In A5 we looping for each row in the rectangle and update the current pixel and row to first pixel in the current row using the Stride property.
In A6 we looping for each pixel in the current row and update the bb pointer using the PixelSize property.
In A7 we process the pixel using the current pixel pointed by bb. In this demo we convert the color of the pixel to grey scale color by setting all pixel’s components to the value of the following calculation.
- 0.1140 * (Blue component) + 0.5870 * (Green component) + 0.2989 * (Red component)
Running the demo program on the left image will produce the right image:
Benchmark
Some readers suggested to measure the performance against other image processing alternatives. I have created 2 programs which implement the functionality of the above demo program using other approaches. The first will use Bitmap GetPixel and SetPixel while the other will use C++ and opencv library.
Bitmap GetPixel and SetPixel approach
The program is very similar to the orginal demo program. However, instead of using pointers, we will access the pixels using GetPixel and SetPixel methods of the Bitmap class.
- if (bitmap.PixelFormat != PixelFormat.Format24bppRgb && bitmap.PixelFormat != PixelFormat.Format32bppArgb) {
- return;
- }
- int w0 = bitmap.Width / 8;
- int h0 = bitmap.Height / 8;
- int x1 = w0;
- int y1 = h0;
- int xn = x1 + bitmap.Width - 2 * w0;
- int yn = y1 + bitmap.Height - 2 * h0;
-
- Color gray, cc;
- for ( int yy = y1; yy < yn; yy++) {
- for (int xx = x1; xx < xn; xx++) {
- cc = bitmap.GetPixel(xx, yy);
- byte gg = (byte)((cc.B * 1140 +
- cc.G * 5870 +
- cc.R * 2989) / 10000);
- gray = Color.FromArgb( gg,gg,gg);
- bitmap.SetPixel(xx, yy, gray);
- }
- }
- In A1 we loop over all the pixels’ locations of the rectangle we want to process, pixel by pixel (top to down and left to right).
- In A2 we getting the Color of the current pixel using GetPixel method.
- In A3 we create grey Color by setting its components to the above grey level calculation.
- In A4 we setting the current pixel to this grey color using SetPixel method.
C++ and opencv approach
In this approach we will use C++ and opencv library. I tried to mimic the ideas of FastBitmap class.
- Mat bitmap = imread(argv[1], CV_LOAD_IMAGE_COLOR);
- ...
- int ww = bitmap.cols - 2 * bitmap.cols / 8;
- int hh = bitmap.rows - 2 * bitmap.rows / 8;
- int x1 = bitmap.cols / 8;
- int y1 = bitmap.rows / 8;
-
- int pixelSize = bitmap.channels();
- int stride = pixelSize * bitmap.cols;
- uchar* scan0 = bitmap.ptr<uchar>(0) + (y1 * stride) + x1 * pixelSize;
-
- uchar* row = scan0, *bb = row;
- for ( int yy = 0; yy < hh; yy++, bb = (row += stride)) {
- for (int xx = 0; xx < ww; xx++, bb += pixelSize ) {
-
-
-
-
- uchar gray = ((1140 * *(bb + 0) +
- 5870 * *(bb + 1) +
- 2989 * *(bb + 2)) / 10000);
- *(bb + 0) = *(bb + 1) = *(bb + 2) = gray;
- }
- }
- ...
- imwrite(argv[2], bitmap, compression_params);
- In A1 we load the image data from file to memory.
- In A2 we find the rectangle we want to process.
- In A3 we find scan0,pixelSize and the stride of the bitmap.
- The image processing code in A4 is the same code from our first c# programs. It seems that in the pointers syntax c++ and c# are on the same page. Some will say that c# is standing on the shoulders of giants.
- In A5 we write the image to file.
Benchmarks
The benchmark strategy was to run each program 1000 times with 800x600 jpg file and mesuare the average time each program last in system ticks (1 millisecond is 10000 ticks).

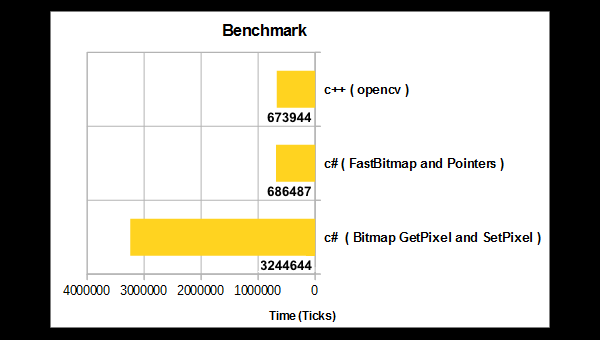

When I run the benchmark on my computer, Intel Core i7(6700K) machine , I get the following results:
As we can see:
- The c# (FastBitmap and pointers) approach improve the speed of c#(Bitmap GetPixel and SetPixel) approach by 80%.
- It seems that the C++(opencv) approach have a negligible speed improvement from c#(FastBitmap and pointers) approach (less than 2% improvement).
Summery
Using FastBitmap class, we can quick;y access the raw memory of bitmap data via pointers. It allows us to do image processing in c# and apply known algorithms such as edge detection, histogram equalization, thresholding and more.
