Getting Started With SSRS 2016 - Part One

In this article, we will discuss how we can create an SSRS Report without using Report Wizard in SQL Server Reporting Services 2016. We have discussed about SSDT and Reporting Service configuration in my previous articles. If you want to learn SSRS Series, you can read the below link.
In this article, we will learn the following.
  • Prerequisite
  • How to setup the SSRS Environment
  • How to create an SSRS Project
  • How to add new Report
  • How to deploy the Report
  • How to run the Report

Prerequisite

We should have some basic knowledge of SQL Server Query and Visual Studio Tool for creating an SSRS Reports using Visual Studio 2015.

  • SQL Server Basic Query
  • Visual Studio 2015

How to setup the SSRS Environment

To learn how to setup SSRS Environment, read my previous article, Getting Started with SSDT 2016 using Visual Studio 2015.

How to Create an SSRS Project

Open Visual Studio 2015. Go to File >> New >> New Project.

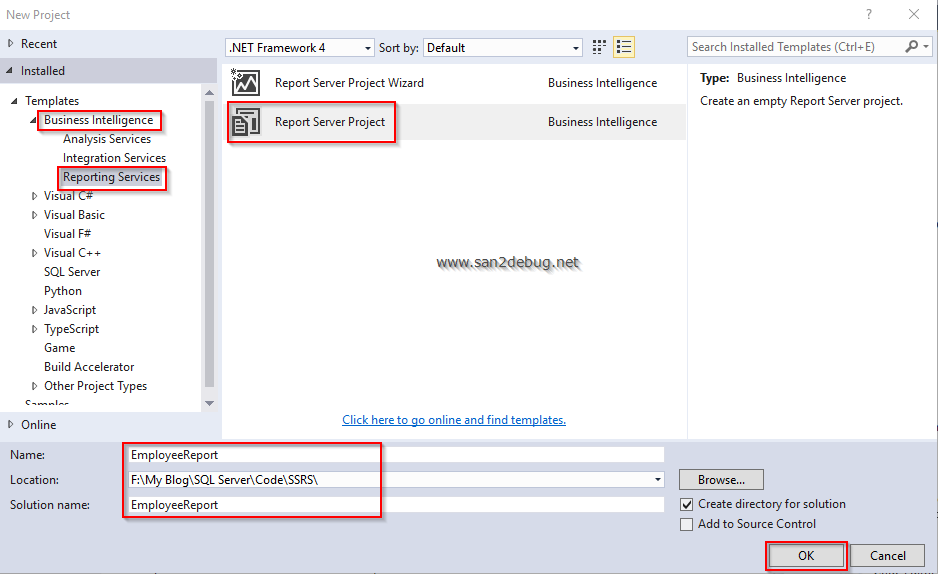

The "New Project" window will open. You can select an installed template like “Reporting Services” in "Business Intelligence" templates and then, select the "Report Server Project". Type project name as EmployeeReport, choose the project location path,and click OK button.

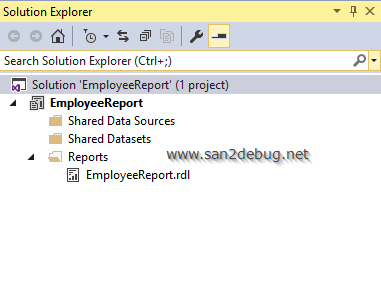

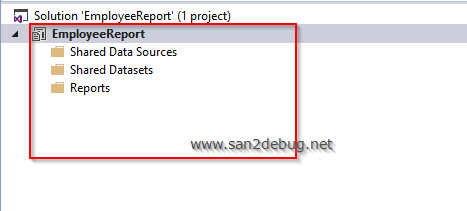

Now, you can see EmployeeReport project structure, as shown in the screenshot below.



How to add new Report

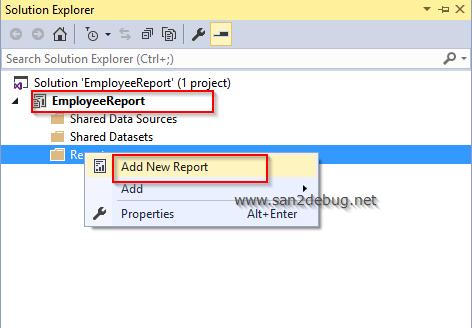

Right click the "Reports" folder and point to "Add New Reports". Then, click the "Add New Report".

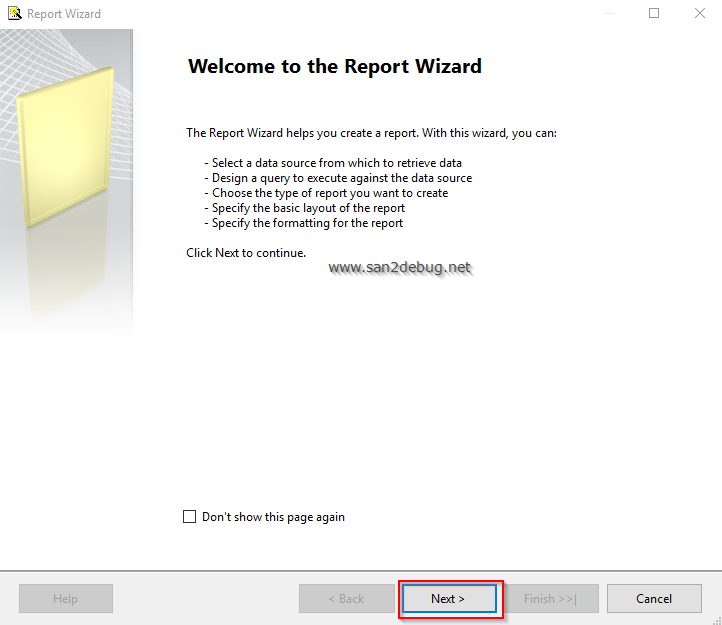

The "Report Wizard" window will open. Click the "Next" button.

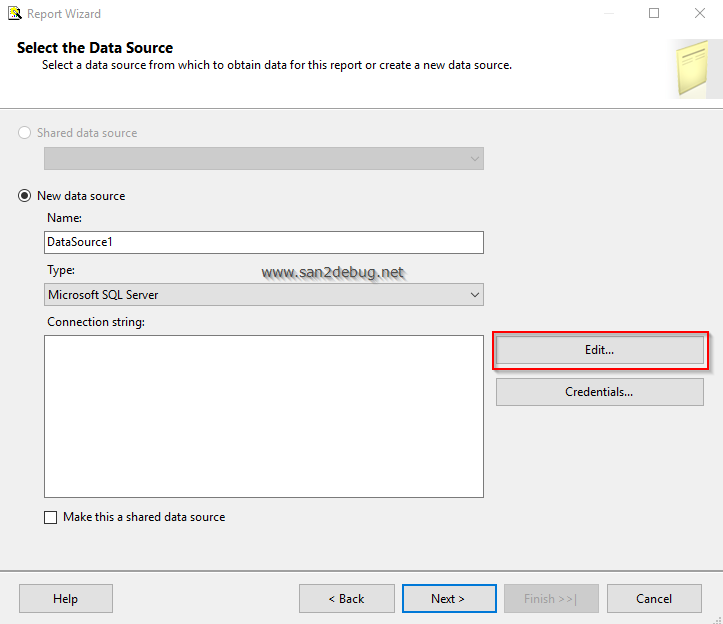

Then, "Select the Data Source" window will open. Just click the "Edit" button.

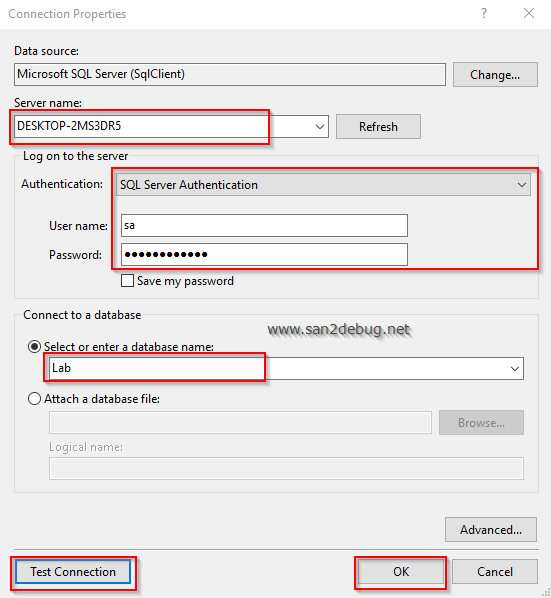

The "Connection Properties" window will open. Type the Server Name, select Authentication type, enter User name and Password, select or enter a database name. You can check the database connection by clicking the "Test Connection" button. Then, click the OK button.

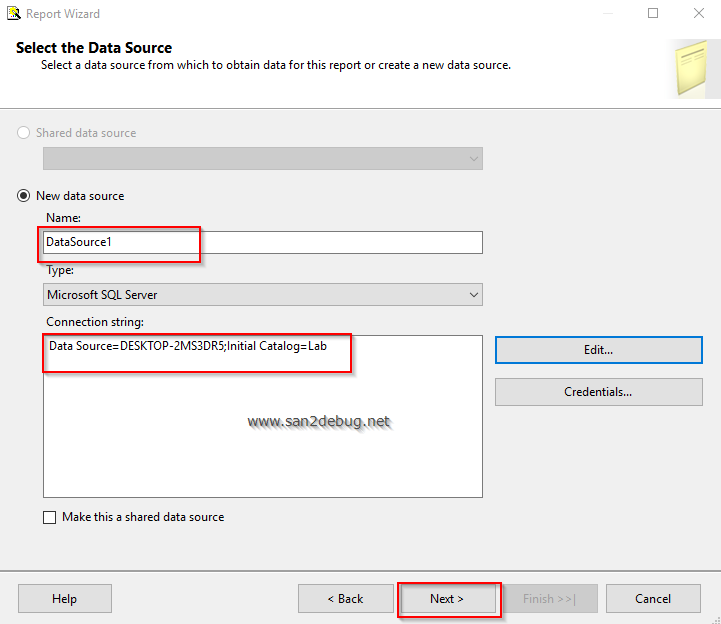

The "Select the Data Source" window will open. Select the new data source, connection string, and click the "Next" button.

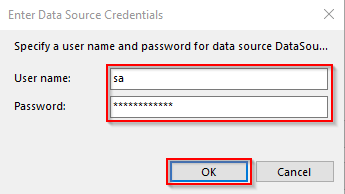

The "Data Source Credentials" window will open. Type the User Name, Password. Then, click OK.

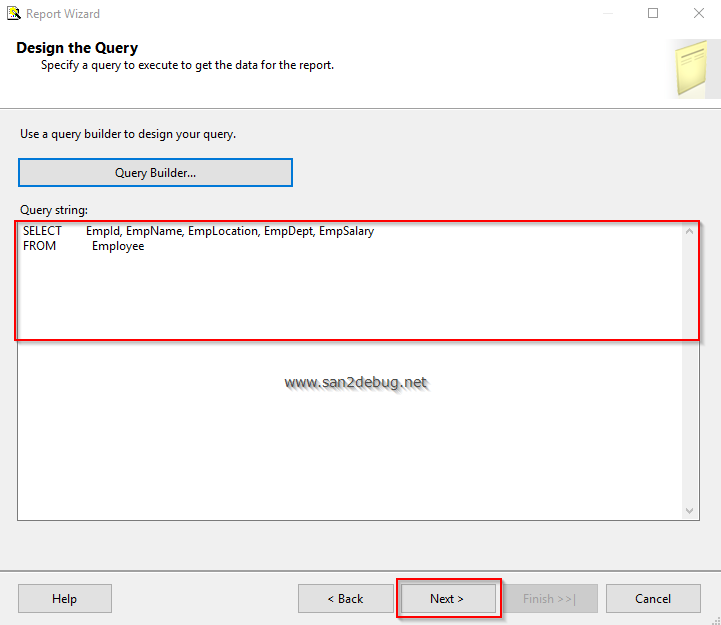

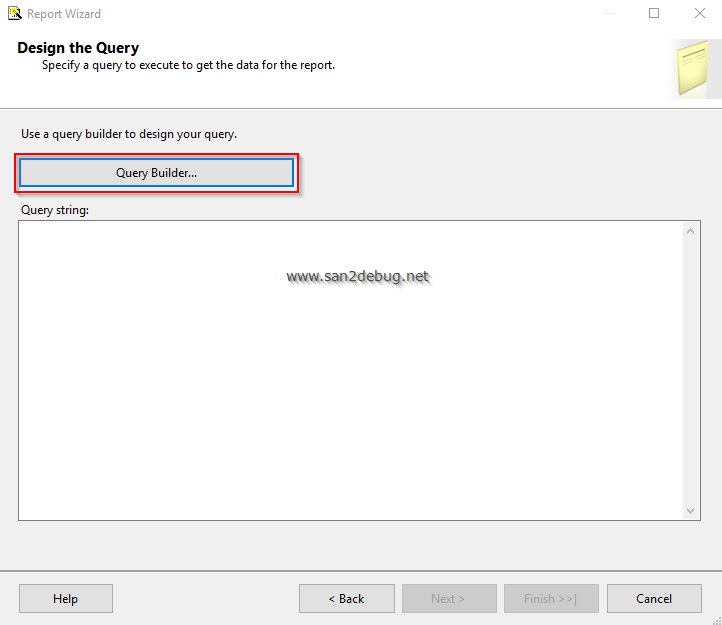

The "Design Query" window will open. Click the "Query Builder".

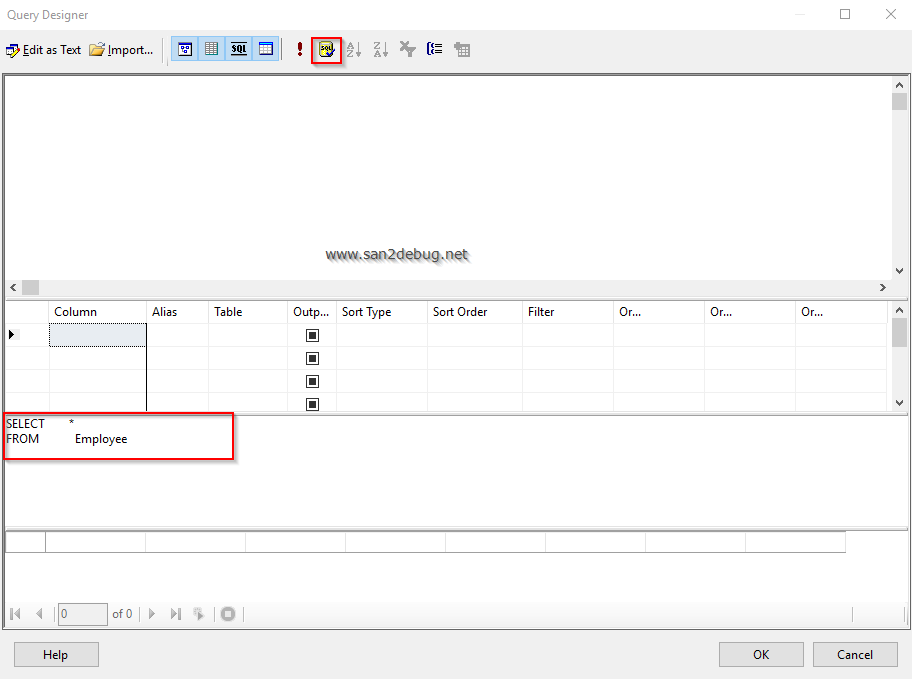

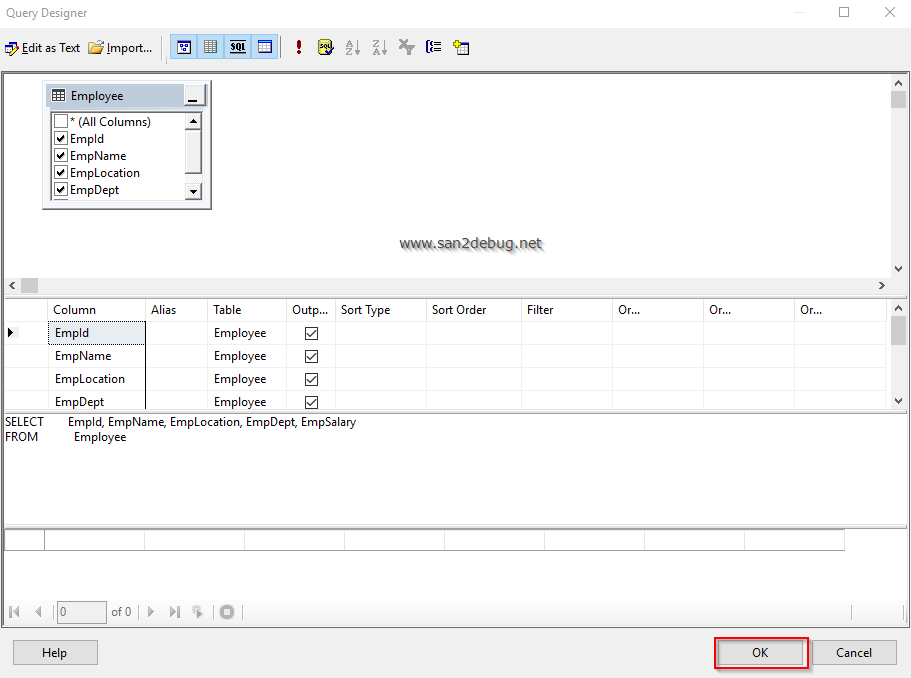

In the "Query Designer" window, type the query for the table in which you want to load the report and execute the SQL query, followed by clicking the SQL icon.


The SQL statement will be loaded for the particular table. Click the OK button.

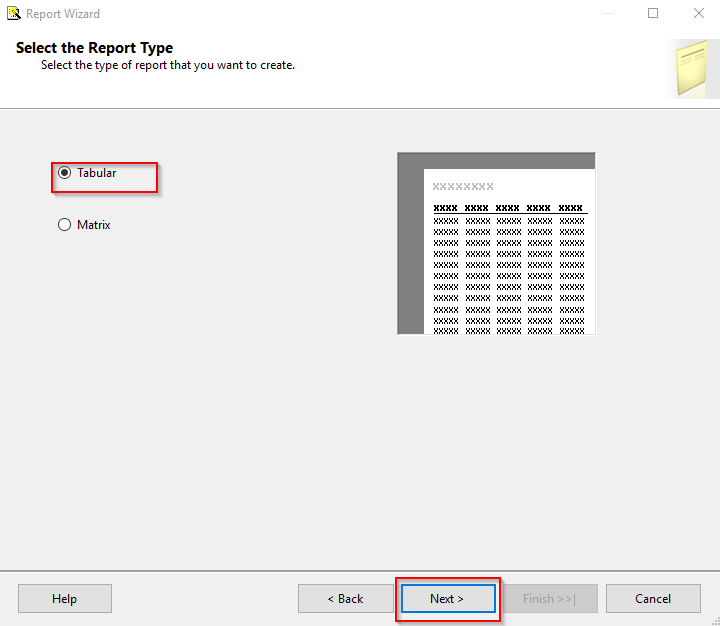

The "Report Type" window will open. Select the report as "Tabular" and click the "Next" button.

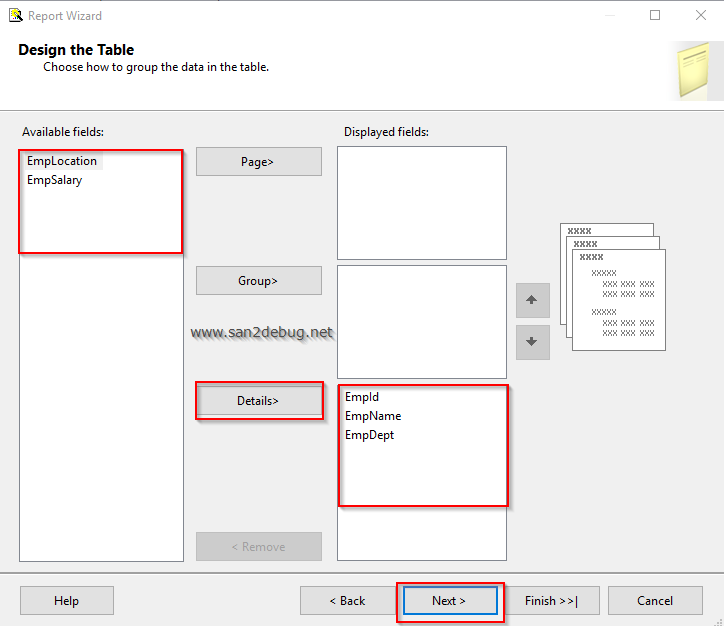

In the Table design window, add the table columns to display fields, followed by clicking "Details" button. Then, click the "Next" button.

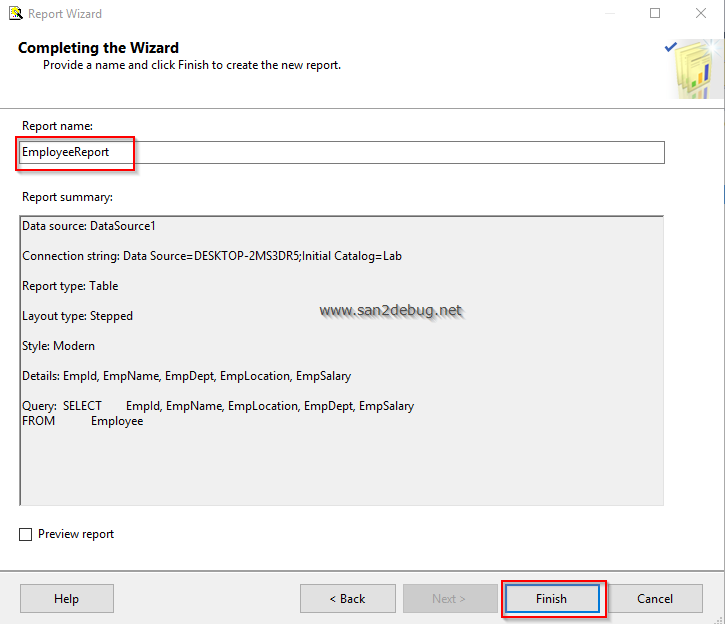

The "Completing the Wizard" window will open. Type the Report name and click the "Finish" button.

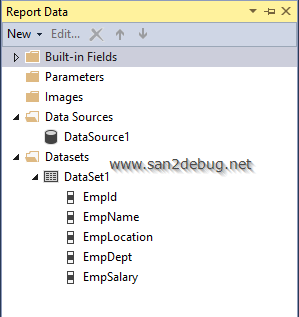

After creating the report, you can see the report data and solution explorer structure, as shown in the following screenshot.

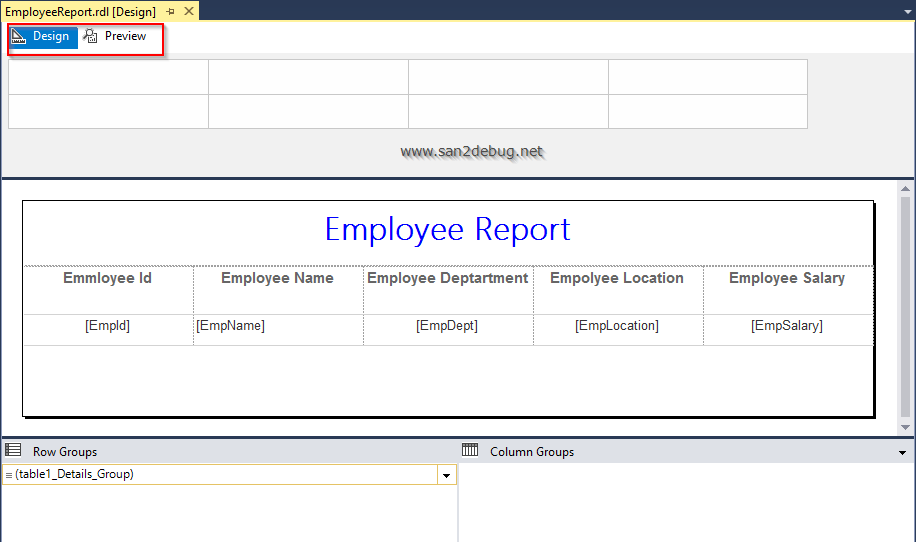

After creating the employee report, you can see the report design as following.



How to deploy the Report

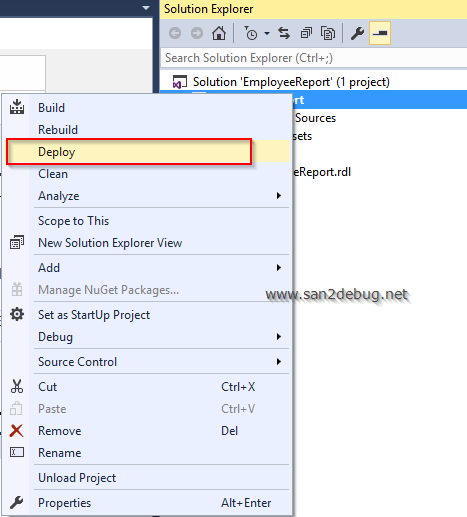

Go to the Solution Explorer, right click the EmployeeReport and click "Deploy" context-menu item.

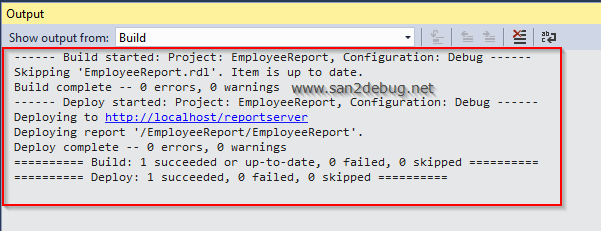

After successfully deploying the report to the Report Server, you will see the information from the output window, as shown in the screenshot.



How to run the Report

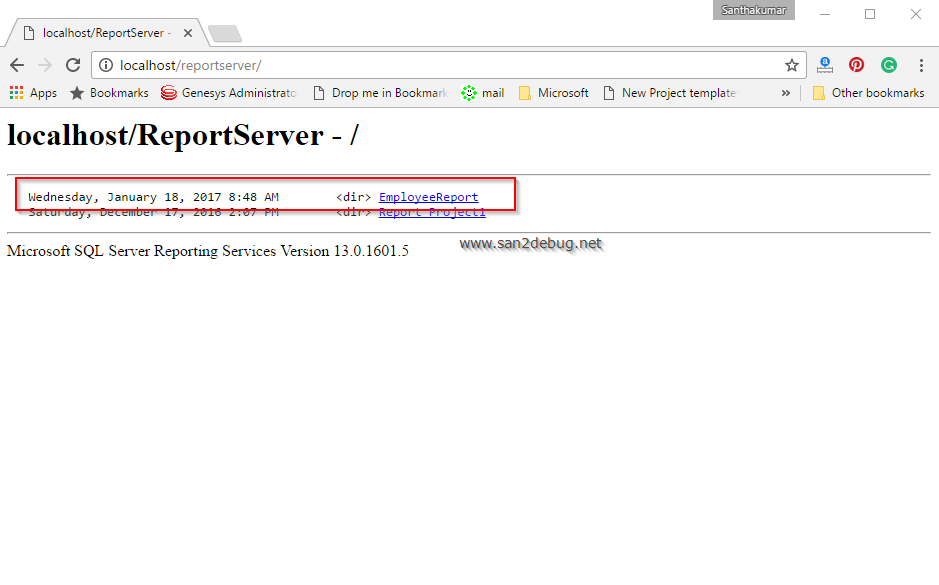

First, you have to copy the default Report Server URL and paste the same URL into your browser for running the report application.

  • http://localhost/reportserver

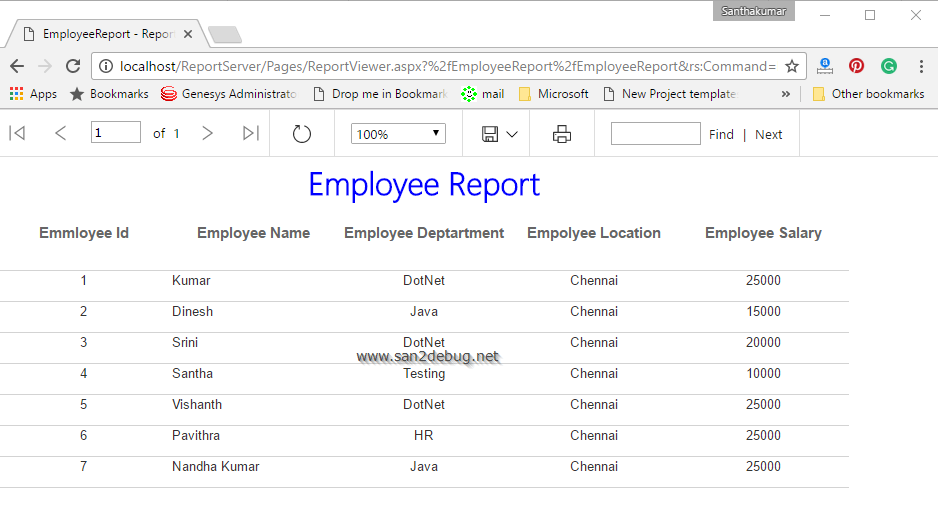

Now, run the report application followed by EmployeeReport project and clicking the EmployeeReport.


Note

You can also read this article on my blog here

Conclusion

I hope, you understood how we can create an SSRS Report without using Report Wizard in SQL Server Reporting Services 2016. If you find anything that I missed in this article, please let me know. Please share your valuable feedback / comments and suggestions to improve my future articles.
