How To Configure Exchange 2016 Hybrid Deployment With Office 365 - Part Four

In this multi part article series, we will see how to setup Hybrid Exchange 2016 with Office 365 by using ADFS and AAD Directory Sync Services.

• How To Configure Exchange 2016 Hybrid Deployment With Office 365 - Part One
• How To Configure Exchange 2016 Hybrid Deployment With Office 365 - Part Two
• How To Configure Exchange 2016 Hybrid Deployment With Office 365 - Part Three

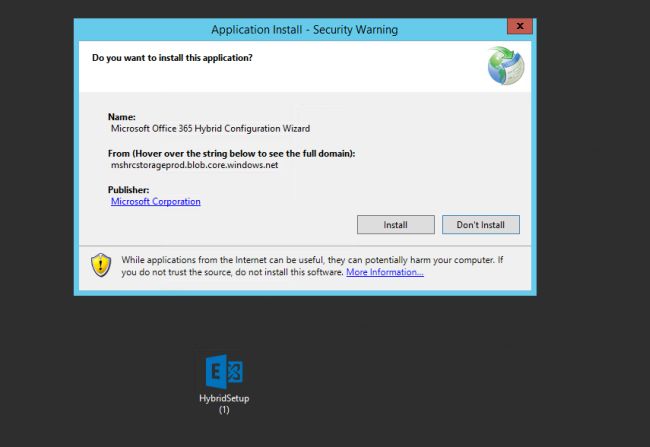

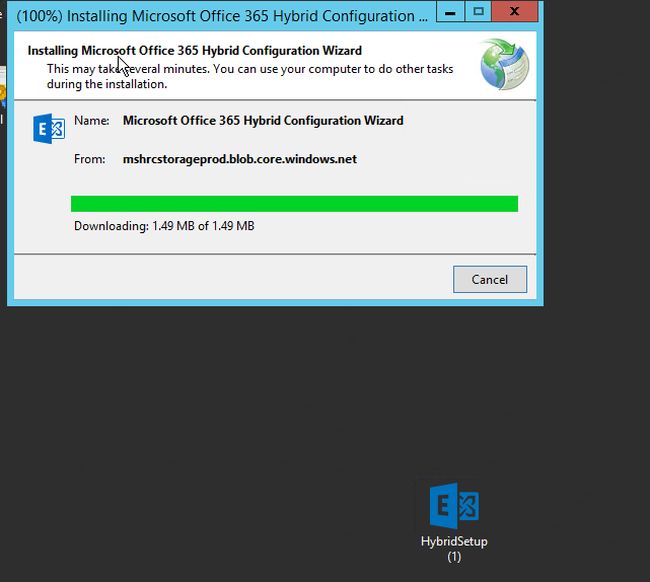

Now Click on Install to begin the Hybrid Configuration Wizard

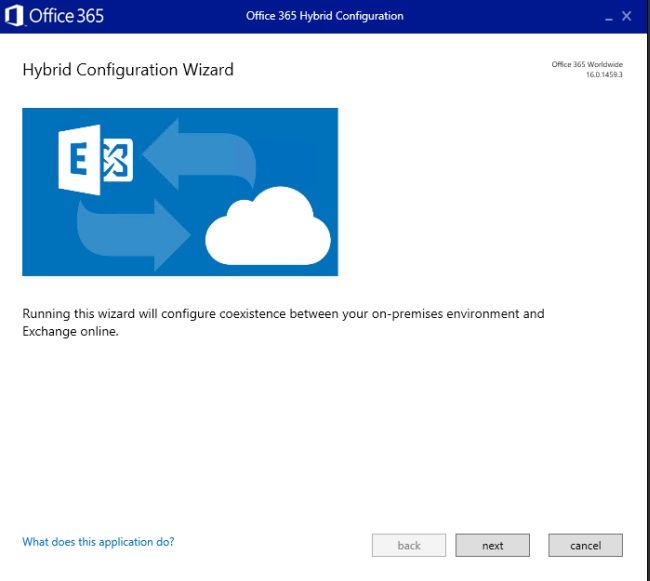

Click on Next

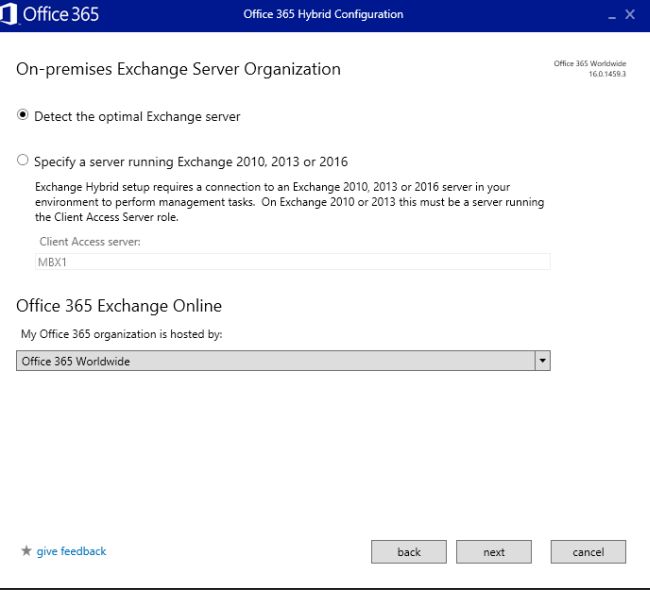

Select Detect the optimal Exchange server and click on Next

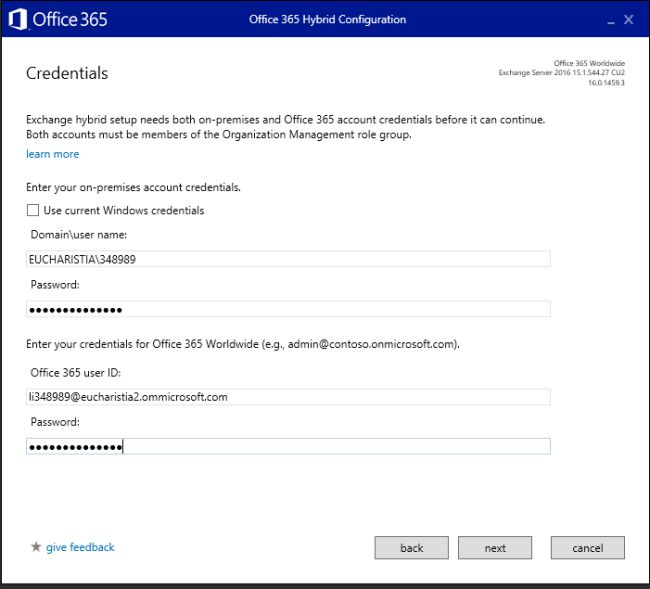

Uncheck Use Current Windows Credentials if the System login and Service account both are different and enter the credentials and Click on Next

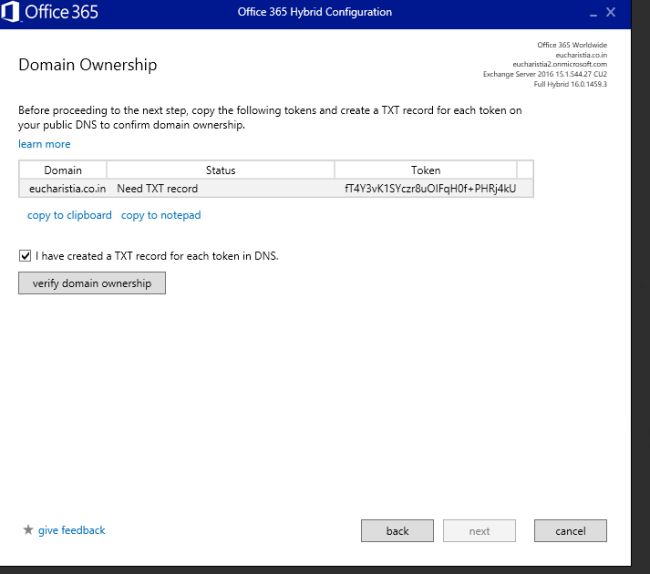

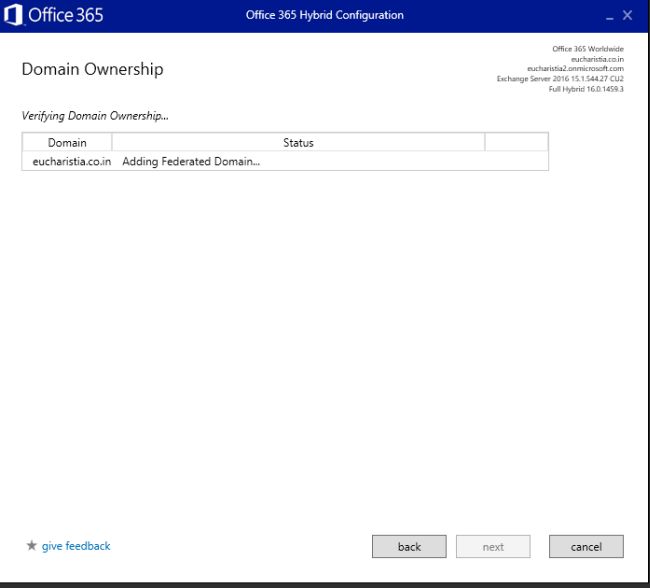

Now, we need to create another TXT record on the Public DNS Provider and Verify the DNS ownership.

Once Domain Ownership is verified, click next

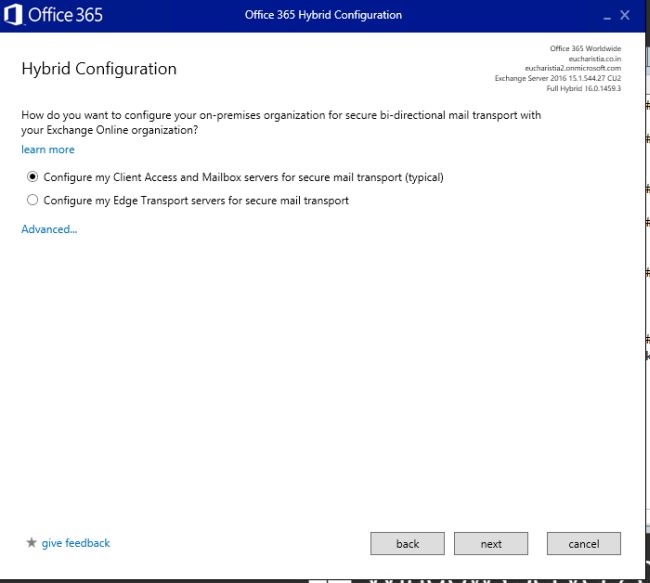

Select Configure my Client Access and Mailbox servers for secure mail Transport (typical) and Click Next

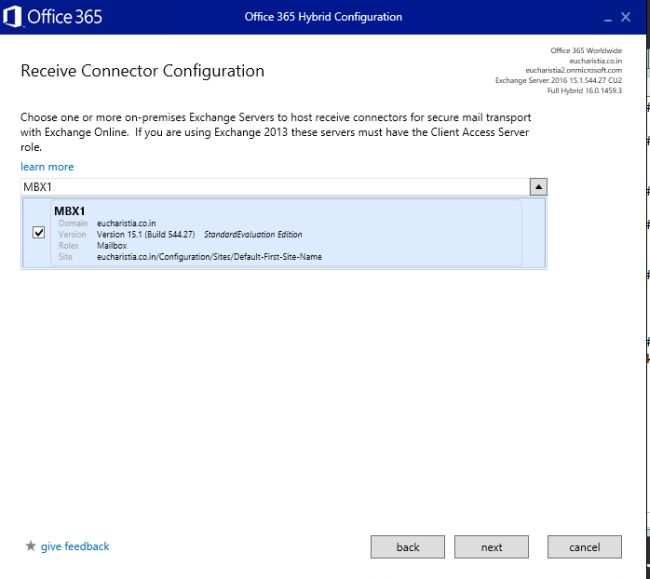

Select Client Access Server to create receive connector for mail flow and click Next

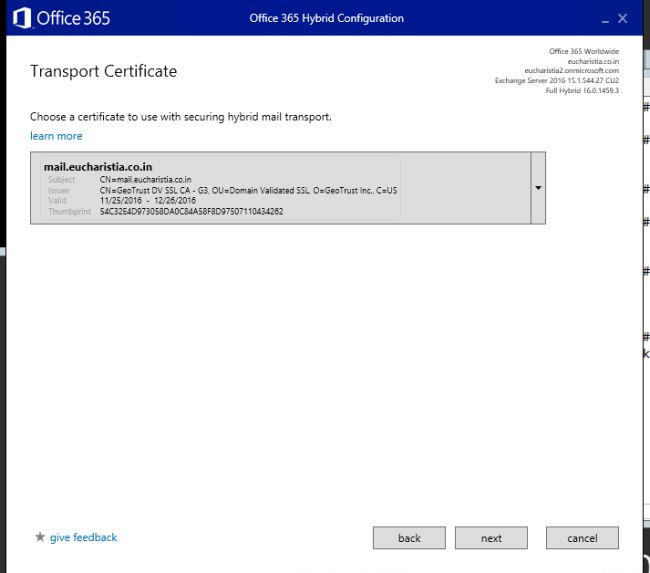

Select SSL Certificate for the TLS Mail Flow between on-premises and Office365

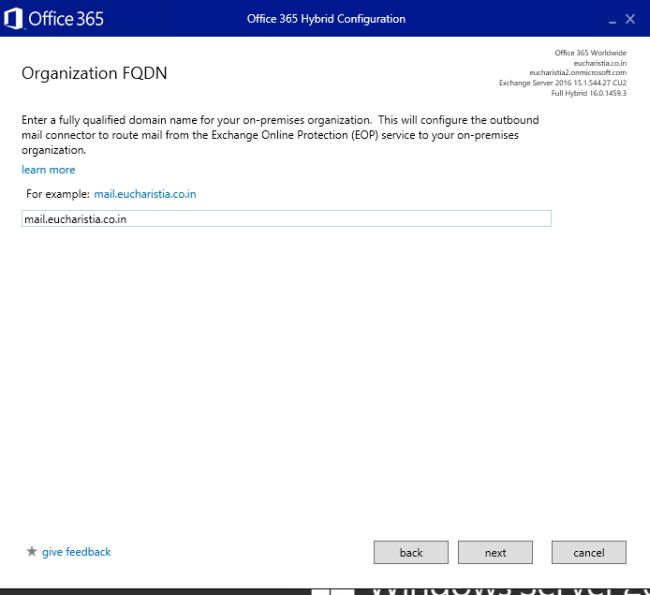

Enter FQDN for On-premises



So far so good. Now it is fun time.. Yes it is..

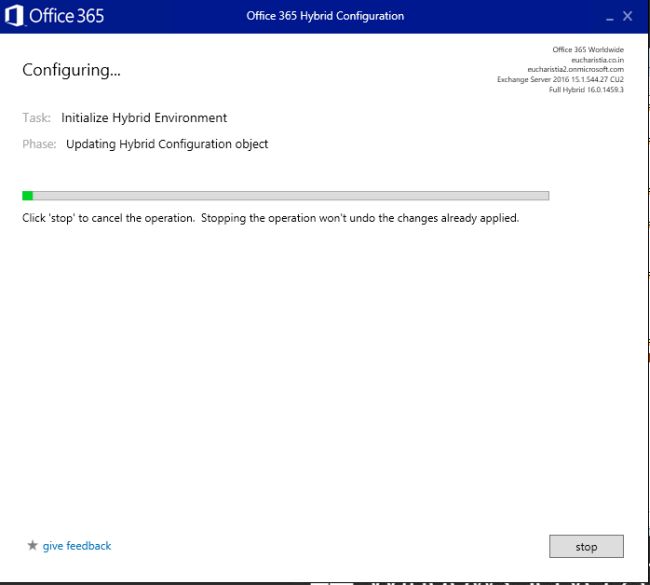

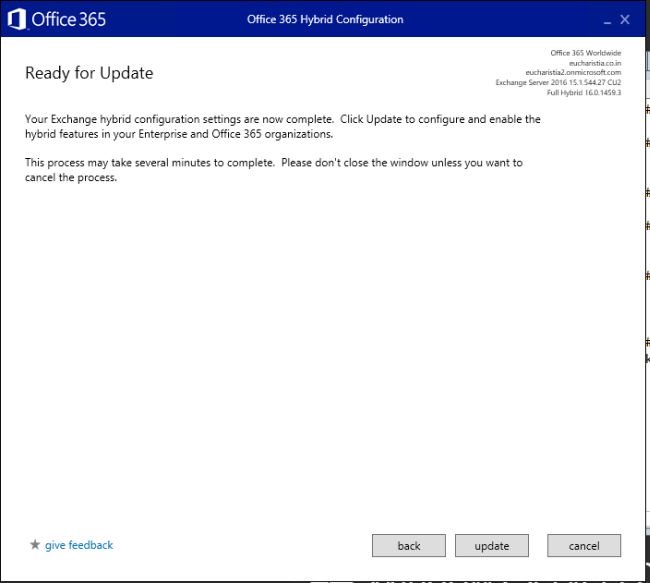

Click on Update to update the Hybdrid configuration. It may take some time to complete it depends on your on premises Exchange and Active Directory.

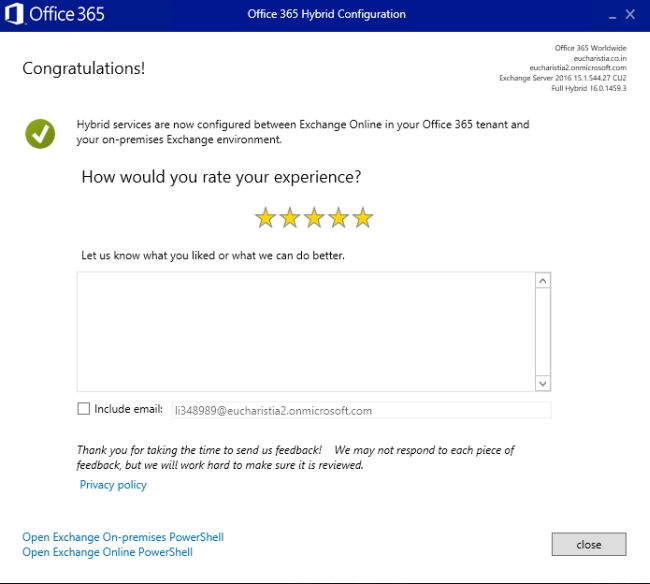

Congratulations.Hybrid deployment has been successfully configured.
