How To Create And Use A Blurred Image In Xamarin.Forms

 Introduction

This article demonstrates how to create and use a blurred image in Xamarin.Forms, XAML, and C#. This article starts with the introduction of the BlurredImage tag in XAML.



Implementation

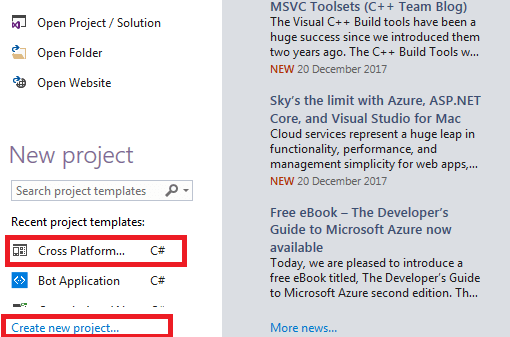

Open Visual Studio and select a New Project.

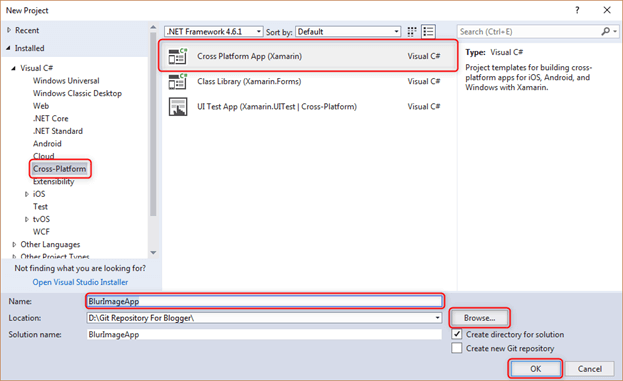

Now, select Cross-Platform App, give the project a name, and set the project path. Then, click OK.

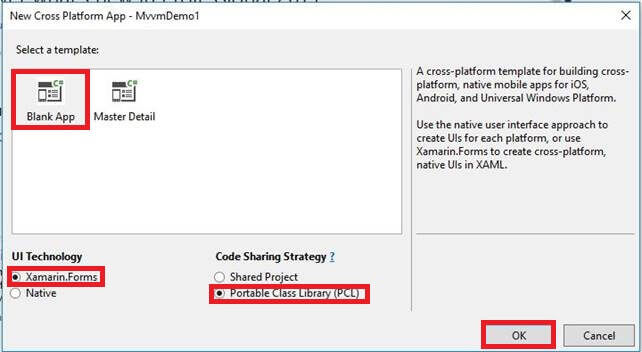

Select the template as "Blank App" and code sharing as "PCL".

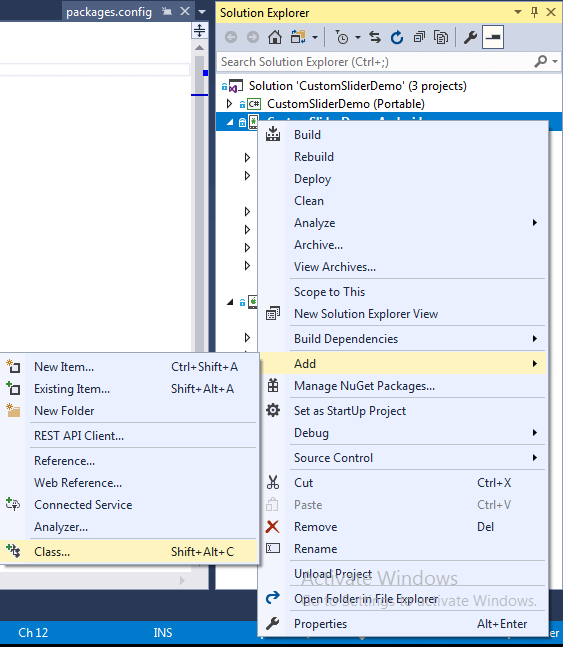

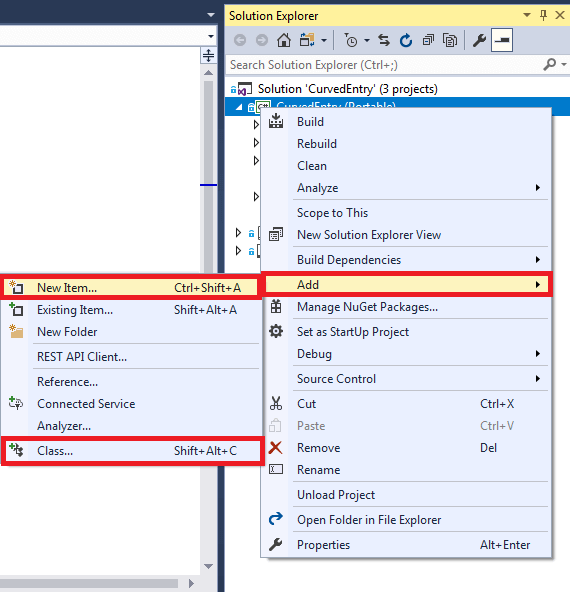

Right-click on PCL Project and select Add >> New Item or Add >> Class.



We are creating a class BlurredImage.cs and writing the following C# code.

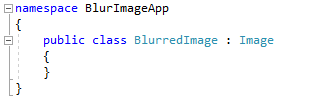

BlurredImage.cs

public class BlurredImage : Image
    {
    }

This property is set in the Android project as well as in iOS project.

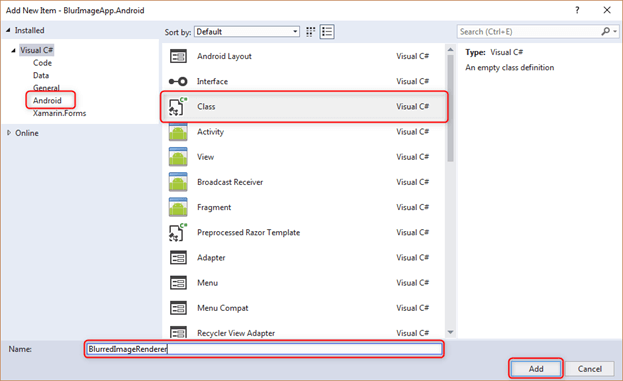

Let us start with Android. We are creating a class in Android project and rendering the image.

 Then, we set all the properties when initializing the PCL Project.

Please make sure of the dependency ([assembly: ExportRenderer(typeof(BlurredImage), typeof(BlurredImage Renderer))]) of Android (BlurredImageRndered) and PCL (BlurredImage).

BlurredImageRendere.cd

public class BlurredImageRenderer : ViewRenderer<BlurredImage, ImageView>
  {
      private bool _isDisposed;

      private const float BITMAP_SCALE = 0.3f;
      private const float RESIZE_SCALE = 0.2f;

      public BlurredImageRenderer()
      {
          AutoPackage = false;
      }

      protected override void OnElementChanged(ElementChangedEventArgs<BlurredImage> e)
      {
          base.OnElementChanged(e);

          if (Control == null)
          {
              var imageView = new BlurredImageView(Context);
              SetNativeControl(imageView);
          }

          UpdateBitmap(e.OldElement);
          UpdateAspect();
      }

      protected override void OnElementPropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)
      {
          base.OnElementPropertyChanged(sender, e);

          if (e.PropertyName == Image.SourceProperty.PropertyName)
          {
              UpdateBitmap(null);
              return;
          }
          if (e.PropertyName == Image.AspectProperty.PropertyName)
          {
              UpdateAspect();
          }
      }

      protected override void Dispose(bool disposing)
      {
          if (_isDisposed)
          {
              return;
          }
          _isDisposed = true;
          BitmapDrawable bitmapDrawable;
          if (disposing && Control != null && (bitmapDrawable = (Control.Drawable as BitmapDrawable)) != null)
          {
              Bitmap bitmap = bitmapDrawable.Bitmap;
              if (bitmap != null)
              {
                  bitmap.Recycle();
                  bitmap.Dispose();
              }
          }
          base.Dispose(disposing);
      }

      private void UpdateAspect()
      {
          using (ImageView.ScaleType scaleType = ToScaleType(Element.Aspect))
          {
              Control.SetScaleType(scaleType);
          }
      }

      private static ImageView.ScaleType ToScaleType(Aspect aspect)
      {
          switch (aspect)
          {
              case Aspect.AspectFill:
                  return ImageView.ScaleType.CenterCrop;
              case Aspect.Fill:
                  return ImageView.ScaleType.FitXy;
          }
          return ImageView.ScaleType.FitCenter;
      }

      private async void UpdateBitmap(Image previous = null)
      {
          Bitmap bitmap = null;
          ImageSource source = Element.Source;
          if (previous == null || !object.Equals(previous.Source, Element.Source))
          {
              SetIsLoading(true);
              ((BlurredImageView)base.Control).SkipInvalidate();

              // I'm not sure where this comes from.
              Control.SetImageResource(17170445);
              if (source != null)
              {
                  try
                  {
                      bitmap = await GetImageFromImageSource(source, Context);
                  }
                  catch (TaskCanceledException)
                  {
                  }
                  catch (IOException)
                  {
                  }
                  catch (NotImplementedException)
                  {
                  }
              }
              if (Element != null && object.Equals(Element.Source, source))
              {
                  if (!_isDisposed)
                  {
                      Control.SetImageBitmap(bitmap);
                      if (bitmap != null)
                      {
                          bitmap.Dispose();
                      }
                      SetIsLoading(false);
                      ((IVisualElementController)base.Element).NativeSizeChanged();
                  }
              }
          }
      }

      private async Task<Bitmap> GetImageFromImageSource(ImageSource imageSource, Context context)
      {
          IImageSourceHandler handler;

          if (imageSource is FileImageSource)
          {
              handler = new FileImageSourceHandler();
          }
          else if (imageSource is StreamImageSource)
          {
              handler = new StreamImagesourceHandler(); // sic
          }
          else if (imageSource is UriImageSource)
          {
              handler = new ImageLoaderSourceHandler(); // sic
          }
          else
          {
              throw new NotImplementedException();
          }

          var originalBitmap = await handler.LoadImageAsync(imageSource, context);

          // Blur it twice!
          var blurredBitmap = await Task.Run(() => CreateBlurredImage(CreateResizedImage(originalBitmap), 25));

          return blurredBitmap;
      }

      private Bitmap CreateBlurredImage(Bitmap originalBitmap, int radius)
      {
          // Create another bitmap that will hold the results of the filter.
          Bitmap blurredBitmap;
          blurredBitmap = Bitmap.CreateBitmap(originalBitmap);

          // Create the Renderscript instance that will do the work.
          RenderScript rs = RenderScript.Create(Context);

          // Allocate memory for Renderscript to work with
          Allocation input = Allocation.CreateFromBitmap(rs, originalBitmap, Allocation.MipmapControl.MipmapFull, AllocationUsage.Script);
          Allocation output = Allocation.CreateTyped(rs, input.Type);

          // Load up an instance of the specific script that we want to use.
          ScriptIntrinsicBlur script = ScriptIntrinsicBlur.Create(rs, Android.Renderscripts.Element.U8_4(rs));
          script.SetInput(input);

          // Set the blur radius
          script.SetRadius(radius);

          // Start Renderscript working.
          script.ForEach(output);

          // Copy the output to the blurred bitmap
          output.CopyTo(blurredBitmap);

          return blurredBitmap;
      }

      private Bitmap CreateResizedImage(Bitmap originalBitmap)
      {
          int width = Convert.ToInt32(Math.Round(originalBitmap.Width * BITMAP_SCALE));
          int height = Convert.ToInt32(Math.Round(originalBitmap.Height * BITMAP_SCALE));

          // Create another bitmap that will hold the results of the filter.
          Bitmap inputBitmap = Bitmap.CreateScaledBitmap(originalBitmap, width, height, false);
          Bitmap outputBitmap = Bitmap.CreateBitmap(inputBitmap);

          // Create the Renderscript instance that will do the work.
          RenderScript rs = RenderScript.Create(Context);


          Allocation tmpIn = Allocation.CreateFromBitmap(rs, inputBitmap);
          Allocation tmpOut = Allocation.CreateFromBitmap(rs, outputBitmap);

          // Allocate memory for Renderscript to work with
          var t = Android.Renderscripts.Type.CreateXY(rs, tmpIn.Element, Convert.ToInt32(width * RESIZE_SCALE), Convert.ToInt32(height * RESIZE_SCALE));
          Allocation tmpScratch = Allocation.CreateTyped(rs, t);

          ScriptIntrinsicResize theIntrinsic = ScriptIntrinsicResize.Create(rs);

          // Resize the original img down.
          theIntrinsic.SetInput(tmpIn);
          theIntrinsic.ForEach_bicubic(tmpScratch);

          // Resize smaller img up.
          theIntrinsic.SetInput(tmpScratch);
          theIntrinsic.ForEach_bicubic(tmpOut);
          tmpOut.CopyTo(outputBitmap);

          return outputBitmap;
      }

      private class BlurredImageView : ImageView
      {
          private bool _skipInvalidate;

          public BlurredImageView(Context context) : base(context)
          {
          }

          public override void Invalidate()
          {
              if (this._skipInvalidate)
              {
                  this._skipInvalidate = false;
                  return;
              }
              base.Invalidate();
          }

          public void SkipInvalidate()
          {
              this._skipInvalidate = true;
          }
      }

      private static FieldInfo _isLoadingPropertyKeyFieldInfo;

      private static FieldInfo IsLoadingPropertyKeyFieldInfo
      {
          get
          {
              if (_isLoadingPropertyKeyFieldInfo == null)
              {
                  _isLoadingPropertyKeyFieldInfo = typeof(Image).GetField("IsLoadingPropertyKey", BindingFlags.Static | BindingFlags.NonPublic);
              }
              return _isLoadingPropertyKeyFieldInfo;
          }
      }

      private void SetIsLoading(bool value)
      {
          var fieldInfo = IsLoadingPropertyKeyFieldInfo;
          ((IElementController)base.Element).SetValueFromRenderer((BindablePropertyKey)fieldInfo.GetValue(null), value);
      }
  }

Now, it's time to go to the iOS project. Again, set the PCL(BlurredImage) property in IOS Project.

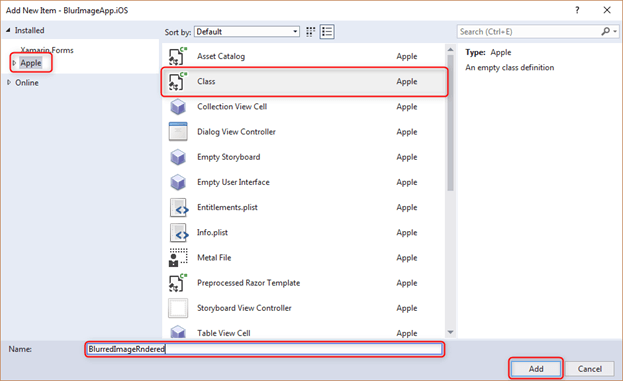

We are creating a Class, so right click on iOS Project and select Apple. Then, select "Class" and give this class a name as BlurredImageRndered.cs.

Now, let us write some code for Image and Set Property.

BlurredImageRndered.cs

public class BlurredImageRenderer : ImageRenderer
   {
       protected override void OnElementChanged(ElementChangedEventArgs<Image> e)
       {
           if (Control == null)
           {
               SetNativeControl(new BlurredImageView
               {
                   ContentMode = UIViewContentMode.ScaleAspectFit,
                   ClipsToBounds = true
               });
           }

           base.OnElementChanged(e);
       }

       private class BlurredImageView : UIImageView
       {
           public override UIImage Image
           {
               get { return base.Image; }
               set
               {
                   // This may take up to a second so don't block the UI thread.
                   Task.Run(() =>
                   {
                       using (var context = CIContext.Create())
                       using (var inputImage = CIImage.FromCGImage(value.CGImage))
                       using (var filter = new CIGaussianBlur() { Image = inputImage, Radius = 5 })
                       using (var resultImage = context.CreateCGImage(filter.OutputImage, inputImage.Extent))
                       {
                           InvokeOnMainThread(() => base.Image = new UIImage(resultImage));
                       }
                   });
               }
           }
       }
   }

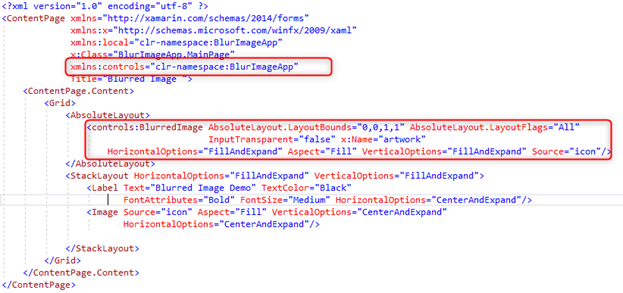

Go to the PCL project and write this code in MainPage.xaml.

As you can see in the above code, we have to set the view reference in xmlns:custom="clr-namespace:BlurImage" MainPage.xaml.

Write the following code for BlurredImage.

MainPage.xaml

<Grid>
        <AbsoluteLayout>
            <controls:BlurredImage AbsoluteLayout.LayoutBounds="0,0,1,1" AbsoluteLayout.LayoutFlags="All"
                                   InputTransparent="false" x:Name="artwork"
                HorizontalOptions="FillAndExpand" Aspect="Fill" VerticalOptions="FillAndExpand" Source="icon"/>
        </AbsoluteLayout>
        <StackLayout HorizontalOptions="FillAndExpand" VerticalOptions="FillAndExpand">
            <Label Text="Blurred Image Demo" TextColor="Black"
                   FontAttributes="Bold" FontSize="Medium" HorizontalOptions="CenterAndExpand"/>
            <Image Source="icon" Aspect="Fill" VerticalOptions="CenterAndExpand"
                   HorizontalOptions="CenterAndExpand"/>

        </StackLayout>
    </Grid>

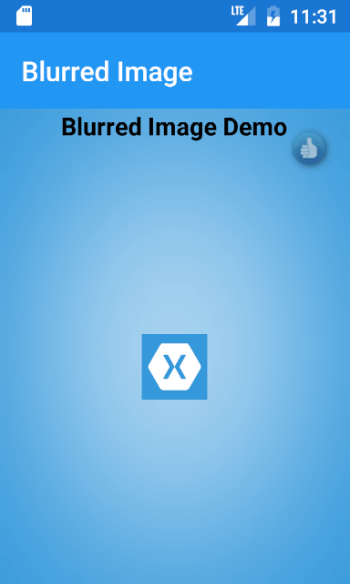

Now, you will have your BlurredImage working!!
