Merge Two SQLite Databases In Windows Runtime Apps

Here are the steps,

Step 1

Firstly, Create a Blank Windows Project.



Step 2

Install ‘sqlite-net’ from the Package manager and also Add reference for ‘SQLite for Windows Runtime’.

In the MainPage.xaml, we add the following buttons with click events-
  • Button to create a first database

  • Button to create a second database

  • Button to merge two databases

Complete XAML code

  1. <Page
  2. x:Class="SQLiteMerge.MainPage"
  3.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  4.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  5.     xmlns:local="using:SQLiteMerge"
  6.     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  7.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  8. mc:Ignorable="d">
  9.     <Grid Background="#FF5A7FD6">
  10.         <Button x:Name="btnCreateFirstDb" Content="Create First Database" HorizontalAlignment="Left" Margin="154,97,0,0" VerticalAlignment="Top" Width="440" Height="77" Click="btnCreateFirstDb_Click"/>
  11.         <Button x:Name="btnCreateSecondDb" Content="Create Second Database" HorizontalAlignment="Left" Margin="148,206,0,0" VerticalAlignment="Top" Width="446" Height="77" Click="btnCreateSecondDb_Click"/>
  12.         <Button x:Name="btnMerge" Content="Merge Two Database" HorizontalAlignment="Left" Margin="154,316,0,0" VerticalAlignment="Top" Width="446" Height="77" Click="btnMerge_Click"/>
  13.     </Grid>
  14. </Page>
Step 3

In the code behind MainPage.xaml.cs, for each first two buttons we add the code for creating two Databases and a third button to merge values from second database to the first one.

Complete Code snippet
  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Runtime.InteropServices.WindowsRuntime;
  6. using Windows.Foundation;
  7. using Windows.Foundation.Collections;
  8. using Windows.UI.Xaml;
  9. using Windows.UI.Xaml.Controls;
  10. using Windows.UI.Xaml.Controls.Primitives;
  11. using Windows.UI.Xaml.Data;
  12. using Windows.UI.Xaml.Input;
  13. using Windows.UI.Xaml.Media;
  14. using Windows.UI.Xaml.Navigation;
  15. using SQLite;
  16. using Windows.Storage;
  17. using System.Diagnostics;
  18.
  19. namespace SQLiteMerge
  20. {
  21.
  22.     public sealed partial class MainPage : Page
  23.     {
  24.         private SQLiteAsyncConnection dbCon;
  25.
  26.         public MainPage()
  27.         {
  28.             this.InitializeComponent();
  29.
  30.         }
  31.
  32.         [Table("Students")]
  33.         public sealed class Student
  34.         {
  35.             public string Name { getset; }
  36.             public int RollNo { getset; }
  37.             public string Faculty { getset; }
  38.         }
  39.
  40.         //Creates First Database
  41.         private async void btnCreateFirstDb_Click(object sender, RoutedEventArgs e)
  42.         {
  43.             try
  44.             {
  45.                 dbCon = new SQLiteAsyncConnection(ApplicationData.Current.LocalFolder.Path + "\\FirstDatabase.sqlite");
  46.                 await dbCon.CreateTableAsync<Student>();
  47.
  48.                 var student = new Student
  49.                 {
  50.                     Name = "Ram",
  51.                     RollNo = 1,
  52.                     Faculty = "Physics"
  53.                 };
  54.                 await dbCon.InsertAsync(student);
  55.             }
  56.             catch (Exception ex)
  57.             {
  58.                 Debug.WriteLine(ex.ToString());
  59.             }
  60.         }
  61.
  62.         //Creates Second Database
  63.         private async void btnCreateSecondDb_Click(object sender, RoutedEventArgs e)
  64.         {
  65.             try
  66.             {
  67.                 SQLiteAsyncConnection dbCon = new SQLiteAsyncConnection(ApplicationData.Current.LocalFolder.Path + "\\SecondDatabase.sqlite");
  68.                 await dbCon.CreateTableAsync<Student>();
  69.
  70.                 var student = new Student
  71.                 {
  72.                     Name = "Shyam",
  73.                     RollNo = 2,
  74.                     Faculty = "Biology"
  75.                 };
  76.                 await dbCon.InsertAsync(student);
  77.             }
  78.             catch (Exception ex)
  79.             {
  80.                 Debug.WriteLine(ex.ToString());
  81.             }
  82.         }
  83.
  84.         //Merging two databases. Inserts values from Second database to First Database
  85.         private async void btnMerge_Click(object sender, RoutedEventArgs e)
  86.         {
  87.             try
  88.             {
  89.                 string firstDbPath = ApplicationData.Current.LocalFolder.Path + "\\FirstDatabase.sqlite";
  90.                 string secondDbPath = ApplicationData.Current.LocalFolder.Path + "\\SecondDatabase.sqlite";
  91.                 await dbCon.ExecuteAsync("ATTACH DATABASE '" + firstDbPath + "' AS firstDB;");
  92.                 await dbCon.ExecuteAsync("ATTACH DATABASE '" + secondDbPath + "' AS secondDB");
  93.
  94.                 string query = "INSERT OR REPLACE INTO firstDB.Students ("
  95.                 + "Name, RollNo, Faculty) "
  96.                 + "SELECT Name, RollNo, Faculty "
  97.                 + "FROM secondDB.Students";
  98.                 await dbCon.ExecuteAsync(query);
  99.             }
  100.             catch (Exception ex)
  101.             {
  102.                 Debug.WriteLine(ex.ToString());
  103.             }
  104.         }
  105.     }

Step 4

Run the application.

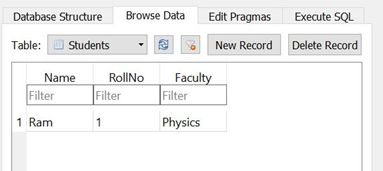

Click on Create First Database button. You will see the first SQLite database created in local folder. (This PC > C > Users > [Your User Name] > AppData > Local > Packages > [App package name] > LocalState)

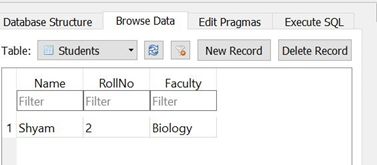

Click on Create Second Database button. You will see the second SQLite database created in local folder. (This PC > C > Users > [Your User Name] > AppData > Local > Packages > [App package name] > LocalState)

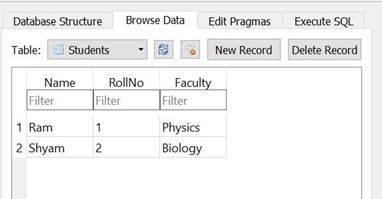

Finally Click on Merge two databases button, you will see the values from second database merged into first database.



You can get the complete project from GitHub https://github.com/olikishor/SQLiteMerge
